Install the ION 5200 Using the Four-Post Rack Mount Kit
Learn how to install a ION 5200 in a four-post rack.
The following procedure describes how to install
the ION 5200 in a 19” four-post equipment rack using the four-post
rack kit.

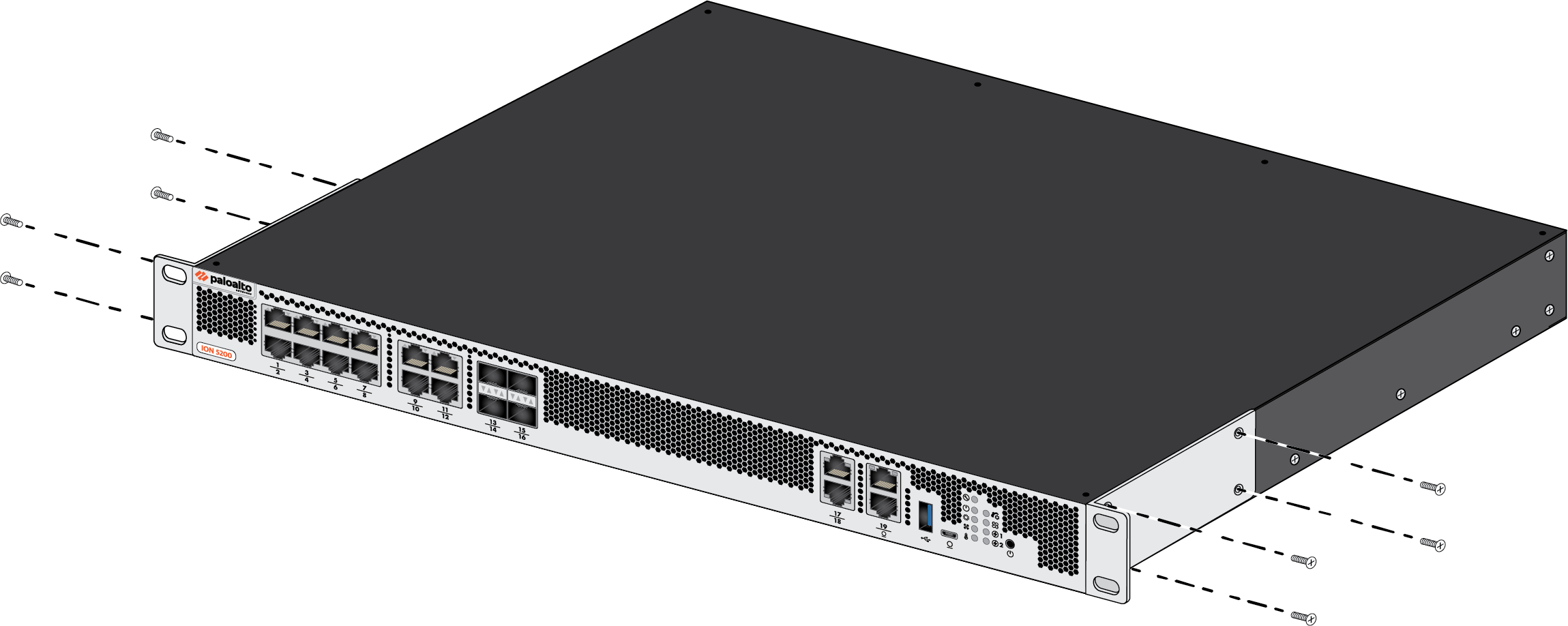

- Attach one rack-mount bracket to each side of
the ION 5200 in the front-mount position using four #6-32 x 5/16”
screws for each bracket and torque to 9 in-lbs.
![]()

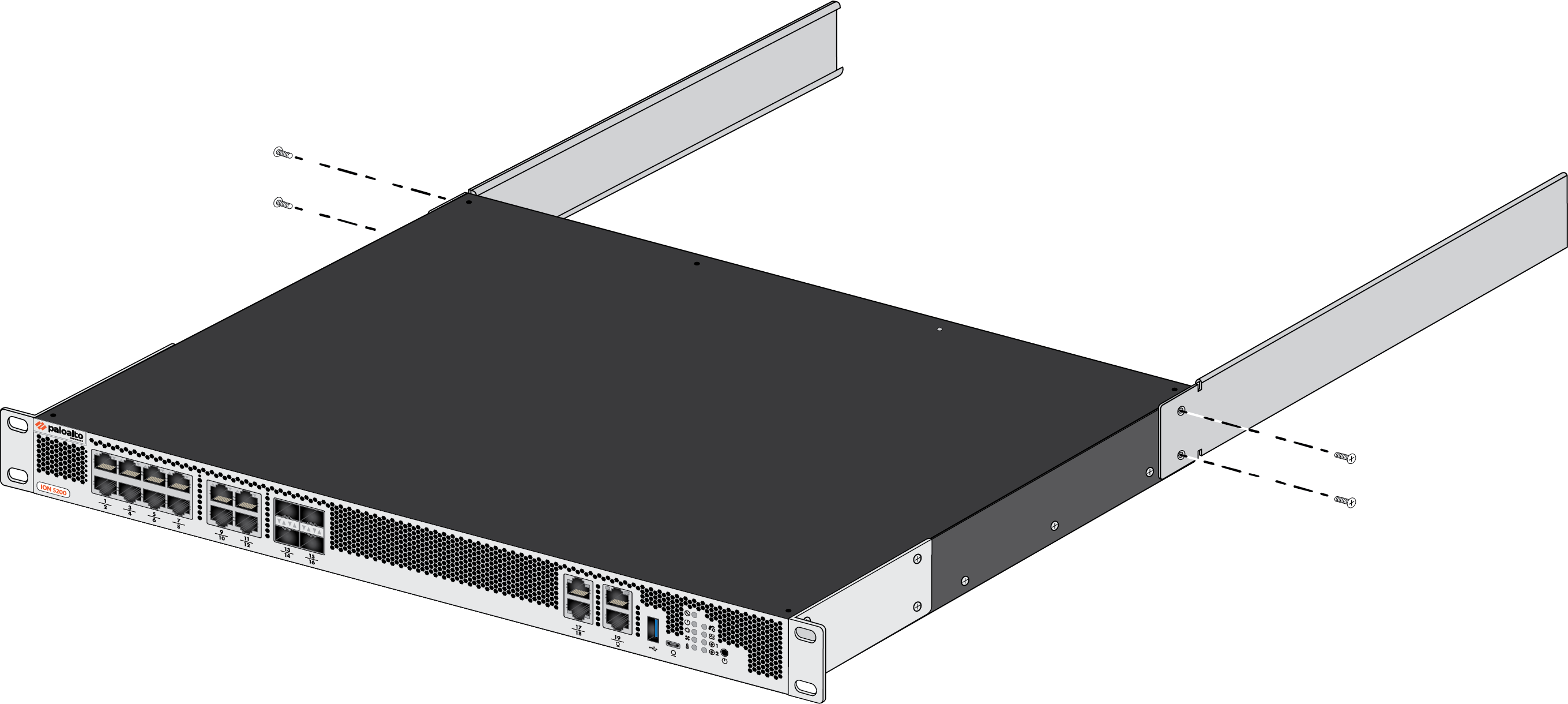

- Attach one rack-mount rail to each side of the device
using two #6-32 x 5/16” screws for each rail and torque to 9 in-lbs.
![]()

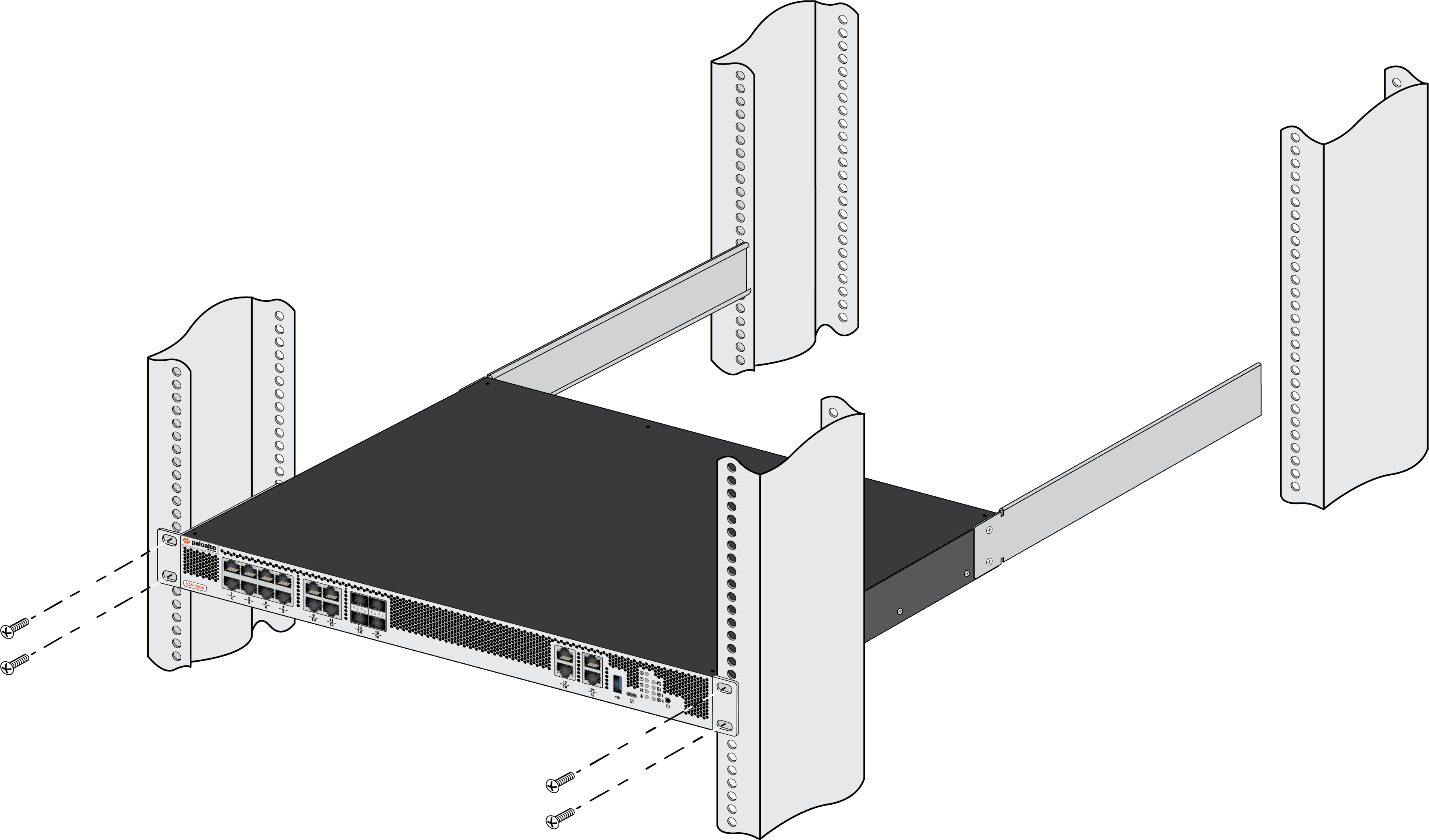

- Hold the device in the rack and secure the front rack-mount
brackets to the front rack-posts using two screws for each bracket.
Use the appropriate screws (#10-32 x 3/4” or #12-24 x 1/2”) for
your rack and torque to 25 in-lbs. Use cage nuts to secure the screws
if the rack has square holes.
![]()

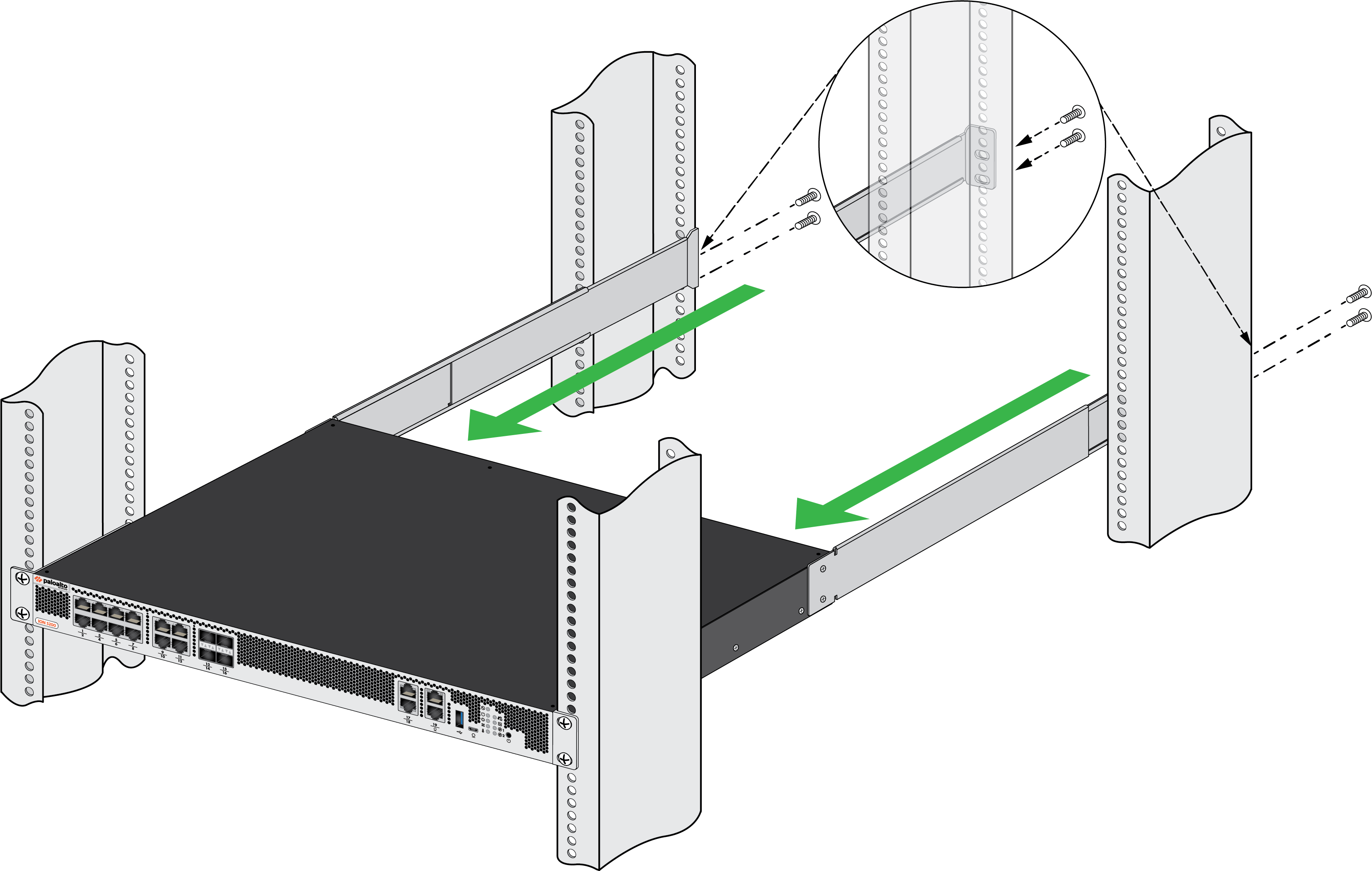

- Slide one back rack-mount bracket into each of the two
previously installed side rack-mount rails and secure the brackets
to the back rack-posts using the appropriate screws for your rack
(#10-32 x 3/4” or #12-24 x 1/2”) and torque to 25 in-lbs.
![]()
