Install the ION 9200 Using Four-Post Rack Mount Kit

Learn to install the ION 9200 using the four-post rack mount kit.
The following procedure describes how to install the ION 9200 in a 19” four-post equipment rack using the four-post rack kit.

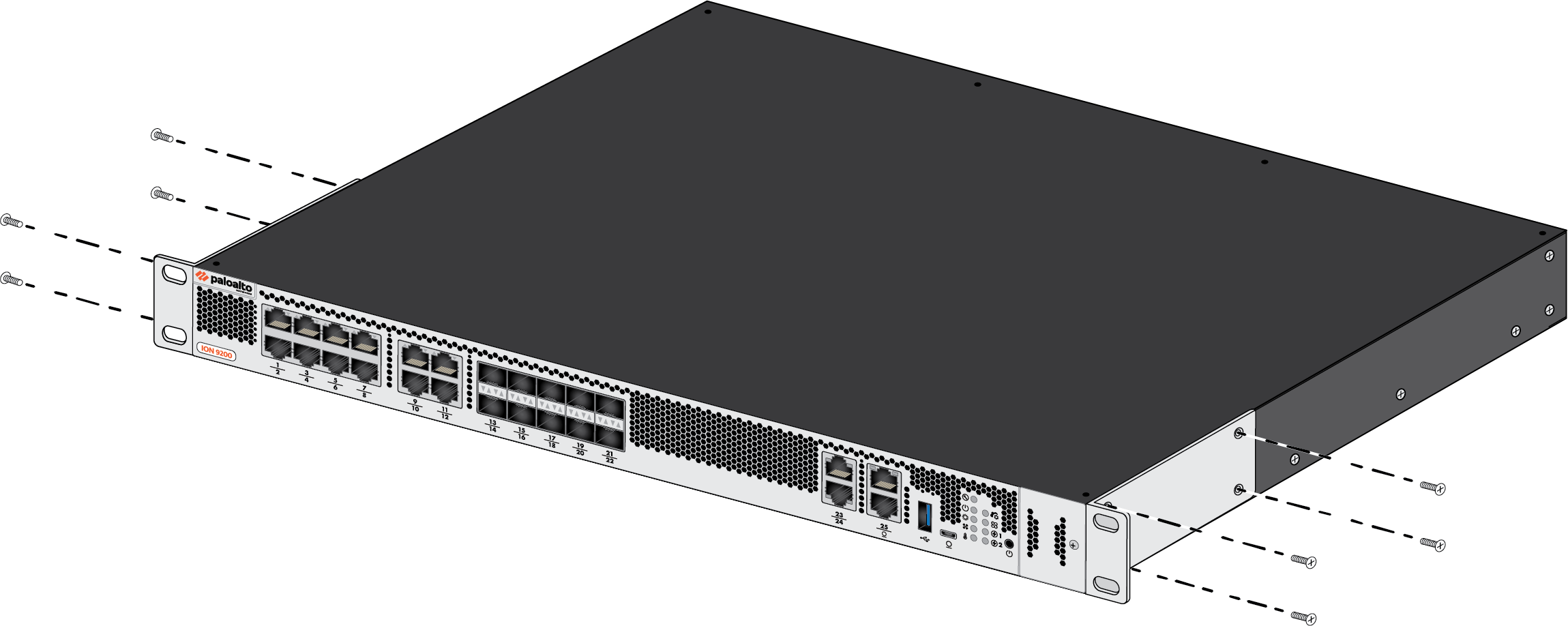

  1. Attach one rack-mount bracket to each side of the ION 9200 in the front-mount position using four #6-32 x 5/16” screws for each bracket and torque to 9 in-lbs.

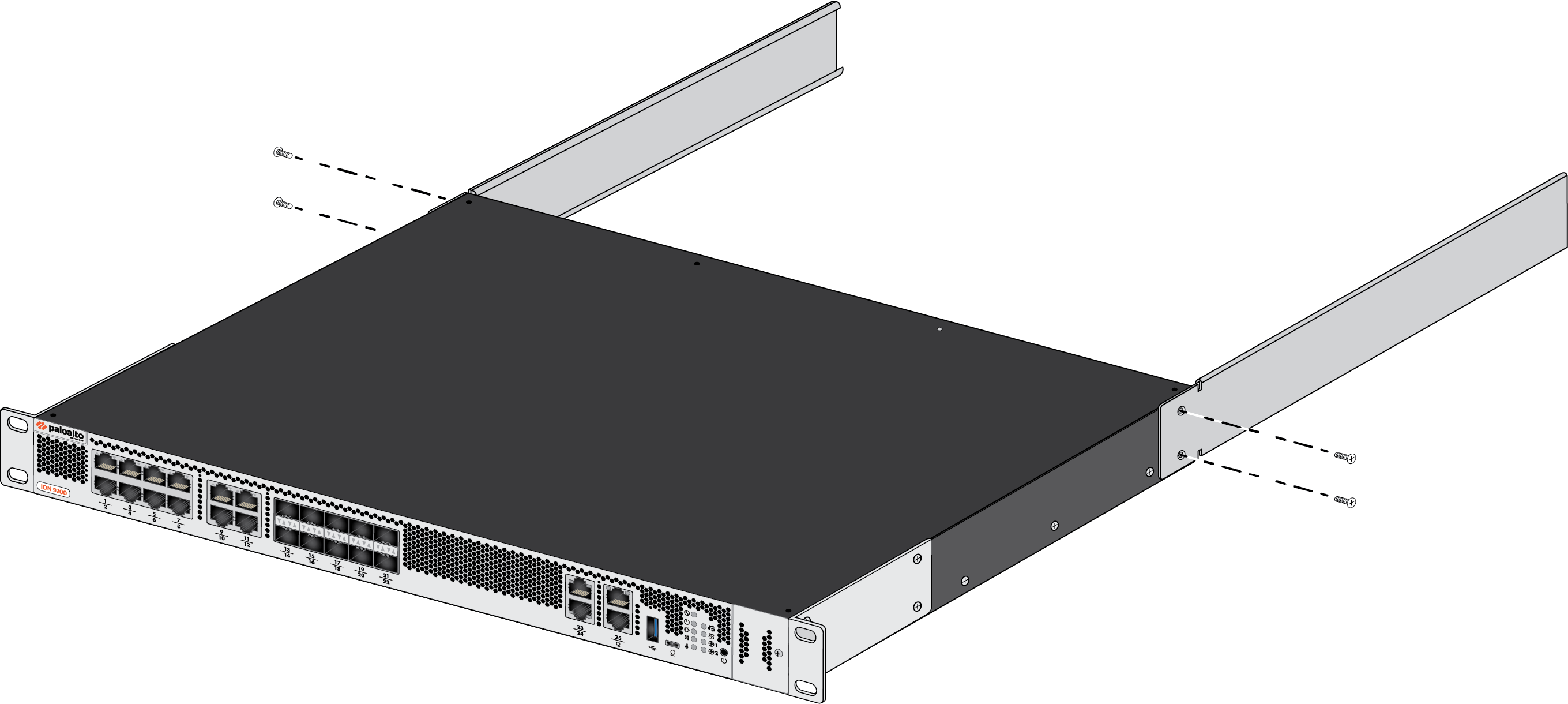

  2. Attach one rack-mount rail to each side of the device using two #6-32 x 5/16” screws for each rail and torque to 9 in-lbs.

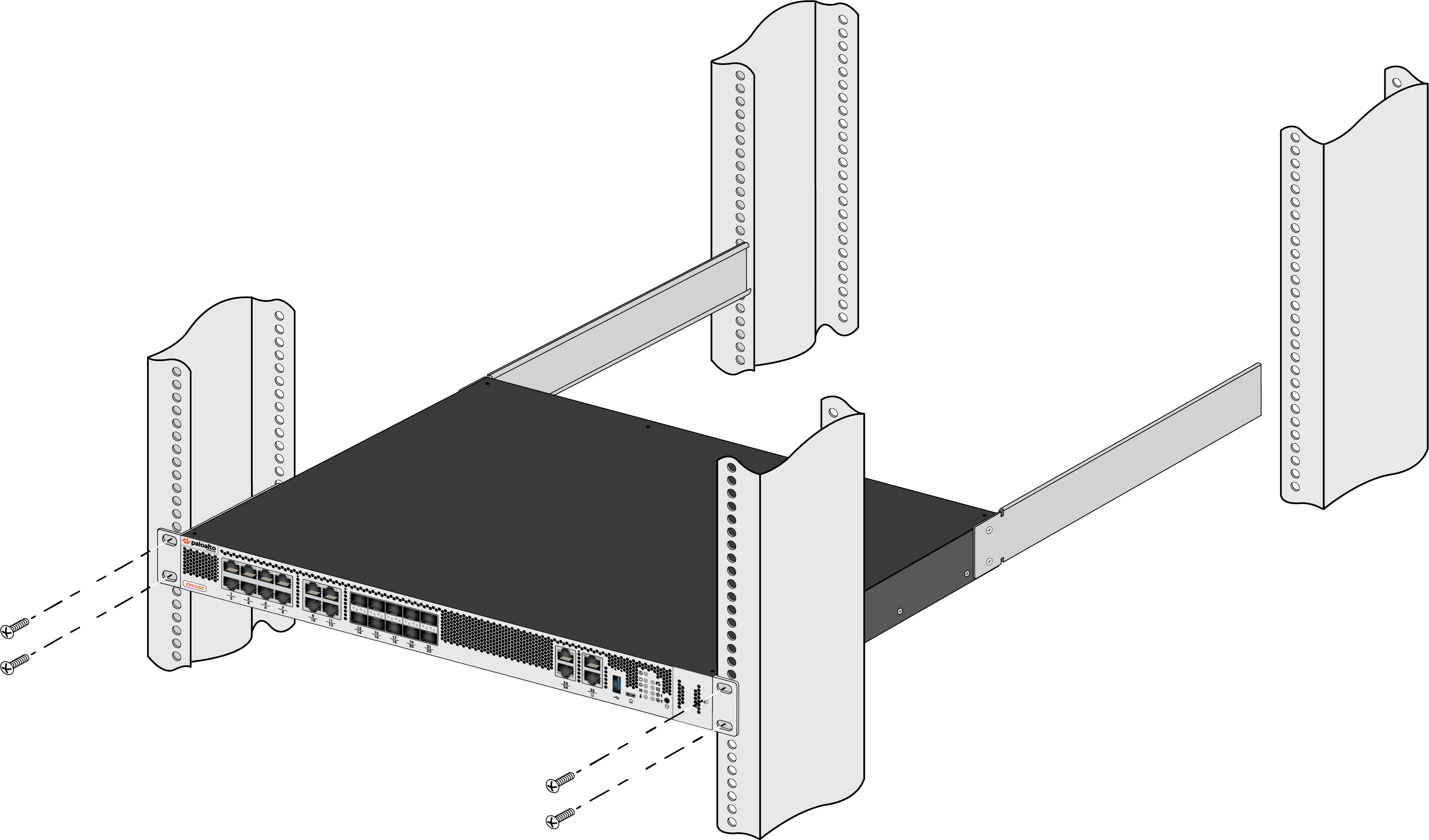

  3. Hold the device in the rack and secure the front rack-mount brackets to the front rack-posts using two screws for each bracket. Use the appropriate screws (#10-32 x 3/4” or #12-24 x 1/2”) for your rack and torque to 25 in-lbs. Use cage nuts to secure the screws if the rack has square holes.

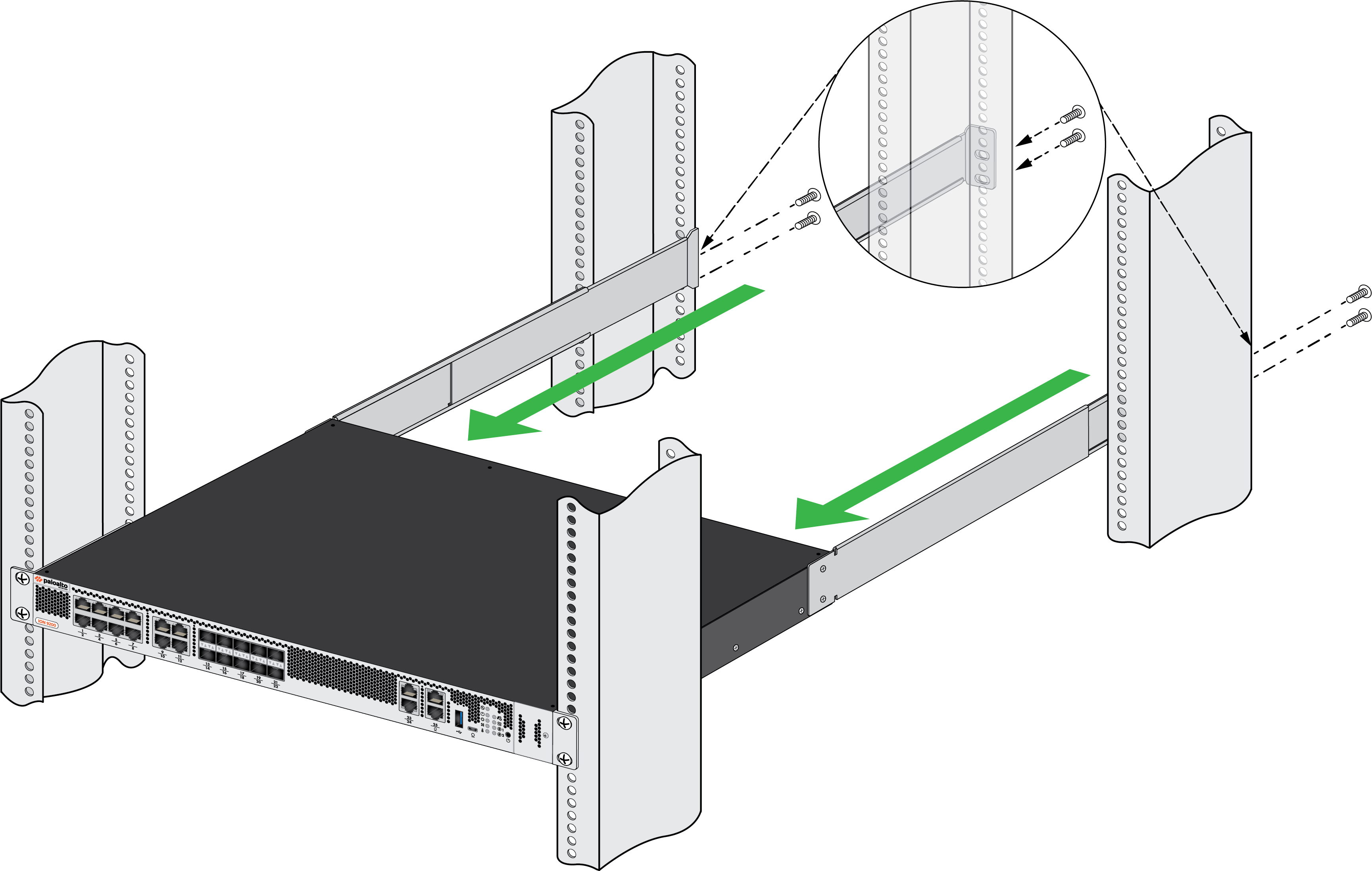

  4. Slide one back rack-mount bracket into each of the two previously installed side rack-mount rails and secure the brackets to the back rack-posts using the appropriate screws for your rack (#10-32 x 3/4” or #12-24 x 1/2”) and torque to 25 in-lbs.
