Replacing SSD for ION 9200
In Prisma SD-WAN ION 9200 device, we have SSD which can be replaced and installed
again by following the below procedure.

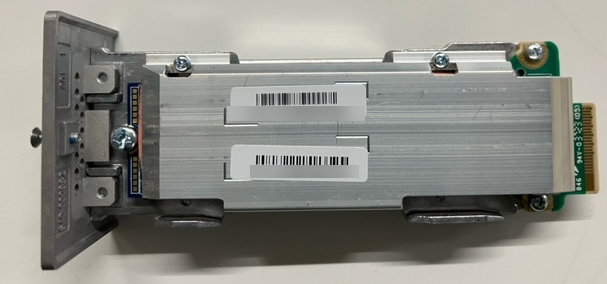

The ION 9200 device is equipped with one slot for Solid State Drive (SSD).
- The SSD drives are not hot-swappable.Palo Alto recommends getting support from a certified field service engineer for replacement. Also, you need to send the whole SSD module (carrier + SSD module) for RMA.This equipment may be affected by electrostatic discharge. ESD reduction procedures (wearing a wrist strap) shall be implemented during the installation and maintenance of this equipment.Disable the FRU partition with the CLI command log-fru disable. The device will reboot.Power off the device and remove the old SSD on the side and insert the new SSD into the ION device.Power on the device.Enable the FRU partition with the CLI command log-fru init. The device will reboot.You can check the new SSD with the CLI command dump disk infodump disk info Mounted-on Size Used Available Used% Device Label 447G nvme1n1 63.0M nvme1n1p1 volume1 4.95G nvme1n1p2 / 4.81G 1.47G 3.07G 31% volume1 volume2 2.25G nvme1n1p3 /config 2.15G 7.67M 2.01G 0% volume2 volume3 435G nvme1n1p4 /log 427G 416M 405G 0% volume3 /boot 57.9M 1.30M 52.1M 2% nvme1n1p5 2.19G nvme1n1p6 2.19G nvme1n1p7 447G nvme0n1 volume4 447G nvme0n1p1 /frulog 439G 199M 416G 0% volume4 /dev 31.1G 6.52M 31.1G 0% none /run 48.8M 6.93M 41.8M 14% none /var/volatile 4.88M 212K 4.67M 4% none
