ION 9200 Front Panel
Learn the ION 9200 front panel parts.

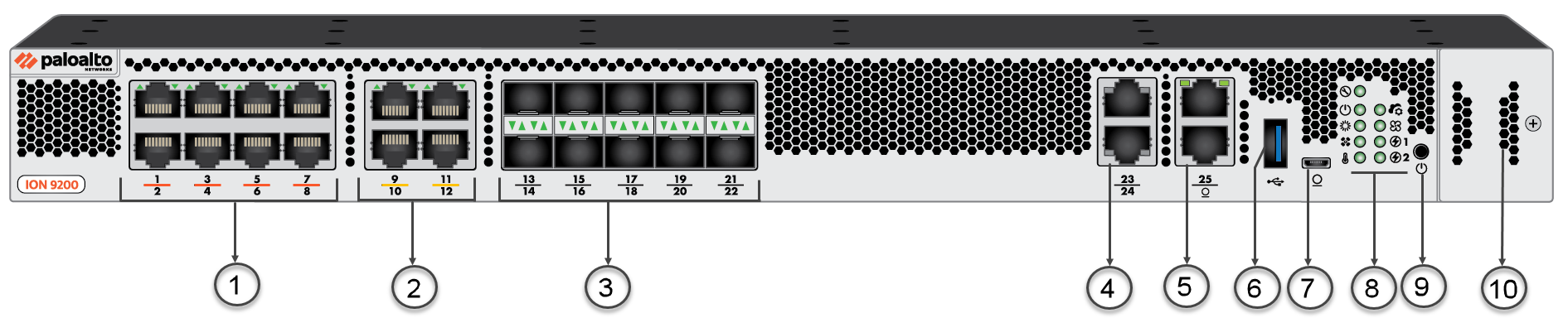

The following table describes the front panel components of the ION 9200.
Item
Component
Description
1
Bypass Ports
Ports 1 - 8 are bypass ports, 4 x 1G RJ45.
2
PoE ports
Ports 9 - 12 are PoE MGig ports.
3
SFP+ ports
Ports 13 - 22 are SFP28 (25Gbps) ports that support 1G SFP and 10G SFP+ modules.
4
RJ-45 Ports
Ports 23 - 25 are RJ-45 10M/100M/1000M ethernet ports.
5
Console Port
RJ-45 Serial console port. Use this port to connect a management computer to the device using a 9-pin serial-to-RJ-45 cable.
6
Standard USB
USB Port. A USB port that accepts a USB flash drive.
7
Micro USB Port
Micro USB Console Port. Use this port to connect a management computer to the device using a standard Type-A USB-to-micro USB cable.
8
LED Indicators
LEDs indicate the status of the ION device components.
9
Power/Restart
Power LED; the LED turns green when powered on.
10
SSD
Secures the device SSD.
