PA-500 Series Firewall Front Panel

View the front panel components and descriptions of the PA-500 Series firewall.
View the front panel components of your PA-500 Series firewall.
To review the specifications of supported Palo Alto Networks® interfaces and transceivers, refer to the datasheet.

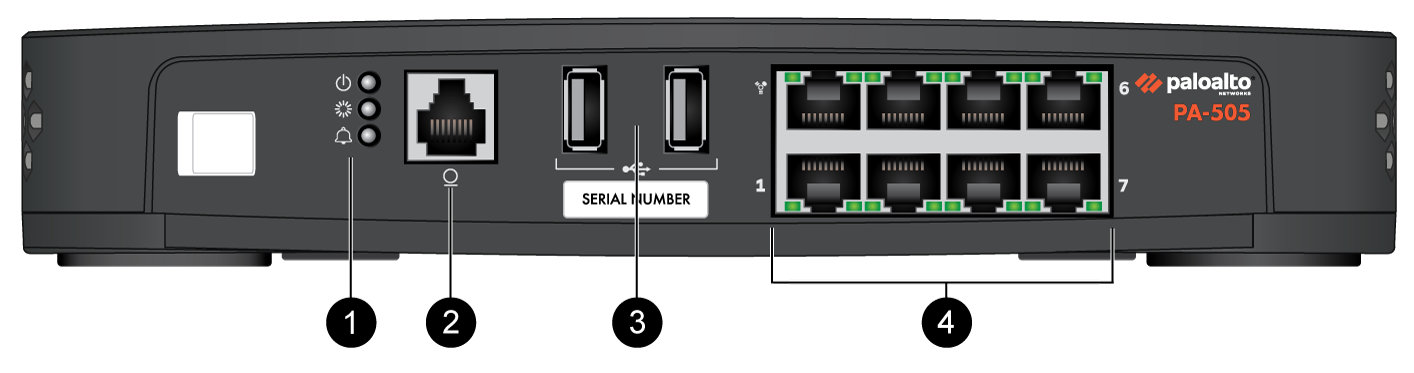

The following image shows the front panel of the PA-505. The table describes each front panel component.
ItemComponentDescription
1
LED Status Indicators
Three LEDs that indicate the status of the firewall hardware components (see PA-500 Series Firewall LED Definitions).
2
Console Port
Use this port to connect a management computer to the firewall using a 9-pin serial to RJ-45 cable and terminal emulation software.
The console connection provides access to firewall boot messages, the Maintenance Recovery Tool (MRT), and the command line interface (CLI).
If your management computer does not have a serial port, use a USB-to-serial converter.
Use the following settings to configure your terminal emulation software to connect to the console port:
  • Data rate: 9600
  • Data bits: 8
  • Parity: none
  • Stop bits: 1
  • Flow control: None
3
USB Ports
Two USB ports for debugging and administration only. Use one of the two ports to bootstrap the firewall.
Bootstrapping enables you to provision the firewall with a specific PAN-OS configuration and then license it and make it operational on your network.
4
RJ-45 Ports
Management Port
One Ethernet10/100/1000Mbps port (the top-left port) that is used to access the management web interface and perform administrative tasks. The firewall also uses this port for management services, such as retrieving licenses and updating threat and application signatures.
Ethernet Ports
Seven RJ-4510/100/1000Mbps ports for network traffic.You can set the link speed and duplex mode or choose autonegotiate.

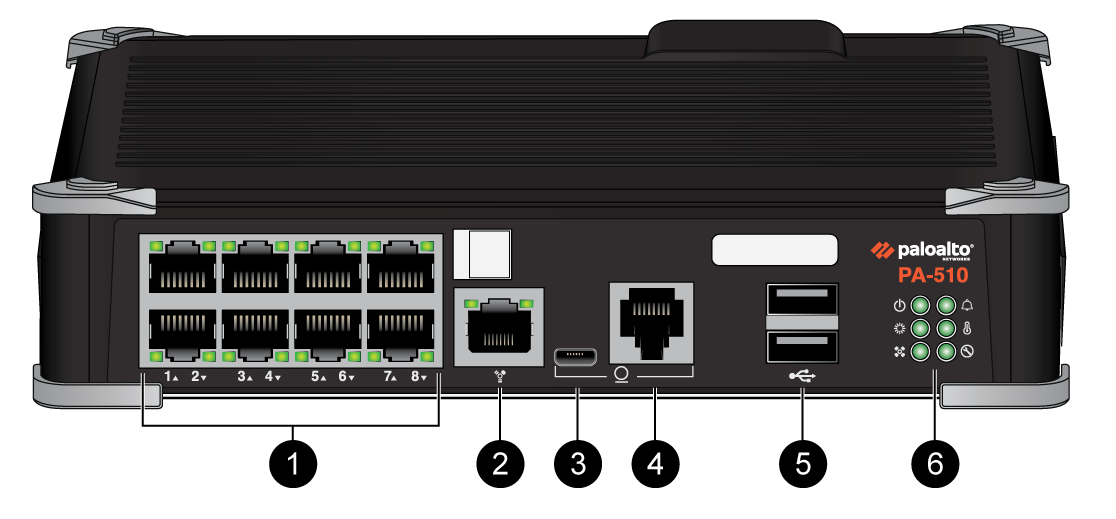

The following image shows the front panel of the PA-510. The table describes each front panel component.
ItemComponentDescription
1
Ethernet ports
Eight RJ-45 10/100/1000Mbps ports for network traffic.
You can set the link speed and duplex mode or choose auto-negotiate.
2
Management port
Use this Ethernet 1Gbps port to access the management web interface and perform administrative tasks. The firewall also uses this port for management services, such as retrieving licenses and updating threat and application signatures.
3
CONSOLE port
(Micro USB)
Use this port to connect a management computer to the firewall using a standard Type-A USB-to-micro USB cable.
The console connection provides access to firewall boot messages, the Maintenance Recovery Tool (MRT), and the command line interface (CLI).
Refer to Micro USB Console Port for more information and to download the Windows driver or to learn how to connect from a Mac or Linux computer.
4
CONSOLE port
(RJ-45)
Use this port to connect a management computer to the firewall using a 9-pin serial to RJ-45 cable and terminal emulation software.
The console connection provides access to firewall boot messages, the Maintenance Recovery Tool (MRT), and the command line interface (CLI).
If your management computer does not have a serial port, use a USB-to-serial converter.
Use the following settings to configure your terminal emulation software to connect to the console port:
  • Data rate: 9600
  • Data bits: 8
  • Parity: none
  • Stop bits: 1
  • Flow control: None
5
USB ports
Two USB ports for debugging and administration only. Use one of these ports to bootstrap the firewall.
Bootstrapping enables you to provision the firewall with a specific PAN-OS configuration and then license it and make it operational on your network.
6
LED status indicators
Six LEDs that indicate the status of the firewall hardware components (see PA-500 Series Firewall LED Definitions).

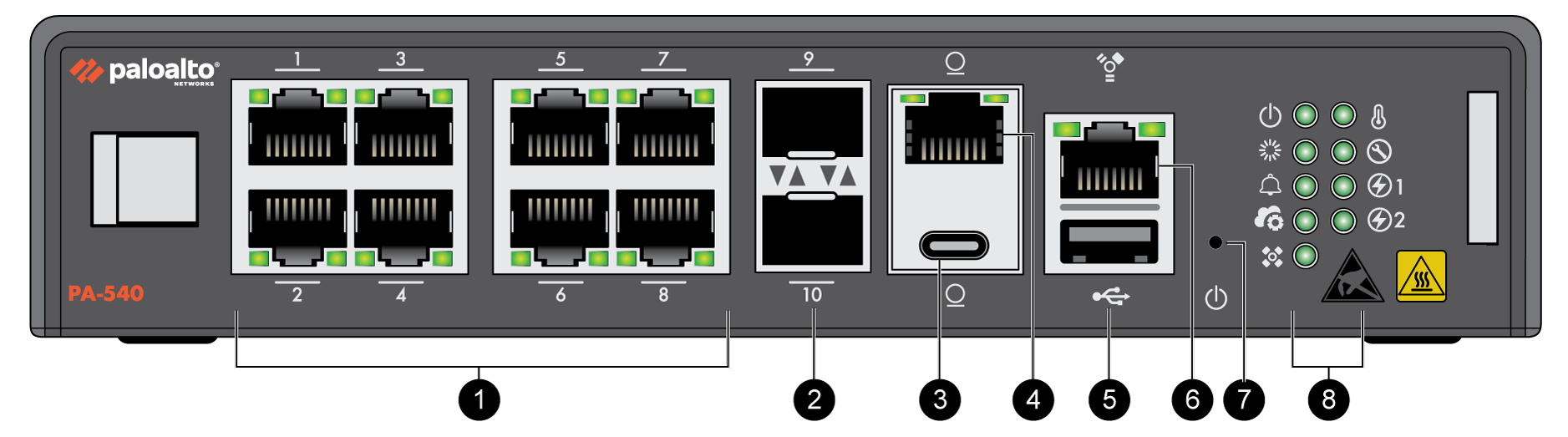

The following image shows the front panel of the PA-520 and PA-540, which have similar front panel components (PA-540 pictured). The main difference is that the PA-520 does not have SFP ports. The table describes each front panel component.
ItemComponentDescription
1
RJ-45 Ports
Eight copper RJ-45 10Mbps/100Mbps/1Gbps ports for network traffic.
Port 1 is a Zero Touch Provisioning (ZTP) port. The ZTP port can be used to automatically provision the firewall.
(PA-540 only)
2
SFP Ports
Two SFP 1Gbps ports for network traffic.
3
Console port
(USB-C)
Use this port to connect a management computer to the firewall using a standard USB-C cable.
The console connection provides access to firewall boot messages, the Maintenance Recovery Tool (MRT), and the command line interface (CLI).
4
Console port
(RJ-45)
Use this port to connect a management computer to the firewall using a RJ-45 to USB cable and terminal emulation software.
The console connection provides access to firewall boot messages, the Maintenance Recovery Tool (MRT), and the command line interface (CLI).
Use the following settings to configure your terminal emulation software to connect to the console port:
  • Data rate: 115200
  • Data bits: 8
  • Parity: none
  • Stop bits: 1
  • Flow control: None
5
USB Port
One USB port for debugging and administration only. Use the port to bootstrap the firewall.
Bootstrapping enables you to provision the firewall with a specific PAN-OS configuration and then license it and make it operational on your network.
6
Management Port
Use this RJ-45 1Gbps port to access the management web interface and perform administrative tasks. The firewall also uses this port for management services, such as retrieving licenses and updating threat and application signatures.
7
Reset Button
A pin press reset button that can be used to gracefully shut down the firewall.
8
LED Status Indicators
Nine LEDs that indicate the status of the firewall hardware components (see PA-500 Series Firewall LED Definitions).
The following image shows the front panel of the PA-550 and PA-560, which have similar front panel components (PA-560 pictured). The table describes each front panel component.
ItemComponentDescription
1
RJ-45 Ports
PA-550
Twelve copper RJ-45 10Mbps/100Mbps/1Gbps ports for network traffic.
PA-560
Sixteen copper RJ-45 10Mbps/100Mbps/1Gbps ports for network traffic.
Port 1 is a Zero Touch Provisioning (ZTP) port. The ZTP port can be used to automatically provision the firewall.
Ports 3 and 4 are fail-open ports. They can be configured to provide a pass-through connection despite power or operating system failure.
2
SFP Ports
PA-550
Two SFP 1Gbps ports for network traffic. (Ports 13 and 14)
PA-560
Four SFP 1Gbps ports for network traffic. (Ports 17 through 20)
3
SFP/SFP+ Ports
PA-550
Two SFP/SFP+ 1Gbps/10Gbps ports for network traffic. (Ports 15 and 16)
PA-560
Four SFP/SFP+ 1Gbps/10Gbps ports for network traffic. (Ports 21 through 24)
4
Console port
(USB-C)
Use this port to connect a management computer to the firewall using a standard USB-C cable.
The console connection provides access to firewall boot messages, the Maintenance Recovery Tool (MRT), and the command line interface (CLI).
5
Console port
(RJ-45)
Use this port to connect a management computer to the firewall using a RJ-45 to USB cable and terminal emulation software.
The console connection provides access to firewall boot messages, the Maintenance Recovery Tool (MRT), and the command line interface (CLI).
Use the following settings to configure your terminal emulation software to connect to the console port:
  • Data rate: 115200
  • Data bits: 8
  • Parity: none
  • Stop bits: 1
  • Flow control: None
6
USB Port
One USB port for debugging and administration only. Use the port to bootstrap the firewall.
Bootstrapping enables you to provision the firewall with a specific PAN-OS configuration and then license it and make it operational on your network.
7
Management Port
Use this RJ-45 1Gbps port to access the management web interface and perform administrative tasks. The firewall also uses this port for management services, such as retrieving licenses and updating threat and application signatures.
8
Reset Button
A pin press reset button that can be used to gracefully shut down the firewall.
9
LED Status Indicators
Nine LEDs that indicate the status of the firewall hardware components (see PA-500 Series Firewall LED Definitions).

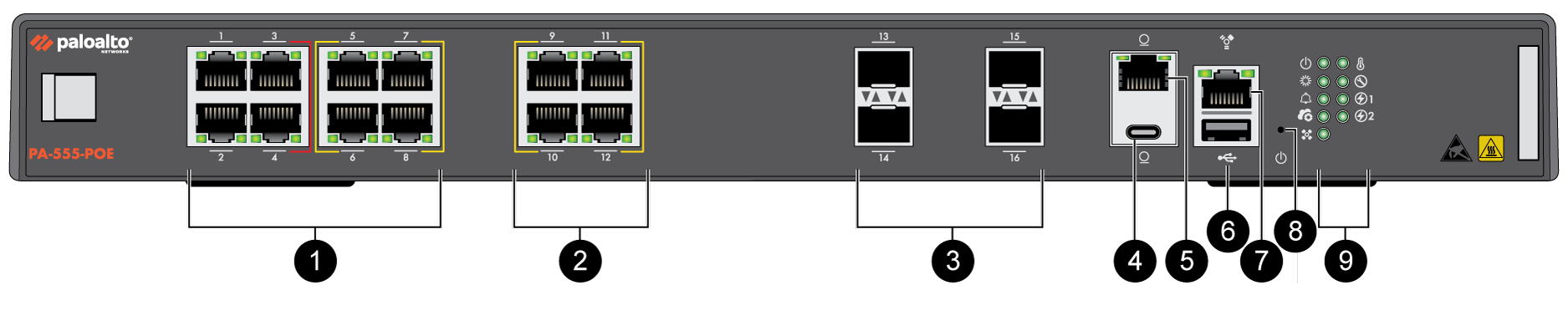

The following image shows the front panel of the PA-545-POE and PA-555-POE, which have similar front panel components (PA-555-POE pictured). The table describes each front panel component.
ItemComponentDescription
1
RJ-45 Ports
Eight copper RJ-45 10Mbps/100Mbps/1Gbps ports for network traffic.
Port 1 is a Zero Touch Provisioning (ZTP) port. The ZTP port can be used to automatically provision the firewall.
Ports 3 and 4 are fail-open ports. They can be configured to provide a pass-through connection despite power or operating system failure.
PA-545-POE
Ports 9 through 12 are Power over Ethernet (PoE) ports that can transfer up to 181W of power to a connected device.
PA-555-POE
Ports 5 through 12 are Power over Ethernet (PoE) ports that can transfer up to 332W of power to a connected device.
2
RJ-45 mGig Ports
PA-545-POE
Four RJ-45 mGig 1Gbps/2.5Gbps ports for network traffic. Ports 9 through 12 are Power over Ethernet (PoE) ports that can transfer up to 181W of power to a connected device.
PA-555-POE
Four RJ-45 mGig 1Gbps/2.5Gbps ports for network traffic. Ports 5 through 12 are Power over Ethernet (PoE) ports that can transfer up to 332W of power to a connected device.
3
SFP/SFP+ Ports
PA-545-POE
Four SFP 1Gbps ports for network traffic. (Ports 13 through 16)
PA-555-POE
Four SFP/SFP+ 1Gbps/10Gbps ports for network traffic. (Ports 13 through 16 support SFP; Ports 15 and 16 support SFP+)
4
Console port
(USB-C)
Use this port to connect a management computer to the firewall using a standard USB-C cable.
The console connection provides access to firewall boot messages, the Maintenance Recovery Tool (MRT), and the command line interface (CLI).
5
Console port
(RJ-45)
Use this port to connect a management computer to the firewall using a RJ-45 to USB cable and terminal emulation software.
The console connection provides access to firewall boot messages, the Maintenance Recovery Tool (MRT), and the command line interface (CLI).
Use the following settings to configure your terminal emulation software to connect to the console port:
  • Data rate: 115200
  • Data bits: 8
  • Parity: none
  • Stop bits: 1
  • Flow control: None
6
USB Port
One USB port for debugging and administration only. Use the port to bootstrap the firewall.
Bootstrapping enables you to provision the firewall with a specific PAN-OS configuration and then license it and make it operational on your network.
7
Management Port
Use this RJ-45 1Gbps port to access the management web interface and perform administrative tasks. The firewall also uses this port for management services, such as retrieving licenses and updating threat and application signatures.
8
Reset Button
A pin press reset button that can be used to gracefully shut down the firewall.
9
LED Status Indicators
Nine LEDs that indicate the status of the firewall hardware components (see PA-500 Series Firewall LED Definitions).
