Query Creation and Management
Device Security Query Builder provides advanced search and filter capabilities
to find devices, alerts, and vulnerabilities across your network infrastructure.
| Where Can I Use This? | What Do I Need? |
|---|---|
|
One of the following subscriptions:
|
Device Security Query Builder provides advanced search and filter capabilities to
find devices, alerts, and vulnerabilities across your network infrastructure. Use the
Query Builder when you need to identify particular assets based on complex criteria
that go beyond basic filtering, such as matching multiple attributes or excluding
assets with certain values in an attribute field.
The Query Builder replaces traditional filtering with an interface similar to SQL,
supporting multiple operators, comparisons, and wildcard matching. Various features in
Device Security use the Query Builder, such as searching the inventories, defining
Custom Alert Rules,
and configuring Custom Widgets for Custom Dashboards.
From the Query Library, you can create queries that span multiple domains, combining
device attributes with alert severity levels or vulnerability data for granular
security assessments. Device Security supports up to two domains per query and
provides autocomplete functionality to help you construct valid queries. Save your
queries to view them in the Query Library, or to reuse them when searching in the
inventories or when building custom widgets and dashboards. You can also modify a
saved query to run on a recurring schedule, with the results stored and downloadable
in the Query Log.
The enhanced Query Builder is only available for Device Security in
Strata Cloud Manager, under the Queries tab.
Structure of a Query
All queries start with a primary domain. You then specify domain-specific
attributes and attribute values to narrow down the query. The domain corresponds
to the three main inventories in Device Security:
- Devices
- Alerts
- Vulnerabilities
When you build a query with the global query on the device, alerts, or
vulnerability inventories, the page determines the default domain. If you change
the domain and run the query, the page changes to the related inventory page. If
you create a query from the Query Library, then you can choose the domain and
even make a multi-domain query.
The attributes available for your query depend on what domain you choose. For
example, if you choose the device domain, you can specify MAC address as an
attribute, but you can't use MAC address as an attribute for the alert domain.
The attributes available for your query also include third-party attributes for
any active third-party integration.
For each attribute, you can choose the specific values you want to match with or
against, using the operators that the attribute supports.
- Logical Operators: AND, OR
- Equality/Comparison Operators: =, !=, >, <, >=, <=
- Set Operators: IN, NOT IN, EXISTS
- String Operators: STARTS WITH, ENDS WITH, CONTAINSString operators search for partial matches, and are case insensitive. For example, a search for "Alert Title" CONTAINS "connection" would match all of the following:
- Ssl connection to risky Internet site detected
- Excessive external connections detected
- Connection to malicious host
- Unsecure outbound ftp connections to Internet
For some attributes, you can define a list of values as the matching criteria. The
query builder will return results that match any of the values in the list. You
can also select an attribute multiple times if you want to use different
operators.

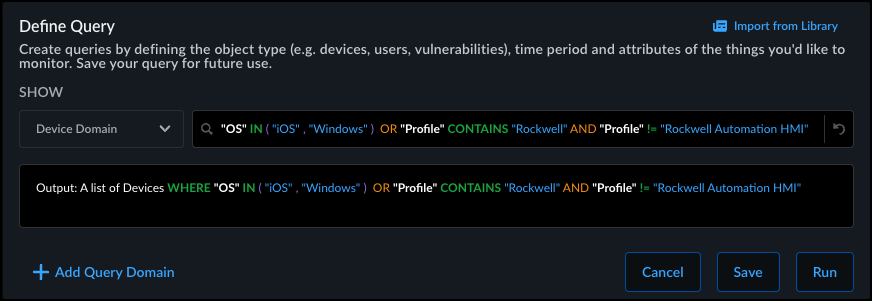

The following example query finds all devices with either iOS or Windows as their
OS, and it finds all devices with a Profile name that contains "Rockwell", as
long as the Profile name is not "Rockwell Automation HMI."
"OS" IN ("iOS", "Windows") OR "Profile" CONTAINS "Rockwell" AND "Profile" != "Rockwell Automation HMI"
Creating a query from the Query Library also lets you make a multi-domain query.
If your primary domain is Device, you can choose Alert or Vulnerability as a
secondary domain to further narrow down your query. In this case, the table will
display all devices that meet your primary domain matching criteria, and the
results are further pared down to devices that are affected by alerts or
vulnerabilities that match your secondary domain matching criteria.

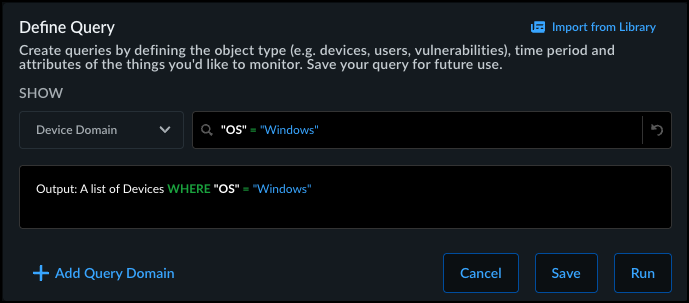

The following example of a primary domain query finds all devices with the
"Windows" operating system:
SHOW Devices WHERE "OS" = "Windows"

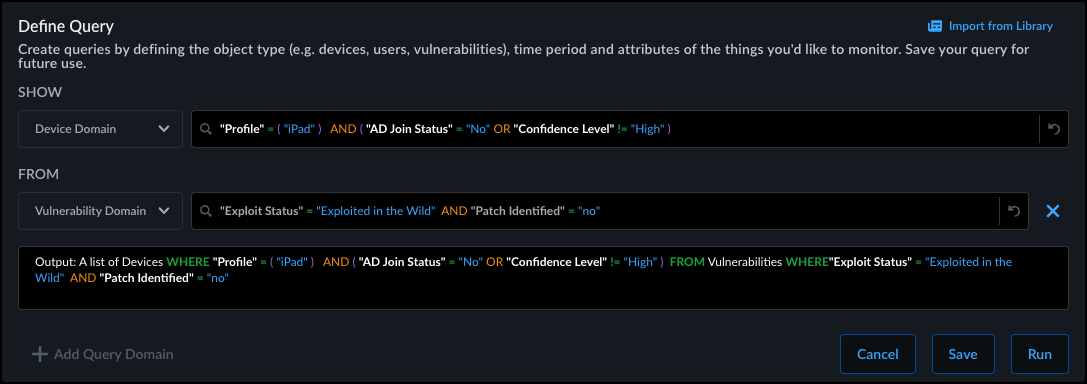

The following example of a query with an added secondary domain would find all
devices with the "iPad" profile and aren't joined to an AD or don't have a high
confidence level. Additionally, the results would be limited to such devices that
also have vulnerabilities that are exploited with no identified patch.
SHOW Devices WHERE "Profile" = "iPad" AND ( "AD Join Status" != "No" OR "Confidence Level" != "High" ) FROM Vulnerabilities WHERE "Exploit Status" = "Exploited in the Wild" AND "Patch Identified" = "No"
