Set up Aruba ClearPass for Integration

1. Create an operator profile.

   You must use an operator profile that has full access to API services, ClearPass Insight, and ClearPass Policy Manager. If you already have such a profile, you can use that when configuring the RESTful API client. Otherwise, create a new profile as described here:

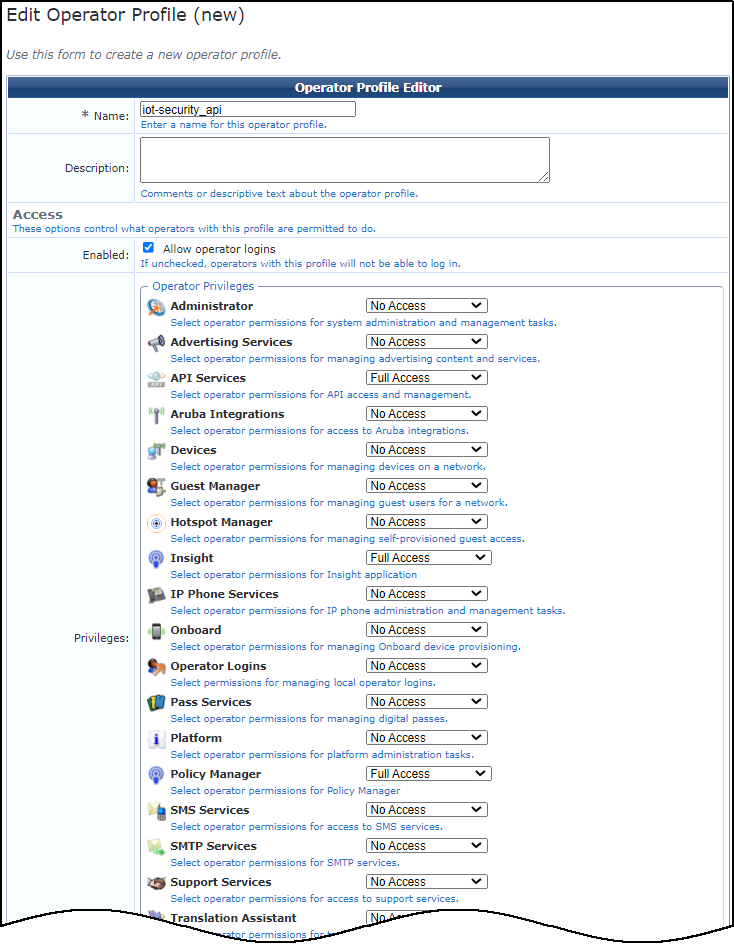

   1. Log in to ClearPass Guest, click AdministrationOperator LoginsProfilesCreate a new operator profile.
   2. Enter the following in the Operator Profile Editor that appears, leave the other settings at their default values, and then Save Changes:
      Name: Enter a name for the profile, such as iot-security_api.
      Privileges
      API Services: Full Access
      Insight: Full Access
      Policy Manager: Full Access

2. Add a RESTful API client.

   Define a client for the Cortex XSOAR engine to use when accessing the Aruba ClearPass API. There are two important settings that you must record so that you can enter them later when configuring an Aruba ClearPass instance on Cortex XSOAR: the client ID and client secret. The client uses the operator profile that you created in the previous step.

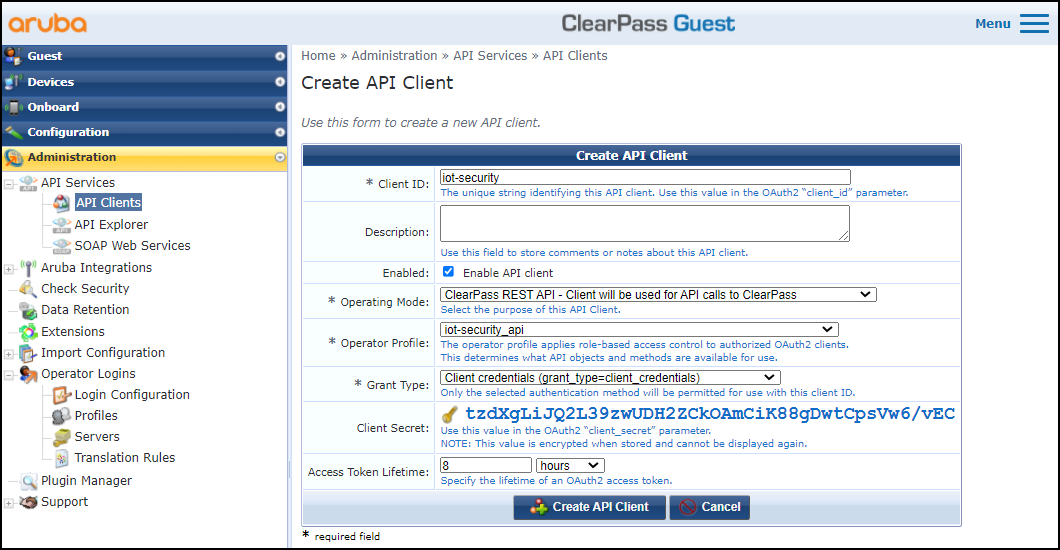

   1. While still logged in to Aruba ClearPass Guest, click AdministrationAPI ServicesAPI ClientsCreate API Client.
   2. Enter the following in the Create API Client dialog box, leave the other settings at their default values, and then click Create API Client:
      Client ID: Enter a unique text string for the client ID. Note what it is so that you can enter it later when configuring the integration settings in Cortex XSOAR.
      Operator Profile: Choose the operator profile you configured in the previous section; for example, iot-security_api.
      Grant Type: Client credentials (grant_type=client_credentials)
      When you choose this, ClearPass Guest automatically generates a client secret and displays it. Record the client secret for later use when configuring Cortex XSOAR.

   When Device Security connects through XSOAR to Aruba ClearPass, ClearPass automatically generates custom endpoint attribute names that IoT Security populates with the device data it learns. You don’t have to define these names in ClearPass; they are automatically created. The following list shows some of the default attribute names.

   Attribute Name	Entity	Data Type	Comments
   PanwIoTProfile	Endpoint	String	Device profile
   PanwIoTIP	Endpoint	String	Device IP address
   PanwIoTCategory	Endpoint	String	Category to which the device belongs
   PanwIoTRiskScore	Endpoint	String	Risk score of the device
   PanwIoTConfidence	Endpoint	String	Confidence score for device identification
   PanwIoTTag	Endpoint	String	Asset tag, which Device Security learns from an integrated CMMS solution
   PanwIoTHostname	Endpoint	String	Device hostname
   PanwIoTOS	Endpoint	String	Operating system of the device
   PanwIoTModel	Endpoint	String	Device model
   PanwIoTVendor	Endpoint	String	Device vendor
   PanwIoTSerial	Endpoint	String	Serial number of the device
   PanwIoTEPP	Endpoint	String	Whether the device has endpoint protection
   PanwIoTInternetAccess	Endpoint	String	Whether the device has Internet access
   PanwIoTAET	Endpoint	String	Application entity title (if learned from X-ray machines, ultrasound machines, PACS servers, DICOM workstations, and DICOM viewers)

   If you want to use different names than those shown here, change the default attribute names in the Aruba ClearPass incremental and bulk export job settings in Cortex XSOAR. See Configure Device Security and Cortex XSOAR for Aruba ClearPass. When XSOAR next connects with ClearPass, ClearPass automatically generates the customized attribute names.
3. Enable Insight.

   By enabling Insight, Device Security can enrich the device characteristics it learns from monitoring network traffic with data from ClearPass.

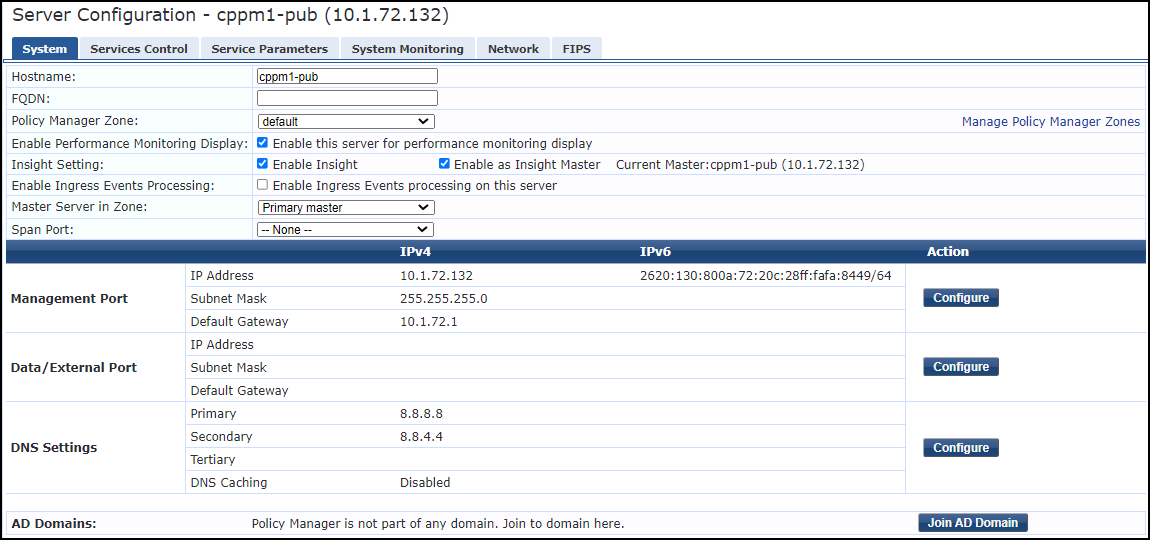

   1. While logged in to ClearPass Policy Manager, click AdministrationServer ManagerServer Configuration, and then click your server name.
   2. On the System tab, select Enable Insight and Enable as Insight Master, leave the other settings as they are, and then Save.

4. Configure policies and profiles.

   Once Device Security and Aruba ClearPass are integrated, Device Security provides ClearPass with device profiles that you can then use to create security groups for defining network segments and access policies.

   1. In ClearPass Policy Manager, click ConfigurationEnforcement and add policies to segment IoT devices into VLANs based on PanwIoTProfile attribute values.
   2. While in the same Enforcement section, add enforcement profiles to isolate and quarantine devices based on alert-triggered notifications.
