    Set up Device Security and XSOAR for Cisco WLAN Controllers

    Table of Contents

    Set up Device Security and XSOAR for Cisco WLAN Controllers

    Set up Device Security and Cortex XSOAR to integrate with Cisco WLAN controllers.
    Where Can I Use This?What Do I Need?
    • Device Security (Managed by Strata Cloud Manager)
    • (Legacy) IoT Security (Standalone portal)
    One of the following subscriptions:
    • Device Security subscription for an advanced Device Security product (Enterprise Plus, Industrial OT, or Medical)
    • Device Security X subscription
    One of the following Cortex XSOAR setups:
    • A free, cohosted, limited-featured Cortex XSOAR instance
      AND
      A Cortex XSOAR Engine (on-premises integration)
    • A full-featured Cortex XSOAR server
    To set up Device Security to integrate through Cortex XSOAR with a Cisco WLAN controller, you must add an XSOAR engine to your network.
    You must also configure Cortex XSOAR with a Cisco WLAN controller integration instance and a job to periodically collect device data from the controller. To do this, you need the IP address or hostname of your Cisco WLAN controller and the username and password of the read/write user account that the XSOAR engine will use when forming a secure connection with it.

    Cortex XSOAR Engine Installation

    An on-premises XSOAR engine facilitates communications between the Cortex XSOAR cloud and Cisco WLAN controllers. Although it's possible to install an XSOAR engine on machines running Windows, macOS, and Linux operating systems, only an engine on a Linux machine supports Device Security integrations. For more information about operating system and hardware requirements, see the Cortex Administrator’s Guide.
    We recommend downloading the Cortex XSOAR engine using the shell installer script and installing it on a Linux machine. This simplifies the deployment by automatically installing all required dependencies and also enables remote engine upgrades.
    When placing the XSOAR engine on your network, make sure it can form SSH connections to your Cisco WLAN controllers. By default, SSH uses TCP port 22.
    The on-premises firewall must allow the Cortex XSOAR engine to form HTTPS connections on TCP port 443 to the Cortex cloud at https://<your-domain>.iot.demisto.live/. You can see the URL of your Cortex XSOAR instance when you log in to Device Security and click Integrations and then click Launch Cortex XSOAR. It’s visible in the address bar of the web page displaying the Cortex XSOAR interface.
    To create an Cortex XSOAR engine, access the Cortex XSOAR interface (from Device Security, click Integrations and then click Launch Cortex XSOAR). In the Cortex XSOAR UI, click SettingsEngines+ Create New Engine. Choose Shell as the type.
    For Cortex XSOAR engine installation instructions, see Engine Installation.
    For help troubleshooting Cortex XSOAR engines, including installations, upgrades, connectivity, and permissions, see Troubleshoot Engines and Troubleshoot Integrations Running on Engines.

    Configure Device Security and Cortex XSOAR

    1. Log in to Device Security and from there access Cisco WLAN controller settings in Cortex XSOAR.
      1. Log in to Device Security and then click Integrations.
      2. Device Security uses Cortex XSOAR to integrate with Cisco WLAN controllers, and the settings you must configure to integrate with it are in the XSOAR interface. To access these settings, click Launch Cortex XSOAR.
        The Cortex XSOAR interface opens in a new browser window.

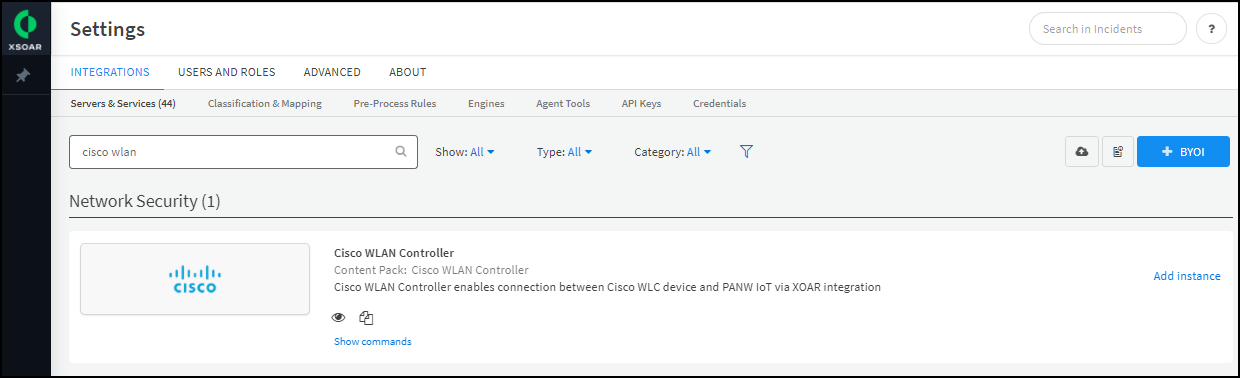

      3. Click Settings in the left navigation menu, search for cisco wlan to locate it among other instances.
    2. Configure the Cisco WLAN Controller (WLC) integration instance.

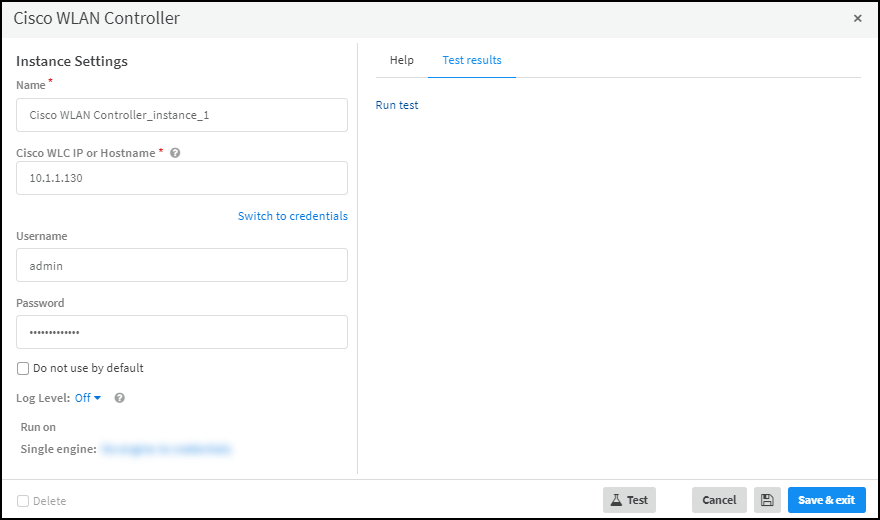

      1. Click Add instance to open the settings panel.
      2. Enter the following settings:
        Name: Use the default name of the instance or enter a new one.
        Cisco WLC IP or Hostname: Enter the IP address or hostname of the wireless controller.
        Username: Type the name of the user account that you previously created for the XSOAR engine to use when connecting to the WLAN controller.
        Password: Type the password associated with the user account.
        Run on Single engine: Choose the XSOAR engine that you want to communicate with this Cisco WLAN controller.
      3. When finished, click Run test or Test.
        If the test is successful, a Success message appears. If not, check that the settings were entered correctly and then test the configuration again.
      4. After the test succeeds, click Save & exit to save your changes and close the settings panel.
    3. Create a job for XSOAR to query the Cisco WLAN controller for details about currently active devices and send them to Device Security.
      Device Security only updates attributes for devices that are in its database and whose MAC address matches that returned by the controller. If your network has static IP devices without MAC addresses, they will not be updated.

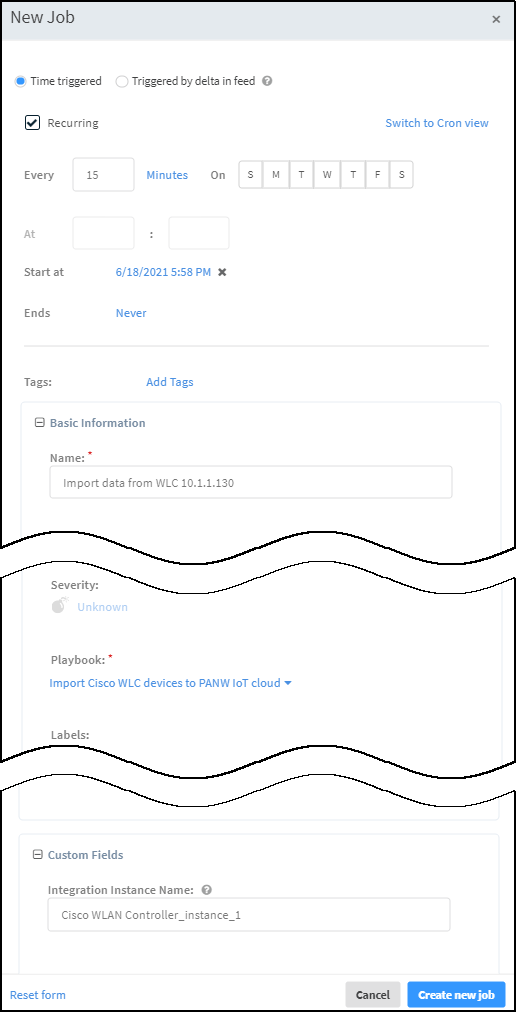

      1. Copy the name of the instance you just created, navigate to Jobs, and then click New Job at the top of the page.
      2. In the New Job panel that appears, enter the following and leave the other settings at their default values:
        Recurring: Select this because you want to periodically poll the controller for device details.
        Every: Enter a number and set the interval value (Minutes, Hours, Days, or Weeks) and select the days on which to run the job. This determines how often XSOAR queries the controller for details about active devices. For example: 15 minutes.
        Name: Enter a name for the job.
        Playbook: Choose Import Cisco WLC devices to PANW IoT cloud.
        Integration Instance Name: Paste the instance name you copied a few moments ago.
      3. Click Create new job.
        The job appears in the Jobs list.
    4. Enable the job and run it.
      1. Check the Job Status for the job you created. If it’s Disabled, select its check box and then click Enable.
      2. After you enable it, keep the check box selected and click Run now. The Run Status changes from Idle to Running. In addition, running a job in XSOAR triggers the referenced integration instance to appear on the Integrations page in the Device Security portal.
        At the defined interval, XSOAR begins querying the Cisco WLAN controller for client details, which it then forwards to the Device Security cloud.
    5. If you created more integration instances for multiple Cisco WLAN controllers, add more jobs as necessary.
      Each Cisco WLAN controller instance requires a separate job.
      Run each job you create at least once to populate the Integrations page with all the integration instances you’re using in XSOAR.
    6. When done, return to Device Security and check the status of the Cisco WLAN Controller integration.
      An integration instance can be in one of the following four states, which Device Security displays in the Status column on the Integrations page:
      • Active — the integration was configured and enabled and is functioning properly.
        Disabled — either the integration was configured but intentionally disabled or it was never configured and a job that references it is enabled and running.
      • Error — the integration was configured and enabled but is not functioning properly, possibly due to a configuration error or network condition.
      • Inactive — the integration was configured and enabled but no job has run for at least the past 60 minutes.
      When you see that the status of an integration instance is Active, its setup is complete.
