Sorting and Filtering Security Policy Rules
Use application usage information to prioritize which
rules to migrate from port-based to app-based rules or to clean
up (remove unused apps) first.
| Where Can I Use This? | What Do I Need? |
|---|
Prisma Access Next-Generation Firewall
|
This is a core Network Security feature for NGFWs and Prisma Access;
no prerequisites needed.
|
You can filter Security policy rules to see the port-based
rules, which are rules with no applications configured on them ().
You can also filter to see the rules that have applications configured
on them, but traffic only matches some of the configured applications—the
rule is over-provisioned and includes applications that aren’t seen
on the rule ().
In addition, if you have a
SaaS Security Inline license,
you can use the
New App Viewer to filter
rules that have seen new App-ID Cloud Engine (ACE) applications
(see the
ACE documentation for

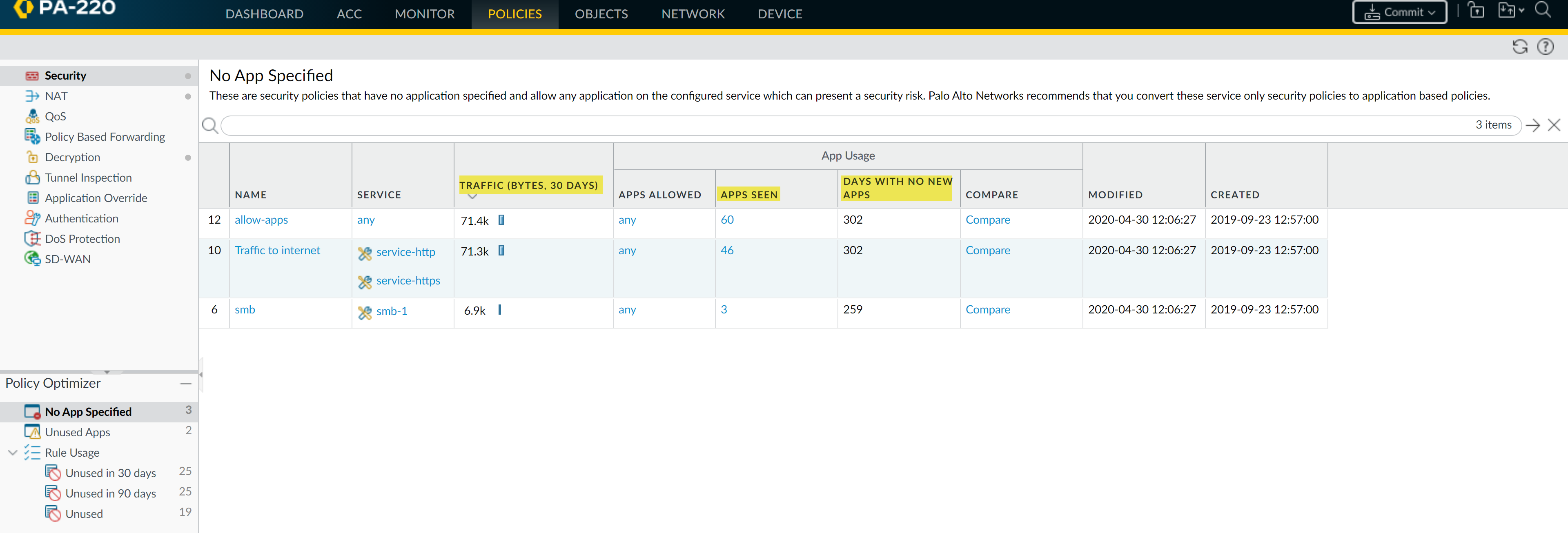

how to do this). You can sort the filtered policy rules based on
different types of statistics to help prioritize which rules to
convert from port-based to application-based rules or to clean up
first.
You can’t filter or sort rules in because that would
change the order of the policy rules in the rulebase. Filtering
and sorting , ,
and (if
you have a SaaS Inline Security subscription) does not change the
order of the rules in the rulebase.
Traffic (Bytes, 30 days)—The amount
of traffic seen on the rule over the last 30 days. The 30-day window
places rules that currently match the most traffic at the
top of the list by default (a longer time frame places more emphasis
on older rules that would remain at the top of the list because
they have large cumulative totals even though they may no longer
see much traffic). Click to reverse the order.
Apps Seen—Place the rules with the
most or least applications seen at the top. The firewall never automatically
purges the application data.
The firewall updates Apps
Seen approximately every hour. However, if there is
a large volume of application traffic or a large number of rules,
it may take longer than an hour to update. After you add an application
to a rule, wait at least an hour before running Traffic logs to
see the application’s log information.
Days with No New Apps—Place the rules
with the most or least days since the last new application matched
the rule at the top.
(Unused Apps only) Apps
Allowed—Place the rules with the most or least applications configured
on the rule at the top.
Application usage statistics only count applications for rules
that meet the following criteria:
The rule’s Action must be Allow.
The rule’s Log Setting must be Log at Session
End (this is the default Log Setting). Rules that Log
at Session Start are ignored to prevent counting transient
applications.
Valid traffic must match the rule. For example, if the session
ends before enough traffic passes through the firewall to identify
the application, it is not counted. The following traffic types
are not valid and therefore don’t count for Policy Optimizer statistics:
Insufficient-data
Not-applicable
Non-syn-tcp
Incomplete
You can filter the Traffic logs
() to see traffic identified
as one of these types. For example, to see all traffic identified
as incomplete, use the filter (app eq incomplete).
If these criteria aren’t met, the application isn’t counted for
statistics such as Apps Seen, doesn’t affect
statistics such as Days with No New Apps,
and doesn’t appear in lists of applications.
The firewall doesn’t track application usage statistics
for the interzone-default and intrazone-default Security policy
rules.
If the UUID of a rule changes, the application usage statistics
for that rule reset because the UUID change makes the firewall see
the rule as a different (new) rule.

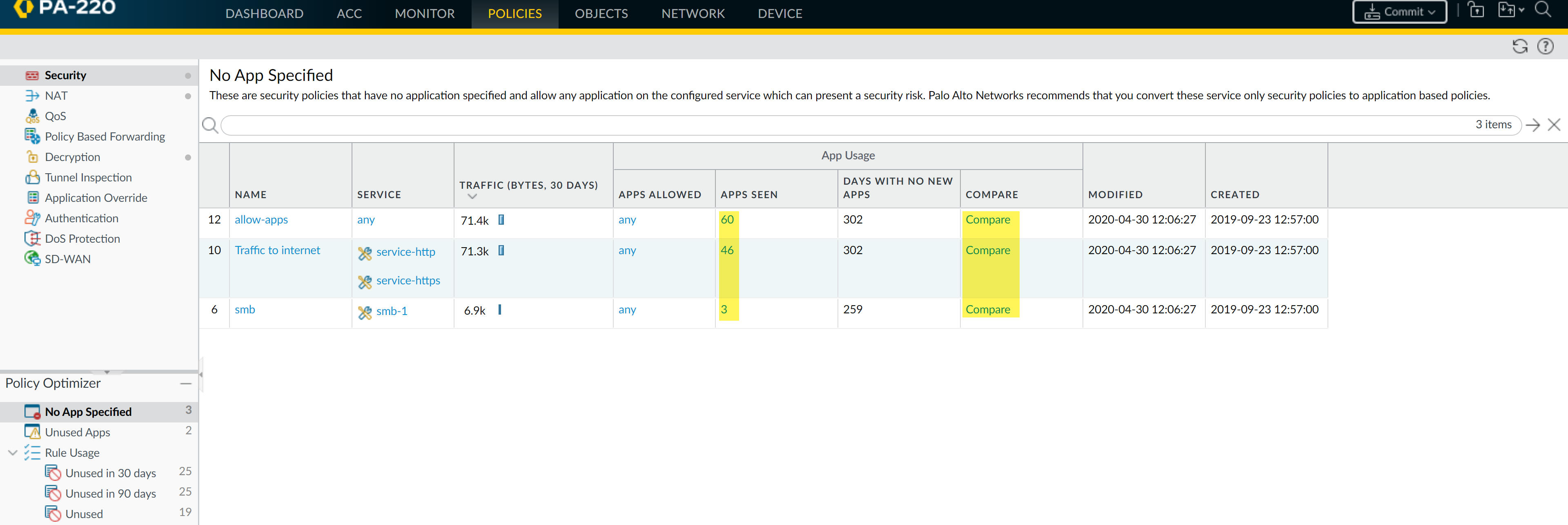

To see and sort the applications seen on a rule, in the rule’s
row, click Compare or click the number in Apps Seen.
You can sort the applications seen on the rule by all six of
the Apps Seen statistics (Apps
Seen is not updated in real time and takes an hour or
longer to update, depending on the volume of traffic and number
of rules).
Applications—Alphabetical by application
name. If you configure specific ports or port ranges for a rule’s
Service (the Service cannot be any), and
there are standard (application default) ports for the application,
and the configured ports don’t match the application-default ports,
then a yellow, triangular warning icon appears next to the application.
Subcategory—Alphabetical by application
subcategory, derived from the application content metadata.
Risk—According to the risk rating
of the application.
First Seen—The first day the application
was seen on the rule. The time stamp resolution is by the day only
(not hourly).
Last Seen—The last day the application
was seen on the rule. The time stamp resolution is by the day only
(not hourly).
Traffic (30 days)—Traffic in bytes
that matched the rule over the last 30 days is the default sorting method.
Set the
Timeframe to display statistics
for a particular time period—
Anytime, the
Past
7 days, the
Past 15 days, or
the
Past 30 days.
Traffic
(30 days) always displays only the last 30 days of traffic
in bytes. Changing the Timeframe does not
change the duration of the Traffic (30 days) bytes
measurement.
Clicking the column header orders the display and clicking the
same column again reverses the order. For example, click Risk to sort
applications from low risk to high risk. Click Risk again
to sort applications from high risk to low risk.
The firewall doesn’t report application usage statistics in real
time for Policy Optimizer, so it isn’t a replacement for running
reports.
The firewall updates Apps Allowed, Apps
Seen, and the applications listed in Applications
& Usage approximately every hour, not in real time.
If there is a large amount of traffic or a large number of rules, updates
may take longer. After you add an application to a rule, wait at
least an hour before running Traffic logs to see the application’s
log information.
The firewall updates Apps Seen approximately
every hour. However, if there is a large volume of application traffic
or a large number of rules, it may take longer than an hour to update.
After you add an application to a rule, wait at least an hour before
running Traffic logs to see the application’s log information.
The firewall updates Days with No New Apps and
also First Seen and Last Seen on Applications
& Usage once per day, at midnight device time.
For rules with large numbers of applications seen, it may
take longer to process application usage statistics.
For Security policy rulebases with large numbers of rules
that have many applications, it may take longer to process application
usage statistics.
For firewalls managed by Panorama, application usage data
is visible only for rules Panorama pushes to the firewalls, not
for rules configured locally on individual firewalls.
