On Strata Cloud Manager, configure an interface as a DHCP Relay Agent.
On Strata Cloud Manager, configure an interface as a DHCP Relay Agent. You can
configure a maximum of eight DHCP server addresses per IP address family.
- Log in to Strata Cloud Manager.Configure the interface that will act as a DHCP relay agent.

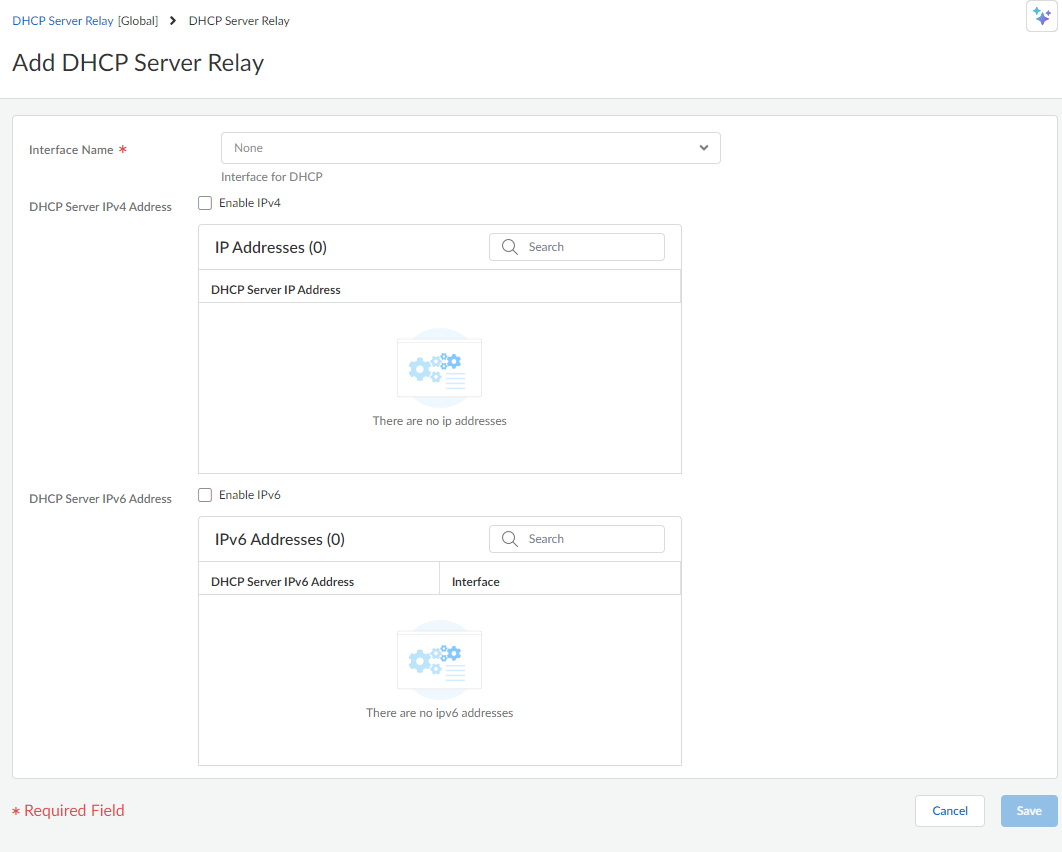

- Configure a Layer 3 interface or Layer 3 VLAN interface.Assign the Layer 3 interface to a logical router.Assign the Layer 3 interface to a zone.Select ConfigurationNGFW and Prisma AccessDeviceDHCPDHCP Server Relay and select the Configuration Scope where you want to create the DHCP server relay agent.Select a firewall from your Folders or select Snippets to configure the DHCP server relay agent in a snippet.Select an Interface Name.To add a DHCP relay agent, Enable IPv4 and select the plus sign (+) to enter the IPv4 address of the DHCP server to and from which you will relay DHCP messages.To add a DHCPv6 relay agent, Enable IPv6 and select the plus sign (+) to enter the IPv6 address of the DHCP server to and from which you will relay DHCP messages. If you specify a multicast address, also specify an outgoing Interface.Save the configuration.Push Config to push your configuration changes.
