Create a DNS Proxy object for Strata Cloud Manager.
For Strata Cloud Manager, you can configure a DNS proxy object that uses interfaces and static entries having IPv6 addresses assigned to them.
  1. Select ConfigurationNGFW and Prisma Access.
  2. Select DeviceDNS Proxy.
  3. Add DNS Proxy and Enable.
  4. Enter a Name for the DNS proxy object.
  5. Select the Inheritance Source from which to inherit default DNS server settings. The default is None.
  6. Enter the Primary DNS Name Server's IP address.
  7. Enter the Secondary DNS Name Server's IP address.
  8. Select + to add one or more Interfaces to which the DNS proxy object applies. The interfaces can have IPv6 addresses assigned to them.

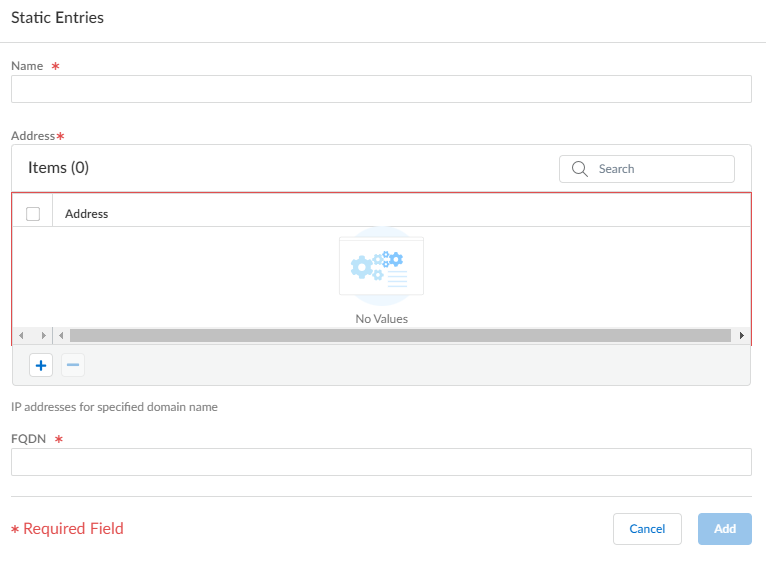

  9. Select Static Entries and Add to provide the DNS proxy with static FQDN-to-address entries. Static DNS entries allow SCM to resolve the FQDN to an IP address without sending a query to the DNS server.
  10. Enter a Name for the static entry.
  11. Select + to enter an IPv4 or IPv6 Address for the static entry; for example, 2001:db8:3232:4242:5252:66be:7aa7:8181.
  12. Enter the FQDN.
  13. Add the static entry.
  14. Save the configuration.
