Manage Network Profiles (Strata Cloud Manager)

1. Select ConfigurationNGFW and Prisma Access and choose the Configuration Scope where you want to manage network profiles.

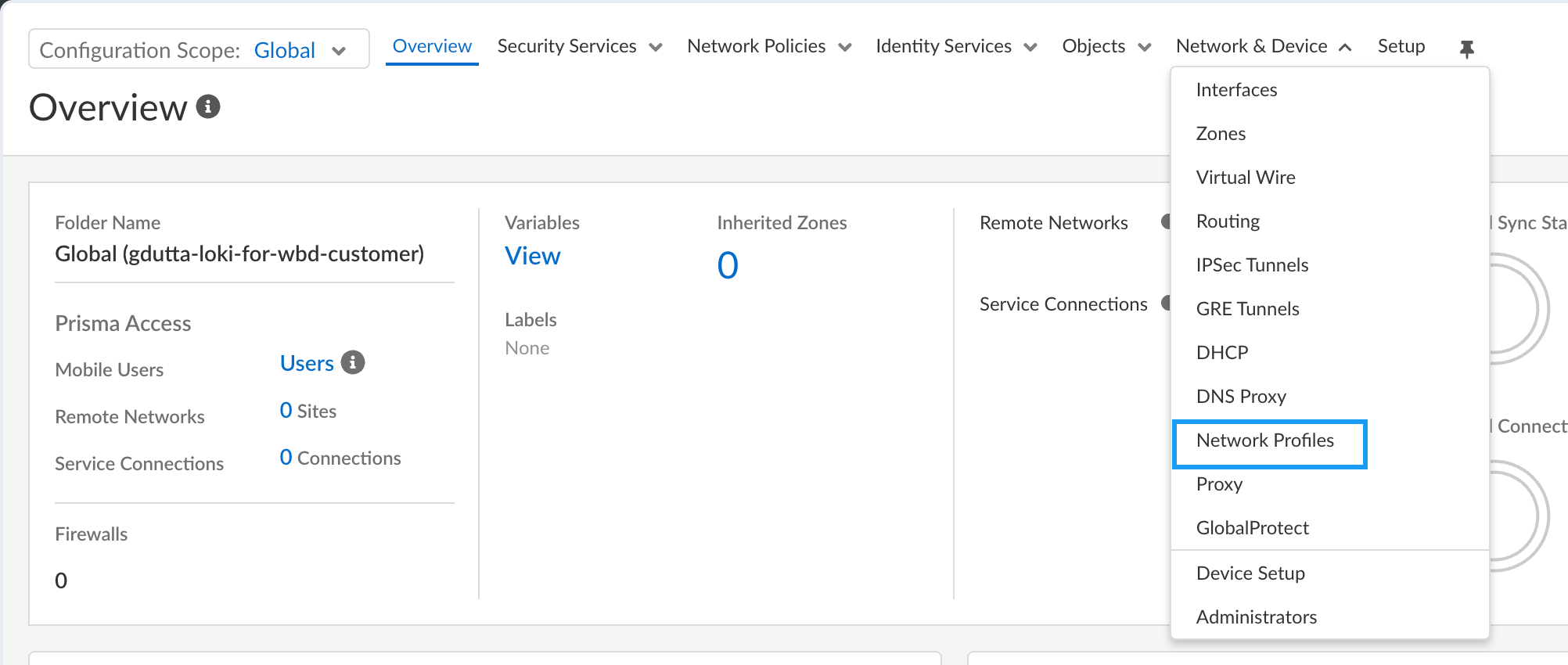

2. Select Network & DeviceNetwork Profiles.

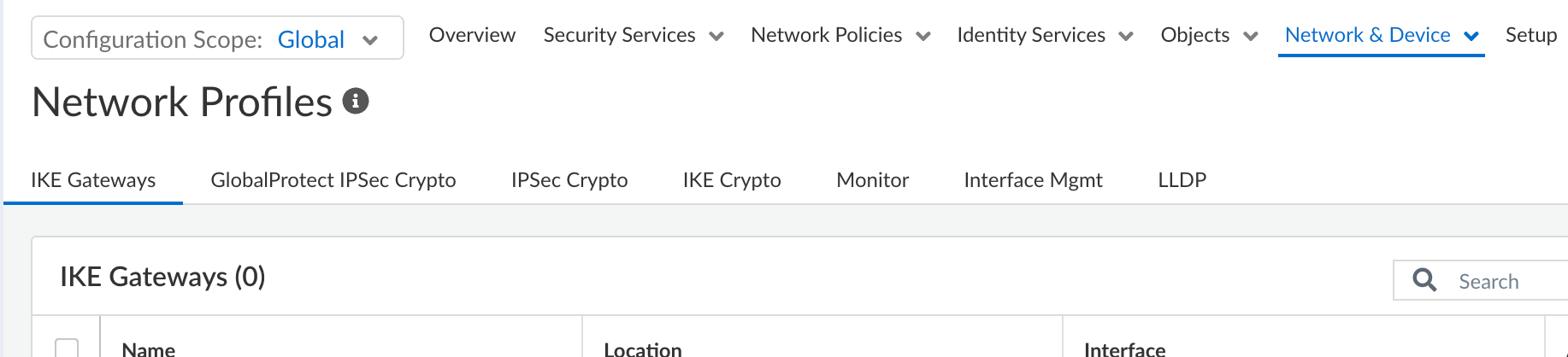

3. Select the tab for the profile type you want to manage.

   • IKE Gateways: Define the parameters for IKE phase 1 negotiations between VPN peers, including the peer IP address, authentication method, and associated IKE crypto profile.
   • GlobalProtect IPSec Crypto: Define the encryption and authentication algorithms used to secure GlobalProtect IPSec tunnels.
   • IPSec Crypto: Define the ESP or AH protocol, encryption, authentication, Diffie-Hellman group, lifetime, and lifesize settings for IPSec phase 2 security associations.
   • IKE Crypto: Define the Diffie-Hellman group, encryption, authentication, and lifetime settings for IKE phase 1 key exchanges.
   • Monitor: Define the action, interval, and threshold settings for monitoring IPSec tunnel connectivity.
   • Interface Mgmt: Define the administrative management services and network services permitted on an interface.
   • LLDP: Define the Link Layer Discovery Protocol mode, SNMP syslog notification, and optional TLV settings for interfaces.
4. On the selected tab, take one of the following actions:

   • To add a profile, click Add and configure the settings in the sliding pane.
   • To edit a profile, click the profile name, update the settings in the sliding pane, and click Save.
   • To clone a profile (GlobalProtect IPSec Crypto, IPSec Crypto, IKE Crypto, and LLDP only), select the profile and click Clone. Enter a new name and click Save.
   • To delete a profile, select the profile and click Delete. Confirm the deletion.
