    Network Slice Security in a 5G Network

    Secure a 5G network slice by configuring Security policy rules with source network slice SST names (standardized or operator-specific).
    Network operators need tools to investigate security events related to enterprises and industry verticals served by network slices in a fifth generation (5G) cellular wireless network. A network slice comprises dedicated, shared, or both types of resources (for example, processing power, storage, and bandwidth), and has isolation from other network slices.
    You can now apply network security based on network Slice/Service Type (SST). 5G network functions communicate with each other using the HTTP/2 protocol over service-based interfaces. Traffic from User Equipment (UE) and IoT devices is carried in GTP-U tunnels in the 5G network.
    The Security policy rules for 5G network slice are based on Network SST in two categories—standardized and operator-specific:
    • Network Slice SST - Standardized
      —Three predefined slices, which PAN-OS
      ®
       delivers to you in dynamic content updates:
      • eMBB
         (enhanced Mobile Broadband)—For faster speeds and high data rates, such as video streaming.
      • URLLC
         (Ultra-Reliable Low-Latency Communication)—For mission-critical applications that are sensitive to latency, such as applications for health care, wireless payments, home control, and vehicle communication.
      • MIoT
         (Massive Internet of Things)—For IoT traffic, such as smart metering, smart waste management, anti-theft, asset management, and location tracking.
    • Network Slice SST—Operator-specific
      —You determine the name for and specify the slice.
    You can apply the following security per network slice or per group of network slices: application control, Antivirus, Anti-Spyware, URL filtering, intrusion prevention, and advanced threat prevention with WildFire
    ®
    . You can see the Network Slice ID SST in traffic, threat, URL filtering, and WildFire submissions as well as in data filtering, GTP, and unified logs; and you can see the Network Slice ID SD in traffic, GTP, and unified logs to help you investigate a security event related to the enterprise or customer.
    Security policy rules and correlation based on 5G Network Slice are supported on the following firewalls:
    • PA-7000 Series firewalls that use the following three cards:
      • The PA-7000-100G-NPC
      • The PA-7050-SMC-B card or the PA-7080-SMC-B card
      • The PA-7000-LFC card
    • PA-5200 Series firewalls
    • VM-700, VM-500, VM-300, and VM-100 firewalls
    1. Enable GTP Security,
      Commit
      , and reboot.
    2. Enable inspection of 5G HTTP/2 control packets; create a Mobile Network Protection profile.
      1. Select
        Objects
        Security Profiles
        Mobile Network Protection
         and add a
         profile by
        Name
        .
      2. On the
        GTP Inspection
         tab, select
        5G-C
        .
      3. Enable
        5G-HTTP2
         to enable inspection of 5G HTTP/2 control packets.
      4. Select
        GTP-U
         and enable
        GTP-U Content Inspection
        .
      5. Click
        OK
        .
    3. Create address objects for the IP addresses assigned to the network elements in your topology, such as the AMF on the N11 interface, the gNB on the N3 interface, the SMF on the N11 interface, and the UPF on the N3 interface.
    4. Create a Security policy rule that applies your Mobile Network Protection profile to application traffic.
      1. Select
        Policies
        Security
         and
        Add
         a Security policy rule.
      2. For
        Source Address
        ,
        Add
         the address objects for the 5G element endpoints on the N3 and N11 interfaces that you want to allow.
      3. For
        Destination
        ,
        Add
         the
        Destination Address
         objects for the 5G element endpoints on the N3 and N11 interfaces that you want to allow.
      4. Add
         the
        Applications
         to allow, such as the user plane, which is
        gtp-u
        , and
        web-browsing
        , which has HTTP/2.
      5. On the
        Actions
         tab, select the
        Action
        , such as
        Allow
        .
      6. Select the
        Mobile Network Protection
         profile you created.
      7. Click
        OK
        .
    5. Create another Security policy rule based on Network Slices to allow, for example, applications for a standardized or operator-specific SST.
      1. Select
        Policies
        Security
         and
        Add
         a Security policy rule by
        Name
        .
      2. Select
        Source
         and
        Add
         one or more
        Network Slices
         in either of the following formats:
        • Standardized SST (select
          eMBB
          ,
          MIoT
          , or
          URLLC
          ).
        • Operator-specific SSTs in the format of
          text,number
           (number range is 128 to 255 in decimal).
      3. Specify
        Source Zone
        ,
        Source Address
        ,
        Source User
        , and
        Source Device
         or use the default
        Any
         setting for each.
      4. Specify
        Destination Zone
        ,
        Destination Address
        , and
        Destination Device
         or use the default
        Any
         setting for each.

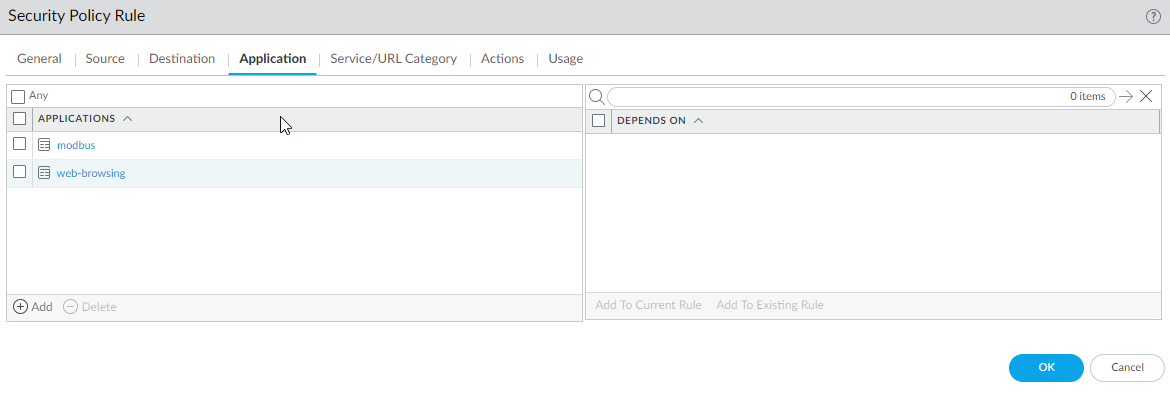

      5. For
        Applications
        , select, for example,
        modbus
         and
        web-browsing
        .
      6. On the
        Actions
         tab, select the
        Action
        , such as
        Allow
        .
      7. Select profiles you want to apply, such as
        Antivirus
        ,
        Vulnerability Protection
        ,
        Anti-Spyware
        ,
        URL Filtering
        ,
        File Blocking
        , and
        WildFire Analysis
        .
      8. Click
        OK
        .
    6. Commit
       your changes.
