    Create RIPv2 Routing Profiles

    Create routing profiles for RIPv2 global timers, authentication, and route redistribution on an Advanced Routing Engine.
    The Advanced Routing Engine supports RIPv2; create the following profiles to apply to the protocol. The profiles can be used across multiple logical routers and virtual systems. This topic describes the profiles and how to configure them.
    • RIPv2 Global Timer Profiles
      —Specify RIPv2 update, expire, and delete intervals. Apply the profile in the RIPv2 general configuration.
    • RIPv2 Interface Authentication Profiles
      —Specify RIPv2 authentication using a password or MD5; apply the profile in the RIPv2 general configuration.
    • RIPv2 Redistribution Profiles
      —Specify how to redistribute IPv4 static routes, connected routes, BGP IPv4 routes, and OSPFv2 routes to RIPv2. Apply the profile in the RIPv2 general configuration.
    1. Create a RIPv2 Global Timer Profile.
      1. Select
        Network
        Routing
        Routing Profiles
        RIPv2
        .
      2. Add
         a
        RIPv2 Global Timer Profile
         by
        Name
         (a maximum of 63 characters). The name must start with an alphanumeric character, underscore (_), or hyphen (-), and can contain a combination of alphanumeric characters, underscore, or hyphen. No dot (.) or space is allowed.
      3. Specify
        Update Interval
         in seconds, which is the length of time between regularly scheduled Update messages; range is 5 to 2,147,483,647; default is 30.
      4. Specify
        Expire Interval
         in seconds, which is the length of time that a route can be in the routing table without being updated; range is 5 to 2,147,483,647; default is 180. After the Expire Interval is reached, the route is still included in Update messages until the Delete Interval is reached.
      5. Specify
        Delete Interval
         in seconds; range is 5 to 2,147,483,647; default is 120. When an expired route in the routing table reaches the Delete Interval, it is deleted from the routing table.
      6. Click
        OK
        .
    2. Create a RIPv2 Authentication Profile.
      1. Select
        Network
        Routing
        Routing Profiles
        RIPv2
        .
      2. Add
         a

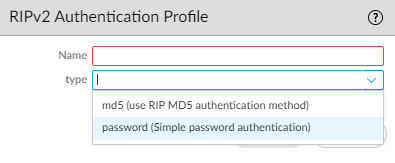

        RIPv2 Authentication Profile
         by
        Name
         (a maximum of 63 characters). The name must start with an alphanumeric character, underscore (_), or hyphen (-), and can contain a combination of alphanumeric characters, underscore, or hyphen. No dot (.) or space is allowed.
      3. Specify the
        type
         of authentication:
        md5 (use RIP MD5 authentication method)
         or
        password (Simple password authentication)
        .
      4. For
        Simple password authentication
        , enter the
        Password
         (a maximum of 16 characters) and
        Confirm Password
        .
      5. For
        RIP MD5 authentication
        :
        • Add
           an MD5 Key-ID; range is 0 to 255.
        • Enter the
          Key
           (a maximum of 16 alphanumeric characters) and
          Confirm Key
          .
        • Select
          use this key when sending packet
           to make this key the Preferred key.
      6. Click
        OK
        .
    3. Create a RIPv2 Redistribution Profile to specify any combination of IPv4 static routes, connected routes, BGP IPv4 routes, and OSPFv2 routes to redistribute to RIPv2.
      1. Select
        Network
        Routing
        Routing Profiles
        RIPv2
        .
      2. Add
         a

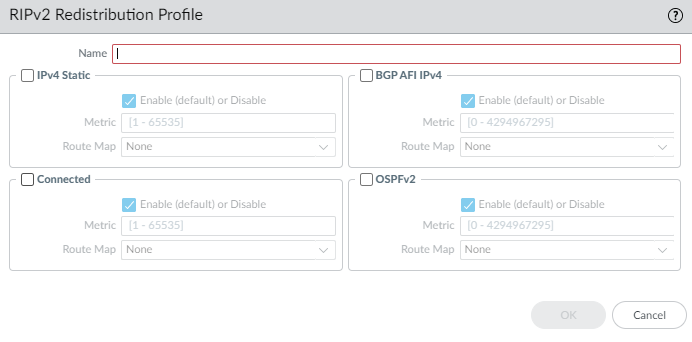

        RIPv2 Redistribution Profile
         by
        Name
         (a maximum of 63 characters). The name must start with an alphanumeric character, underscore (_), or hyphen (-), and can contain a combination of alphanumeric characters, underscore, or hyphen. No dot (.) or space is allowed.
      3. Select
        IPv4 Static
         to allow configuration of this portion of the profile.
        • Enable
           the IPv4 static redistribution portion of the profile.
        • Specify the
          Metric
           to apply to the static routes being redistributed into RIPv2 (range is 1 to 65,535).
        • Select a
          Redistribute Route-Map
           or create a new Redistribute Route Map whose match criteria control which IPv4 static routes to redistribute into RIPv2. Default is
          None
          . If the route map Set configuration includes a Metric Action and Metric Value, they are applied to the redistributed route. Otherwise, the Metric configured on this redistribution profile is applied to the redistributed route.
      4. Select
        Connected
         to allow configuration of this portion of the profile.
        • Enable
           the connected route redistribution portion of the profile.
        • Specify the
          Metric
           to apply to the connected routes being redistributed into RIPv2 (range is 1 to 65,535).
        • Select a
          Redistribute Route-Map
           or create a new Redistribute Route Map. Default is
          None
          . If the route map Set configuration includes a Metric Action and Metric Value, they are applied to the redistributed route. Otherwise, the Metric configured on this redistribution profile is applied to the redistributed route.
      5. Select
        BGP AFI IPv4
         to allow configuration of this portion of the profile.
        • Enable
           the BGP IPv4 route redistribution portion of the profile.
        • Specify the
          Metric
           to apply to the BGP routes being redistributed into RIPv2 (range is 0 to 4,294,967,295).
        • Select a
          Redistribute Route-Map
           or create a new Redistribute Route Map. Default is
          None
          . If the route map Set configuration includes a Metric Action and Metric Value, they are applied to the redistributed route. Otherwise, the Metric configured on this redistribution profile is applied to the redistributed route.
      6. Select
        OSPFv2
         to allow configuration of this portion of the profile.
        • Enable
           the OSPFv2 route redistribution portion of the profile.
        • Enable
           the IPv4 default route redistribution portion of the profile.
        • Specify the
          Metric
           to apply to the default route being redistributed into RIPv2 (range is 0 to 4,294,967,295).
        • Select a
          Redistribute Route-Map
           or create a new Redistribute Route Map. Default is
          None
          .If the route map Set configuration includes a Metric Action and Metric Value, they are applied to the redistributed route. Otherwise, the Metric configured on this redistribution profile is applied to the redistributed route.
      7. Click
        OK
        .
