Import Multiple ZTP Firewalls to Panorama

1. Gather the serial numbers and claim keys for your ZTP firewalls.

   The eight digit numeric claim key is printed on a physical label attached to the back of the ZTP firewall you received from Palo Alto Networks.

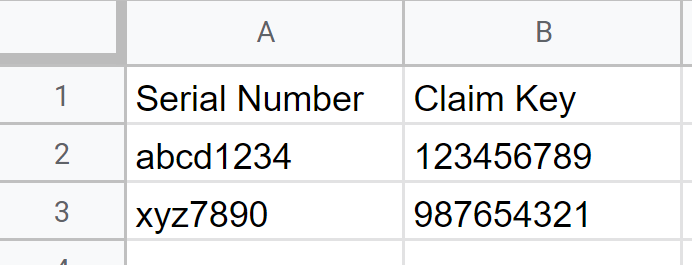

2. Create a CSV file containing the ZTP firewall serial numbers and claim keys. The first column must contain the serial numbers and the second column must contain the corresponding claim key for that firewall. Refer to the following example for reference.

3. Import the ZTP firewalls to Panorama.

   You must connect the Eth1/1 interface on ZTP firewalls to successfully register ZTP firewalls with the CSP and push the policy and network configurations.

   1. Log in to the Panorama Web Interface using the ZTP installer admin credentials.
   2. Select PanoramaZero Touch ProvisioningFirewall Registration and Import the ZTP firewalls.
   3. Browse and select the CSV file containing the ZTP firewall information and click OK.
4. Register the ZTP firewalls.

   1. Select the newly added ZTP firewalls and Register the firewalls.
   2. When prompted, click Yes to confirm registering the ZTP firewalls.
5. Verify the firewall successfully registered with the ZTP service.

   1. Select Registration Status and verify that the ZTP firewalls successfully registered with the ZTP service.
   2. Log in to the Panorama Web Interface using admin credentials.
   3. Select PanoramaManaged DevicesSummary and verify that the ZTP firewalls are successfully added as a managed firewall.

      Ensure that the To SW Version column is configured to the correct PAN-OS version so that the firewall does not upgrade or downgrade unintentionally. ZTP functionality is supported only for PAN-OS 10.0.1 and later releases. Additionally, the PAN-OS version must be the same or an earlier version of the PAN-OS version running on Panorama.

      For more information, see Upgrade a ZTP Firewall.
6. Add the ZTP firewall to the device group and template stack that contain the required ZTP configuration.

   You must add the ZTP firewall to a device group and template stack for your firewalls to display as Connected to push policy and network configurations.

   You must keep the ZTP firewall in the ZTP device group and template stack that the ZTP template is associated with. This is required for the firewall to maintain connectivity with Panorama and prevent any unintended configuration reverts on the firewall.

   1. Log in to the Panorama Web Interface using admin credentials.
   2. Select PanoramaDevice Groups and add the ZTP firewall to the device group created when you registered Panorama with the ZTP service.

      This is required for the ZTP firewall to successfully connect to Panorama.
   3. Select PanoramaTemplates, add the ZTP firewall to the template stack you created when you registered Panorama with the ZTP service.

      This is required for the ZTP firewall to successfully connect to Panorama.
7. Complete setting up the newly onboarded firewalls.

   1. Log in to the firewall web interface and activate the Support license.

      You must activate the Support license locally for each managed firewall you added to Panorama management.
   2. Log in to the Panorama web interface and activate any additional licenses on your managed firewalls.
   3. Install the latest dynamic content updates on the managed firewalls.

      1. Select PanoramaDevice DeploymentDynamic Updates and Check Now for the latest updates
      2. Download the latest dynamic content release version.
      3. Install and select the newly added firewalls.
         Click OK when prompted.
   4. (Optional) Upgrade the managed firewalls as needed.
