Manage the Master Key from Panorama

Deploy new, or renew expiring master keys, to firewalls, log collectors, and WF-500 appliances from the Panorama™ management server.
Panorama, firewalls, Log Collectors, and WF-500 appliances use a master key to encrypt sensitive elements in the configuration and they have a default master key they use to encrypt passwords and configuration elements. As part of a standard security practice, you should replace the default master key and change the key on each individual firewall, Log Collector, WildFire appliance, and Panorama before it expires.
To strengthen your security posture, configuring a unique master key for Panorama and for each managed firewall. By configuring unique master keys, you can ensure that a compromised master key does not compromise the configuration encryption of your entire deployment. Unique master keys are supported only for Panorama and managed firewalls. Log Collectors and WildFire appliances must share the same master key as Panorama. For Panorama or managed firewalls in a high availability (HA) configuration, you must deploy the same master key for both HA peers as the master key is not synchronized across HA peers.
The default encryption algorithm that the master key uses to encrypt data is AES-256-CBC—the same algorithm that the master key used prior to PAN-OS 10.0. AES-256-CBC is the default encryption level because when you manage firewalls with Panorama, the managed firewalls may be on different PAN-OS releases, and firewalls on PAN-OS releases earlier than PAN-OS 10.0 do not support AES-256-GCM. This is why Panorama must use the lowest level of encryption that its managed devices can use. For example, if some managed devices run PAN-OS 10.0 and some run earlier versions, Panorama must use AES-256-CBC. However, if all managed devices run PAN-OS 10.0 or later, then Panorama and all of its managed devices can use AES-256-GCM.
Palo Alto Networks recommends using AES 256-GCM level 2 for master key encryption.
When a master key expires, you must enter the current master key in order to configure a new master key.
Be sure to keep track of the master key you deploy to your managed firewalls, Log Collectors, and WildFire appliances because master keys cannot be recovered. you must reset to factory default if you cannot provide the current master key when it expires.
  1. (
    Best Practice
    ) Select
    Commit
    and
    Commit and Push
    any pending configuration changes.
    Panorama must re-encrypt data using the new master key. To ensure all configuration elements are encrypted with the new master key, you should commit all pending changes before deploying the new master key.
  2. Configure a unique master key for a managed firewall.
    1. (
      HA only
      ) Disable Config Sync for managed firewalls.
      This step is required before deploying a new master key to a firewall HA pair
      1. Select
        Device
        High Availability
        General
        and select the
        Template
        containing the managed firewall HA configuration.
      2. Edit the HA Pair Settings
        Setup
        .
      3. Disable (clear)
        Enable Config Sync
        and click
        OK
        .
      4. Commit
        and
        Commit and Push
        your configuration changes.
    2. Select
      Panorama
      Managed Devices
      Summary
      and
      Deploy Master Key
      .

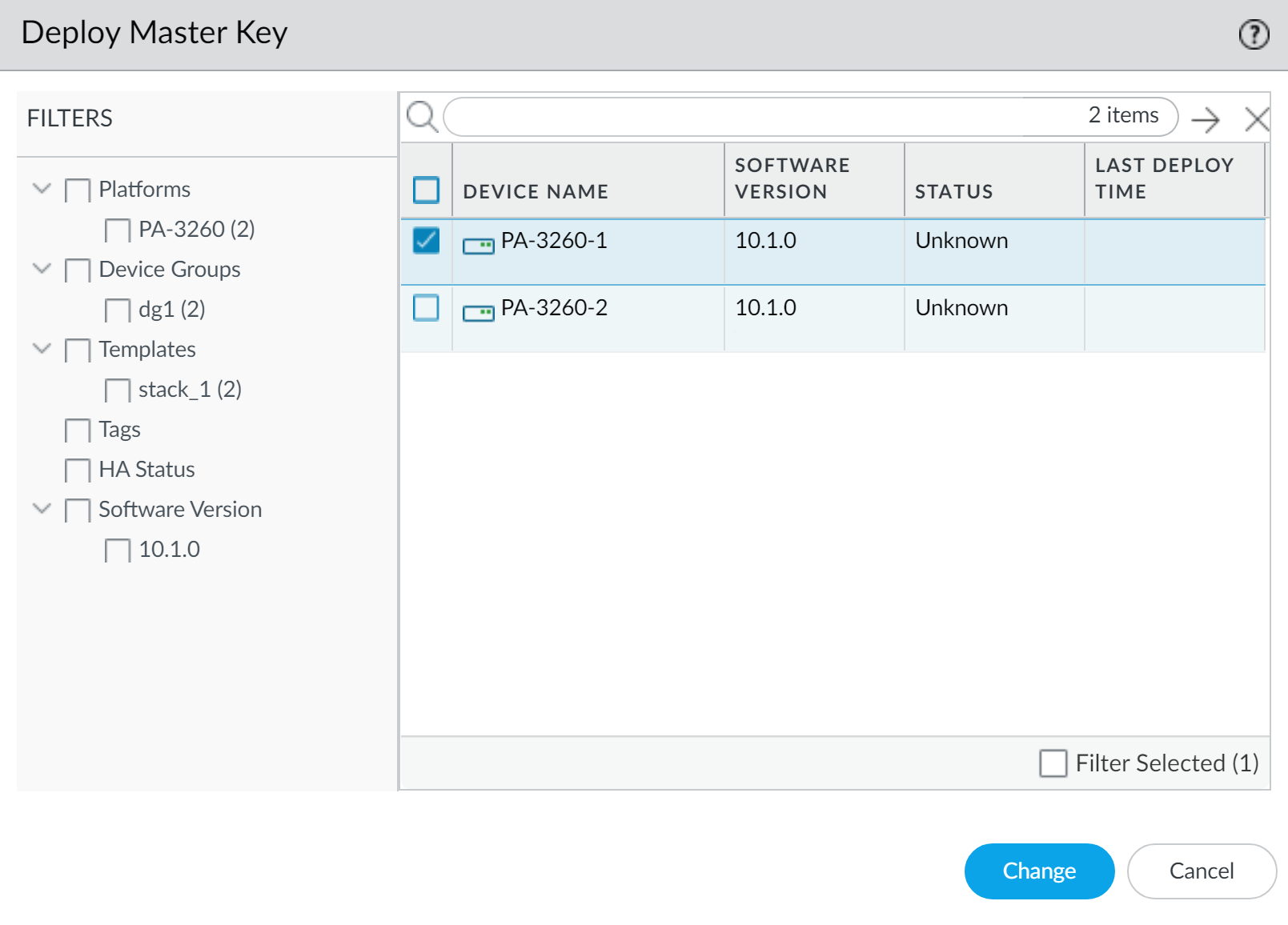

    3. Select a managed firewall and
      Change
      the master key.
      If you want to deploy a unique master key for a specific set of managed firewalls, you can select those specific managed firewalls as well.

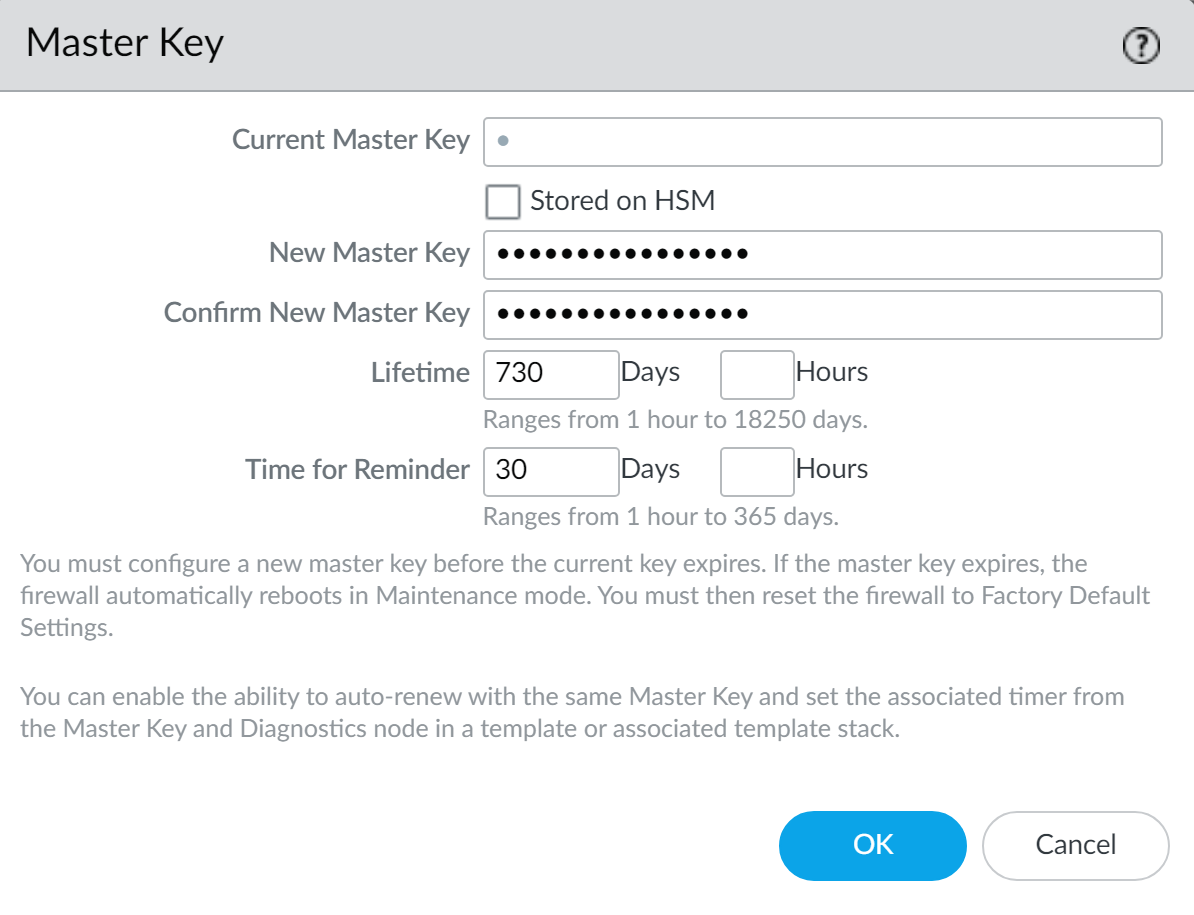

    4. Configure the master key:
      1. If renewing a master key, enter the
        Current Master Key
        . If you are replacing the default master key with a new master key, do not specify a
        Current Master Key
        .
      2. (
        Optional
        ) Enable (check)
        Stored on HSM
        if the master key is encrypted on a Hardware Security Module (HSM).
      3. Specify the
        New Master Key
        and
        Confirm Master Key
        .
      4. Configure the master key
        Lifetime
        and
        Time for Reminder
        .
      5. Click
        OK
        .
        The new master key is automatically pushed to your managed firewalls after you click
        OK
        . Proceed only if you are certain you are ready to change the master key for your managed firewalls.
    5. Verify that the master key was deployed successfully to all selected managed firewalls.
      A System log generates when you deploy a new master key from Panorama.
    6. (
      Optional
      ) Configure the master key to automatically renew for your managed firewalls.
      Configure this setting to automatically renew the master key deployed on the managed firewalls associated with the selected template. Otherwise, the master key expires per the configured master key lifetime and you must deploy a new master key.
      1. Select
        Device
        Master Key and Diagnostic
        and select the
        Template
        containing the target managed firewalls.
      2. Edit the
        Master Key
        settings and configure the
        Auto Renew With Same Master Key
        setting.
      3. Click
        OK
        .
      4. Commit
        and
        Commit and Push
        your configuration changes.
  3. Configure the master key on Panorama.
    1. (
      HA only
      ) Disable the HA configuration for Panorama.
      This step is required to successfully change the master for both Panorama HA peers. You are unable to commit configuration changes on the secondary HA peer when Panorama is in an HA configuration.
      1. Select
        Panorama
        High Availability
        General
        and edit the HA Setup.
      2. Disable (uncheck)
        Enable HA
        and click
        OK
        .
      3. Commit
        and
        Commit to Panorama
        .
    2. Select
      Panorama
      Master Key and Diagnostics
      and configure the master key.
      1. If renewing a master key, enter the
        Current Master Key
        . If you are replacing the default master key with a new master key, o not specify a
        Current Master Key
        .
      2. Configure the
        New Master Key
        and
        Confirm Master Key
        .
      3. Configure the master key
        Lifetime
        and
        Time for Reminder
        .
      4. Click
        OK
        .
        The new master key is automatically committed to Panorama after you click
        OK
        . Proceed only if you are certain you are ready to change the master key on Panorama.
    3. (
      Optional
      ) Configure the Panorama master key to automatically renew.
      Configure this setting to automatically renew the master key deployed on Panorama. Otherwise, the master key expires per the configured master key lifetime and you must deploy a new master key.
      1. Select
        Panorama
        Master Key and Diagnostic
        and edit the
        Master Key
        setting.
      2. Configure the
        Auto Renew With Same Master Key
        setting.
      3. Click
        OK
        .
    4. Select
      Commit
      Commit to Panorama
      and
      Commit
      your changes.
    5. (
      HA only
      ) Repeat this step to configure an identical master key on the secondary HA peer.
      You must manually configure an identical master key on the primary and secondary HA peers when Panorama is in an HA configuration. The master key is not synchronized between the primary and secondary HA peers.
  4. Deploy the master key to Log Collectors.
    The master key configured for your Log Collectors must be identical to the master key configured for Panorama.
    1. Select
      Panorama
      Managed Collectors
      and
      Deploy Master Key
      .
    2. Select all devices and
      Change
      the master key.
    3. Configure the master key:
      1. If renewing a master key, enter the
        Current Master Key
        . If you are replacing the default master key with a new master key, do not specify a
        Current Master Key
        .
      2. Specify the
        New Master Key
        and
        Confirm Master Key
        .
      3. Configure the master key
        Lifetime
        and
        Time for Reminder
        .
      4. Click
        OK
        .
        The new master key is automatically pushed to your Log Collectors after you click
        OK
        . Proceed only if you are certain you are ready to change the master key for your Log Collectors.
    4. Verify that the master key was deployed successfully to all selected devices.
      A System log generates when you deploy a new master key from Panorama.
  5. Deploy the master key to managed WildFire appliances.
    The master key configured your WildFire appliances must be identical to the master key configured for Panorama.
    1. Select
      Panorama
      Managed WildFire Appliances
      and
      Deploy Master Key
      .
    2. Select all devices and
      Change
      the master key.
    3. Configure the master key:
      1. If renewing a master key, enter the
        Current Master Key
        . If you are replacing the default master key with a new master key, do not specify a
        Current Master Key
        .
      2. Specify the
        New Master Key
        and
        Confirm Master Key
        .
      3. Configure the master key
        Lifetime
        and
        Time for Reminder
        .
      4. Click
        OK
        .
        The new master key is automatically pushed to your WildFire appliances after you click
        OK
        . Proceed only if you are certain you are ready to change the master key for your WildFire appliances.
    4. Verify that the master key was deployed successfully to all selected devices.
      A System log generates when you deploy a new master key from Panorama.
  6. (
    HA Panorama only
    ) Reconfigure the Panorama HA configuration.
    Repeat this step for both the primary and secondary Panorama HA peers.
    1. Select
      Panorama
      High Availability
      General
      and edit the HA Setup.
    2. Enable (check)
      Enable HA
      and click
      OK
      .
    3. Commit
      and
      Commit to Panorama
      .
  7. (
    HA Firewalls only
    ) Enable config sync for managed firewalls.
    1. Select
      Device
      High Availability
      General
      and select the
      Template
      containing the managed firewall HA configuration.
    2. Edit the HA Pair Settings
      Setup
      .
    3. Enable (check)
      Enable Config Sync
      and click
      OK
      .
    4. Commit
      and
      Commit and Push
      your configuration changes.
