Install Panorama on Hyper-V

1. Download the Panorama 11.0 base image VHDX file

   1. Log in to the Palo Alto Networks Support Portal.
   2. Select UpdatesSoftware Updates and filter by Panorama Base Images to download the VHDX file (Panorama-HPV-11.0.0.vhdx).
2. Set up any vSwitch(es) that you will need. For more information, review the Virtual Switch Types for more information.

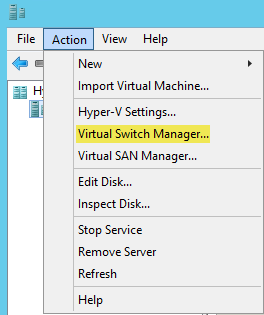

   1. From Hyper-V Manager, select the host and select ActionVirtual Switch Manager to open the Virtual Switch Manager window.

   2. Under Create virtual switch, select the type of vSwitch to create and click Create Virtual Switch.
3. Install the Panorama virtual appliance.

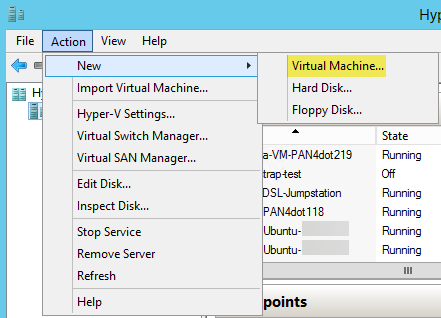

   1. On the Hyper-V Manager, select the host and select ActionNewVirtual Machine. Configure the following settings in the New Virtual Machine Wizard:

      1. Choose a Name and Location for the Panorama virtual appliance. The Panorama virtual appliance stores the VHDX file at the specified location.
      2. Choose Generation 1. This is the default option and the only version supported.
      3. For Startup Memory, assign the memory based on the intended system mode. See the Setup Prerequisites for the Panorama Virtual Appliance for the memory requirements for each mode.
         Do not enable dynamic memory; the Panorama virtual appliance requires static memory allocation.
      4. Configure Networking. Select an external vSwitch to connect the management interface on the firewall.
      5. To connect the Virtual Hard Disk, select Use an existing virtual hard disk and browse to the VHDX file you downloaded earlier.
      6. Review the summary and click Finish.
4. Allocate the Panorama virtual appliance CPU cores.

   Review the Setup Prerequisites for the Panorama Virtual Appliance for minimum resource requirements.

   If you plan to use the Panorama virtual appliance as a Dedicated Log Collector, ensure that you configure the appliance with the required resources during initial deployment. The Panorama virtual appliance does not remain in Log Collector mode if you resize the virtual machine after you deploy it, and this results in a loss of log data.

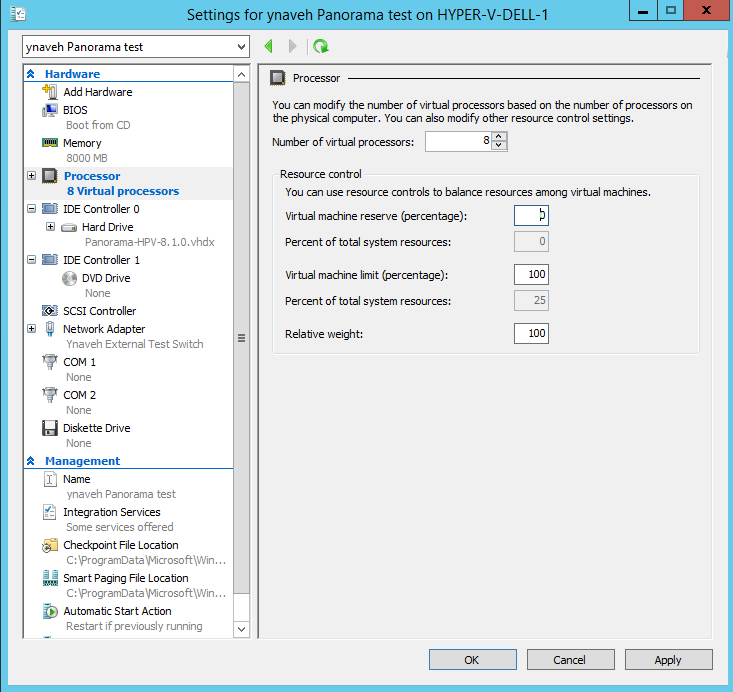

   1. In the Hardware list, select Processor.
   2. Edit the currently allocated Number of virtual processors.

5. Connect at least one network adapter for the dataplane interface on the firewall. Repeat this to create additional network interfaces on the Panorama virtual appliance.

   1. Select SettingsHardwareAdd Hardware and select the Hardware type for your network adapter.

      Legacy Network Adapter and SR-IOV are not supported. If selected, the VM-Series firewall will boot into maintenance mode.
   2. Click OK.
6. (Optional) Add additional storage for log collection. Repeat this step as needed to add additional virtual logging disks. If you want to deploy the Panorama virtual appliance in Management Only mode, continue to Step 6.

   If you intend to use the Panorama virtual appliance in Panorama mode or as a Dedicated Log Collector, add the virtual logging disks during the initial deployment. By default, the Panorama virtual appliance is in Panorama mode for the initial deployment when you meet the Panorama mode resource requirements and have added at least one virtual logging disk. Otherwise, the Panorama virtual appliance defaults to Management Only mode. Change the Panorama virtual appliance to Management Only mode if you just want to manage devices and Dedicated Log Collectors, and to not collect logs locally.

   The Panorama virtual appliance on Hyper-V only supports 2TB logging disks, and in total supports up to 24TB of log storage. You are unable to add a logging disk smaller than 2TB, or a logging disk with a size not divisible by the 2TB logging disk requirement. The Panorama virtual appliance partitions logging disks larger than 2TB into 2TB partitions.

   1. On the Hyper-V Manager, select the host and select ActionNewHard Disk.
   2. If you see the Before You Begin prompt, click Next to begin adding the virtual logging disk.
   3. For the Disk Format, select VHDX. Click Next. to continue
   4. For the Disk Type, select Fixed Size or Dynamically Expanding based on your needs. Click Next to continue.
   5. Specify the Name and Location for the virtual logging disk file. Click Next to continue.
   6. To configure the disk, select Create a new virtual hard disk and enter the disk size. Click Next to continue.
   7. Review the Summary and Finish adding the virtual hard logging disk.
7. Power on the Panorama virtual appliance.

   1. Select the Panorama virtual appliance instance from the list of Virtual Machines.

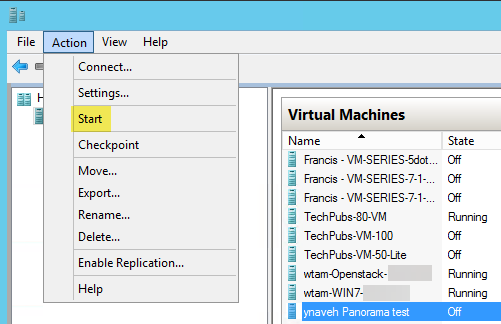

   2. Select ActionStart to power on the Panorama virtual appliance.

8. Connect to the Panorama virtual appliance console from the Hyper-V Manager.

   1. In the Virtual Machines list, select the Panorama virtual appliance.
   2. Select ActionsConnect and enter the username and password to log in (default is admin for both).
9. Configure a new administrative password for the Panorama virtual appliance.

   You must configure a unique administrative password before you can access the web interface or CLI of the Panorama virtual appliance. The new password must be a minimum of eight characters and include a minimum of one lowercase character, one uppercase character, and one number or special character.

   When you first log in to the Panorama CLI, you are prompted to enter the Old Password and the New Password for the admin user before you can continue.
10. Configure the IP address of the management interface.

    1. Enter the following commands, where <Panorama-IP> is the IP address you want to assign to the Panorama management interface, <netmask> is the subnet mask, <gateway-IP> is the IP address of the network gateway, and <DNS-IP> is the IP address of the DNS server:

       admin> configure
       admin# set deviceconfig system ip-address <Panorama-IP> netmask <netmask> default-gateway <gateway-IP> dns-setting servers primary <DNS-IP>
       admin# commit
       admin# exit

    2. Troubleshoot Connectivity to Network Resources to verify network access to external services required for firewall management, such as the default gateway, DNS server, and the Palo Alto Networks Update Server, as shown in the following example:

11. Register the Panorama virtual appliance and activate the device management license and support licenses.

    1. (VM Flex Licensing Only) Provisioning the Panorama Virtual Appliance Serial Number.

       When leveraging VM Flex licensing, this step is required to generate the Panorama virtual appliance serial number needed to register the Panorama virtual appliance with the Palo Alto Networks Customer Support Portal (CSP).
    2. Register Panorama.

       You must register the Panorama virtual appliance using the serial number provided by Palo Alto Networks in the order fulfillment email.

       This step is not required when leveraging VM Flex licensing as the serial number is automatically registered with the CSP when generated.
    3. Activate the firewall management license.

       • Activate/Retrieve a Firewall Management License when the Panorama Virtual Appliance is Internet-connected.
       • Activate/Retrieve a Firewall Management License when the Panorama Virtual Appliance is not Internet-connected.
    4. Activate a Panorama Support License.
12. Complete configuring the Panorama virtual appliance for your deployment needs.

    • For Panorama in Log Collector Mode.
      1. Add a Virtual Disk to Panorama on Hyper-V as needed.
         Adding at least one virtual logging disk is required before you can change the Panorama virtual appliance to Log Collector mode.
      2. Begin at Step 6 to switch to Log Collector mode.
         Enter the Public IP address of the Dedicated Log Collector when you add the Log Collector as a managed collector to the Panorama management server. You cannot specify the IP Address, Netmask, or Gateway.
    • For Panorama in Panorama mode.
      1. Add a Virtual Disk to Panorama on Hyper-V.
         Adding at least one virtual logging disk is required before you can change the Panorama virtual appliance to Panorama mode.
      2. Set up a Panorama Virtual Appliance in Panorama Mode.
      3. Configure a Managed Collector.
    • For Panorama in Management Only mode.
      1. Set up a Panorama Virtual Appliance in Management Only Mode.
      2. Configure a Managed Collector to add a Dedicated Log Collector to the Panorama virtual appliance.
         Management Only mode does not support local log collection, and requires a Dedicated Log Collector to store managed device logs.
