Troubleshoot Connectivity to Network Resources
Test the running firewall configuration for connectivity
to important network resources.
Perform connectivity tests for managed firewalls
to ensure that your managed devices can connect to all appropriate
network resources. Test the device configuration for your managed
devices to ensure the running configuration appropriately secures
your network by allowing you to verify that the configurations pushed
to your managed devices still allow those devices to connect to
resources such as your Log Collectors, configured External Dynamic
Lists, and the Palo Alto Networks Update Server. Additionally, you
can execute routing, WildFire®, Threat Vault, ping, and traceroute
connectivity tests to verify that Panorama™ and managed devices
can access any external network resources critical to the operation
and security of your network. After the results are generated, you
can
Export to PDF
for auditing purposes.The
Ping connectivity test is only supported for firewalls running PAN-OS
9.0 or later releases.
- Selectto perform a connectivity test.PanoramaManaged DevicesTroubleshootingYou may also run a policy match test from thePoliciestab.

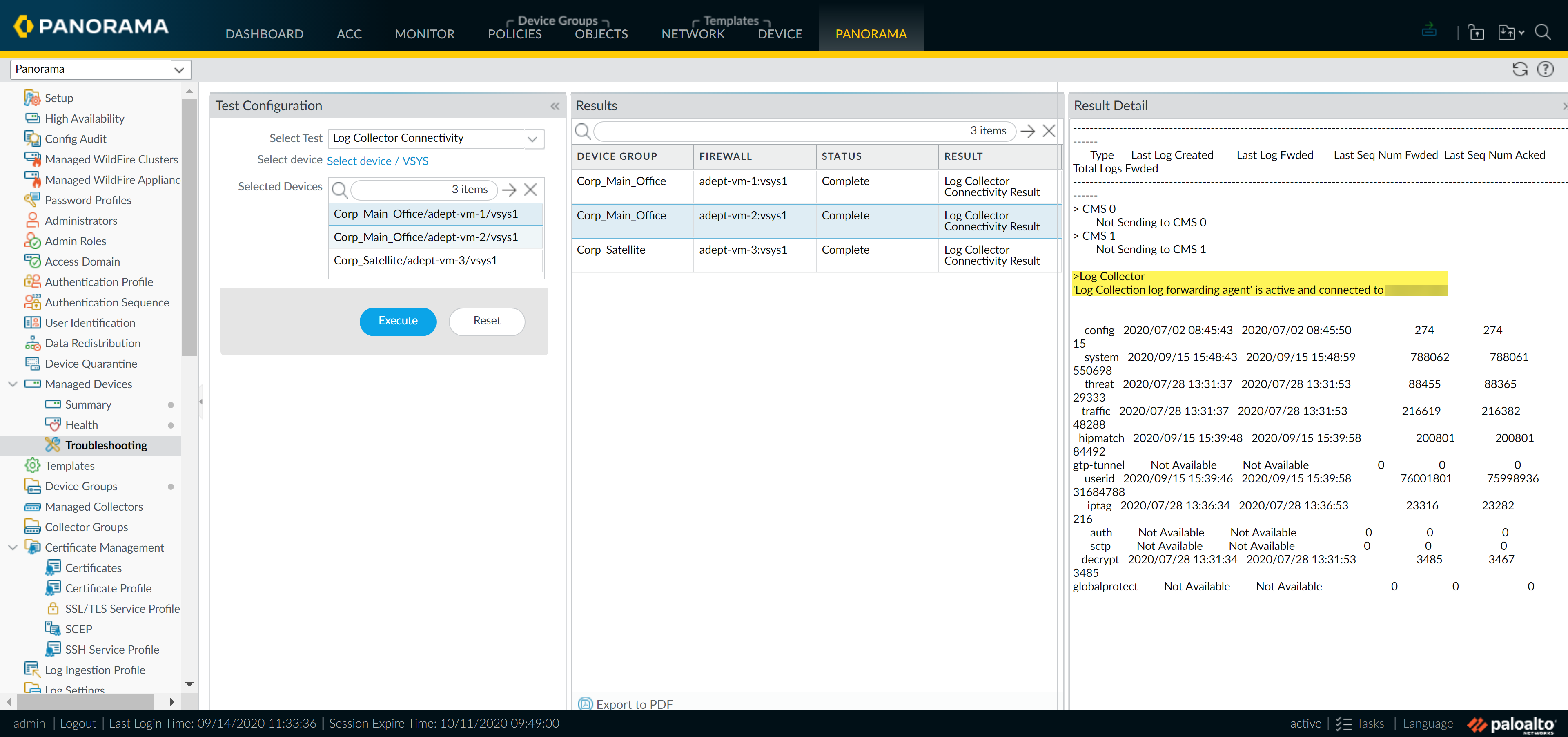

- Enter the required information to perform the connectivity test. In this example, a Log Collector Connectivity test is run.
- SelectLog Collector Connectivityfrom theSelect Testdrop-down.
- Select device/VSYSand select the managed firewalls to test.
- If necessary, enter any additional information relevant for your connectivity testing.
- Executethe Log Collector connectivity test.
- Select the log collector connectivity Results to review the Log Collector connectivity status for the selected devices.
