Learn how to configure multiple portals with multiple authentication
methods.
| Where Can I Use
This? | What Do I Need? |
|---|
- Prisma Access (Managed by Strata Cloud Manager)
- Prisma Access (Managed by Panorama)
- Windows, macOS, Android, and iOS endpoints
|
- Prisma Access license
- GlobalProtect version 6.1 and later for Windows, macOS,
Android, and iOS endpoints
This feature is available on request. Contact your account
team to enable the feature.
|
You can configure two portals based on port numbers in the same Prisma Access tenant,
with each portal supporting a different authentication method. Enable this feature
to migrate mobile users from one authentication method to another without creating a
new Prisma Access tenant. This configuration enables greater authentication
flexibility by allowing you to gradually move users to cloud-based authentication,
without the need for a separate Prisma Access instance.
Prisma Access with GlobalProtect multiple portals uses a different port number for
each portal within the same tenant. Configure the first GlobalProtect portal using
the standard port 443. When you enable the multiple portal feature, Prisma Access
configures a second GlobalProtect portal using an alternative port 8443, and allows
connections to the second portal using the same FQDN as the first. The multiple
portals feature supports only two portals per FQDN.
When a user connects to the portal using port 443, the traffic is sent to the first
authentication portal with no change to the IP address. This flow is unchanged from
configurations without the GlobalProtect multiple portals feature. When a user
connects using port 8443, the traffic instead hits a destination NAT rule. This
leads the user to the second authentication portal at a different IP address. After
authenticating at either portal, the user is forwarded to the gateway with the
authentication override cookie. This feature depends on
the authentication override cookie settings, and are enabled for both portals and on
gateways.
The following table describes GlobalProtect multiple portals support with
combinations of authentication methods and certificates using legacy authentication
(such as RADIUS or LDAP) on the primary portal and cloud authentication (such as
SAML or SAML with CAS) on the secondary portal.
| Primary Portal User Authentication | Secondary Portal User Authentication | Connection Method Options |
|---|
| Legacy, No certificate | Cloud, No certificate | User logon (always-on, on-demand) |
|
Legacy, <auth profile selection> AND Client Certificate
Note: Certificate profile must be the same.
|
Cloud, <auth profile selection> AND Client Certificate
Note: Certificate profile must be the same.
|
User logon (always-on, on-demand)
Pre-logon (always-on, on-demand)
|
| Legacy, No certificate | Cloud, <auth profile selection> OR Client Certificate | User logon (always-on, on-demand) |
|
Legacy, <auth profile selection> OR Client Certificate
Multiple portal configurations don't support clients using only
client certificate for authentication
| Cloud, No certificate |
User logon (always-on, on-demand)
Pre-logon (always-on, on-demand), if certificate
|
|
Legacy, <auth profile selection> OR Client Certificate
Multiple portal configurations don't support clients using only
client certificate for authentication
|
Cloud, <auth profile selection> OR Client Certificate
Multiple portal configurations don't support clients using only
client certificate for authentication
|
User logon (always-on, on-demand)
Pre-logon (always-on, on-demand), if certificate
|
Ensure the following before you configure multiple portals:
Clientless VPN is not supported
for use on the secondary portal in a multiple portal deployment; however, clientless
VPN works on the primary portal with your existing authentication method.
Configure Multiple Portals in Prisma Access (Strata Cloud Manager)
Learn how to configure multiple portals with multiple authentication methods in Prisma Access (Managed by Strata Cloud Manager).
To activate this functionality, reach out to your
Palo Alto Networks representative.
Configure a mobile user and the authentication method for it.
Enable multiple portals for the same gateway.
Select .
Edit the
Infrastructure Settings.

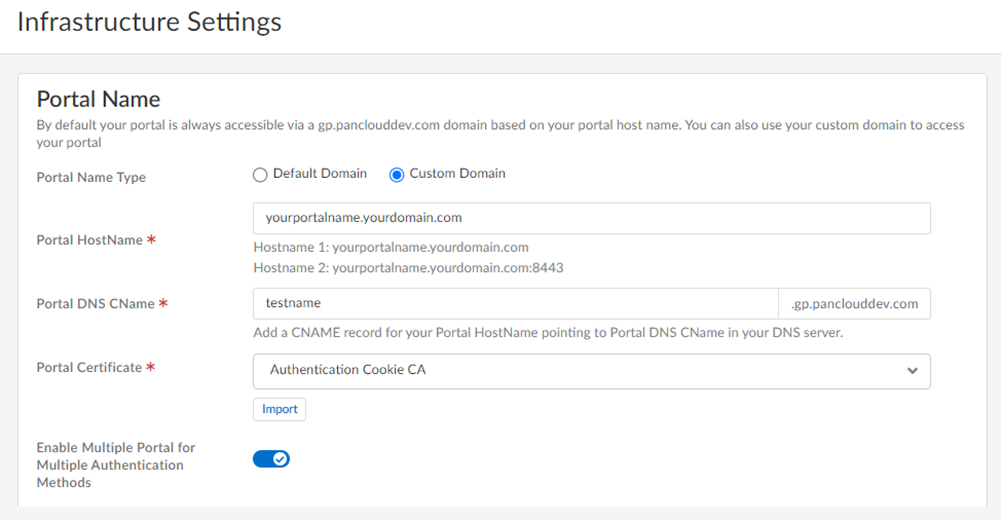

Enable Multiple Portal for Multiple Authentication
Methods.
The new portal appears for the 8443 port for the same tenant. This
portal inherits the configuration settings from the original port,
which is port 443.

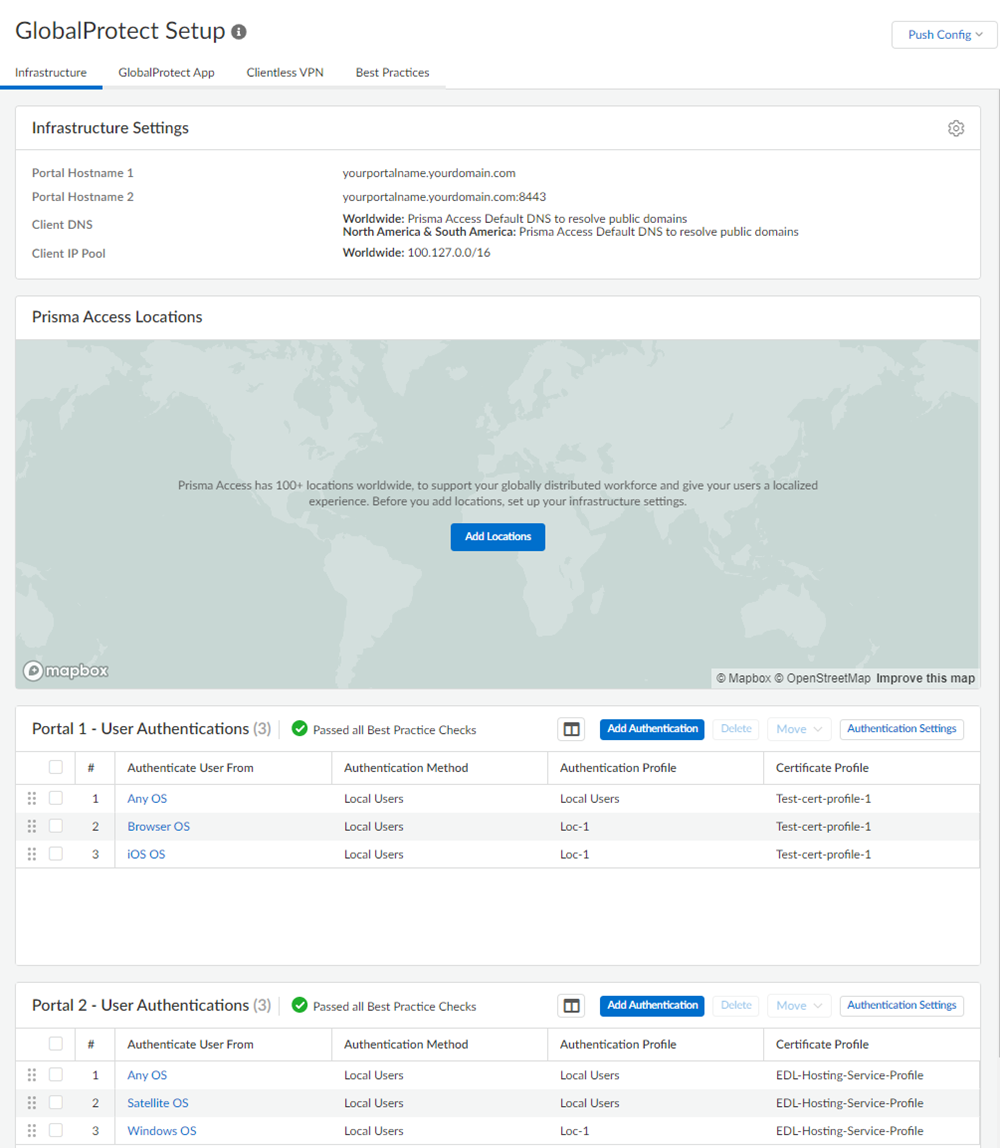

Edit the portal configurations to update the authentication
settings.
You can edit only the portal's Authentication Settings and
Certificate Profile authentication settings.
If you use certificate-based authentication in both
portals, ensure that both portals use the same client certificate profile
for authentication.
This feature enables the authentication override
settings to generate cookie for both portals in the GlobalProtect app
settings.

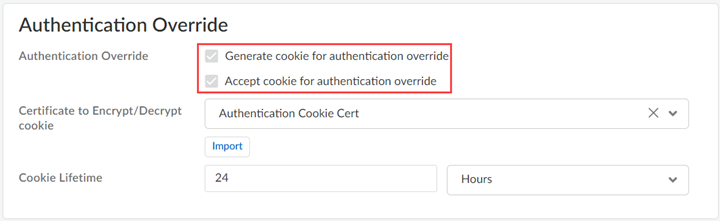

This feature enables the authentication override
settings to generate and accept cookie for both portals in the tunnel
settings.
Save all your changes and
Push the configuration changes
to
Prisma Access.
Add the portals manually or using endpoint management
software in the GlobalProtect app.
Verify if you can connect to both portals with different
authentication profiles for the gateway.
Log in to your Windows machine.
Connect to the portals in your
GlobalProtect app.
When you change the connection between portals of different
authentication methods, authenticate the user login.
If the authentication cookie expires when you connect to the 8443
portal and switch to the manual gateway, GlobalProtect connects
to the Best Available Gateway.
If your GlobalProtect app uses cached portal configurations,
fallback to portal does not work.
Configure Multiple Portals in Prisma Access (Panorama)
Learn how to configure multiple portals with multiple authentication methods in Prisma Access (Managed by Panorama).
Contact your Palo Alto Networks account
representative to activate this functionality.
When configuring multiple GlobalProtect portals with Traffic Steering, do
not configure Accept Default Routes over Service
Connections (); if you do, mobile users cannot connect to the secondary
portal.
Configure a mobile user
and the authentication method for it.
Select .

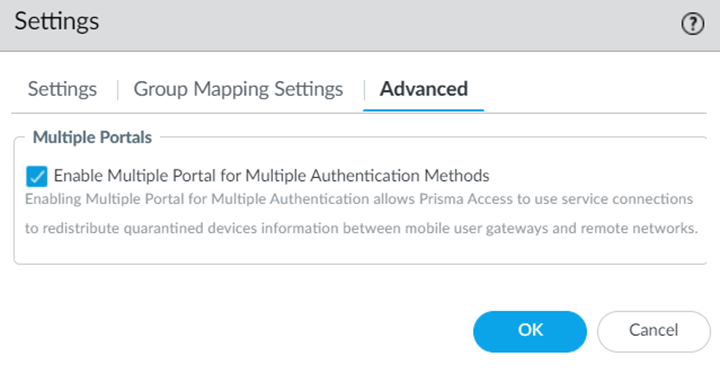

Enable Multiple Portal for Multiple Authentication
Methods.

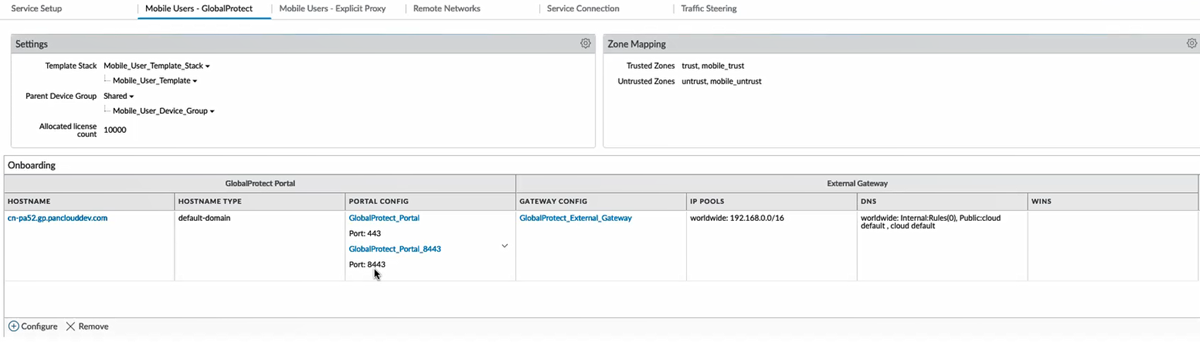

The new portal appears for the 8443 port for the same tenant. This portal
inherits the configuration settings from the original port, which is port
443.
Edit the portal configurations to update the authentication settings.
Click the portal hyperlink or select and click the portal hyperlink.
In the
Authentication section,
Add a
Client
Authentication with a different
Authentication Profile.
You can edit only the Client Authentication and
Certificate Profile authentication settings.
If you use certificate-based authentication in both portals, ensure that both
portals use the same client certificate profile for authentication.
This feature enables the authentication override
settings to generate and accept cookie for both portals in the tunnel
settings.
Commit all your changes to Panorama and push the configuration changes to
Prisma Access.
Click .

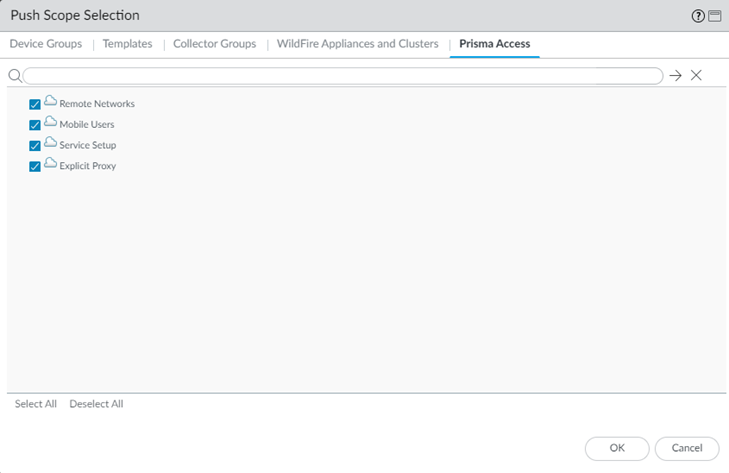

Edit Selections and, in the
Prisma
Access tab, make sure that
Mobile
Users is selected in the
Push
Scope, then click
OK.
Click
Commit and Push.
Add the portals manually or using endpoint management software in the
GlobalProtect app.
Verify if you can connect to both portals with different authentication
profiles for the gateway.
Log in to your Windows machine.

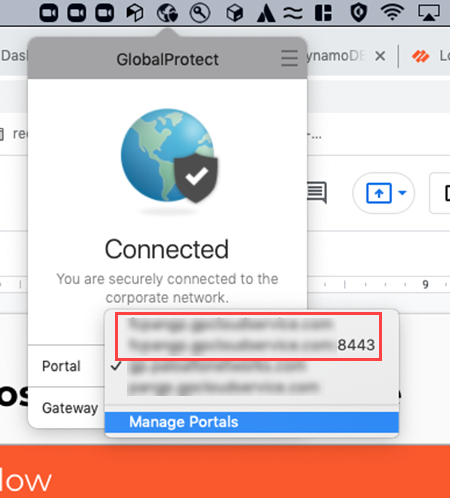

Connect to the portals in your
GlobalProtect app.
When you change the connection between portals of different
authentication methods, authenticate the user login.
If the authentication cookie expires when you connect to the 8443
portal and switch to the manual gateway, GlobalProtect connects
to the Best Available Gateway.
If your GlobalProtect app uses cached portal configurations,
fallback to portal does not work.
View logs for both portals in to see the portal and authentication information.
