After you have configured Explicit Proxy for
mobile users, monitor the status and troubleshoot any issues by
checking the status of your Prisma Access Explicit Proxy deployment.

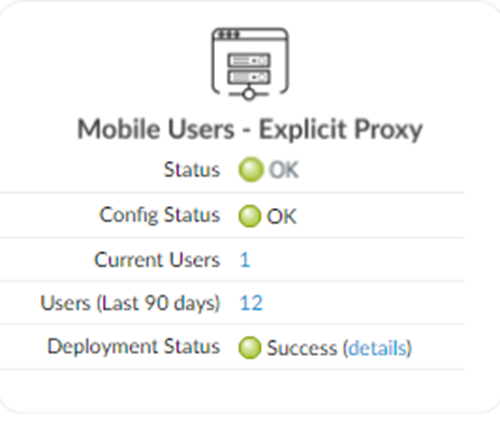

Select to
see Explicit Proxy status.
The mobile
users Status and Config Status fields
indicate whether the connection between Prisma Access and your mobile
users is OK, unable to fetch the status on
the tunnel (Warning), or that the mobile
users cannot connect to Explicit Proxy (Error).
Click
the hyperlink next to Current Users and Users
(Last 90 days) to get more information about mobile
users.
Current Users—The current
number of authenticated users who have browsed traffic in the last
five minutes.

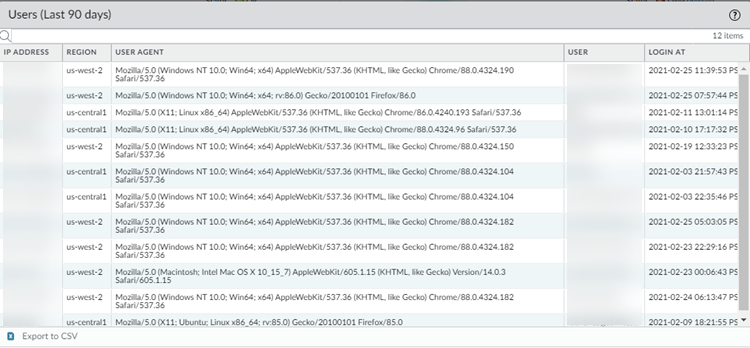

Users (Last 90 days)—The number of
unique authenticated Explicit Proxy users for the last 90 days.

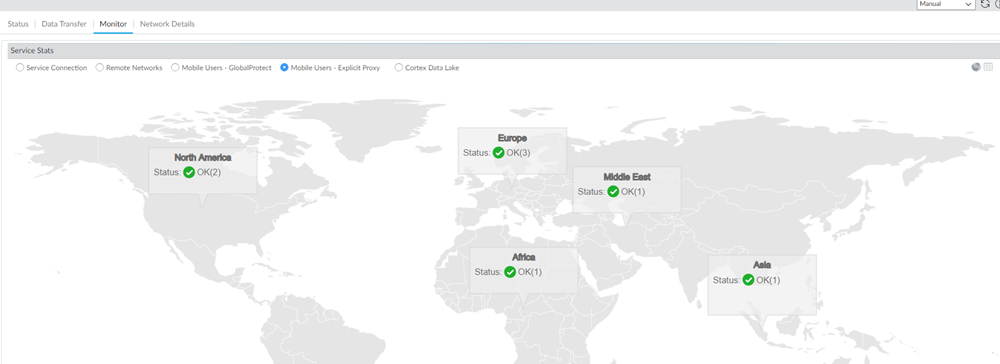

Select to
display a map showing the deployed Explicit Proxy locations.

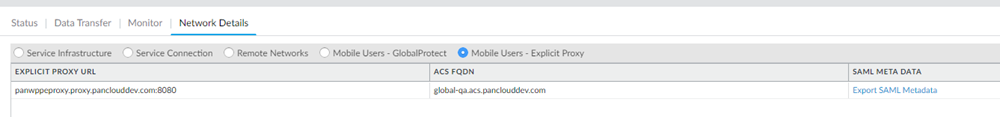

Select to
view the following details:
Explicit
Proxy URL—The URL used for Explicit Proxy.
ACS FQDN—The FQDN of the ACS.
SAML Meta Data—The authentication
profile metadata used by SAML. You can Export SAML Metadata to
save the metadata file.
To
troubleshoot authentication-related issues, check the traffic logs
() and authentication
logs (). Explicit Proxy
displays the following IP addresses and locations in the logs:
IP Addresses—If mobile users bypass the ACS FQDN in
the PAC file, the IP address displayed in the Source column
in the Traffic logs and the Traffic logs and the IP Address column in
the Authentication logs, when viewed under the Explicit_Proxy_Device_Group,
will be same as the mobile user’s IP address. If users do not bypass
the ACS FQDN in the PAC file, the source IP address is the public
IP address of the Explicit Proxy cloud firewall where redirects
are going to ACS.
Locations—If mobile users bypass the ACS FQDN in the
PAC file, the Region Name displayed in the Region Column
in Authentication Logs, Current
Users, and Users (Last 90 days) is
one of the five 5 regions (us-west-2, us-east-1, eu-west-2, eu-west-3,
ap-south-1) where the ACS is deployed, and shows the region where
Explicit Proxy is performing the redirects from the client’s browser.
If users do not bypass the ACS FQDN in the PAC file, the Region
Name displayed in the Region Column in Authentication
Logs, Current Users, and Users
(Last 90 days) is one of the five 5 regions (us-west-2,
us-east-1, eu-west-2, eu-west-3, ap-south-1) where the ACS is deployed,
and shows the region where Explicit Proxy is performing the redirects
from the Explicit Proxy firewall.
