Onboard Multiple Remote Networks
Use the bulk import capability to speed up the process of onboarding remote
networks.
Where Can I Use
This? | What Do I Need? |
---|---|
|
|
To streamline the process to onboard and configure remote networks, you have the
option to onboard at least one remote network and then export those settings to a
Comma Separated Value (CSV) text file. The CSV file includes the values of IPSec
tunnel and IKE gateway settings for the network you selected for export, and you can
then edit these settings and make them unique for each new network you may want to
onboard. You can modify the CSV file to include 100 new remote networks and then
import the CSV file back to speed up the process of onboarding new remote network
locations.
The CSV file does not include keys or passwords, such as the BGP shared secret, the
IKE preshared key, Proxy ID, IKE crypto profile, IPSec crypto profile.
Therefore, any keys and passwords required for the IPSec tunnel and IKE gateway
settings are inherited from the network you select when you initiate the CSV file
import.
When using this bulk import process, you must wait for
Prisma Access
to deploy the
infrastructure for securing these locations.- Select(in the Onboarding section).PanoramaCloud ServicesConfigurationRemote Networks
- Select a location, thenExportthe configuration of a remote network that you have previously onboarded.If you have not yet added any locations, you need toAdda location, then download its configuration. You must select a remote network and clickExport. A CSV file that includes the settings is downloaded to your computer.
- (Deployments that allocate bandwidth by compute location only) Make sure that you have allocated bandwidth for the locations to onboard.Each location you onboard has a corresponding compute location for which bandwidth is allocated.
- Selectand click the gear in thePanoramaCloud ServicesConfigurationRemote NetworksBandwidth Allocationarea.
- Check theBandwidth Allocationfield in the table that displays.The table in this area shows the compute location-to-Prisma Accesslocation mapping. You must have bandwidth allocated for the compute locations that are associated with the locations you want to onboard. For example, to onboard the Japan Central location, make sure that you have allocated bandwidth in the Asia Northeast compute location.
- If you have not yet allocated bandwidth for the compute locations that are associated with the locations you want to onboard, add it now.

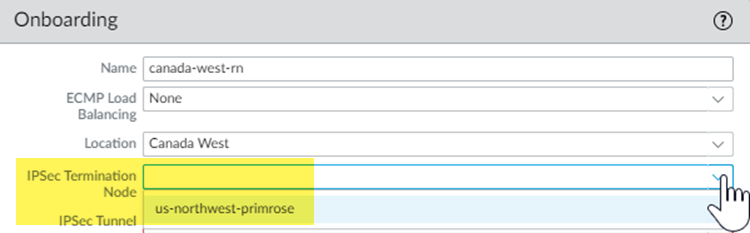

- (Deployments that allocate bandwidth by compute location only) Find theIPSec Termination Nodeassociated with the location or locations you want to onboard.You assign anIPSec Termination Nodeto the remote network during onboarding, and you enter this value in thespn-namecolumn of the CSV file. Each IPSec termination node can provide up to 1,000 Mbps of bandwidth.To find the IPSec Termination Node, perform one of the following actions:
- Select,PanoramaCloud ServicesConfigurationRemote NetworksAdda remote network and select the location you want to onboard, and make a note of the IPSec Termination Node choices in the onboarding area.
- Open a command-line interface (CLI) session with the Panorama that managesPrisma Accessand enter theshow plugins cloud_services remote-networks agg-bandwidth regioncompute-location-name, wherecompute-location-nameis the compute location that is associated with the location you want to onboard. The IPSec Termination Node displays in thespn-name-listfield.
- Modify the CSV file to add configuration for remote networks.See Fields in Remote Networks Table for a description of the fields and the possible values in this file.You must rename the network(s) listed in the exported file. If the file has duplicate names the import will fail.
- Importthe CSV file.The configuration from the file are displayed on screen. The remote network you selected to import the file will serve as a model configuration, and the remote networks listed in the file will inherit the keys and any missing values that do not have to be unique from there.
- Commit and push your changes.
- your changes.CommitCommit and Push
- ClickOKandPush.
Fields in Remote Networks Table
The following table provides a description of the fields in the remote networks
table. Fields marked as
Y
in the Required
row are required fields
and fields marked as N
are optional.Field | Description | Required?(Y/N) |
---|---|---|
name | The name of the remote network. | Y |
bandwidth | ( Deployments that allocate bandwidth by location
only ) The allocated bandwidth of the remote
network. Acceptable values are:
The 1000 Mbps bandwidth option is in preview mode. The
throughput during preview is delivered on a best-effort
basis and the actual performance will vary depending
upon the traffic mix. | Y |
region | The remote network’s location. See the list of Prisma
Access locations for the values to enter. Enter the
locations exactly as they are in this document (for example,
US West , or Japan
South ). | Y |
subnets | Statically routed subnets on the LAN side of the
remote network. Separate multiple subnets with commas. | N |
bgp_peer_as | The BGP Autonomous System Number (ASN) of the
remote network peer device. | N |
bgp_peer_address | The BGP peer address of the remote network peer
device. | N |
tunnel_name | The name of the IPSec tunnel configuration. A
unique value is required. | Y |
gateway_name | The name of the IKE Gateway configuration. A
unique value is required. | Y |
peer_ip_address | The IP address of the Prisma Access peer
device. | N |
local_id_type | The type of IKE ID that Prisma Access presents to
the peer device. If you use certificates in the remote network
to which you import this file, all imported types specified will
refer to the Configured Certificate values. | N |
local_id_value | The value of the IKE ID that Prisma Access
presents to the peer device. If you use certificates in the
remote network to which you import this file, all imported types
specified will refer to the Configured Certificate values. | N |
peer_id_type | The value of the IKE ID that the peer presents to
Prisma Access . If you use certificates in the remote network to
which you import this file, all imported types specified will
refer to the Peer Certificate values. | N |
peer_id_value | The value of the IKE ID that Prisma Access
presents to the peer device. If you use certificates in the
remote network to which you import this file, all imported types
specified will refer to the Peer Certificate values. | N |
monitor_ip | The tunnel monitoring IP address the cloud will
use to determine that the IPSec tunnel is up and the peer
network is reachable. You cannot export a proxy-ID value for the tunnel
monitor. | N |
proxy_ids | The proxy IDs that are configured for the peer.
For route-based VPNs, leave this field blank. Specify the Proxy
ID in the following CSV configuration format:
[{" name ":"proxyidname ",
"local ":"1.2.3.4/32 ",
"remote ":"4.3.2.1/32 ",
"protocol ":{"udp ":
{"local-port ":123 ,
"remote-port ":234 }}},
{"name ":"proxyidname2 ",
"local ":"2.3.4.5/32 ",
"remote ":"3.4.5.6/32 ",
"protocol ":{"tcp ":
{"local-port ":234 ,"remote-port ":345 }}}] | N |
sec_wan_enabled | Specifies whether or not you enable a secondary
IPSec tunnel. Acceptable values are yes and
no . | N |
sec_tunnel_name | The name of the secondary IPSec tunnel
configuration. A unique value is required if you specify a
secondary tunnel. | N |
sec_gateway_name | The name of the secondary IKE Gateway
configuration. A unique value is required if you specify a
secondary tunnel. | N |
sec_peer_ip_address | The IP address of the Prisma Access peer device
for the secondary IPSec tunnel. | N |
sec_local_id_type | The type of IKE ID that Prisma Access presents to
the peer device for the secondary IPSec tunnel. If you use
certificates in the remote network to which you import this
file, all imported types specified will refer to the Configured
Certificate values. | N |
sec_local_id_value | The value of the IKE ID that Prisma Access
presents to the peer device for the secondary IPSec tunnel. If
you use certificates in the remote network to which you import
this file, all imported types specified will refer to the
Configured Certificate values. | N |
sec_peer_id_type | The value of the IKE ID that the peer presents to
Prisma Access for the secondary IPSec tunnel. If you use
certificates in the remote network to which you import this
file, all imported types specified will refer to the Peer
Certificate values. | N |
sec_peer_id_value | The value of the IKE ID that Prisma Access
presents to the peer device for the secondary IPSec tunnel. If
you use certificates in the remote network to which you import
this file, all imported types specified will refer to the Peer
Certificate values. | N |
sec_monitor_ip | The tunnel monitoring IP address the cloud will
use for the secondary IPSec tunnel to determine that the IPSec
tunnel is up and the peer network is reachable. You cannot export a proxy-ID value for the tunnel
monitor. | N |
sec_proxy_ids
| The proxy IDs that are configured for the peer
for the secondary IPSec tunnel. For route-based VPNs, leave this
field blank. Specify the Proxy ID in the following CSV
configuration format:
[{" name ":"proxyidname ",
"local ":"1.2.3.4/32 ",
"remote ":"4.3.2.1/32 ",
"protocol ":{"udp ":
{"local-port ":123 ,
"remote-port ":234 }}},
{"name ":"proxyidname2 ",
"local ":"2.3.4.5/32 ",
"remote ":"3.4.5.6/32 ",
"protocol ":{"tcp ":
{"local-port ":234 ,"remote-port ":345 }}}] | N |
ecmp_link_1_tunnel_name | ( ECMP deployments only ) The name of the
IPSec tunnel configuration for ECMP tunnel 1. A unique value is
required. | |
ecmp_link_1_gateway_name | ( ECMP deployments only ) The name of the
IKE Gateway configuration for ECMP tunnel 1. A unique value is
required. | |
ecmp_link_1_peer_ip_address | ( ECMP deployments only ) The IP address
of the Prisma Access peer device for ECMP tunnel 1. | |
ecmp_link_1_local_id_type | ( ECMP deployments only ) The type of IKE
ID that Prisma Access presents to the peer device for ECMP
tunnel 1. If you use certificates in the remote network to which
you import this file, all imported types specified will refer to
the Configured Certificate values. | |
ecmp_link_1_local_id_value | ( ECMP deployments only ) The value of the
IKE ID that Prisma Access presents to the peer device for ECMP
tunnel 1. If you use certificates in the remote network to which
you import this file, all imported types specified will refer to
the Configured Certificate values. | |
ecmp_link_1_peer_id_type | ( ECMP deployments only ) The value of the
IKE ID that the peer presents to Prisma Access for ECMP tunnel
1. If you use certificates in the remote network to which you
import this file, all imported types specified will refer to the
Peer Certificate values. | |
ecmp_link_1_peer_id_value | ( ECMP deployments only ) The value of the
IKE ID that Prisma Access presents to the peer device for ECMP
tunnel 1. If you use certificates in the remote network to which
you import this file, all imported types specified will refer to
the Peer Certificate values. | |
ecmp_link_1_monitor_ip | ( ECMP deployments only ) The tunnel
monitoring IP address the cloud will use to determine that the
IPSec tunnel is up and the peer network is reachable for ECMP
tunnel 1. You cannot export a proxy-ID value for the tunnel
monitor. | |
ecmp_link_1_proxy_ids
| ( ECMP deployments only ) The proxy IDs
that are configured for the peer for ECMP tunnel 1. For
route-based VPNs, leave this field blank. Specify the Proxy ID
in the following CSV configuration format:
[{" name ":"proxyidname ",
"local ":"1.2.3.4/32 ",
"remote ":"4.3.2.1/32 ",
"protocol ":{"udp ":
{"local-port ":123 ,
"remote-port ":234 }}},
{"name ":"proxyidname2 ",
"local ":"2.3.4.5/32 ",
"remote ":"3.4.5.6/32 ",
"protocol ":{"tcp ":
{"local-port ":234 ,"remote-port ":345 }}}] | |
ecmp_link_1_bgp_peer_as | ( ECMP deployments only ) The BGP
Autonomous System Number (ASN) of the remote network peer device
for ECMP tunnel 1. | |
ecmp_link_1_bgp_peer_address | ( ECMP deployments only ) The BGP peer
address of the remote network peer device for ECMP tunnel
1. | |
ecmp_link_2_tunnel_name | ( ECMP deployments only ) The name of the
IPSec tunnel configuration for ECMP tunnel 2. A unique value is
required. | |
ecmp_link_2_gateway_name | ( ECMP deployments only ) The name of the
IKE Gateway configuration for ECMP tunnel 2. A unique value is
required. | |
ecmp_link_2_peer_ip_address | ( ECMP deployments only ) The IP address
of the Prisma Access peer device for ECMP tunnel 2. | |
ecmp_link_2_local_id_type | ( ECMP deployments only ) The type of IKE
ID that Prisma Access presents to the peer device for ECMP
tunnel 2. If you use certificates in the remote network to which
you import this file, all imported types specified will refer to
the Configured Certificate values. | |
ecmp_link_2_local_id_value | ( ECMP deployments only ) The value of the
IKE ID that Prisma Access presents to the peer device for ECMP
tunnel 2. If you use certificates in the remote network to which
you import this file, all imported types specified will refer to
the Configured Certificate values. | |
ecmp_link_2_peer_id_type | ( ECMP deployments only ) The value of the
IKE ID that the peer presents to Prisma Access for ECMP tunnel
2. If you use certificates in the remote network to which you
import this file, all imported types specified will refer to the
Peer Certificate values. | |
ecmp_link_2_peer_id_value | ( ECMP deployments only ) The value of the
IKE ID that Prisma Access presents to the peer device for ECMP
tunnel 2. If you use certificates in the remote network to which
you import this file, all imported types specified will refer to
the Peer Certificate values. | |
ecmp_link_2_monitor_ip | ( ECMP deployments only ) The tunnel
monitoring IP address the cloud will use to determine that the
IPSec tunnel is up and the peer network is reachable for ECMP
tunnel 2. You cannot export a proxy-ID value for the tunnel
monitor. | |
ecmp_link_2_proxy_ids
| ( ECMP deployments only ) The proxy IDs
that are configured for the peer for ECMP tunnel 2. For
route-based VPNs, leave this field blank. Specify the Proxy ID
in the following CSV configuration format:
[{" name ":"proxyidname ",
"local ":"1.2.3.4/32 ",
"remote ":"4.3.2.1/32 ",
"protocol ":{"udp ":
{"local-port ":123 ,
"remote-port ":234 }}},
{"name ":"proxyidname2 ",
"local ":"2.3.4.5/32 ",
"remote ":"3.4.5.6/32 ",
"protocol ":{"tcp ":
{"local-port ":234 ,"remote-port ":345 }}}] | |
ecmp_link_2_bgp_peer_as | ( ECMP deployments only ) The BGP
Autonomous System Number (ASN) of the remote network peer device
for ECMP tunnel 2. | |
ecmp_link_2_bgp_peer_address | ( ECMP deployments only ) The BGP peer
address of the remote network peer device for ECMP tunnel
2. | |
ecmp_link_3_tunnel_name | ( ECMP deployments only ) The name of the
IPSec tunnel configuration for ECMP tunnel 3. A unique value is
required. | |
ecmp_link_3_gateway_name | ( ECMP deployments only ) The name of the
IKE Gateway configuration for ECMP tunnel 3. A unique value is
required. | |
ecmp_link_3_peer_ip_address | ( ECMP deployments only ) The IP address
of the Prisma Access peer device for ECMP tunnel 3. | |
ecmp_link_3_local_id_type | ( ECMP deployments only ) The type of IKE
ID that Prisma Access presents to the peer device for ECMP
tunnel 3. If you use certificates in the remote network to which
you import this file, all imported types specified will refer to
the Configured Certificate values. | |
ecmp_link_3_local_id_value | ( ECMP deployments only ) The value of the
IKE ID that Prisma Access presents to the peer device for ECMP
tunnel 3. If you use certificates in the remote network to which
you import this file, all imported types specified will refer to
the Configured Certificate values. | |
ecmp_link_3_peer_id_type | ( ECMP deployments only ) The value of the
IKE ID that the peer presents to Prisma Access for ECMP tunnel
3. If you use certificates in the remote network to which you
import this file, all imported types specified will refer to the
Peer Certificate values. | |
ecmp_link_3_peer_id_value | ( ECMP deployments only ) The value of the
IKE ID that Prisma Access presents to the peer device for ECMP
tunnel 3. If you use certificates in the remote network to which
you import this file, all imported types specified will refer to
the Peer Certificate values. | |
ecmp_link_3_monitor_ip | ( ECMP deployments only ) The tunnel
monitoring IP address the cloud will use to determine that the
IPSec tunnel is up and the peer network is reachable for ECMP
tunnel 3. You cannot export a proxy-ID value for the tunnel
monitor. | |
ecmp_link_3_proxy_ids
| ( ECMP deployments only ) The proxy IDs
that are configured for the peer for ECMP tunnel 3. For
route-based VPNs, leave this field blank. Specify the Proxy ID
in the following CSV configuration format:
[{" name ":"proxyidname ",
"local ":"1.2.3.4/32 ",
"remote ":"4.3.2.1/32 ",
"protocol ":{"udp ":
{"local-port ":123 ,
"remote-port ":234 }}},
{"name ":"proxyidname2 ",
"local ":"2.3.4.5/32 ",
"remote ":"3.4.5.6/32 ",
"protocol ":{"tcp ":
{"local-port ":234 ,"remote-port ":345 }}}] | |
ecmp_link_3_bgp_peer_as | ( ECMP deployments only ) The BGP
Autonomous System Number (ASN) of the remote network peer device
for ECMP tunnel 3. | |
ecmp_link_3_bgp_peer_address | ( ECMP deployments only ) The BGP peer
address of the remote network peer device for ECMP tunnel
3. | |
ecmp_link_4_tunnel_name | ( ECMP deployments only ) The name of the
IPSec tunnel configuration for ECMP tunnel 4. A unique value is
required. | |
ecmp_link_4_gateway_name | ( ECMP deployments only ) The name of the
IKE Gateway configuration for ECMP tunnel 4. A unique value is
required. | |
ecmp_link_4_peer_ip_address | ( ECMP deployments only ) The IP address
of the Prisma Access peer device for ECMP tunnel 4. | |
ecmp_link_4_local_id_type | ( ECMP deployments only ) The type of IKE
ID that Prisma Access presents to the peer device for ECMP
tunnel 4. If you use certificates in the remote network to which
you import this file, all imported types specified will refer to
the Configured Certificate values. | |
ecmp_link_4_local_id_value | ( ECMP deployments only ) The value of the
IKE ID that Prisma Access presents to the peer device for ECMP
tunnel 4. If you use certificates in the remote network to which
you import this file, all imported types specified will refer to
the Configured Certificate values. | |
ecmp_link_4_peer_id_type | ( ECMP deployments only ) The value of the
IKE ID that the peer presents to Prisma Access for ECMP tunnel
4. If you use certificates in the remote network to which you
import this file, all imported types specified will refer to the
Peer Certificate values. | |
ecmp_link_4_peer_id_value | ( ECMP deployments only ) The value of the
IKE ID that Prisma Access presents to the peer device for ECMP
tunnel 4. If you use certificates in the remote network to which
you import this file, all imported types specified will refer to
the Peer Certificate values. | |
ecmp_link_4_monitor_ip | ( ECMP deployments only ) The tunnel
monitoring IP address the cloud will use to determine that the
IPSec tunnel is up and the peer network is reachable for ECMP
tunnel 4. You cannot export a proxy-ID value for the tunnel
monitor. | |
ecmp_link_4_proxy_ids
| ( ECMP deployments only ) The proxy IDs
that are configured for the peer for ECMP tunnel 4. For
route-based VPNs, leave this field blank. Specify the Proxy ID
in the following CSV configuration format:
[{" name ":"proxyidname ",
"local ":"1.2.3.4/32 ",
"remote ":"4.3.2.1/32 ",
"protocol ":{"udp ":
{"local-port ":123 ,
"remote-port ":234 }}},
{"name ":"proxyidname2 ",
"local ":"2.3.4.5/32 ",
"remote ":"3.4.5.6/32 ",
"protocol ":{"tcp ":
{"local-port ":234 ,"remote-port ":345 }}}] | |
ecmp_link_4_bgp_peer_as | ( ECMP deployments only ) The BGP
Autonomous System Number (ASN) of the remote network peer device
for ECMP tunnel 4. | |
ecmp_link_4_bgp_peer_address | ( ECMP deployments only ) The BGP peer
address of the remote network peer device for ECMP tunnel
4. | |
spn-name | ( Deployments that allocate bandwidth by
compute location only ) The name of the IPSec
Termination Node. This field is required for deployments that
allocate bandwidth by compute location. |
