Configure 5G Multi-access Edge Computing Security

Securing the network edge requires balancing traffic inspection and control (security requirements) with high bandwidth, low latency, and real-time access (user experience). These issues are exponentially more difficult if traffic is processed by many firewalls, if applications are hosted on edge sites, or if the network edge is an aggregation point for IoT data. Additionally, the separation of the user and the control plane in 5G networks makes it difficult to apply security policy at the subscriber or device level and lacks context-based visibility for threats.

5G Multi-access Edge Computing Security provides granular visibility and control for Packet Forwarding Control Protocol (PFCP) traffic by extracting information (such as subscriber ID or equipment ID) at the mobile edge, so you can apply security policy by subscriber, by equipment, or by network slice. It provides security at the protocol level through stateful inspection for PFCP traffic on 4G/LTE and 5G networks, in addition to reduced latency and higher bandwidth.

By providing context-based visibility into threats, 5G Multi-access Edge Computing Security protects networks from potential threats such as vulnerabilities, malware, and viruses. It secures devices and user that connect to multi-access edge computing (MEC), as well as applications hosted on MEC from attacks such as Denial of Service (DoS) and spoofing.

In 5G networks, PFCP carries control traffic on the N4 interface between the SMF and UPF. It uses UDP as a transport protocol and the reserved port number 8805. The PFCP association between the SMF and the UPF is set up before the PFCP sessions are established.

The following diagram illustrates an enterprise that uses a private 5G network. The 5G core functions are cloud-based or in the central site of the service provider. The connection between the 5G access and the UPF uses the N3 interface. The GTP-U tunnels carry the user plane traffic on the N3 interface. The connection between the UPF and the Session Management Function (SMF) uses the N4 interface. The PFCP protocol exchanges packet forwarding rules using UDP exchanges on the N4 interface.

This diagram illustrates MEC in a 5G network where the User Plane Function (UPF) is at the edge or MEC location and the 5G core functions are cloud-based or at the central site of the service provider. The connection between the 5G access and the UPF uses the N3 interface and the GTP-U tunnels carry the user plane traffic over the N3 interface. The connection between UPF and the SMF uses the N4 interface and the PFCP protocol exchanges packet forwarding rules using UDP over the N4 interface.

Enable GTP Security, commit your changes, and reboot.
If you enable stateful inspection for PFCP traffic, the following options are not available:
IMSI/APN/RAT filtering
GTP-U tunnel limiting
GTPv1-C stateful inspection
GTPv2-C stateful inspection
5G-HTTP2 for 5G-C
End User IP Address Spoofing for GTP-U
Similarly, if you enable GTPv1-C stateful inspection, GTPv2-C stateful inspection, or 5G-HTTP2 for 5G-C, PFCP stateful inspection is not available.
Create a Mobile Network Protection Profile and enable 5G Multi-access Edge Computing Security.
Select

Objects

Security Profiles

Mobile Network Protection

.

Add

a profile and enter a

Name

, such as

5G Multi-access Edge Computing Security

.

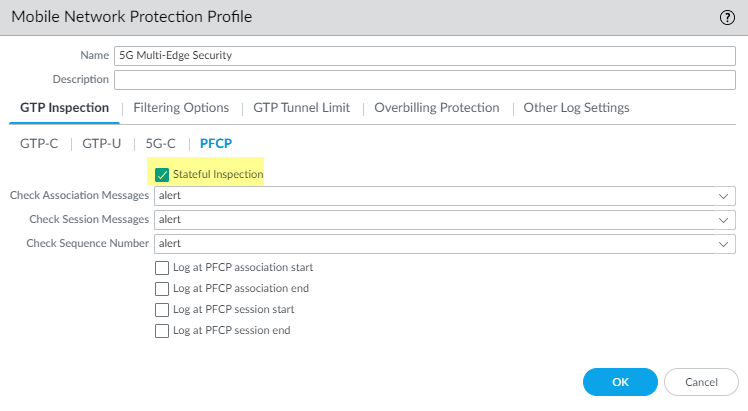

On the

PFCP

tab, enable

Stateful Inspection

.


Select which state checks you want the firewall to perform on PFCP traffic and the action you want the firewall to take if a state check is not successful.
Determine the state checks you want to use.
Check Association Messages
—Checks for any PFCP association messages that are out of order or that have been rejected.
Check Session Messages
—Checks for any PFCP session messages that are out of order or that have been rejected; verifies that all PFCP session messages match an existing PFCP association; alerts or drops PFCP session messages that arrive before the PFCP association is set up.
Check Sequence Number
—Confirms that the sequence number in the PFCP response matches the sequence number in the preceding PFCP request message.
Select the action you want the firewall to take if a state check is not successful.
allow
—Allow the traffic and do not generate a log entry in the GTP log.
block
—Block the traffic and generate a high-severity log entry in the GTP log.
alert
—(Default) Allow the traffic and generate a high-severity log entry in the GTP log.
(Optional) Configure logging for PFCP traffic.
Select when you want the firewall to generate a log entry.

Log at PFCP association start
Log at PFCP association end
Log at PFCP session start
Log at PFCP session end

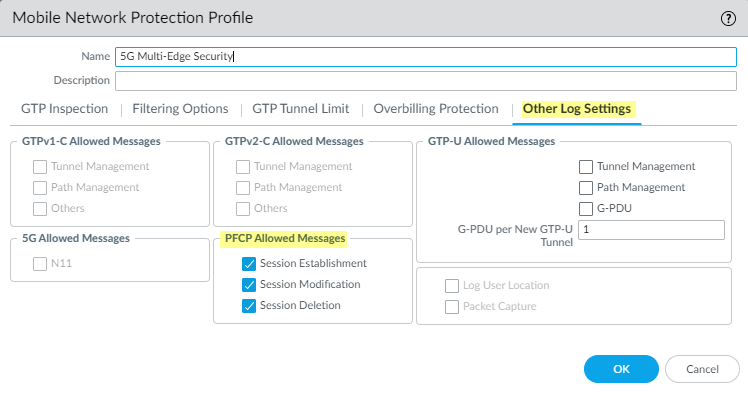

On the

Other Log Settings

tab, select the type of

PFCP Allowed Messages

you want to include in the logs.

Enable these options for troubleshooting only.

Session Establishment
—These PFCP messages set up the session, including establishing the GTP-U tunnel.
Session Modification
—These PFCP messages are sent if the session ID or PDR ID changes (for example, as a result of moving from a 4G to a 5G network. It includes messages such as PFCP Session Modification Request and PFCP Session Modification Response.
Session Deletion
—These PFCP messages terminate the PFCP session, including releasing associated resources.


Click
OK
.
Create a Security policy rule that applies your Mobile Network Protection profile to N4 PFCP traffic and N3 GTP-U traffic.
Select
Policies
Security
and
Add
a Security policy rule.
For
Source Address
,
Add
the address objects for the 5G element endpoints on the N3 and N4 interfaces that you want to allow.
For
Destination
,
Add
the
Destination Address
address objects for the 5G element endpoints on the N3 and N4 interfaces that you want to allow.
Add
the
Applications
to allow, such as
gtp-u
and
pfcp
.
On the
Actions
tab, select the
Action
, such as
Allow
.
Select the
Mobile Network Protection
profile you created.
Create another Security policy rule based on equipment ID, subscriber ID, or network slice.
Select
Policies
Security
and
Add
a Security policy rule.
Specify the source criteria you want to use for this rule.
Add
one or more
Source Equipment
IDs in any of the following formats (if you configured an EDL, specify that EDL):
5G Permanent Equipment Identifier (PEI) including IMEI
IMEI (15 or 16 digits)
IMEI prefix of eight digits for Type Allocation Code (TAC)
EDL that specifies IMEIs
Select
Source
and
Add
one or more
Network Slices
in either of the following formats:
Standardized SST (select
eMBB
,
MIoT
, or
URLLC
).
Operator-specific SSTs in the format of
text,number
(number range is 128 to 255 in decimal).
Add
one or more
Source Subscriber
IDs (if you configured an EDL, specify that EDL).
5G Subscriber Permanent Identifier (SUPI) including IMSI
IMSI (14 or 15 digits)
Range of IMSI values separated by a hyphen. In a range, only the 11th digit through the 15th digit of the IMSI can change from the start of the range to the end of the range; for example, 111111111111122-111111111119999.
IMSI prefix of six digits with an asterisk (*) as the wildcard after the prefix; for example, 926789*.
EDL that specifies IMSIs
Specify
Source Zone
,
Source Address
,
Source User
, and
Source Device
or use the default
Any
setting for each.
Specify
Destination Zone
,
Destination Address
, and
Destination Device
or use the default
Any
setting for each.
Add
the
Applications
to allow, for example,
youtube
,
facebook
,
linkedin
, and
twitter
.
On the
Actions
tab, select the
Action
, such as
Allow
.
Commit
your changes.
