Configure 5G Multi-access Edge Computing Security

Securing the network edge requires balancing traffic inspection and control (security requirements) with high bandwidth, low latency, and real-time access (user experience). These issues are exponentially more difficult if traffic is processed by many firewalls, if applications are hosted on edge sites, or if the network edge is an aggregation point for IoT data. Additionally, the separation of the user and the control plane in 5G networks makes it difficult to apply security policy at the subscriber or device level and lacks context-based visibility for threats.
5G Multi-access Edge Computing Security provides granular visibility and control for Packet Forwarding Control Protocol (PFCP) traffic by extracting information (such as subscriber ID or equipment ID) at the mobile edge, so you can apply security policy by subscriber, by equipment, or by network slice. It provides security at the protocol level through stateful inspection for PFCP traffic on 4G/LTE and 5G networks, in addition to reduced latency and higher bandwidth.
By providing context-based visibility into threats, 5G Multi-access Edge Computing Security protects networks from potential threats such as vulnerabilities, malware, and viruses. It secures devices and user that connect to multi-access edge computing (MEC), as well as applications hosted on MEC from attacks such as Denial of Service (DoS) and spoofing.
In 5G networks, PFCP carries control traffic on the N4 interface between the SMF and UPF. It uses UDP as a transport protocol and the reserved port number 8805. The PFCP association between the SMF and the UPF is set up before the PFCP sessions are established.
The following diagram illustrates an enterprise that uses a private 5G network. The 5G core functions are cloud-based or in the central site of the service provider. The connection between the 5G access and the UPF uses the N3 interface. The GTP-U tunnels carry the user plane traffic on the N3 interface. The connection between the UPF and the Session Management Function (SMF) uses the N4 interface. The PFCP protocol exchanges packet forwarding rules using UDP exchanges on the N4 interface.

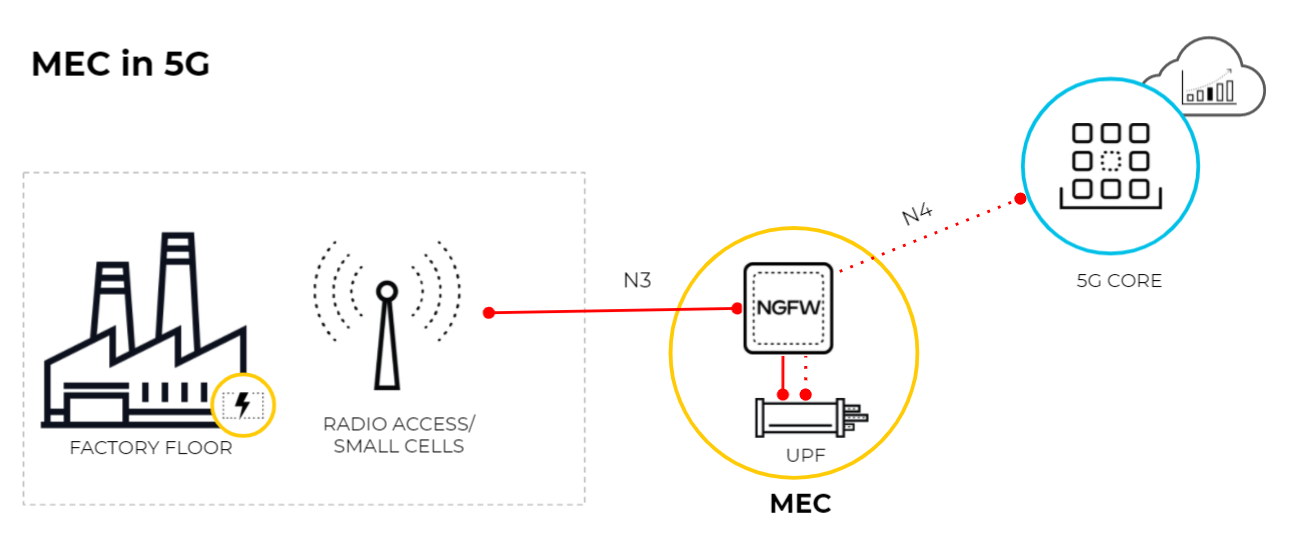

This diagram illustrates MEC in a 5G network where the User Plane Function (UPF) is at the edge or MEC location and the 5G core functions are cloud-based or at the central site of the service provider. The connection between the 5G access and the UPF uses the N3 interface and the GTP-U tunnels carry the user plane traffic over the N3 interface. The connection between UPF and the SMF uses the N4 interface and the PFCP protocol exchanges packet forwarding rules using UDP over the N4 interface.
  1. Enable GTP Security, commit your changes, and reboot.
    If you enable stateful inspection for PFCP traffic, the following options are not available:
    • IMSI/APN/RAT filtering
    • GTP-U tunnel limiting
    • GTPv1-C stateful inspection
    • GTPv2-C stateful inspection
    • 5G-HTTP2 for 5G-C
    • End User IP Address Spoofing for GTP-U
    Similarly, if you enable GTPv1-C stateful inspection, GTPv2-C stateful inspection, or 5G-HTTP2 for 5G-C, PFCP stateful inspection is not available.
  2. Create a Mobile Network Protection Profile and enable 5G Multi-access Edge Computing Security.
    1. Select
      Objects
      Security Profiles
      Mobile Network Protection
      .
    2. Add
      a profile and enter a
      Name
      , such as
      5G Multi-access Edge Computing Security
      .
    3. On the
      PFCP
      tab, enable
      Stateful Inspection
      .
  3. Select which state checks you want the firewall to perform on PFCP traffic and the action you want the firewall to take if a state check is not successful.
    1. Determine the state checks you want to use.
      • Check Association Messages
        —Checks for any PFCP association messages that are out of order or that have been rejected.
      • Check Session Messages
        —Checks for any PFCP session messages that are out of order or that have been rejected; verifies that all PFCP session messages match an existing PFCP association; alerts or drops PFCP session messages that arrive before the PFCP association is set up.
      • Check Sequence Number
        —Confirms that the sequence number in the PFCP response matches the sequence number in the preceding PFCP request message.
    2. Select the action you want the firewall to take if a state check is not successful.
      • allow
        —Allow the traffic and do not generate a log entry in the GTP log.
      • block
        —Block the traffic and generate a high-severity log entry in the GTP log.
      • alert
        —(Default) Allow the traffic and generate a high-severity log entry in the GTP log.
  4. (Optional) Configure logging for PFCP traffic.
    1. Select when you want the firewall to generate a log entry.
      • Log at PFCP association start
      • Log at PFCP association end
      • Log at PFCP session start
      • Log at PFCP session end
    2. On the
      Other Log Settings
      tab, select the type of
      PFCP Allowed Messages
      you want to include in the logs.
      Enable these options for troubleshooting only.
      • Session Establishment
        —These PFCP messages set up the session, including establishing the GTP-U tunnel.
      • Session Modification
        —These PFCP messages are sent if the session ID or PDR ID changes (for example, as a result of moving from a 4G to a 5G network. It includes messages such as PFCP Session Modification Request and PFCP Session Modification Response.
      • Session Deletion
        —These PFCP messages terminate the PFCP session, including releasing associated resources.
  5. Click
    OK
    .
  6. Create a Security policy rule that applies your Mobile Network Protection profile to N4 PFCP traffic and N3 GTP-U traffic.
    1. Select
      Policies
      Security
      and
      Add
      a Security policy rule.
    2. For
      Source Address
      ,
      Add
      the address objects for the 5G element endpoints on the N3 and N4 interfaces that you want to allow.
    3. For
      Destination
      ,
      Add
      the
      Destination Address
      address objects for the 5G element endpoints on the N3 and N4 interfaces that you want to allow.
    4. Add
      the
      Applications
      to allow, such as
      gtp-u
      and
      pfcp
      .
    5. On the
      Actions
      tab, select the
      Action
      , such as
      Allow
      .
    6. Select the
      Mobile Network Protection
      profile you created.
  7. Create another Security policy rule based on equipment ID, subscriber ID, or network slice.
    1. Select
      Policies
      Security
      and
      Add
      a Security policy rule.
    2. Specify the source criteria you want to use for this rule.
      • Add
        one or more
        Source Equipment
        IDs in any of the following formats (if you configured an EDL, specify that EDL):
        • 5G Permanent Equipment Identifier (PEI) including IMEI
        • IMEI (15 or 16 digits)
        • IMEI prefix of eight digits for Type Allocation Code (TAC)
        • EDL that specifies IMEIs
      • Select
        Source
        and
        Add
        one or more
        Network Slices
        in either of the following formats:
        • Standardized SST (select
          eMBB
          ,
          MIoT
          , or
          URLLC
          ).
        • Operator-specific SSTs in the format of
          text,number
          (number range is 128 to 255 in decimal).
      • Add
        one or more
        Source Subscriber
        IDs (if you configured an EDL, specify that EDL).
        • 5G Subscriber Permanent Identifier (SUPI) including IMSI
        • IMSI (14 or 15 digits)
        • Range of IMSI values separated by a hyphen. In a range, only the 11th digit through the 15th digit of the IMSI can change from the start of the range to the end of the range; for example, 111111111111122-111111111119999.
        • IMSI prefix of six digits with an asterisk (*) as the wildcard after the prefix; for example, 926789*.
        • EDL that specifies IMSIs
    3. Specify
      Source Zone
      ,
      Source Address
      ,
      Source User
      , and
      Source Device
      or use the default
      Any
      setting for each.
    4. Specify
      Destination Zone
      ,
      Destination Address
      , and
      Destination Device
      or use the default
      Any
      setting for each.
    5. Add
      the
      Applications
      to allow, for example,
      youtube
      ,
      facebook
      ,
      linkedin
      , and
      twitter
      .
    6. On the
      Actions
      tab, select the
      Action
      , such as
      Allow
      .
  8. Commit
    your changes.
