Onboard NGFWs with Site Management

1. Define Site Properties.

   1. Log in to Strata Cloud Manager.
   2. Navigate to ConfigurationNGFW and Prisma Access, set the Configuration Scope to All Firewalls, and continue to SetupDevice OnboardingSite ManagementSite Properties.
   3. Add Property.

      Properties are defined at the tenant level.
   4. Enter a unique Name for the property, for example, region_id or location.
   5. Select the Type for the property and configure the type-specific constraints.

      • String—Enter a Maximum Length, for example, 1024.
      • Integer—Enter a Minimum and Maximum value, for example, 0 to 7.
   6. Save.
2. Create Site Property Groups.

   Site Groups are a collection of Sites with similar properties.

   1. Navigate to ConfigurationNGFW and Prisma Access, set the Configuration Scope to All Firewalls, and continue to SetupDevice OnboardingSite ManagementSite Property Groups.
   2. Add Site Properties Group.
   3. Enter a Name for the site group, for example, Branch Deployments.
   4. Define and associate the properties that belong to this group.
   5. Save.
3. Create Sites.

   1. Navigate to ConfigurationNGFW and Prisma Access, set the Configuration Scope to All Firewalls, and continue to SetupDevice OnboardingSite ManagementSites.

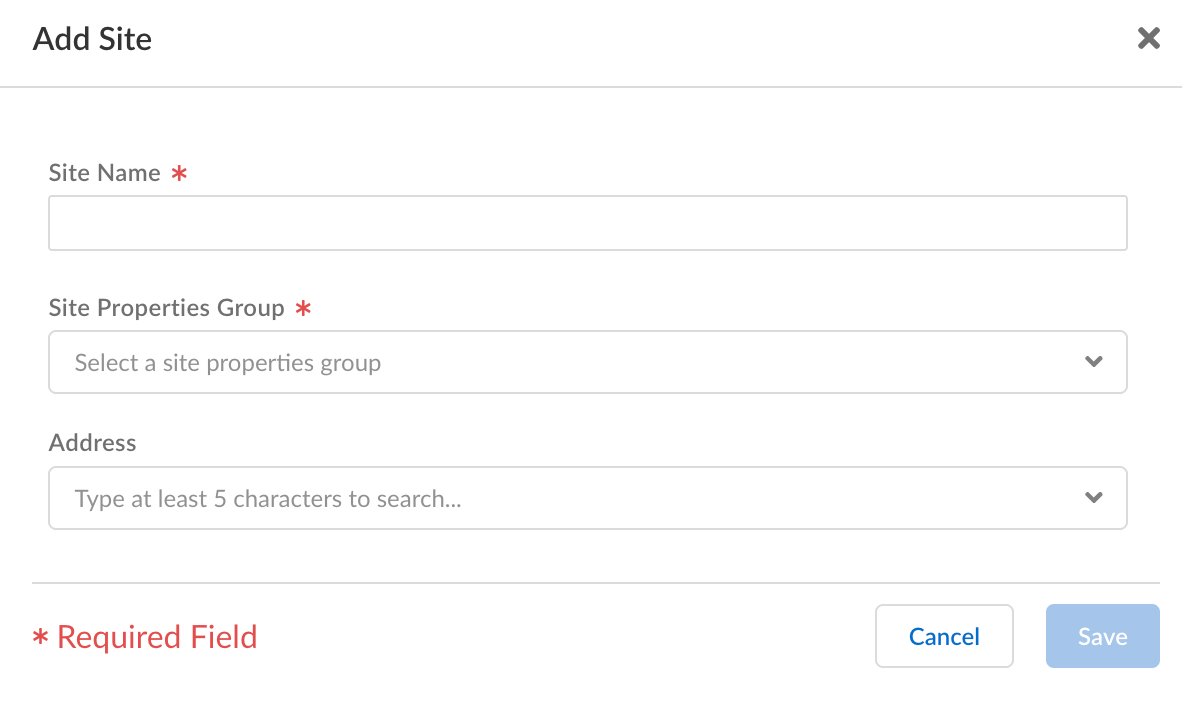

   2. Add Site.
   3. Select the Site Group this site belongs to, for example, Branch Deployments.
   4. Enter a unique Name for the site, for example, sc-store-1.
   5. (Optional) Enter the physical Address for the site.
   6. Provide Property Values for each property defined in the selected Site Group, for example, region_id: 7.
   7. (Optional) To add multiple sites at once, select the Site Properties Group created in Step 2 and choose to either manually add sites in a grid or Import CSV.
   8. Save.
4. Configure Site-Based Onboarding Rules.

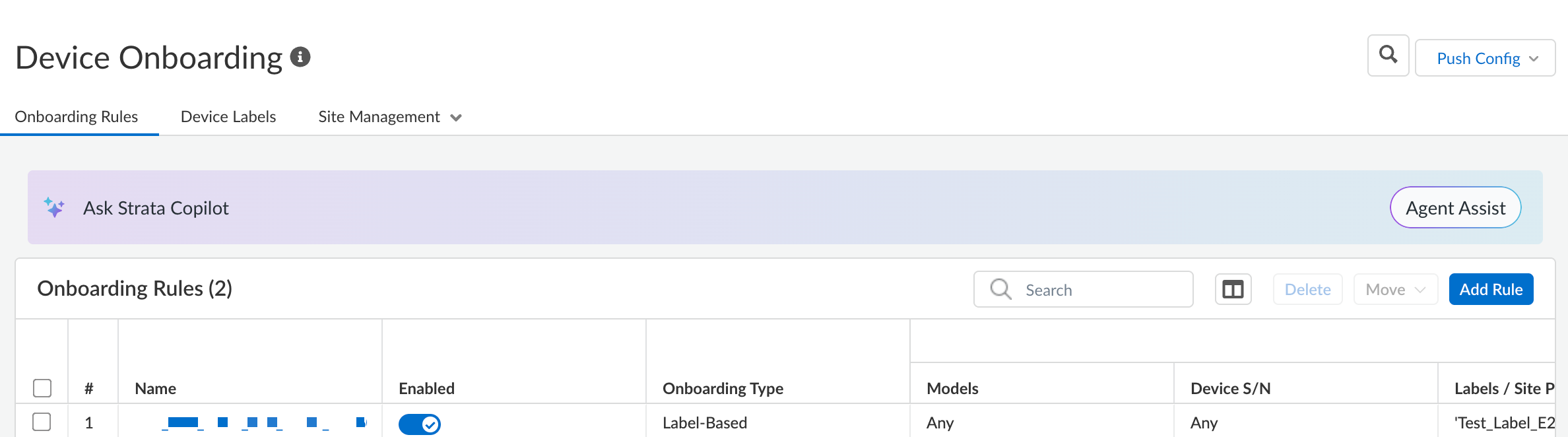

   1. Navigate to ConfigurationNGFW and Prisma Access, set the Configuration Scope to All Firewalls, and continue to SetupDevice OnboardingOnboarding Rules.
   2. Add Rule and configure the general settings.

      • Enter a descriptive Name for the rule and optionally a Description.
      • Ensure the Enabled toggle is active.
      • Select Site-Based as the Onboarding Type.
   3. Configure the Match Criteria.

      • Select the Site Properties Group from Step 2 that this rule will apply to, for example, Branch Deployments.
      • (Optional) Specify Models.
   4. Configure the Actions.

      • Select Target Folder.
      • Select any Snippet Association.
      • Select the Target OS Version for the device.
      • (Optional) Enable VPN Onboarding.
      • (Optional) Enable Custom Interface.
        Custom Interface is disabled by default. When enabled, it disables the automatic application of the ZTP Default Snippet post-bootstrap, allowing administrator-defined interface and routing configurations to take effect. Use this option only when the management interface or non-standard ports are required for post-onboarding connectivity. Ensure all necessary interface and routing configurations are defined before enabling this option to prevent connectivity interruptions.
      • (Optional) Enable User Context Onboarding.
   5. Enable Variable Resolution and configure variables.

      Only variables defined at the folder selected in Target Folder or defined in an associated snippet will be available for resolution.

      For each variable you want to override:

      1. Select the variable Name, for example, mgmt_ip.
      2. Choose the appropriate Resolution Rule Type:
         • Replacement—Enter an Expression using site properties, for example, 10.1.${region_id}.2.
         • Bitwise Expression—Define the bitwise resolution to dynamically generate an IP address for each site. This option provides the flexibility to dynamically configure every bit of the IP address and use properties to resolve the IP address for every site.
   6. Save.
5. Preview Site Resolution.

   To prevent potential runtime errors from inconsistent variable resolution, you can preview how variables will resolve for your sites before deployment.

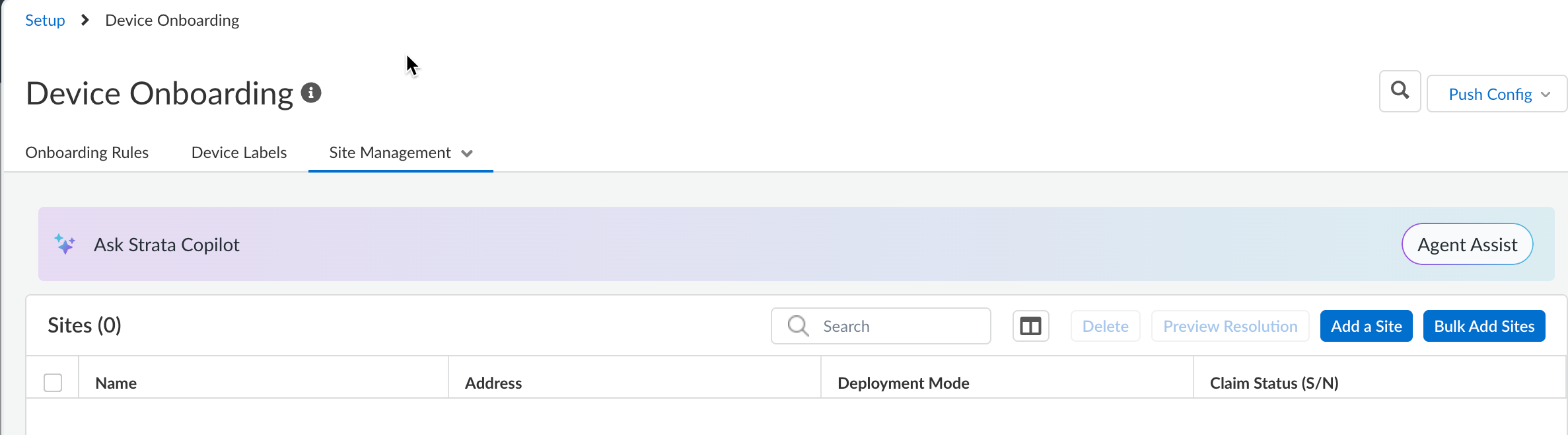

   1. Navigate to ConfigurationNGFW and Prisma Access, set the Configuration Scope to All Firewalls, and continue to SetupDevice OnboardingSite ManagementSites.
   2. Preview Resolution.
   3. (Optional) Select the Model Family.
   4. Review the Resolved Onboarding Rule and Resolved Variables for each site.
6. Claim a Site during device onboarding.

   1. Initiate the NGFW device onboarding process using Zero Touch Provisioning (ZTP) or manual onboarding.
   2. On the ZTP activation page or Strata Cloud Manager onboarding page, enter the device's Serial Number and Claim Key.
   3. Select a pre-defined Onboarding (Site) from the available list.

      A site can only be claimed by one device at a time.

      If you are using the ZTP mobile web app, location detection automatically populates sites within a 2 km radius of your current position. You can tap Tap to change location to update your location or toggle Show All Sites to browse the complete list of available sites.
   4. Submit.
7. Verify Onboarding Status and Resolved Variables.

   1. Navigate to SettingsDevice Management.
   2. Locate the newly onboarded device.
   3. Review the Onboarding Status.
   4. Select the device and navigate to its specific Configuration Scope.
   5. Manage Variables.
   6. Review the Resolved Variables.
