licensing process for the VM-Series firewall uses the UUID and the
CPU ID to generate a unique serial number for each VM-Series firewall.
Hence, when you generate a license, the license is mapped to a specific
instance of the VM-Series firewall and cannot be modified.
the instructions in this section if you are:
from an evaluation license to a production license.
Upgrading the model to allow for increased capacity. For
example you want to upgrade from the VM-100 to the VM-300 model.
Upgrading capacity, which restarts some critical processes
on the firewall. An HA configuration is recommended to minimize
service disruption; to upgrade the capacity on a HA pair, see Upgrade the VM-Series Model in
an HA Pair.
In a private or public cloud deployment, if your firewall is licensed with the BYOL option, you
must deactivate your VM before you
change the instance type or VM type. Upgrading the model or instance
changes the UUID and CPU ID, so you must apply the license when the
Allocate additional hardware resources to your
Before initiating the capacity upgrade, you must verify
that enough hardware resources are available to the VM-Series firewall
to support the new capacity. The process for assigning additional
hardware resources differs on each hypervisor.
To check the
hardware requirements for your new VM-Series model, see VM-Series Models.
the capacity upgrade does not require a reboot of the VM-Series
firewall, you need to power down the virtual machine to change the
Make sure that you are using the same account
that you used to register the initial license.

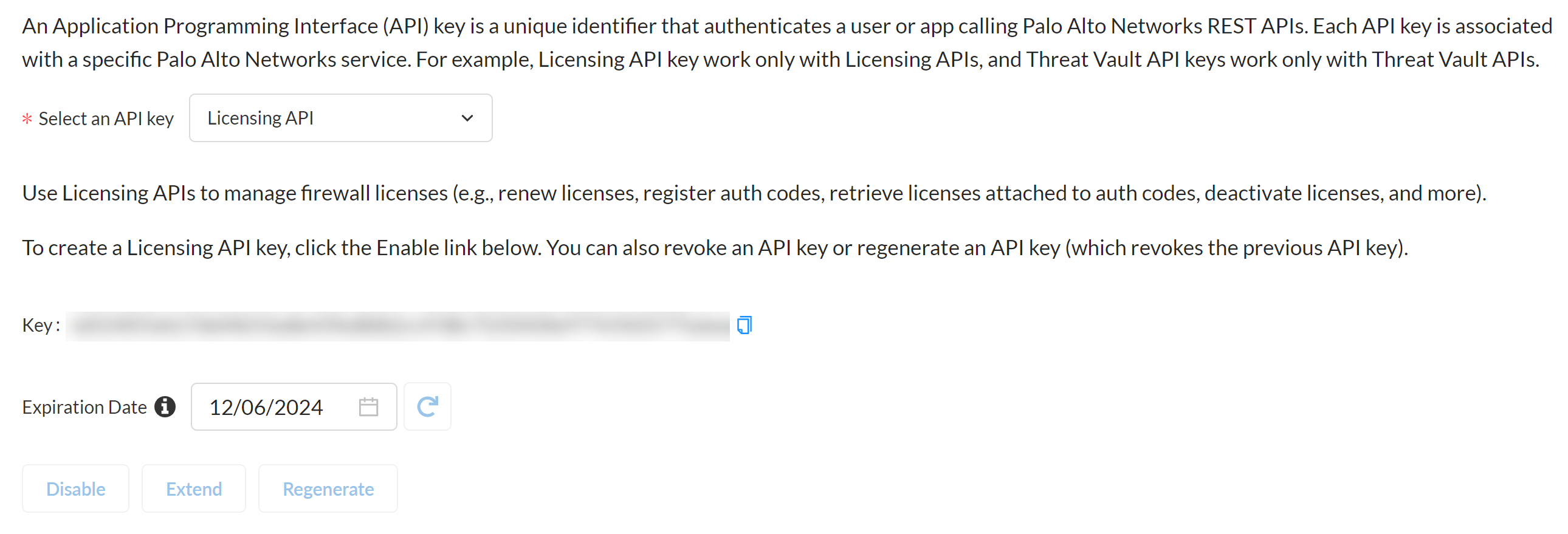

From the menu on the left, select
API Key Management
Copy the API key.
On the firewall, use the CLI to install the API key copied
in the previous step.
request license api-key set key <key>
If you have internet access
) Enable the firewall
Verify Update Server identity
your changes. Ensure that
you have a locally-configured user on the firewall. Panorama pushed
users might not be available after the deactivation if the configuration
exceeds the non-licensed PA-VM objects limit.
Upgrade the capacity.
Upgrade VM Capacity
activate your licenses and subscriptions in one of the following
option to upgrade the VM-Series capacity using an authorization
code for licenses that have not been previously activated on the
support portal. When prompted, enter the
and then click
Manually upload license key
this option if your firewall does not have internet connectivity
to the Customer Support portal.
From a computer with access to the internet, log in to the CSP,
download a license key file, transfer it to a computer in the same
network as the firewall, and upload it to the firewall.
Verify that your firewall is licensed successfully.
verify that the license was successfully activated.
