Intelligent Traffic Offload

Implement Intelligent Traffic Offload with the NVIDIA Bluefield-2 DPU.
Intelligent Traffic Offload is a VM-Series firewall Security subscription that, when configured with the NVIDIA BlueField-2 DPU, increases capacity throughput for the VM-Series firewall. The VM-Series firewall and the BlueField-2 DPU must be installed on an x86 physical host running Ubuntu 18.04, with kernel version 4.15.0-20. The VM-Series firewall must be deployed in virtual wire mode.
The Intelligent Traffic Offload (ITO) service routes the first few packets of a flow to the firewall for inspection to determine whether the rest of the packets in the flow should be inspected or offloaded. This decision is based on policy or whether the flow can be inspected (for example, encrypted traffic can’t be inspected). By only inspecting flows that can benefit from security inspection, the overall load on the firewall is greatly reduced and VM-Series firewall performance increases without sacrificing security.
The current NVIDIA BlueField-2 DPU scalability limitations are as follows:
  • Session table capacity: 500,000 sessions
  • Session table update rate: 7000 sessions/second
  • Connections per second: 20,000
  • Offload hairpin rate: ~90 Gbps for 1500 byte packets
If offload traffic to the BlueField-2 DPU exceeds 7,000 sessions per second, or the offload session table is full, traffic still flows through the VM-Series firewall and is inspected. When the sessions per second drops below 7,000, intelligent traffic offload to the Bluefield-2 DPU resumes.
Active/Passive HA is supported for the VM-Series firewalls running on physical hosts with identical configurations.
Intelligent Traffic Offload does not support the accelerated aging session setting.

Intelligent Traffic Offload Requirements

ITO requires one VM-Series firewall and one BlueField-2 DPU installed on the same x86 physical host. Active/Passive high availability for VM-Series firewalls is supported.
You can deploy only one VM-Series firewall and one BlueField-2 DPU per host.
  • Network switch with 2 available 100GB/s ports (4 for HA).
    If want to use VLANs, make sure your switch is capable.
  • X86 physical host hardware requirements.
  • X86 host software requirements.
    • Ubuntu 18.04, with kernel version 4.15.0-20.
    • Bluefield Binary bootstream version: 5.3-1.0.0.1
      Accept the End User License Agreement to start the download.
  • Virtual machine for the VM-Series firewall.
    • PAN-OS 10.1 or later.
    • VM-Series Plugin 2.1.0 or later.
    • To license Intelligent Traffic Offload, create a Software NGFW deployment profile for 10.0.4 and above, with a minimum of 18 vCPUs and the Intelligent Traffic Offload service. The profile can include other security services.
      With PAN-OS 10.1.1 or later and VM-Series Plugin 2.1.1 or later, to license Intelligent Traffic Offload, create a Software NGFW deployment profile for 10.0.4 and above, with a minimum of six (6) vCPUs and the Intelligent Traffic Offload service. The profile can include other security services.

Intelligent Traffic Offload Interfaces

An Intelligent Traffic Offload deployment connects three types of interfaces:
  • PAN-OS virtual interfaces:
    • eth0: management interface
    • eth1, eth2: dataplane
    • eth3: HA interface
    • eth4: gRPC interface
  • BlueField-2 DPU physical interfaces (created from the host OS).
  • Host physical interfaces for the BlueField-2 DPU 100GB ports (created from the host OS).
You connect the PAN-OS interfaces to the BlueField-2 DPU through SR-IOV virtual functions (VFs) you create on the physical host (see Enable Virtual Functions).
In the following figure, the two BlueField-2 DPU ports are shown as Physical Functions PF0 and PF1. These PFs can be observed from the host side as enp4s0f0 and enp4s0f1, and are divided into multiple VFs for SR-IOV functionality.
  • The first VF for each PF must be the data port (eth1:pf0vf0).
  • An additional VF is required for the control channel for the gRPC client/server interface (eth4:pf0v1).
  • VFs from the host side are as follows:
    • enp4s0f0 is represented by pf0vf0 and pf1vf0 on the BlueField-2 DPU, and are used for data.
    • enp4s0f1 is represented by pf0vf1 and is used for gRPC control traffic.

High Availability

Active/Passive HA is supported for a pair of VM-Series firewalls deployed in Vwire mode on physical hosts.
ITO H/A focuses on VM-Series firewall availability. Each firewall maintains a session table, and each BlueField-2 DPU maintains a flow table. The HA configuration synchronizes the active session table, ensuring it is mirrored to the passive firewall at runtime. The session table stores both sessions that require inspection and sessions that are marked for offload.
HA uses the PAN-OS interface eth3, which is on a NIC on the VM-Series firewall. Eth3 is used to select the active firewall, and sync the VM-Series firewall session tables on the active/passive pair.

Active Packet Flow

The following diagram steps through the active packet flow for an HA configuration that uses an optional VLAN configuration.
  1. Packet is sent from the client application to the network switch.
  2. The packet arrives at the switch port that is programmed to add a VLAN 100 tag to the packets.
  3. The tagged packets can only go to Port Pa1 as the interface for port Ps1 is down because that firewall is in passive mode.
  4. The packet arrives at port Pa1 and VLAN 100 is removed from the packet and the packet is delivered to the firewall eth1.
  5. The firewall is running in vWire mode so the packet is processed by the firewall and then sent out eth2.
  6. The packet arrives at port Pa2 and VLAN 200 is added.
  7. The packet is sent out port Pa2 and can only be delivered to port Ps because the other VLAN 200 port Ps2 is down.
  8. The packet arrives at port Ps and the VLAN 200 tag is removed.
  9. The packet is sent out port Ps with no VLAN tag
  10. The packet is delivered to the server.

Failover Event

A failover event occurs when there is either a notification from the active VM-Series firewall or the passive firewall detects that the active is not responding. When this happens the network connections to ports Pa1 and Pa2 go down and the network connections to ports Ps1 and Ps2 become active.

Passive Packet Flow

When the VM-Series firewall is in the passive state, the BlueField-2 DPU on the passive member is live but does not pass traffic until there is a failover and the co-located VM-Series firewall becomes active. The following diagram steps through the passive packet flow for an HA configuration that uses an optional VLAN configuration.
  1. The packet is sent from the client application to the network switch.
  2. The packet arrives at the switch port that is programmed to add a VLAN 100 tag to the packets.
  3. The tagged packets can only go to Port Ps1 because the interface for port Pa1 is down and that firewall has now moved from passive to active.
  4. The packet arrives at port Ps1 and VLAN 100 is removed from the packet and the packet is delivered to the firewall eth1.
  5. The firewall is running in vWire mode so the packet is processed by the firewall and then sent out eth2.
  6. The packet arrives at port Ps2 and VLAN 200 is added.
  7. The packet is sent out port Ps2 and can only be delivered to port Ps because the other VLAN 200 port Pa2 is down.
  8. The packet arrives at port Ps and the VLAN 200 tag is removed.
  9. The packet is sent out port Ps with no VLAN tag.
  10. The packet is delivered to the server.

Install the BlueField-2 DPU

Install the BlueField-2 DPU on the physical host before you install the VM-Series firewall. For information on the BlueField-2 DPU, see the software documentation: NVIDIA BLUEFIELD DPU FAMILY SOFTWARE V3.5.0.11563 DOCUMENTATION.
  1. Install the BlueField-2 DPU on the host machine as directed in the NVIDIA BlueField Ethernet DPU User Guide.
  2. Install the BlueField drivers as directed in the NVIDIA BlueField-2 DPU Software Quick Start Guide.

Install the VM-Series Firewall

The standard installation for KVM on the VM-Series firewall installs PAN-OS. Follow the installation steps in the following sections.

Enable Virtual Functions

As mentioned in Intelligent Traffic Offload Interfaces virtual functions (VFs) connect PAN-OS interfaces to the BlueField-2 DPU.
The maximum number of virtual functions VFs per port is 2. You need a total of three—two for the data path and one for the management interface.
  1. Enable virtual functions on the host machine.
    • By default the BlueField-2 DPU uses the first VF for the datapath, i.e. enp4s0f0v0 and enp4s0f1v0 in the following example.
    • The other VF, enp4s0f0v1, is used for the management interface for the service running on the BlueField-2 card (not to be confused with the VM-Series firewall management interface).
    $
    cat /sys/class/net/enp4s0f0/device/sriov_totalvfs
    8
    $ echo 2 >
    /sys/class/net/enp4s0f0/device/sriov_numvfs
    $
    cat /sys/class/net/enp4s0f1/device/sriov_totalvfs
    8
    $ echo 2 >
    /sys/class/net/enp4s0f1/device/sriov_numvfs
  2. Allocate VFs to the VM-Series firewall from the KVM hypervisor.
    The Guest PAN-OS won’t boot unless VFs are allocated to the VM.
    1. Shut off the VM.

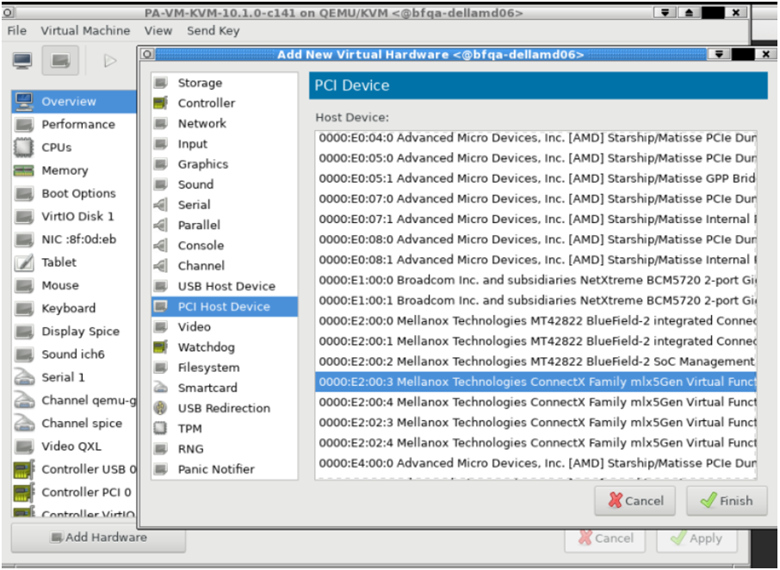

    2. On KVM use virt-manager to add VFs to the VM.
      • Select Add Hardware, select VF0 of PF1, and click Finish.
      • Select Add Hardware, select VF0 of PF0, and click Finish.
      • Select Add Hardware, select VF1 of PF0, and click Finish.

Check the BlueField-2 DPU System

The BlueField-2 DPU first communicates with the host when the Rshim driver driver is installed on the host. The Rshim provides a tty (accessible through minicom) interface and a networking interface called tmfifo_net0. With the tmfifo_net0 interface you can ssh in to the BlueField-2 DPU from the host. The Rshim driver runs on the x86 Hypervisor OS, and in fact, the OFED installation installs an Rshim driver by default.
  1. Log in to the host machine.
    $ ssh user@<host-ip-address>
    $ password:
  2. If the host network interface for the Rshim driver does not have an IP address, you must create one.
    $ ip addr add dev tmfifo_net0 192.168.100.1/24
  3. From the host machine log in to the BlueField-2 DPU subsystem.
    $ ssh ubuntu@192.168.100.2
    $ password:
    ubuntu
    If this is your first login the system prompts you to replace the default password with a new password.
  4. Change the default password on the BlueField-2 DPU.
    Log in to BlueField-2 DPU with initial username as
    ubuntu
    and the password
    ubuntu
    .
    Once you log in, the system prompts you to set up a new password.
    WARNING: Your password has expired. You must change your password now and login again! Changing password for ubuntu. Current password: ***** New password: ***** Retype new password: ***** passwd: password updated successfully
    Log out and log in with your new password.
  5. Check the software version.
    $ ofed_info -s
    This should return the following version or later:
    $ MLNX_OFED_LINUX-5.3-0.3.3
  6. Check that the Bluefield 2 DPU is in the correct mode.
    The correct mode is embedded CPU function ownership mode. See the Embedded CPU Function Ownership Mode documentation for instructions to check and configure the mode.

Install or Upgrade the BlueField Bootstream Software

Follow these steps to ensure you have the latest Bluefield bootstream (BFB) software for the BlueField-2 DPU. The BFB includes the BlueField OS and other software such as drivers and network interfaces.
  1. Download the BFB package to the physical host for the BlueField-2 DPU.
    Get the latest version of the driver for the OS running on the DPI ARM cores from the NVIDIA website—you must accept the end-user license agreement to download.
  2. Install the BFB from the Rshim boot location on the physical host.
    Note, the filename below (the string starting with
    DOCA
    and ending with
    .bfb
    ) does not contain spaces. Enter the command on a single line.
    $ cat DOCA_v1.0_BlueField_OS_Ubuntu_20.04-5.3-1.0.0.0-3.6.0.11699-1-aarch64.bfb > /dev/rshim0/boot
  3. Log in to the BlueField-2 DPU.
    Use the new password you created in Check the BlueField-2 DPU System.
    $ ssh ubuntu@192.168.100.2
    $ password:
  4. Apply the firmware upgrade on the BlueField-2 DPU.
    Enter the following command on a single line.
    $ sudo /opt/mellanox/mlnx-fw-updater/firmware/mlxfwmanager_sriov_dis_aarch64_41686
  5. Power cycle the system.
    Log off the BlueField-2 DPU and return to Linux host.
    $ ipmitool chassis power cycle
  6. Log in to the BlueField-2 DPU.
    $ ssh ubuntu@192.168.100.2
    $ password:
  7. Start the opof (open offload) service on the BlueField-2 DPU. opof is a standalone service at this time.
    The VFs must exist before you start opof. See Enable Virtual Functions.
    $ opof_setup
    $ service opof restart
  8. Verify the opof service is running without issues.
    $ service opof status

Install or Upgrade the Debian Package

If the Debian package version is earlier than 1.0.4 you must upgrade.
  1. On the BlueField-2 DPU, check the version of the opof package.
    $ opof -v
    If it is earlier than 1.0.4 it must be upgraded.
  2. Add the NViIDIA repository for packages.
    $ cd /etc/apt/sources.list.d
    Enter each
    wget
    command all on one line. There are no spaces in the URLs:
    wget https://linux.mellanox.com/public/repo/doca/1.0/ubuntu20.04/doca.list
    wget -qO - https://linux.mellanox.com/public/repo/doca/1.0/ubuntu20.04/aarch64/GPG-KEY-Mellanox.pub | sudo apt-key add -
    $ apt update
  3. On the BlueField-2 DPU check the Debian package in the repository.
    $ apt search opof
    Sorting... Done Full Text Search... Done opof/now 1.0.4 arm64 [installed,local] Nvidia Firewall Open Offload Daemon
  4. On ARM, uninstall the obsolete Debian package.
    $ apt remove opof
  5. Install the new Debian package.
    $ apt install opof
  6. Set up and restart the opof service.
    $ opof_setup
    $ service opof restart
  7. Verify the opof service is running without issues.
    $ service opof status

Run Intelligent Traffic Offload

This solution requires a subscription to the Intelligent Traffic Offload software and a minimum of 18 physical cores for the best performance/throughput. By default, PAN-OS allocates 2 cores for Intelligent Traffic Offload, 4 cores for management processes and the remaining 12 cores for dataplane processing.

Set Up Intelligent Traffic Offload on the VM-Series Firewall

Follow these steps to enable Intelligent Traffic Offload on PAN-OS.
  1. Bring up the PAN-OS VM. This assumes that you already have a VM instance created and are restarting it.
    $
    virsh start <vm-name>
  2. Use SSH to log in to the VM-Series firewall management interface.
    $
    ssh admin@<panos-management-IP-address>
    $
    admin@PA-VM>
  3. Verify that Intelligent Traffic Offload is installed and licensed.
    admin@PA-VM>
    show intelligent-traffic-offload
    Intelligent Traffic Offload:   Configuration            : Enabled   Operation Enabled        : True   Min number packet        : 8   Min Rate                 : 95   TCP ageing               : 12-   UDP ageing               : 20
    Configuration:Enabled
    means Intelligent Traffic Outload is licensed.
    Operation Enabled:True
    means you have rebooted a configured device.
  4. Enable Intelligent Traffic Offload.
    Use the following command to enable ITO without rebooting the system.
    admin@PA-VM>
    set session offload yes
    You can also use
    set session offload no
    to disable the ITO without rebooting the system.
  5. Validate Intelligent Traffic Offload.
    admin@PA-VM>
    show session info | match offload
    Hardware session offloading: True Hardware UDP session offloading: True
    To view global counters, use the following command:
    admin@PA-VM>
    show counter global | match flow_offload
    See Session Counters for more on the organization of the output and a description of each counter.

Set Up the Intelligent Traffic Offload Service on the BlueField-2 DPU

The service must be built as described in Set Up Intelligent Traffic Offload on the VM-Series Firewall.
  1. From the host machine, log in to the BlueField-2 DPU complex.
    $
    ssh ubuntu@192.168.100.2
    $ password:
    ubuntu
    $ ubuntu>
    sudo -i
  2. Set up the preliminary configuration in the BlueField-2 DPU OS.
    root@bf2SmartNIC:~#
    opof_setup
    [ INFO ] No num of hugepages specified, use 2048 [ INFO ] No gRPC port specified, use pf0vf1 Configure ovs fallback Configure grpc for pf0vf1 Reserved 2048*2MB hugepages

Start or Restart the Intelligent Traffic Offload Service

If the ITO service is running on a DPU, the service probably started automatically. To check the status, run the following command:
$ service opof status
If the opof service is not running, enter the following command to start the controller:
$ service opof start
To restart the service, run the following command:
$ service opof restart

Get Service Status and Health

Use opof to get the service status and health. Each command has its own command-line help, for example:
$ opof -h
  • Query a session:
    $ opof query -i <session_id>
  • Query service offload statistics:
    $ opof stats

BlueField-2 DPU Troubleshooting

Use the following procedure to power cycle the system.
  1. To power cycle the system, log out of the BlueField-2 DPU and return to the Linux host OS.
    $ ipmitool chassis power cycle
  2. If the interfaces do not come up after the power cycle, log in to the BlueField-2 DPU and enter:
    $ /sbin/mlnx_bf_configure
  3. Return to the host OS and enter:
    $ sudo /etc/init.d/openibd restart

PAN-OS Troubleshooting

Validate Traffic Flows

Data traffic can be generated from the client and consumed through the Intelligent Traffic Offload setup by a server. IPERF3 can be used to generate traffic, as discussed in Run IPERF3 Tests. Once the traffic is initiated, the first few packets of the flow are sent to the PA-VM which decides if the flow needs to be offloaded or not.
An application override policy must be defined to identify flows for offload. A TCP flow sets the FIN/RST flag on a control packet and sends it to the PA-VM. When the PA-VM decides to offload the flow, use show session all to display the offloaded flows. Use
show session id <flowID>
to provide information on the state of the flow. An offloaded flow has the state
Offload: yes
.
The flow counters are not updated while subsequent packets of the flow are in the offload state and are passing through the BlueField-2 DPU. Once the flow completes, the offload service triggers an age-out timer (TCP aging configured from the CLI). When the timer expires, the service collects the updated flow statistics and sends them to the VM-Series firewall. The firewall then updates its flow session counters, and
show session id <flowID>
returns the updated values.

Session Counters

Use the following command to view session counters.
admin@PA-VM >
show counter global | match flow_offload
The output columns for each counter are:
Counter Name | Value | Rate | Severity | Category | Aspect | Description.
  • Value—Number of occurrences since system start.
  • Rate—Frequency of counter change.
  • Severity—Info, Warning, Drop. Used for Tech Support.
  • Category—Flow (a component of a session).
  • Aspect—Offload for an entire flow.
Counter Name
Description
flow_offload_rcv_cpu
Number of packets received by CPU with session offloaded
flow_offload_session_update
Number of times the session needs to be updated
flow_offload_session_insert
Number of sessions inserted in the offload device
flow_offload_session_delete
Number of sessions deleted from offload device
flow_offload_delete_msg_failed
Number of del messages to GRPC that failed
flow_offload_add_msg_failed
Number of session messages to GRPC that failed
flow_offload_session_verify
Number of verify messages to the offload device
flow_offload_verify_msg_failed
Number of verify messages to GRPC that failed
flow_offload_update_session_stat
HW indicates flow age out
flow_offload_missing_session_stat
Cannot find session for stats
flow_offload_invalid_session
Offload invalid session ID
flow_offload_del_session_fail
Offload Delete invalid session
flow_offload_add_session_fail
Offload Add session failed
flow_offload_get_session_fail
Offload Get session failed
flow_offload_grpc_fail
Offload grpc call failed
flow_offload_active_session
Number of active offloaded sessions
flow_offload_aged_session
Number of aged out offloaded sessions
flow_offload_session
Number of offloaded sessions

Run IPERF3 Tests

Iperf3 is an optional simple application for generating traffic that is effective in running data traffic tests. To run the server as a service, use
iperf3 -s -D
. By default the application expects packets on TCP/UDP destination port 5201, but the port can be changed.
  • Single flow—For single iperf3 flows enter:
    iperf3 -c <server-ip-address> -t 60
  • Multiple flows—To initiate 20 concurrent flows for a 60 second duration, enter:
    iperf3 -c <ip of server> -P 20 -t 60

Validate Intelligent Traffic Offload

You can use VM-Series firewall logs to validate the connectivity between the ITO client running on the firewall and the offload service on the BlueField-2 DPU. The expected log output for a successful offload is as follows.
admin@auto-pavm>
less mp-log pan_grpcd.log
[PD] dec free list 0xe0ff022000 RS LIB INIT in DP! pan_fec_app_init: fec_data 0xe0feef1088, maxentries 120 [FEC] enc free list 0xe0feef1100, dec free list 0xe0feef10b8 Creating dp grpc ring buf Initializing dp grpc ring buf Mapping flow data memory Found offload parameters Heart beat found 1 Established connection to offload device

OPOF Troubleshooting

You can also view the offload service logs to validate connectivity:
root@linux:~#
service opof status
● opof.service - Nvidia Firewall Intelligent Traffic Offload Daemon Loaded: loaded (/etc/systemd/system/opof.service; disabled; vendor preset: enabled) Active: active (running) since Fri 2021-05-21 18:40:38 UTC; 3h 48min ago Docs: file:/opt/mellanox/opof/README.md Process: 163906 ExecStartPre=/usr/sbin/opof_pre_check (code=exited, status=0/SUCCESS) Main PID: 163922 (nv_opof) Tasks: 30 (limit: 19085) Memory: 50.7M CGroup: /system.slice/opof.service └─163922 /usr/sbin/nv_opof -n 1 -a 0000:03:00.0,representor=[0] -a 0000:03:00.1,representor=[0] May 21 18:40:38 localhost.localdomain nv_opof[163922]: EAL: Probe PCI driver: mlx5_pci (15b3:a2d6) device: 0000:03:00.0 (socket 0) May 21 18:40:38 localhost.localdomain nv_opof[163922]: EAL: Invalid NUMA socket, default to 0 May 21 18:40:38 localhost.localdomain nv_opof[163922]: EAL: Probe PCI driver: mlx5_pci (15b3:a2d6) device: 0000:03:00.0 (socket 0) May 21 18:40:38 localhost.localdomain nv_opof[163922]: EAL: Invalid NUMA socket, default to 0 May 21 18:40:38 localhost.localdomain nv_opof[163922]: EAL: Probe PCI driver: mlx5_pci (15b3:a2d6) device: 0000:03:00.1 (socket 0) May 21 18:40:38 localhost.localdomain nv_opof[163922]: EAL: Invalid NUMA socket, default to 0 May 21 18:40:38 localhost.localdomain nv_opof[163922]: EAL: Probe PCI driver: mlx5_pci (15b3:a2d6) device: 0000:03:00.1 (socket 0) May 21 18:40:39 localhost.localdomain nv_opof[163922]: EAL: No legacy callbacks, legacy socket not created May 21 18:40:39 localhost.localdomain nv_opof[163922]: EAL: No legacy callbacks, legacy socket not created May 21 18:40:42 localhost.localdomain nv_opof[163922]: Server listening on: 169.254.33.51:3443
The logs show that the Intelligent Traffic Offload is communicating with the VM-Series firewall PA-VM over the
server listening on
IP address, and you see the VFs along with other details of the DPDK parameters. Also attached is a log from the addition of a TCP flow that is offloaded.

Recommended For You
