    To set up Prisma Access for use with an Aryaka SD-WAN, complete the following task.
    1. In Prisma Access, configure the service infrastructure (
      Panorama
      Cloud Services
      Configuration
       and create an
      Infrastructure Subnet
      .
    2. When you add a new
      IPSec Tunnel
       during the onboarding procedure, make a note of the
      IPSec Tunnel
       name and the
      IKE Gateway
       and
      IPSec Crypto profile
       that you use (or use the
      Default
       IPSec Crypto profile) for the tunnels you create.
      If you configure a pre-shared key (PSK) for the
      IKE Gateway
      , make a note of it; you enter this PSK when you configure the IPSec tunnel in Aryaka SmartConnect.

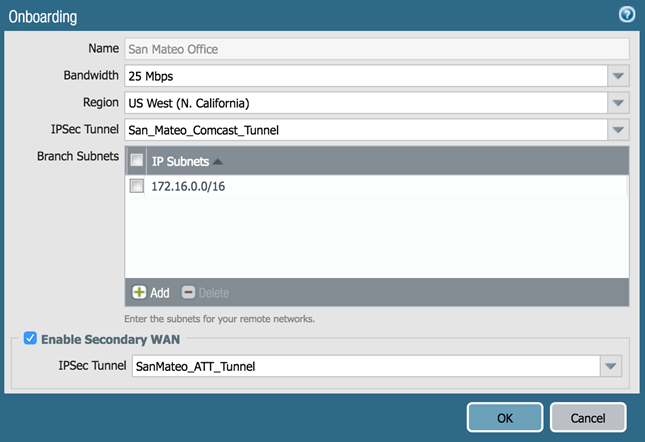

      The following example configures a remote network with a
      Bandwidth
       of
      25 Mbps,
       a
      Region
       of
      US West (N. California)
      , and a
      Secondary WAN
       configured for this location.
    3. Enable zone mapping.
    4. Commit the configuration changes to Panorama and push the configuration out to Prisma Access for remote networks.
      1. Click
        Commit
        Commit to Panorama
        .
      2. Click
        Commit
        Commit and Push
        . Click
        Edit Selections
        Prisma Access
        , and select both Prisma Access for remote networks and Prisma Access for service setup to push the configuration out to the service.
      3. Click
        OK
         and
        Push
        .
    5. Make a note of the
      Service IP address
       of the Prisma Access side of the tunnel. To find this address in Panorama, select
      Panorama
      Cloud Services
      Status
      Network Details
      , click the
      Remote Networks
       radio button, and find the address in the
      Service IP Address
       field.

    Configure the IPSec Tunnel in Aryaka SmartConnect

    You configure Aryaka SmartConnect in the Cloud Security Connector section of the MyAryaka portal at https://my.aryaka.com/. Alternatively, you can contact the Aryaka support team to assist with the configuration.
    Your MyAryaka account must have write permission access to configure the Cloud Security Service. To verify that you have this access, log in to MyAryaka and select
    Config
    User Management
    Users
    .
    To complete the tunnel configuration for Aryaka SmartConnect, complete the following task.
    1. Log in to MyAryaka and navigate to the SmartConnect site for which you want to deploy Prisma Access.

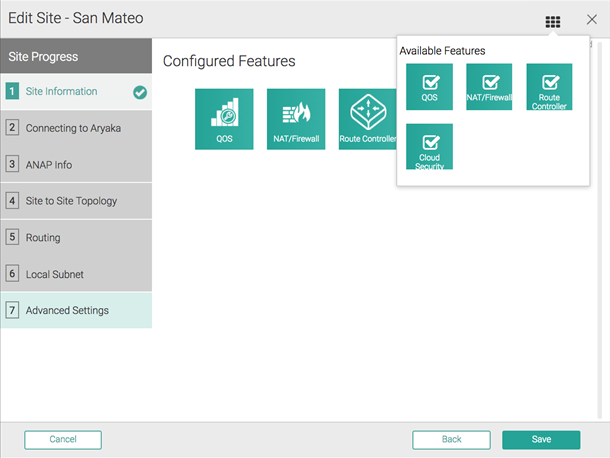

    2. Click
      Edit Site
      , then select
      Cloud Security
       from the list of
      Advanced Settings.

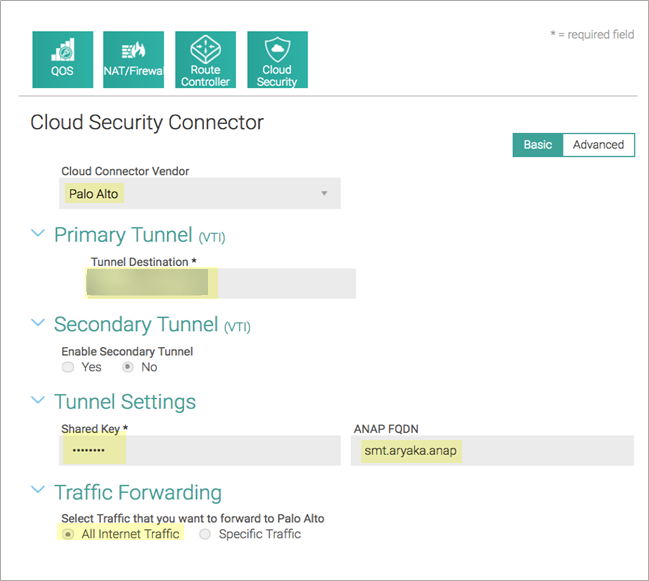

    3. Enter information for the remote network tunnel.
      Enter the following settings:
      • Select
        Palo Alto
         in the
        Cloud Connector Vendor
         field.
      • Enter the
        Service IP Address
         for the remote network tunnel from Prisma Access in the
        Primary Tunnel
        Tunnel Destination
         field.
      • Enter the PSK value from the Prisma Access IKE gateway in the
        Tunnel Settings
        Shared Key
         field.
      • Enter a FQDN for the Aryaka Network Access Point (ANAP), if the IP address of the M1/M2 interface is dynamic.
      • Select
        All Internet Traffic
         in the
        Traffic Forwarding
         field.

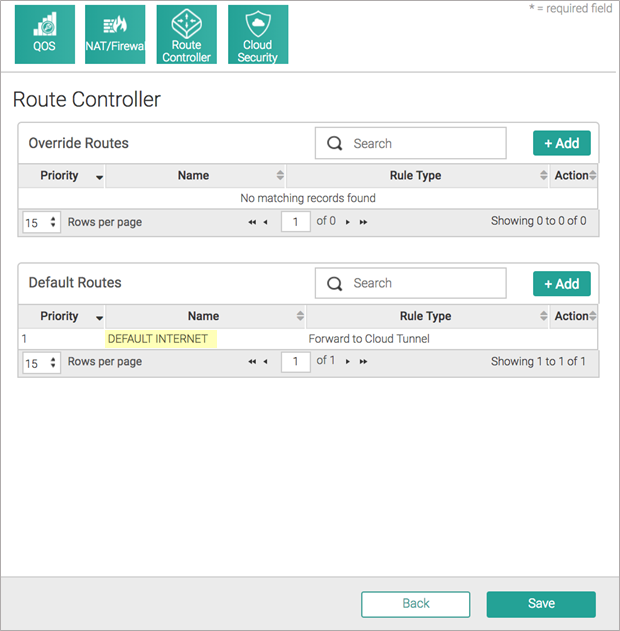

      After you choose to forward all internet traffic to Prisma Access, a default rule named
      DEFAULT INTERNET
       is inserted in the Route Controller, in the
      Default Routes
       section. The following screenshot shows the traffic forwarding settings.
    4. (
      Optional

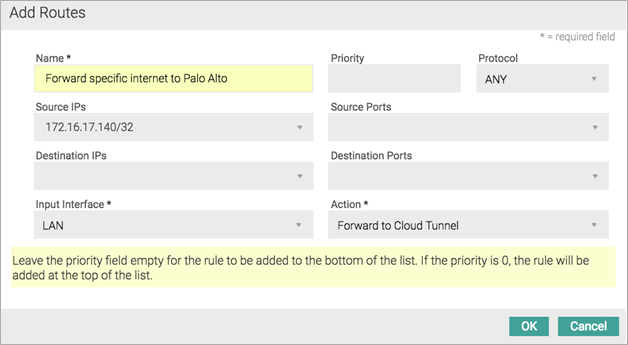

      ) If you choose to forward only specific internet traffic to Prisma Access, program appropriate routes in the Router Controller section.
      Aryaka recommends that you edit Default Routes and not override routes to control forwarding. Override routes take precedence over any Aryaka-destined traffic and may accidentally cause site-to-site traffic to be routed to Prisma Access.

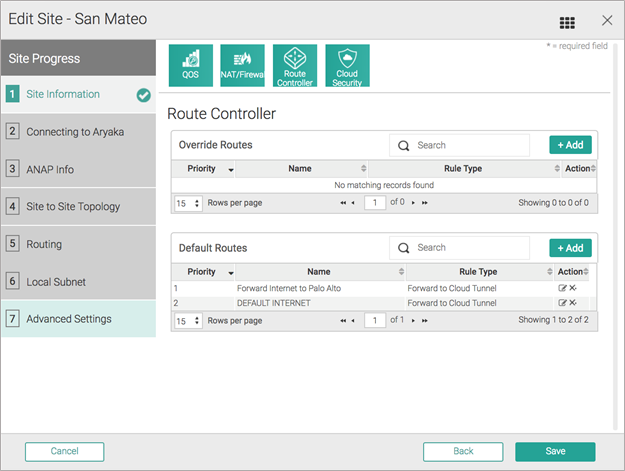

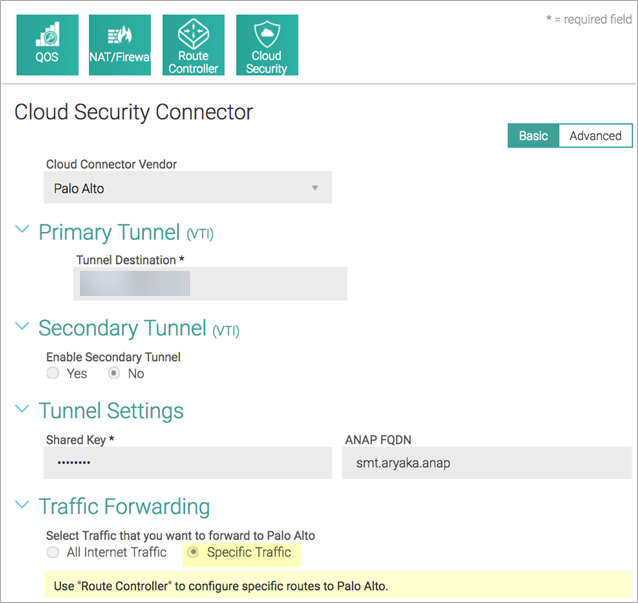

      The following figures provide screenshots of the Route Controller feature.
    5. Check the status of the tunnels.
      • To check the status from the Aryaka Cloud Security Connector, click the
        Status
         tab. Aryaka uses Dead Peer Detection (DPD) to determine the availability of the tunnel.

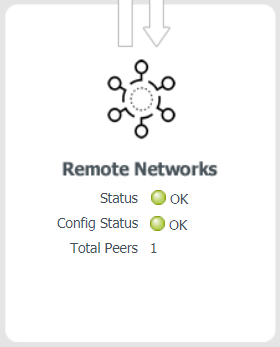

      • To check the status from Panorama, select
        Panorama
        Cloud Services
        Status
        Status
         to verify that the remote network has been successfully deployed.

    Monitor Remote Network Traffic

    To monitor remote network tunnel traffic from the Aryaka SD-WAN, complete the following task.
    1. Click the
      Monitor
       tab, then select
      Cloud Security Connector Traffic
      .
    2. Pick a reference site, select a time, and click
      Apply
      .
      To zoom in any of these graphs, click a graph and drag the cursor.

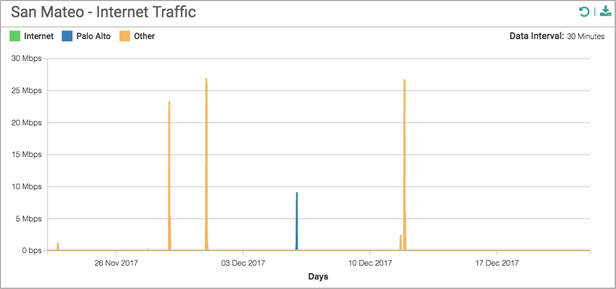

      • The following information displays in the
        Internet Traffic
         graph:
        • Total Internet
          —All traffic forwarded to the internet.
        • Total Palo Alto
          —All internet traffic forwarded to Prisma Access.
        • Total Other
          —All traffic forwarded to internet that isn't going to Prisma Access.

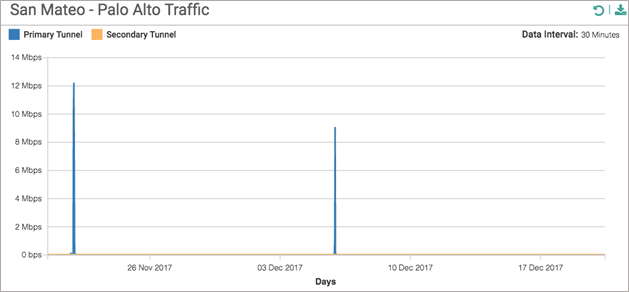

      • The
        Palo Alto Traffic
         graph shows traffic data (in Mbps) over IPSec tunnels to Prisma Access for the time period that you select. This graph shows traffic flow in both directions to Prisma Access.

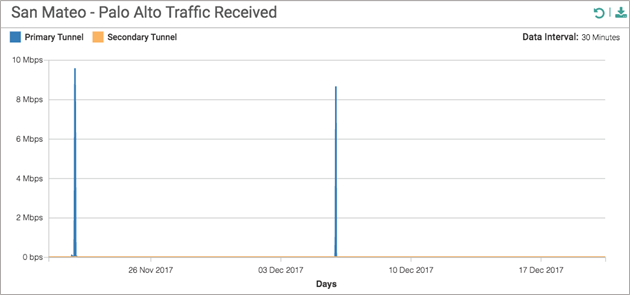

      • The
        Palo Alto Received
         graph shows traffic received on the IPSec tunnels to Prisma Access. This graph shows all internet traffic inbound to the site from Prisma Access.

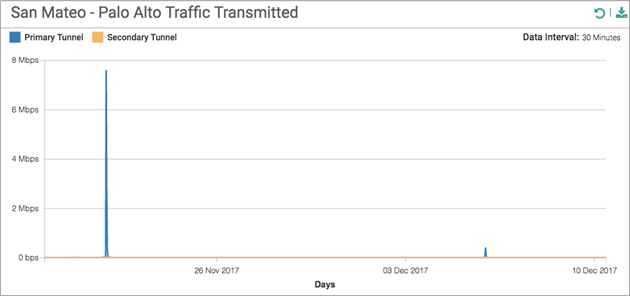

      • The
        Palo Alto Transmitted
         graph shows all traffic that is transmitted on IPSec tunnels to Prisma Access. This graph shows all traffic outbound to Prisma Access from the site.

    Troubleshoot the Aryaka Remote Network

    Prisma Access provides logs that provide you with the status of remote tunnels and the status of each tunnel. To view these logs in Panorama, select
    Monitor
    Logs
    System
    .
    To debug tunnel issues, you can filter for tunnel-specific logs by using the object identifier corresponding to that tunnel. The following figures show errors related to tunnel misconfiguration and negotiation issues.
