Complete the following task to configure the remote network connection as a site-to-site IPSec tunnel.
    1. Enter a
      Site Name
      and select a
      Prisma Access Location
      that is close to the remote network location that you want to onboard.
    2. Select the
      IPSec Termination Node
      to use for the remote network.

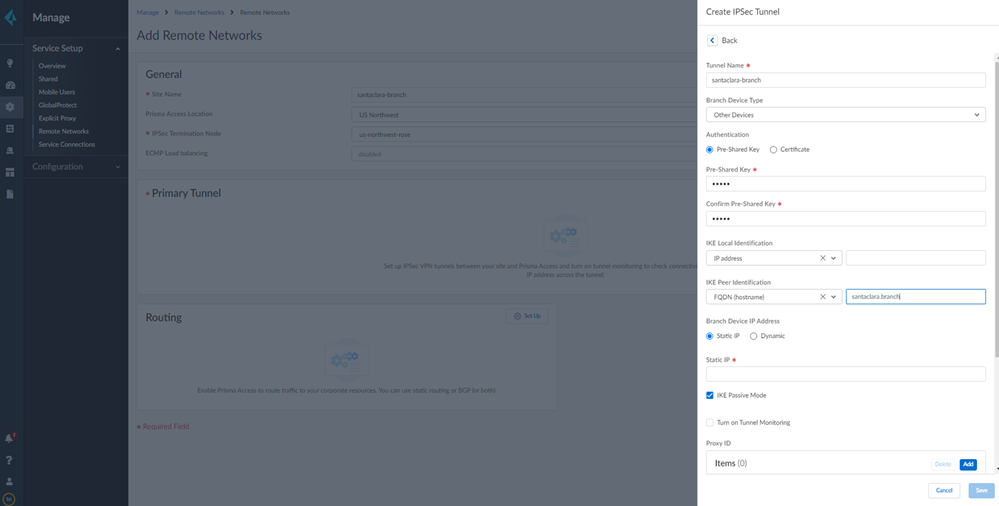

  1. Configure the primary tunnel.
    1. Set Up
      the primary tunnel.
      When configuring the tunnel, use the validated settings.
    2. Specify a name for the
      IPSec Tunnel
      and click
      Create New
      .
    3. Enter a
      Tunnel Name
      .
    4. Set the
      Branch Device Type
      to
      Other Devices
      .
    5. Set the Authentication type to
      Pre-Shared Key
      and then enter
      Pre-Shared Key
      and
      Confirm Pre-Shared Key
      .
    6. Specify how the peers will identify each other.
      • Set the
        IKE Local Identification
        and
        IKE Peer Identification
        to
        User FQDN (email address)
        .
        Make note of the value that you use for the Peer Identification and the
        Pre-Shared key
        you use; you must match these settings for the Nuage Networks side of the connection in step 6 when you Set Up the Remote Network Tunnel in Nuage Networks.
    7. Enable
      IKE Passive Mode
      .

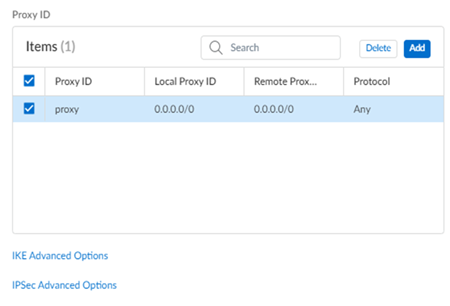

  2. In the Proxy ID section and
    Add
    a default route for all local and remote prefixes.
    Creating this route ensures that all prefixes in the VPN use this IPSec tunnel.
  3. Select
    IPSec Advanced Options
    and
    Create New
    to create a new IPSec crypto profile for the remote network tunnel using the recommended settings.
    Make sure you use IPSec crypto settings that are supported with Prisma Access and Nuage Networks SD-WAN
  4. Select
    IKE Advanced Options
    and
    Create New
    to create a new IKE cryptographic profile for the remote network tunnel.
    Make sure you enable
    IKE NAT Traversal
    . The Nuage Network Services Gateway (NSG) initiates the IKE negotiation, and allows the negotiation to occur even if Nuage Networks side is behind NAT. Refer to the IKE crypto settings that are supported with Nuage for the rest of the settings and make a note of the values you use.
  5. Save
    the tunnel configuration.
  6. Push your configuration changes.
    1. Return to
      Manage
      Service Setup
      Remote Networks
      and select
      Push Config
      Push
      .
    2. Select
      Remote Networks
      .
    3. Push
      your changes.
  7. Find the IP address used on the Prisma Access side of the IPSec tunnel.
    1. Go to
      Manage
      Service Setup
      Remote Networks
      and make a note of the
      Service IP
      address.
      You use this IP address as the peer address when you set up the IPSec tunnel on the Meraki SD-WAN.

Set Up the Remote Network Tunnel in Nuage Networks

After you configure the remote network tunnel in Prisma Access, configure the tunnel in Nuage Networks by completing the following task.
Note that Dead Peer Detection (DPD) is only configured in Nuage Networks. No DPD configuration is required in Prisma Access because the NSG is the DPD initiator and Prisma Access can only reply to requests.

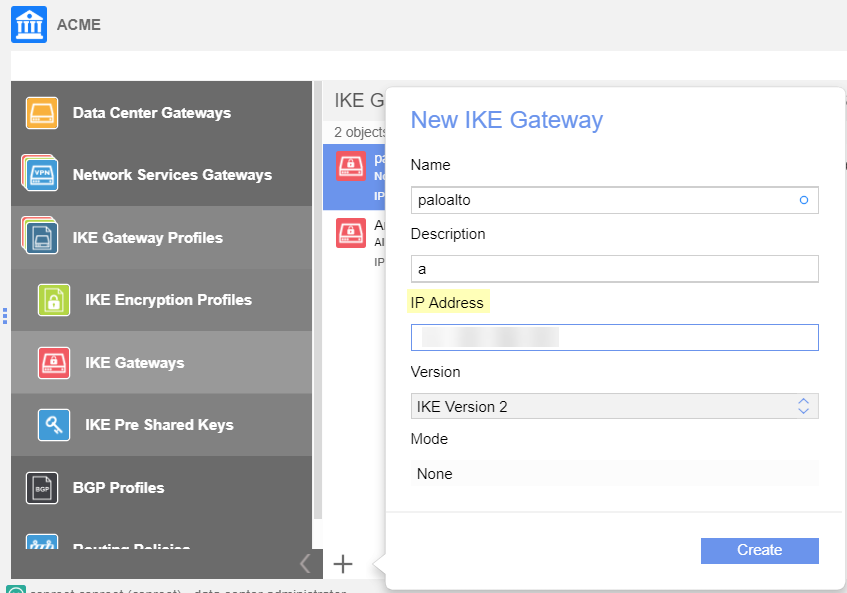

  1. In your organization, create the Gateway using the Nuage Networks IKE gateway object.
    In the
    IP Address
    field, enter the
    Service IP address
    that you retrieved after you completed the setup of the remote network tunnel in Prisma Access.

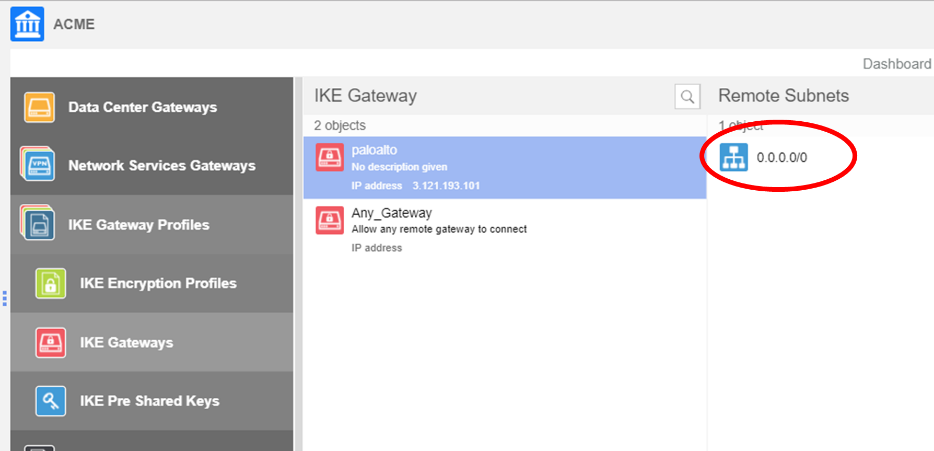

  2. Define the remote subnet for which traffic will be sent to the gateway.

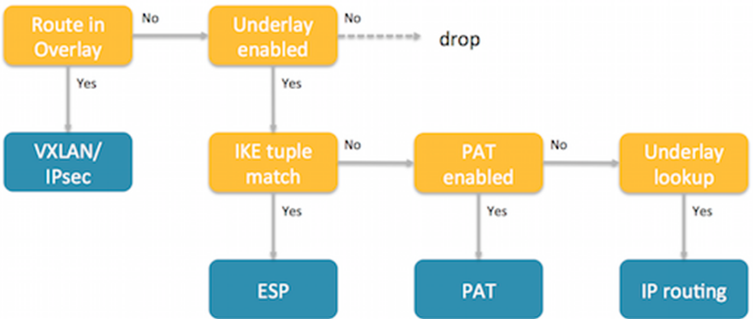

    The IKE gateway connection uses the underlay breakout mechanism as shown in the following diagram:
    All traffic to Prisma Access is through the underlay. If you enable underlay, and if the remote subnet associated with Prisma Access matches the destination IP in the customer packet, then the Nuage Networks SD-WAN sends the packet to Prisma Access. If the destination IP does not match, the SD-WAN sends the packet to internet breakout using underlay breakout and port address translation (PAT) rules.
  3. Specify a default route to the gateway so that the network sends all internet traffic to Prisma Access.

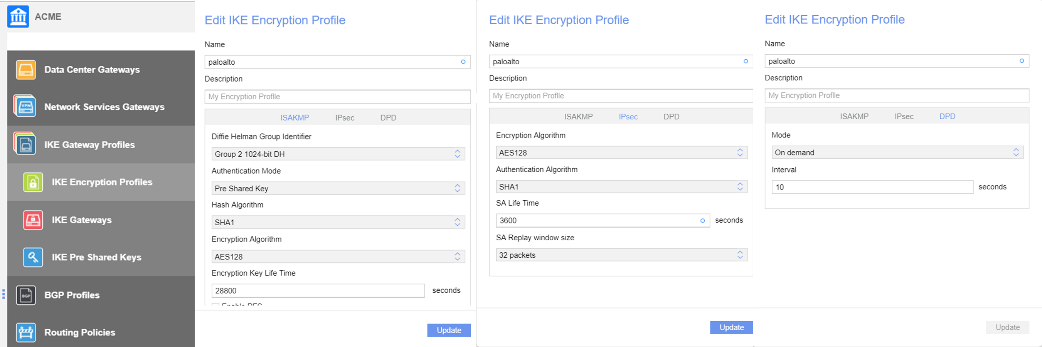

  4. Create an IKE encryption profile.
    This profile must match the values that you specified in the Prisma Access IPSec configuration.

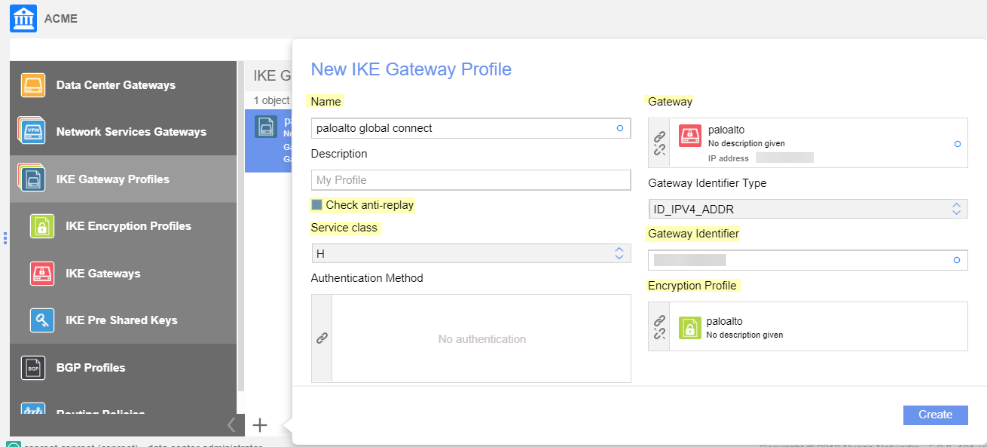

  5. Create an IKE gateway profile.
    1. Enter a
      Name
      for the gateway profile.
    2. Select
      Check anti-replay
      .
    3. Select the
      Service class
      .
    4. Select the
      Gateway
      and
      Encryption Profile
      , using the settings you created for Prisma Access.
    The example in the following screenshot uses one pre-shared key per connection, which means that the IKE Gateway profile won't use a pre-shared key object, and the
    Authentication Method
    field is empty.

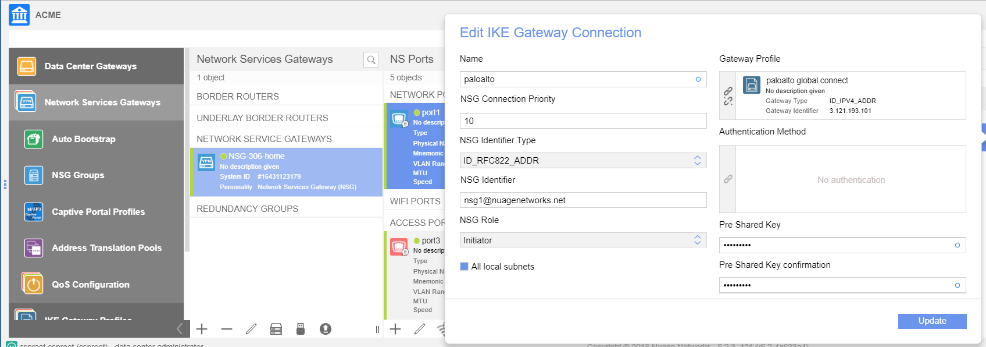

  6. Associate the remote network connection with the NSG uplink port.
    You associate the remote network connection with the Nuage Networks NSG at the uplink VLAN level. This association contains an NSG identifier in RFC 822 format and includes the pre-shared key that is used for the connection.
  7. Check the status of the tunnel connection by entering the following command.
    A status of
    UP
    indicates that the connection is successful.
    A:vsc1# tools vswitch 86.229.176.112 command "nuage-nsg-ike-cli show tunnel-status-summary" ------------------------------------------------------------------------------- Gateway Name Local IP Remote IP Phase1 Phase2 ------------------------------------------------------------------------------- paloalto 192.168.0.103 3.121.193.101 up up -------------------------------------------------------------------------------
  8. Next steps: Learn how Nuage Networks monitors the remote network, and troubleshoot the Nuage Networks remote network connection to Prisma Access, if required.

Nuage Networks Dead Peer Detection and Internet Probing

To detect issues with an IKE gateway for the remote network connection, Nuage Networks VNS uses the Dead Peer Detection (DPD) mechanism, in addition to using a probing mechanism to probe internet services.
The probes are divided into two hierarchical levels: Tier1 and Tier2. Nuage Networks initiates the probe. The Tier 1 probe tests the connectivity of the remote network connection to Prisma Access and the Tier 2 probe tests the connectivity to the internet.
Each connection is composed of an Active IPSec tunnel (priority 100) and a backup IPSec tunnel (priority 200). The HTTP probes run on both connections.
  • Tier 1 Probe
    —Each Tier1 probe is associated to a weight (between 1 and 100%). For Tier1 to fail, the sum of the Tier1 probes that fail must be equal to or greater than 100%. If the Tier1 probe goes down, Tier 2 probe monitoring also goes down.
  • Tier 2 Probe
    —The Tier 2 probe uses round-robin monitoring across a set of internet FQDNs. Consecutive probe tests must fail for the Tier2 probe to fail.

Create an HTTP Probe Object

To create an HTTP probe object, complete the following task.
  1. In the Nuage Networks UI, select
    Performance Monitors
    .

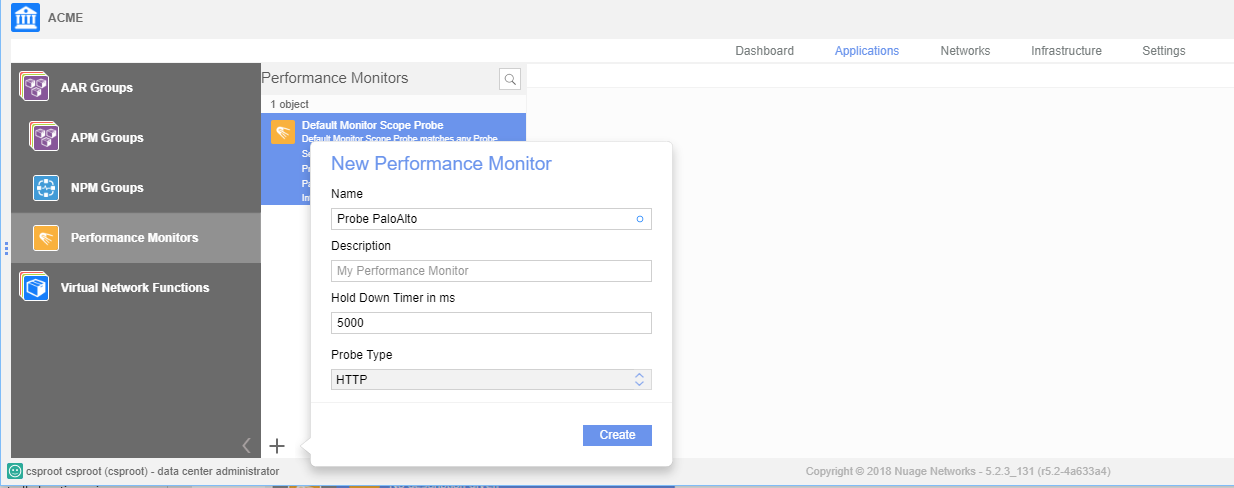

  2. Create a performance monitor with the following values:
    • Specify a
      Hold Down Timer
      value that defines how long the VSD waits for a response before it determines that the performance monitor is unsuccessful and switches to the backup tunnel. The default is 1000 ms.
    • Specify a
      Probe Type
      of
      HTTP
      .
    After you click
    Create
    , the Nuage VNS creates two tiers: Tier 1 and Tier 2. There is no option to add or Remove tiers.

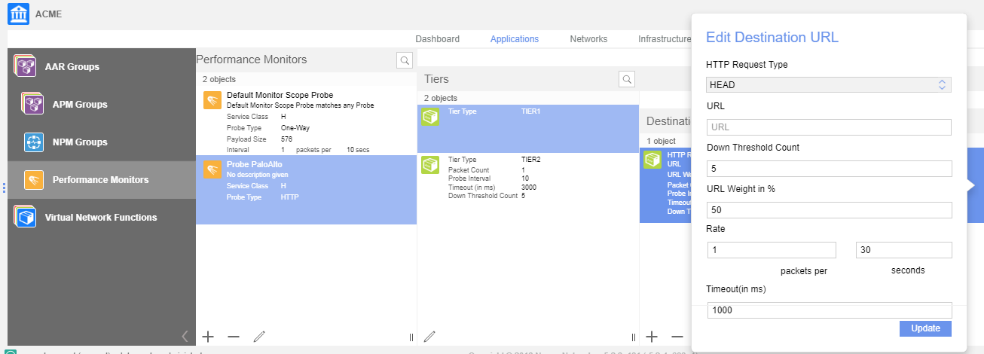

  3. Create Tier 1 URLs, specifying the following values:
    • Down Threshold Count
      —Defines the number of consecutive failed probes before the VSD declares a state change and raises an alarm.
    • HTTP Request Type
      —Specifies the HTTP request method used for the HTTP ping.
    • URL Weight
      —Defines the percent weight for the URL within Tier 1. The sum of the URL weights in Tier 1 cannot exceed 100.
    • URL
      —Defines the HTTP or HTTPS target. Specify one URL up to 2000 characters long.
    • Rate
      —Defines the rate at which the probe sends probe packets to the destination target.
    • Timeout (ms)
      —Defines how long the VSD waits for a response before considering a probe unsuccessful.

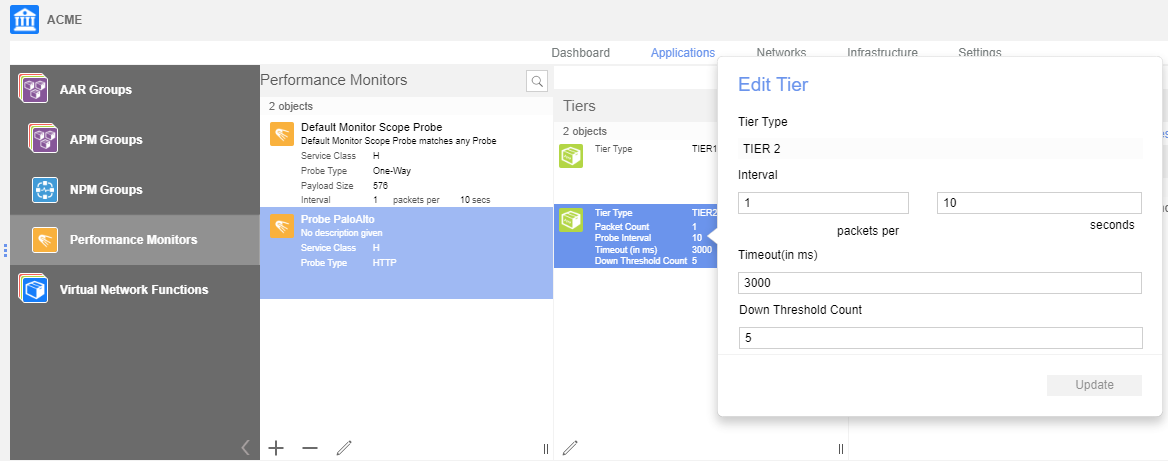

  4. Edit Tier 2 options to change the interval and timeout values of the Tier 2 probe by specifying the following values:
    • Interval (s)
      —Defines the rate at which the probe sends packets to the destination target.
    • Probe Timeout (ms)
      —This parameter defines how long the VSD waits for a response before it determines a probe to be unsuccessful.
    • Down Threshold Count
      —This parameter defines the number of consecutive failed probes before the VSD declares a state change and raises an alarm.

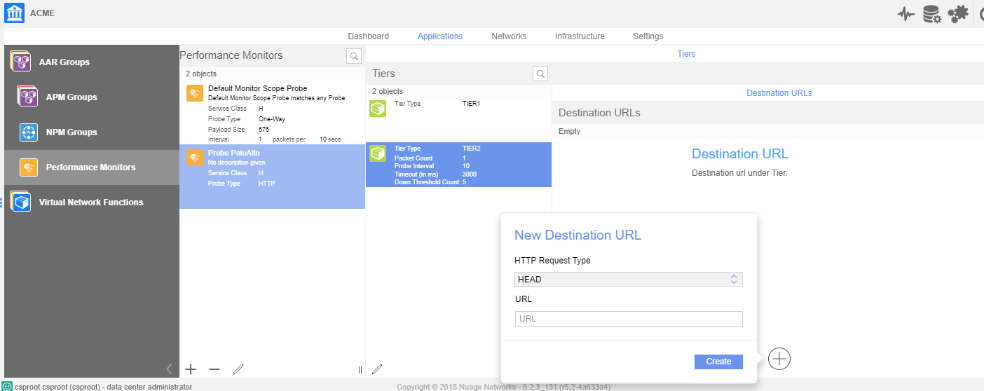

  5. Create Tier 2 URLs with the following values:
    • HTTP Request Type
      —Specifies the HTTP request method that is used for the HTTP ping.
    • URL
      —Defines the HTTP or HTTPS target. Specify one URL up to 2000 characters long.

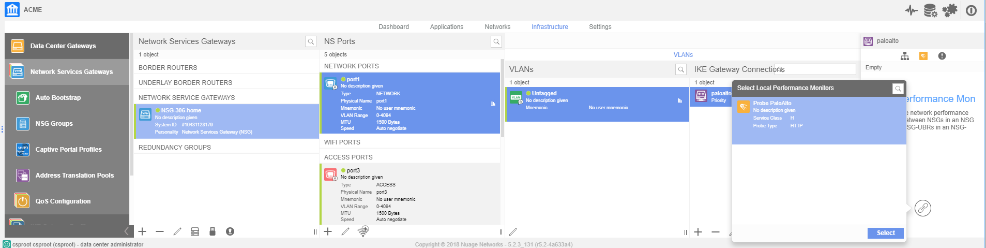

  6. After you create the HTTP probe object with Tier 1 and Tier 2 information, associate the probe to the active and backup IPSec tunnel.
    The following condition must apply to associate a probe with an IKE gateway connection:
    • The remote subnet associated with IKE gateway must be 0.0.0.0/0.
    • You must associate all local subnets with the uplink IPSec connection.
    If you do not meet the preceding conditions, tunnel association fails.

Troubleshoot the Remote Network

Prisma Access provides logs and widgets that provide you with the status of remote tunnels and the status of each tunnel.
  • Go to
    Manage
    Service Setup
    Remote Networks
    and check the
    Status
    of the tunnel.
  • Go to
    Activity
    Log Viewer
    and check the
    Common/System
    logs for IPSec- and IKE-related messages.
    To view VPN-relates messages, set the filter to
    sub_type.value = vpn
    .
    The message
    ignoring unauthenticated notify payload
    indicates that the route has not been added in the crypto map on the other side of the IPSec tunnel after the IPSec negotiation has already occurred.
  • Check the
    Firewall/Traffic
    logs and view the messages that are coming from the zone that has the same name as the remote network.
    In the logs, the remote network name is used as the source zone.
