ION 2000 Ports
Learn how you can use the ION 2000 ports for different
purposes.

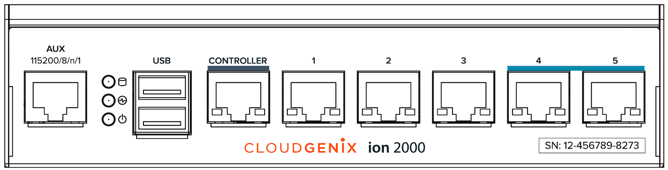

The ports on the ION 2000 are used as
follows:
| Ports | Description |
|---|---|
| AUX | This port is an auxiliary access port intended for offline access, configuration, and troubleshooting a system during installation. |
| USB | This port is reserved for future use. |
| Controller | This port is used by ION 2000 to communicate with the Prisma SD-WAN controller. |
| Internet/LAN/WAN Ports | Ports 1 - 5 are used for internet, local area network (LAN), or private router or multi-path label switching (MPLS) connectivity. The WAN or LAN ports can be coupled or de-coupled as needed. By default, ports 2 and 3 are DHCP-enabled ports. |
| Fail-to-Wire Port Pair | By default, ports 4 and 5 are pre-configured as a fail-to-wire port pair. This port pair may be set to fail open or closed. |
