Rack Mount the Slide Rails
Learn how to rack mount the slide rails of the Prisma SD-WAN ION 7000.
Fasten the 19 inch 1U rails securely to the front and back of the rack mount enclosure.
Orient the front bracket of both rails in the same direction.
Mount the rails securely and then insert the ION 7000 into the front of the sliding rails.

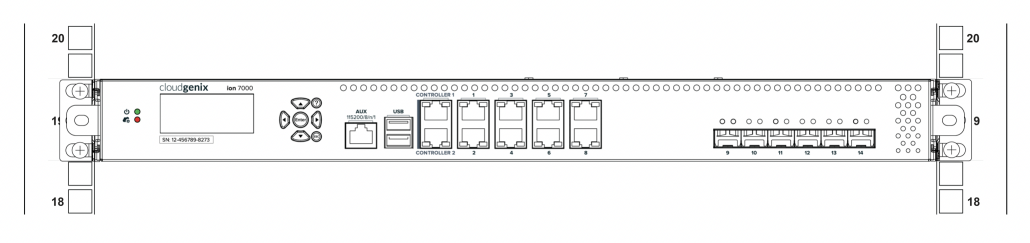

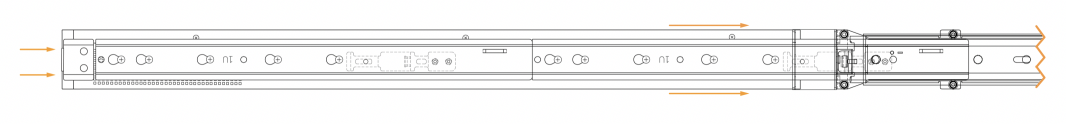

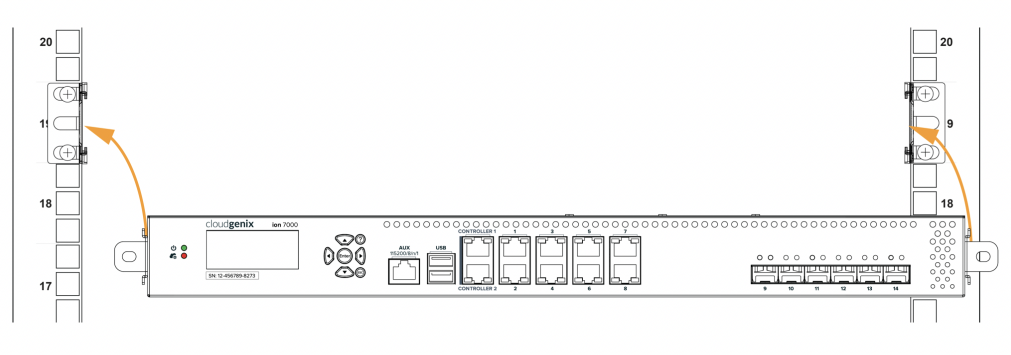

The following figure illustrate the ION 7000 rack mounting the sliding rails:
