ION 9000 Ports
Learn about the ION 900 ports and its usage.

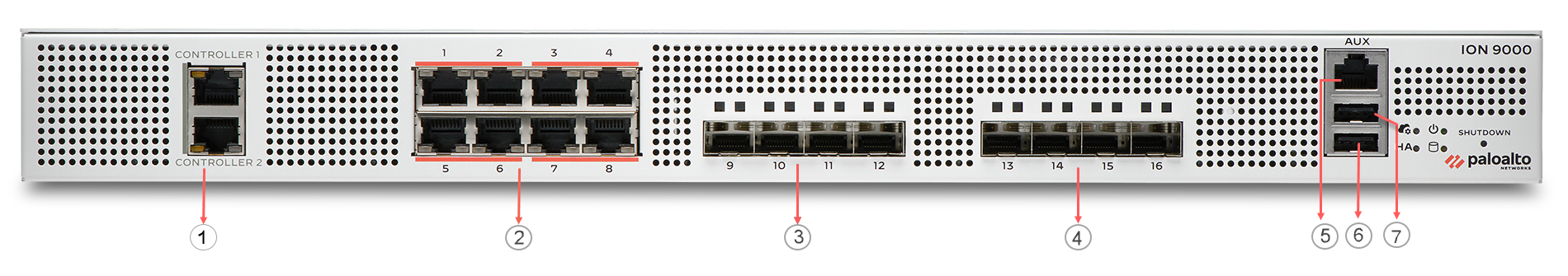

The ports on the ION 9000 are used as follows:
Item
Ports
Description
1
Controller Ports
This port is used by the ION device to communicate with the Prisma SD-WAN controller. By default, controller ports are DHCP enabled.
2
Fail-to-Wire Ports / Bypass Pairs
4 pairs - ports 1/2, 3/4, 5/6, 7/8.
3
SFP+ Ports
Ports 9 -12 support 10G SFP+ only.
4
SFP+ Ports
Ports 13 -16 support 1G SFP and 10G SFP+
5
AUX Port
This port is intended for offline access and configuration of an uninstalled system.
6 and 7
USB Port
These ports are reserved for future use.
