| Where Can I Use This? | What Do I Need? |
|---|
|
|
- Web Proxy License
- One of these licenses for Strata Cloud Manager managed
NGFWs:
- Strata Cloud Manager Essentials
- Strata Cloud Manager Pro
|
With transparent proxy, the client browser is not aware of the proxy. Transparent
proxy supports inline mode deployment and does not support web cache communication
protocol (WCCP). Transparent proxy is transparent to the user without requiring
additional authentication.
PAN-OS
(
VM Series only) If you have not already done so, activate the license
for web proxy.
This step is required for the PA-1400 Series,
PA-3400 Series, PA-5400 Series, and VM Series. The following steps are for
the VM series; for the PA-Series firewalls, follow the steps to
activate subscription licenses.
Log in to the Customer Service Portal (CSP).

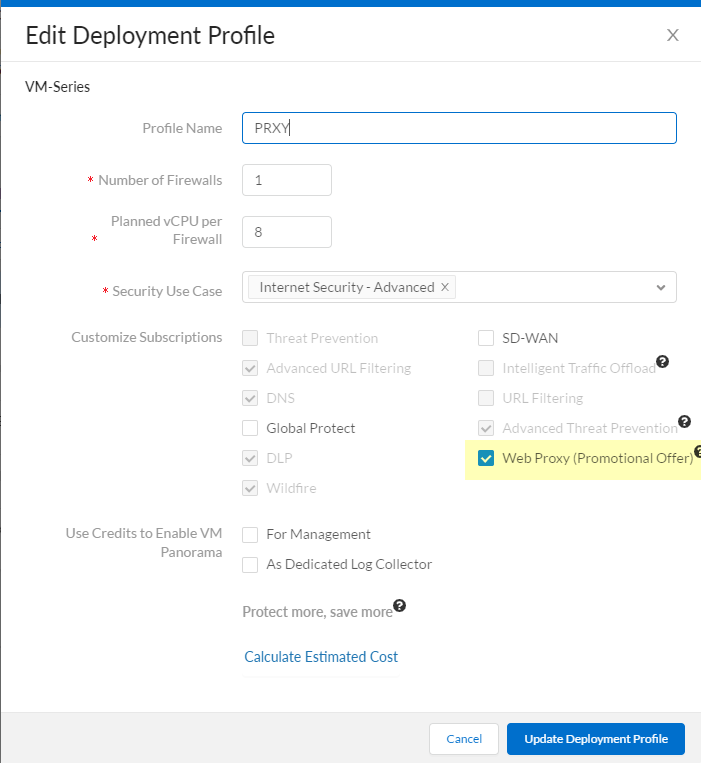

Edit the
deployment profile.
Select
Web Proxy (Promotional Offer).
Click
Update Deployment Profile.
On the firewall, retrieve the
license keys from the server.
If the license key retrieval is not successful, restart the
firewall and repeat this step before proceeding.
Set up zones and interfaces.
As a best practice, use Layer 3 (L3) for all
interfaces and configure a separate zone for each interface within the same
virtual routers and the same virtual systems.
Configure an interface for the client.
Configure an interface for the outgoing traffic to the internet.
Configure a loopback interface for the proxy.
All incoming traffic is routed through this
interface to the proxy. Be sure to carefully copy the IP address for
this interface and save it in a secure location because you must
enter it as the Proxy IP address when you
configure the web proxy.
Set up the DNS proxy for Transparent Proxy.
Configure a
DNS proxy object for the proxy
connection.
Configure a
DNS Server profile with both
primary and secondary DNS servers.
You must configure both a primary and a
secondary DNS server for web proxy.
Specify the loopback
interface for the proxy
connection.
To enable decryption for MITM detection, create a
self-signed root CA certificate or
import a certificate signed by your enterprise certificate authority (CA). For
more information, refer to the
best practices for administrative
access.
Set up the Transparent Proxy.
On the firewall, select then
Edit the
Proxy
Enablement settings.

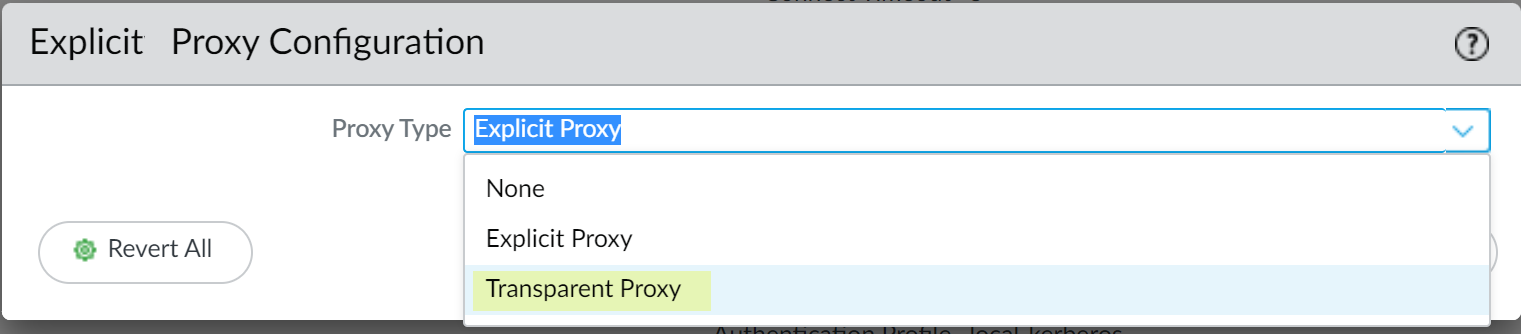

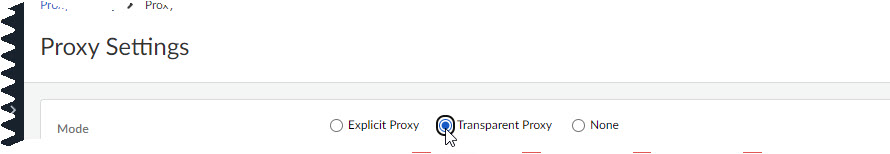

Select
Transparent Proxy as the
Proxy
Type then click
OK to confirm the
changes.
If the only available option is None, verify that you have an
active license for the web proxy feature.
Edit the
Transparent Proxy
Configuration.
Specify the
Connect Timeout to define (in
seconds) how long the proxy waits for a TCP response from the web
server. If there is no response after the specified amount of time has
elapsed, the proxy closes the connection.
Select the
Upstream Interface.
The upstream interface must be a loopback interface that is not
associated with any other subnets.
Specify the IP address of the loopback interface as the
Proxy IP.
Enter the IP address of the interface you configured in an earlier
step.
Specify the
DNS Proxy object you created in an
earlier step.
Specify the loopback interface as the Upstream
Interface.
Click
OK to confirm the changes.
Configure the destination network address translation (DNAT) policy.
You must configure the DNAT policy rule exactly as
described in the following steps for the firewall to successfully use the
web proxy to route traffic. Be sure to configure the DNAT policy rule so
that it precedes the source network address translation (SNAT) policy rule.
Select and
Add a
NAT policy rule.

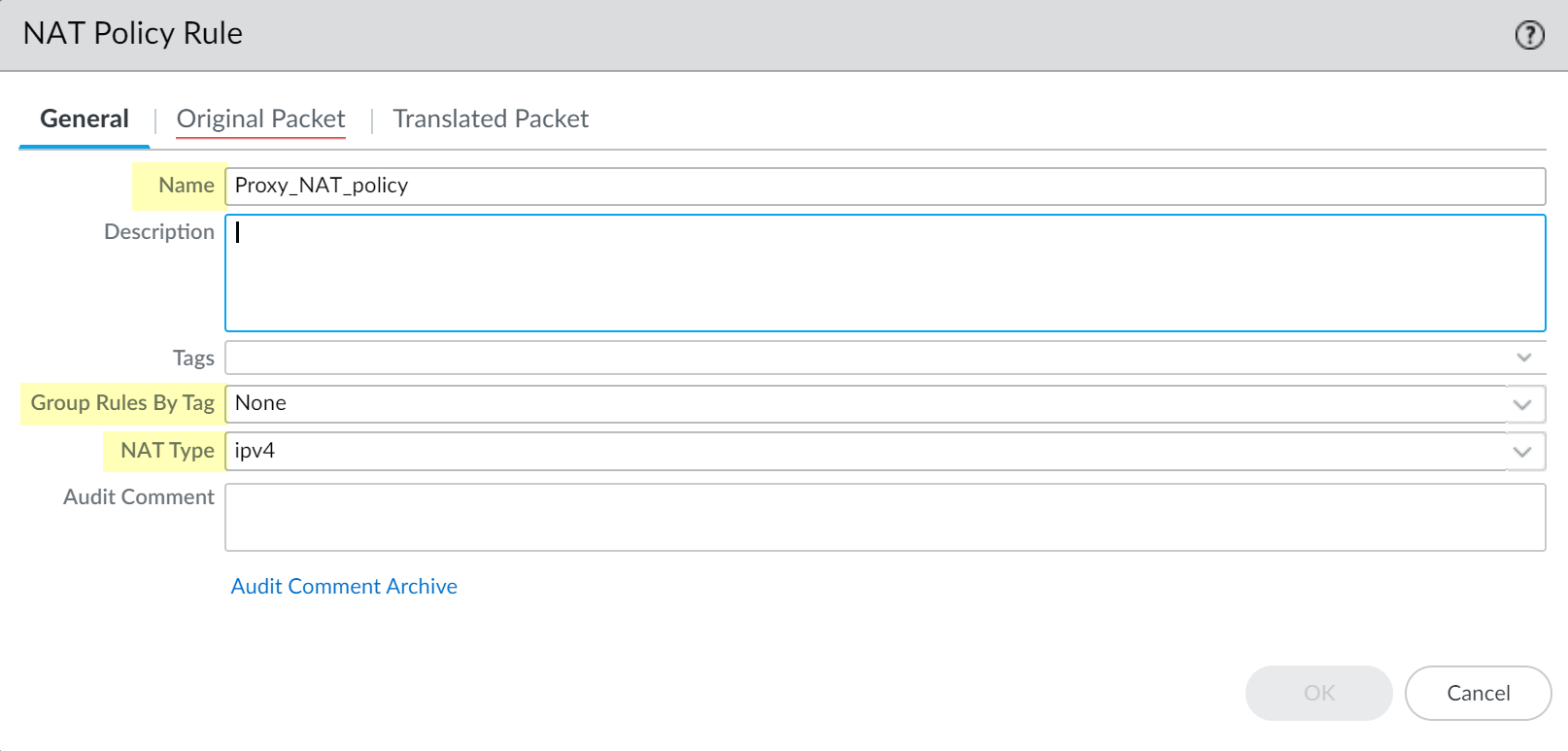

Enter a unique
Name and verify that
Group Rules by Tag is
None then select the
NAT
Type.

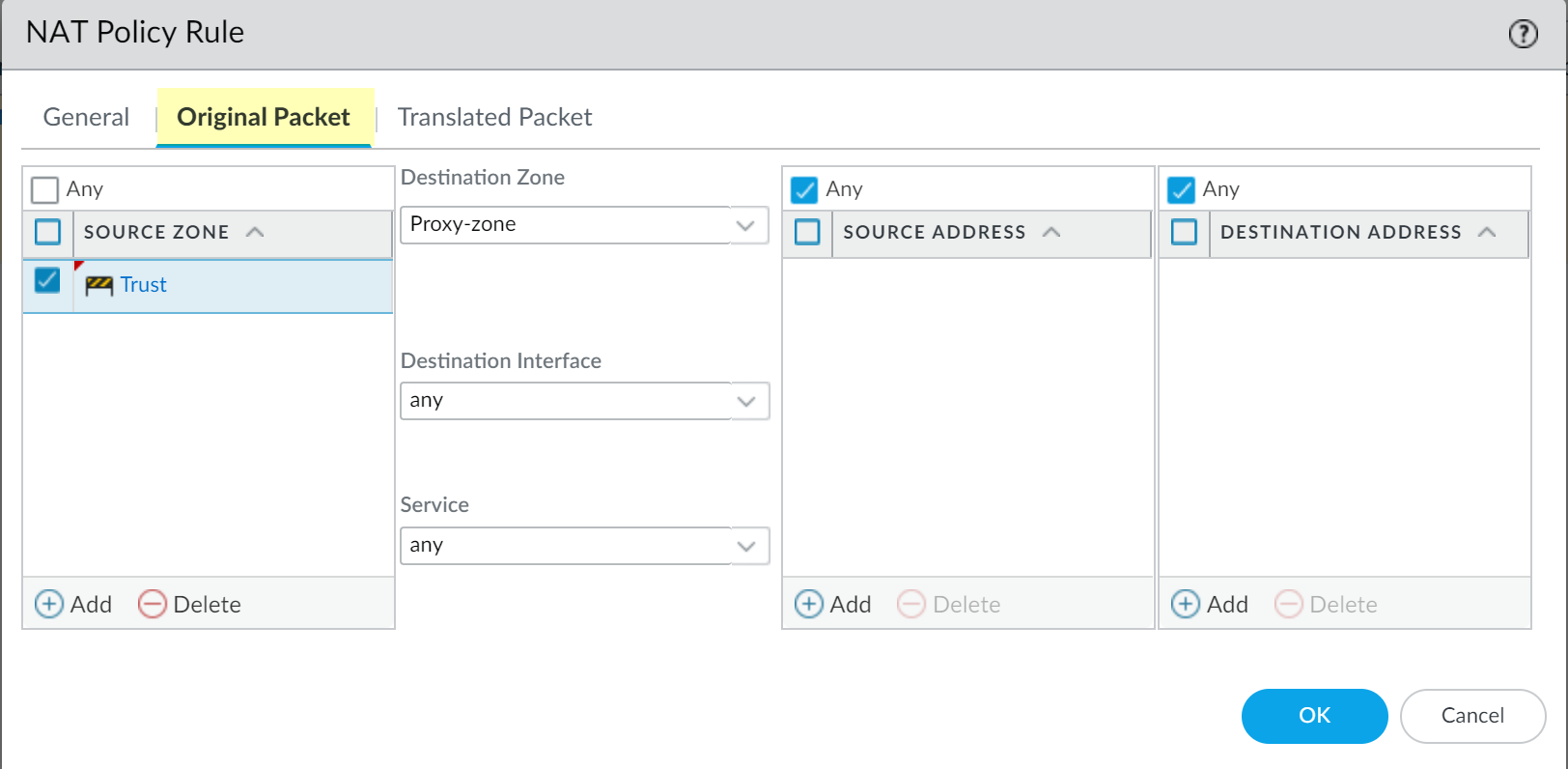

Select
Original Packet and
Add a trusted zone as the
Source
Zone and the
Destination Zone as
the interface that contains the web proxy.

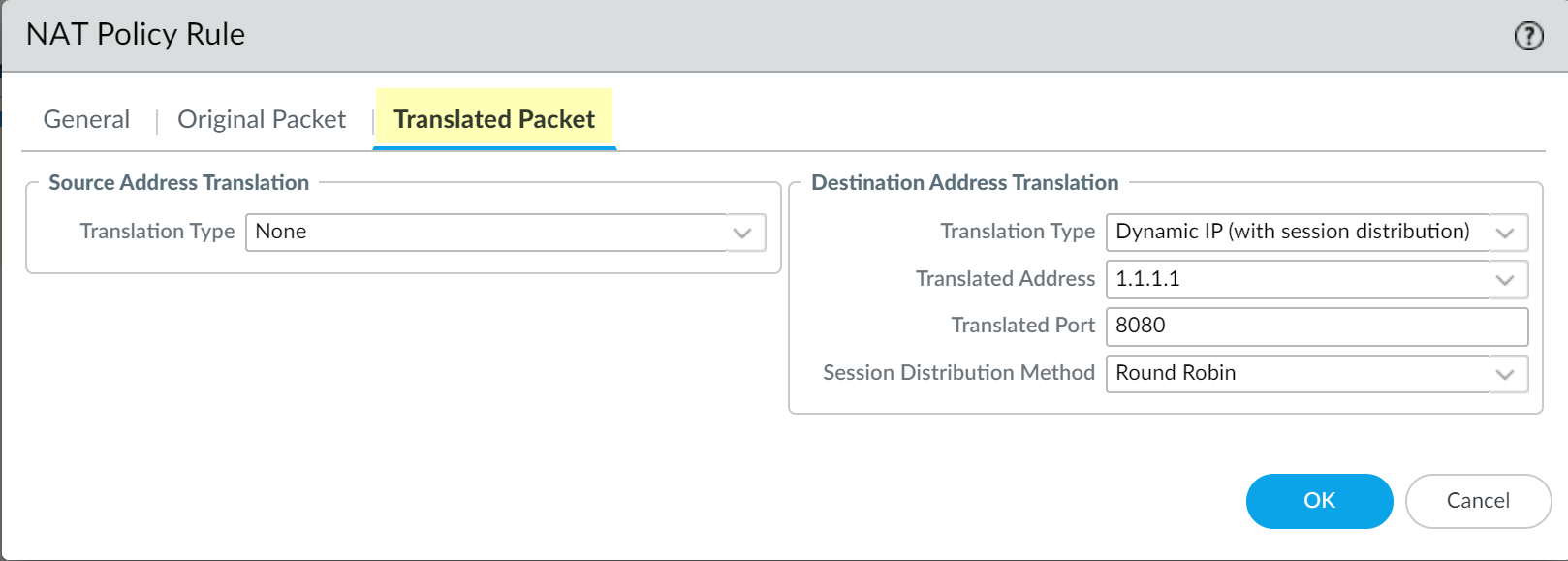

Select
Translated Packet and verify that
Translation Type for
Source
Address Translation is
None.
Select
Dynamic IP (with session distribution) as
the
Translation Type for the
Destination Address Translation.
Enter the IP address of the web proxy as the
Translated
Address.
Enter the same IP address as the Proxy IP address specified in an
earlier step.
Enter
8080 as the
Translated
Port.
Select a
Session Distribution Method (for
example,
Round Robin).
The session distribution method is not applicable for web
proxy.
Click
OK and
Commit the
changes.
Configure a security policy to allow and route the proxy traffic.
Configure a source network address translation (
SNAT) policy rule after the
DNAT rule.
Configure a decryption policy to
decrypt traffic.
Select the zone that contains the proxy interface as the source
zone.

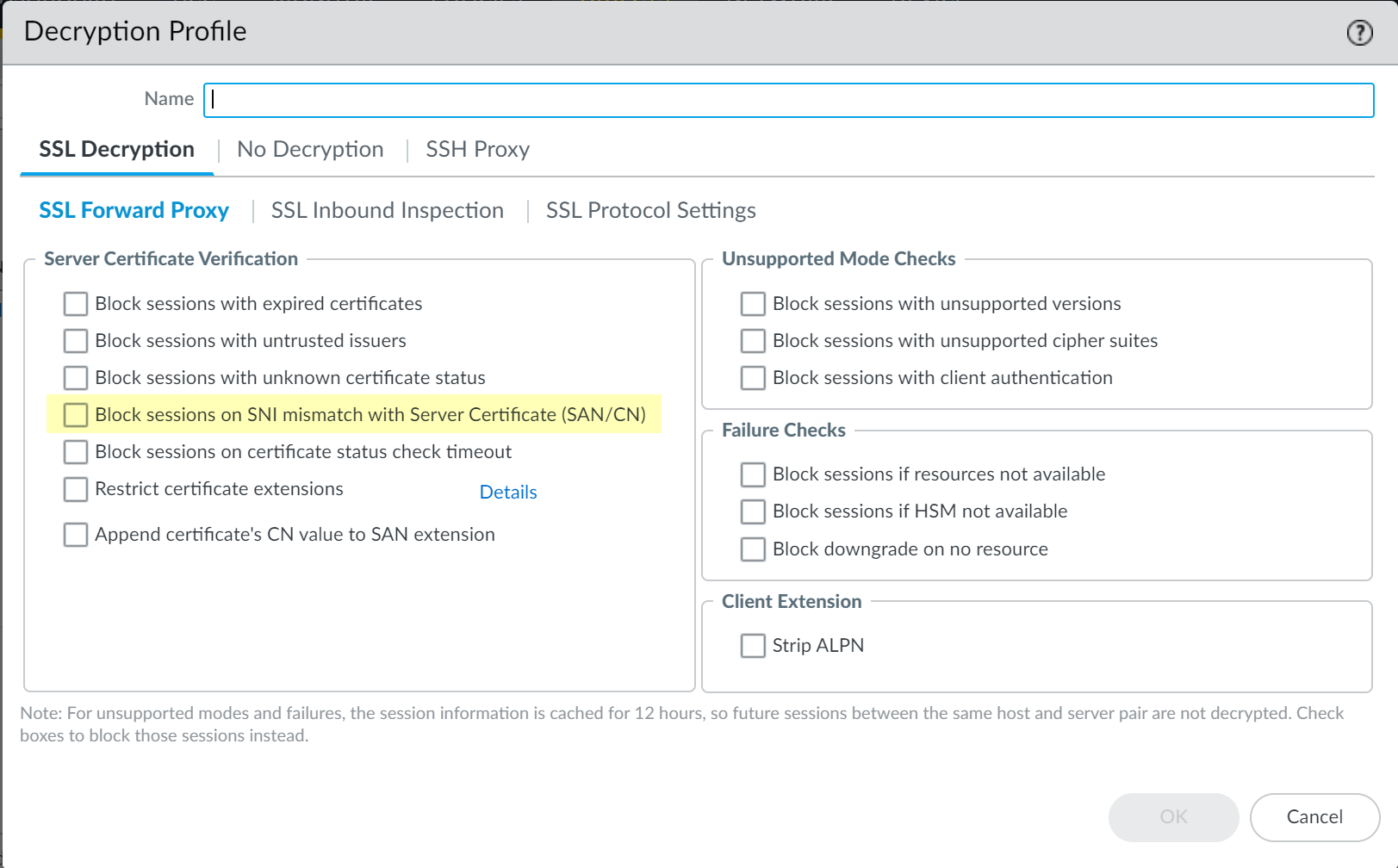

(Optional but recommended) Select and select
Block sessions on SNI mismatch with
Server Certificate (SAN/CN) to automatically deny any
sessions where the Server Name Indication (SNI) does not match the
server certificate.
Configure policy rules to allow access to the DNS proxy servers for
both the client and the proxy.
Configure a policy rule to allow traffic from the client to the
proxy.
Configure a policy rule to allow traffic from the proxy to the
internet.
If this is your initial transparent web proxy configuration, make a change in
your proxy configuration () and in your interface configuration (), then
Commit your changes to ensure the
transparent web proxy configuration is correctly populated on the firewall.
Strata Cloud Manager
(
VM Series only) If you have not already done so, activate the license
for web proxy.
This step is required for the PA-1400 Series,
PA-3400 Series, PA-5400 Series (excluding the PA-5450), and VM Series. The
following steps are for the VM series; for the PA-Series firewalls, follow
the steps to
activate subscription licenses.
Log in to the Customer Service Portal (CSP).
Edit the
deployment profile.
Select
Web Proxy (Promotional Offer).
Click
Update Deployment Profile.
On the firewall, retrieve the
license keys from the server.
If the license key retrieval is not successful, restart the
firewall and repeat this step before proceeding.
Set up the necessary
interfaces and
zones.
Do not edit the
proxy zone.
As a best practice, use Layer 3 (L3)
for all interfaces and configure a separate zone for each interface within
the same virtual routers and the same virtual systems.
Configure an interface for the client.
Configure an interface for the outgoing traffic to the internet.
Set up the Transparent Proxy.
In
Strata Cloud Manager, select .
Select the
folder, snippet, or device for
which you want to configure Transparent Proxy.
Select .
Select
Transparent Proxy as the
Mode.
Specify the
Client Facing Interface.
This is the interface for client traffic that you configured in an
earlier step.
Specify an
Outbound Zone for outgoing traffic to
the internet.
You can Create New if you don't already have an
outbound zone configured.
Specify the IP addresses for the primary and secondary DNS servers that
you want to connect to and the
interface for the DNS proxy
connection.
After you push your configuration, Strata Cloud Manager will
automatically create a DNS Proxy Object with these specifications on
your devices. You can view the object on the devices themselves but not
in Strata Cloud Manager.
You must allow DNS traffic from the trust
zone or the proxy to the internet.
(
Optional) Specify the
Connect Timeout
to define (in seconds) how long the proxy waits for a response from the
web server. If there is no response after the specified amount of time
has elapsed, the proxy closes the connection. The default is 5
seconds.
(
Optional) Specify the
Web Traffic Service
Port if you'd like web traffic to use special ports. The
default ports are 80 and 443.
(
Optional) Use the default loopback interface
(
loopback.999) or enter a different
one.
The loopback interface must follow the format
loopback.x, with x being any integer
value.
After you push your configuration, Strata Cloud Manager will
automatically create a loopback interface with these specifications
on your devices. You can view the interface on the devices
themselves but not in Strata Cloud Manager.
(
Optional) Choose
Whether to nat outbound
traffic and enter an
Outbound
Interface.
This creates a source NAT rule. Select this if your network cannot
directly reach the internet.
Save.

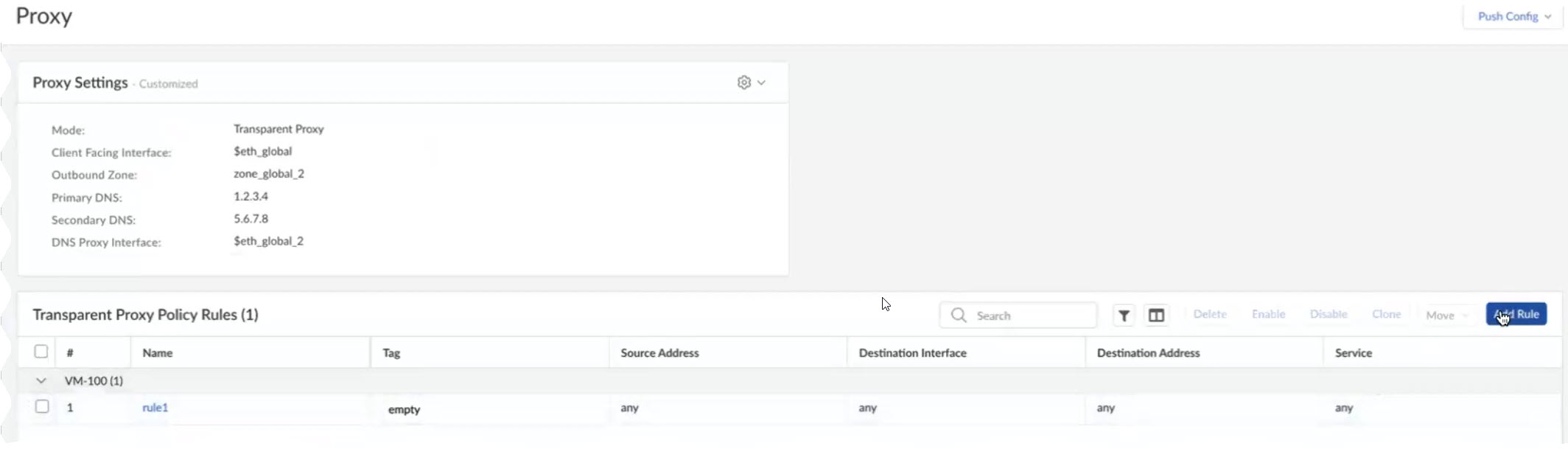

Configure
Transparent Proxy Policy Rules.
These are a set of rules that determine what traffic passes through the
proxy. After you push your configuration, these rules create
Destination NAT rules on your
devices, which apply NAT to the traffic that passes through the loopback
interface configured earlier.
Configure a manual Destination NAT (DNAT) rule if you use a custom loopback
interface. This rule forwards HTTP/HTTPS traffic from the trust zone to the
loopback IP on port 8080 in the untrust zone. Additionally, configure a
Source NAT (SNAT) policy to preserve the source IP address for traffic
originating from the trust or proxy zones toward the untrust zone.
In Strata Cloud Manager, however, Transparent Proxy Policy rules are visible
only in web proxy configuration, not under NAT
elsewhere in the app.

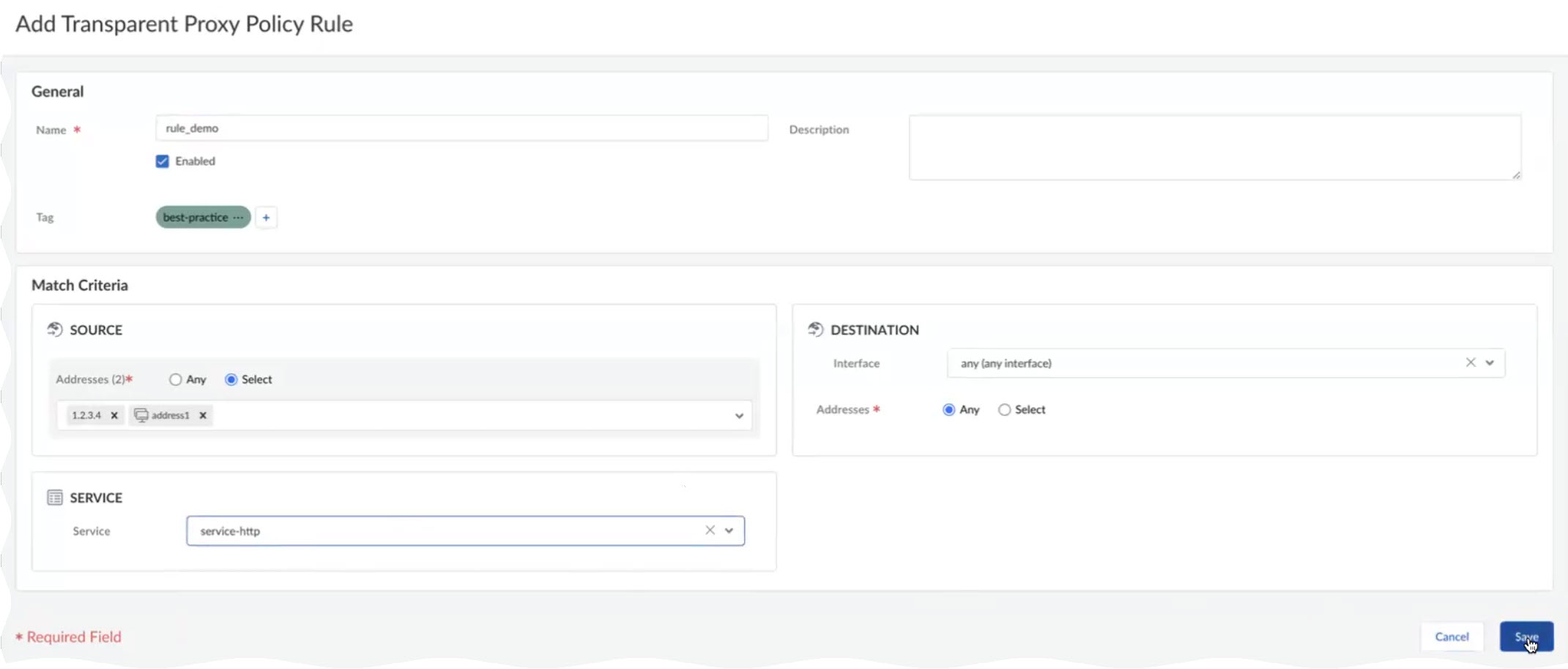

Select
Add Rule.
Name the rule.
(
Optional) Add tags to label your rule.
Specify a source address or leave it as
Any.
Specify a destination address or leave it as
Any.
(Optional) Specify a destination interface.
(
Optional) Select a
Service.
Save.
Push your configuration and verify on
your firewalls.

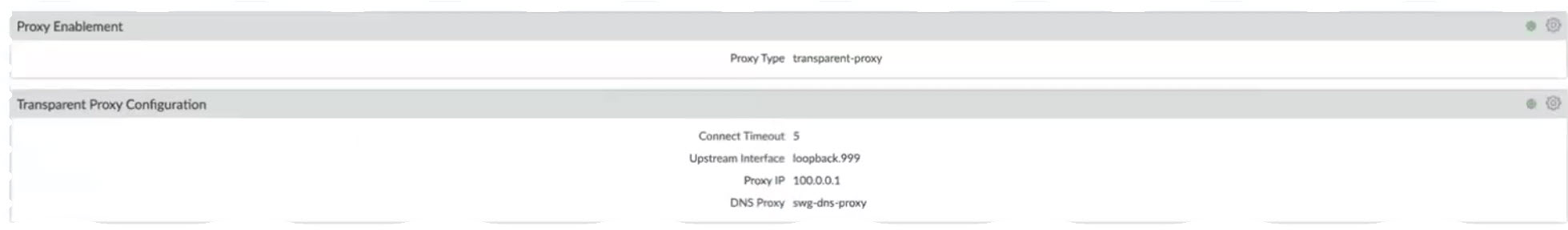

To verify, log in to the firewall and select .
You should see information corresponding to the transparent proxy that
you just configured.
