Install Updates Automatically for Panorama without an Internet Connection

Use an SCP server to download dynamic updates from an outer Panorama™ management server to firewalls, WildFire
®
appliances, and Log Collectors managed by an air-gapped Panorama.
Automatically download dynamic updates to firewalls, Log Collectors, and WildFire
®
appliances in air-gapped networks where the Panorama™ management server, managed firewalls, Log Collectors, and WildFire appliances are not connected to the internet. To accomplish this, you must deploy an additional Panorama with internet access and an SCP server. After you deploy the Panorama with internet access, you configure the internet-connected Panorama to automatically download dynamic updates to the SCP server. From the SCP server, the air-gapped Panorama is configured to automatically download and install dynamic updates as per your dynamic updates schedule. Panorama generates a system log when the Panorama with internet access downloads dynamic updates to the SCP server or when the air-gapped Panorama downloads and installs dynamic updates from the SCP server.
Only the following dynamic update schedules from an internet-connected Panorama to a Panorama without an internect connection are supported:
Do not manipulate or change the dynamic update file name after you successfully download it to the SCP server. Panorama cannot download and install dynamic updates with altered file names. Additionally, for the automatic dynamic update to be successful, you must ensure that there is enough disk space on the SCP server, that the SCP server is running when a download is about to start, and that both Panoramas are powered on and not in the middle of a reboot.
This example shows how to configuring the automatic content updates for Applications and Threats dynamic updates.
  1. Deploy an SCP server.
    Dynamic updates for managed firewalls, Log Collectors, and WildFire appliances downloads from the internet-connected Panorama. The air-gapped Panorama downloads the dynamic updates from the SCP server and then installs the updates on managed firewalls, WildFire appliances, and Log Collectors.
    When you create the folder directory for dynamic updates, it is a best practice to create a folder for each type of type of dynamic update. This is the burden of managing a large volume of dynamic updates and reduces the possibility of deleting dynamic updates that should not be deleted from the SCP server.
  2. Deploy the internet-connected Panorama.
    This Panorama communicates with the Palo Alto Networks update server and downloads the dynamic updates to the SCP server.
  3. Deploy the Panorama without an internet connection.
    This Panorama communicates with the SCP server to download and install dynamic updates on managed firewalls, Log Collectors, and WildFire appliances.
  4. Configure the internet-connected Panorama to download dynamic updates to your SCP server.

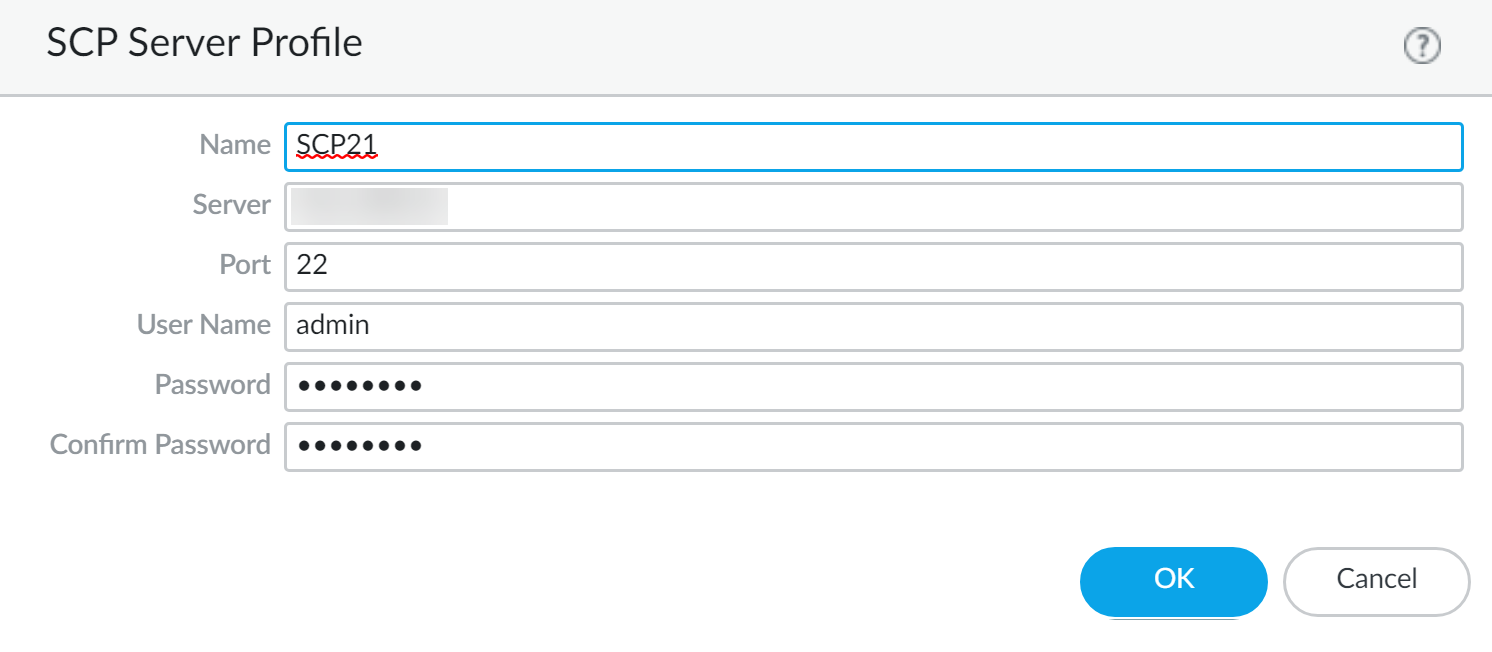

    1. Create an SCP server profile.
      1. Select
        Panorama
        Server Profiles
        SCP
        and
        Add
        a new SCP server profile.
      2. Enter a descriptive
        Name
        for the SCP server profile.
      3. Enter the SCP
        Server
        IP address.
      4. Enter the
        Port
        .
      5. Enter the SCP server
        User Name
        .
      6. Enter the SCP server
        Password
        and
        Confirm Password
        .
      7. Click
        OK
        to save your changes.

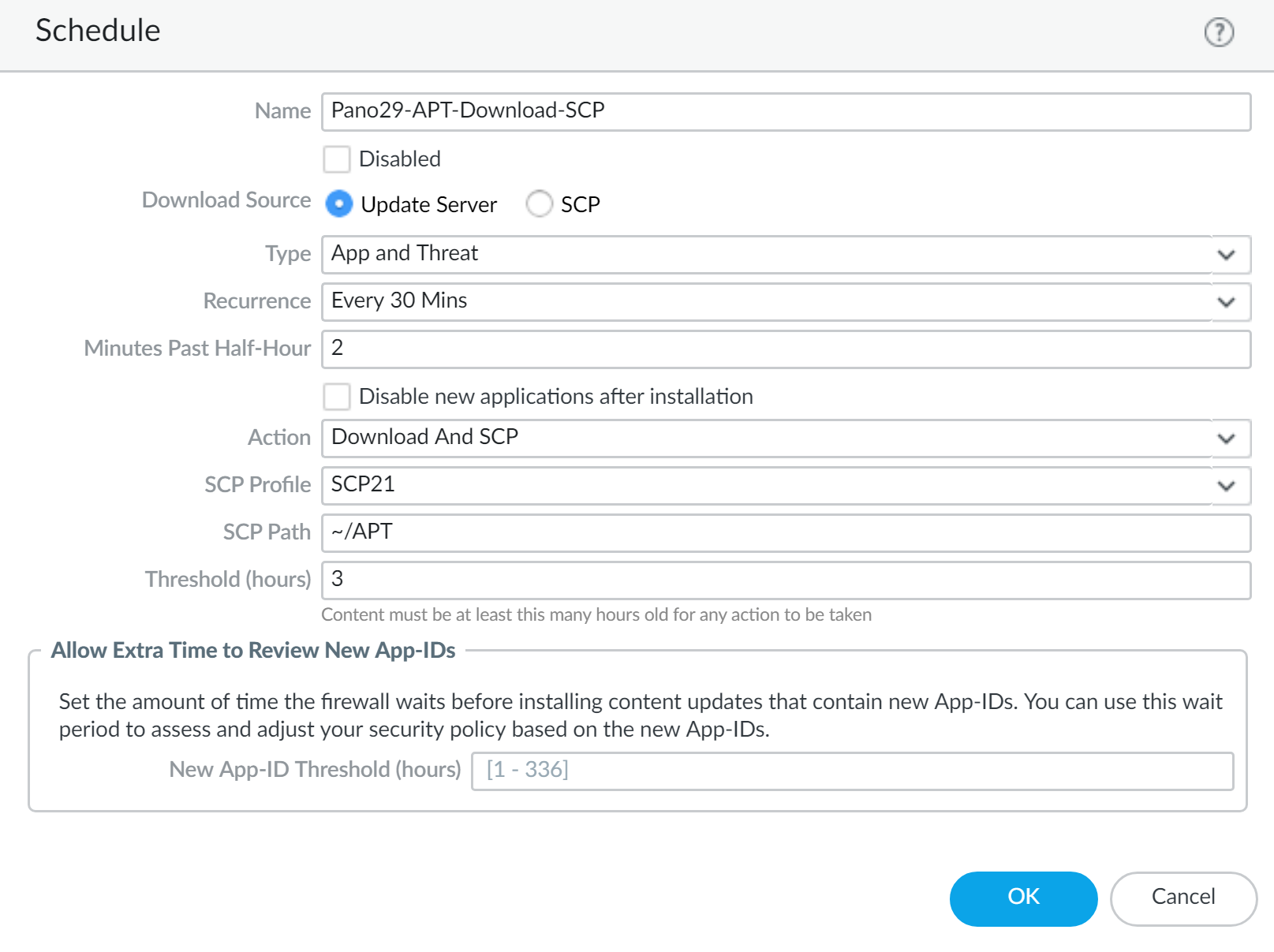

    2. Create a dynamic updates schedule to regularly download dynamic updates to the SCP server.
      You must create a schedule for each type of dynamic update you intend to automatically download and install on managed firewalls, Log Collectors, and WildFire appliances.
      1. Select
        Panorama
        Device Deployment
        Dynamic Updates
        , select
        Schedules
        , and
        Add
        a dynamic updates schedule.
      2. Enter a descriptive
        Name
        for the dynamic updates schedule.
      3. For the
        Download Source
        , select
        Update Server
        .
      4. Select the dynamic update
        Type
        .
      5. Select the
        Recurrence
        to set the interval at which Panorama checks the Palo Alto Networks update server for new dynamic updates.
        To configure a more precise recurrence schedule, enter the number of minutes past the selected recurrence interval. If you have multiple dynamic updates scheduled to download using the same recurrence interval, stagger them to avoid overloading the Panorama and SCP server.
      6. For the
        Action
        , select
        Download And SCP
        .
      7. Select the
        SCP Profile
        you configured in the previous step.
      8. Enter the
        SCP Path
        for the dynamic updates type.
      9. (
        Optional
        ) Enter the
        Threshold
        , in hours, for the dynamic updates. Panorama downloads only dynamic updates that are this number of hours old (or older)
      10. Click
        OK
        to save your changes.
    3. Commit
      your changes.
  5. Configure the air-gapped Panorama to download dynamic updates from the SCP server and then install the updates on your managed firewalls, Log Collectors, and WildFire appliances.
    1. Create an SCP server profile.
      1. Select
        Panorama
        Server Profiles
        SCP
        and
        Add
        a new SCP server profile.
      2. Enter a descriptive
        Name
        for the SCP server profile.
      3. Enter the SCP
        Server
        IP address.
      4. Enter the
        Port
        .
      5. Enter the SCP server
        User Name
        .
      6. Enter the SCP server
        Password
        and
        Confirm Password
        .
      7. Click
        OK
        to save your changes.

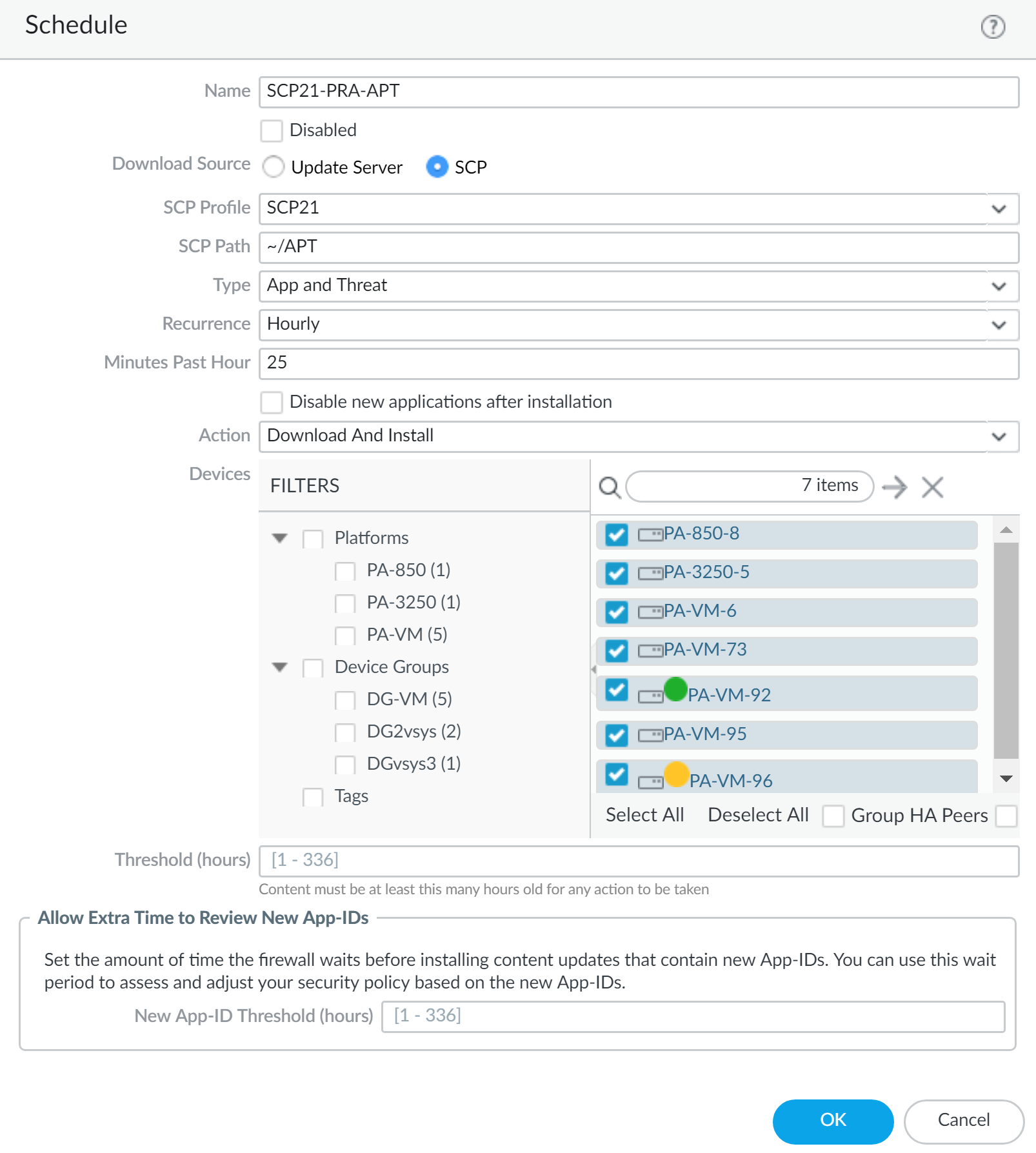

    2. Create a dynamic updates schedule to regularly download and install dynamic updates from the SCP server.
      You must create a schedule for each type of dynamic update you intend to automatically download and install on managed firewalls, Log Collectors, and WildFire appliances.
      1. Select
        Panorama
        Device Deployment
        Dynamic Updates
        , select
        Schedules
        , and
        Add
        a dynamic updates schedule.
      2. Enter a descriptive
        Name
        for the dynamic updates schedule.
      3. For the
        Download Source
        , select
        SCP
        .
      4. Select the
        SCP Profile
        you configured in the previous step.
      5. Enter the
        SCP Path
        for the dynamic updates type.
      6. Select the dynamic update
        Type
        .
      7. Select the
        Recurrence
        to set the interval at which Panorama checks the Palo Alto Networks update server for new dynamic updates.
        To configure a more precise recurrence schedule, enter the number of minutes past the selected recurrence interval. If you have multiple dynamic updates scheduled to download using the same recurrence interval, stagger them to avoid overloading the Panorama and SCP server.
      8. For the
        Action
        , select
        Download
        or
        Download And Install
        .
        Only
        Download
        and
        Download and Install
        are supported when the
        Download Source
        is
        SCP
        .
        If you select
        Download
        , you must manually start the dynamic update install on your managed firewalls.
      9. Select the
        Devices
        on which to install the dynamic updates.
      10. (
        Optional
        ) Enter the
        Threshold
        , in hours, for the dynamic updates. Panorama downloads only dynamic updates that are this number of hours old (or older)
      11. Click
        OK
        to save your changes.
    3. Commit
      your changes.
