As your business scales and your office locations become geographically distributed,
Prisma Access remote networks enable you to quickly onboard your branch
sites and deliver best-in-class security for your users and devices.
Starting with Prisma Access 6.0, you onboard a site by specifying the location
and the site type. The site type enables you to allocate your sites with predefined
bandwidth capacities, ranging from 25 Mbps to 2.5 Gbps. By moving away from
aggregate bandwidth-based licensing, you can more easily estimate and allocate
resources for your remote locations.
To onboard a remote network, you specify the branch site's location, and
Prisma Access recommends the location that’s closest to the site.
Prisma Access also recommends a secondary location in a separate
compute location that you can optionally
set up for redundancy and resiliency.
You then select the site type based on its bandwidth (from 25 Mbps up to 2.5 Gbps).
You can begin the configuration process, which includes onboarding the
site-based remote network to Prisma Access and enabling QoS and routing at a
per-site level.
A site-based remote network provides you with up to 2.5 Gbps bandwidth per remote
network tunnel from a remote site.
When configuring a site-based remote network for a branch site, be aware of the
following guidelines and differences between sites and remote networks:
- Branch Site Planning and Enforcement—Before you secure your branch site
with Prisma Access, determine the bandwidth that's required for your site
and specify one of the site types:
- Very Small (up to 25 Mbps)
- Small (up to 50 Mbps)
- Medium (up to 250 Mbps)
- Large (up to 1 Gbps)
- X-Large (up to 2.5 Gbps)
Prisma Access allows 10% oversubscription and enforces the bandwidth
based on the site type. For example, if you choose a Very Small site type,
Prisma Access caps the throughput at 25 Mbps with 10%
oversubscription.
- Prisma Access Locations—Remote Networks—High Performance support
a subset of Prisma Access
locations.
- Quality of Service (QoS)—For branch sites, Prisma Access supports QoS
at a per-site level, and the QoS Profile you select applies to the entire site.
- IPSec Termination Nodes No Longer Needed—Unlike traditional remote
networks, you don't need to select an IPSec termination node during
onboarding for Prisma Access (Managed by Strata Cloud Manager) deployments. Prisma Access automatically
load-balances the remote network connections to maximize the bandwidth
allocation to the sites.
- Service Endpoint Address Allocation Based on Deployment Type—The number
of Service Endpoint addresses that you receive depends on
if you have set up your site-based remote networks in a single location or if
you have set them up using two different locations in a primary and secondary
deployment.
You use the Service Endpoint address as
the peer IP or FQDN address on your CPE to terminate the IPSec tunnel.
As a best practice, specify the
FQDN instead of the IP address.
- If you have set up your site-based remote network in a single location
with no secondary location, Prisma Access provides you with a single
Service Endpoint address.
- If you set up compute location redundancy in a primary and secondary
configuration, Prisma Access provides you with two
Service Endpoint addresses (one each for the
primary and secondary location).
If you set up IPSec tunnels in an Active/Passive configuration, Prisma Access provides you with a single Service
Endpoint address for both tunnels (the same as a standard
Prisma Access remote network configuration).
Remote networks
use one Service Endpoint address for every 3 Gbps of
bandwidth, removing the complexity in configuring and managing multiple
IPSec devices at every remote location.
- User-ID Redistribution and SSL Decryption—If you configure an SSL
decryption profile on your tenant, User-ID redistribution from the Remote
Networks—High Performance node to service connections is not supported.
- Unsupported Configurations— The following features and configurations are
not supported:
- IPv6
- Prisma Access does not honor the Multi-Exit Discriminator (MED)
attributes advertised by the CPE. This caveat applies if you use
multiple BGP peers on either remote network connections or service
connections and whether or not you select a secondary (backup)
connection.
- Traffic Replication
- IPSec Serviceability
- Tunnel Modes and Circuit Settings—A site-based remote network lets you
configure both location and IPSec redundancy.
Before you begin setup, it's important to understand how you specify
circuits and tunnels. Set up circuits and tunnels in the following
configurations:
- Active/Passive—Set up either one circuit (the
default) or two circuits.

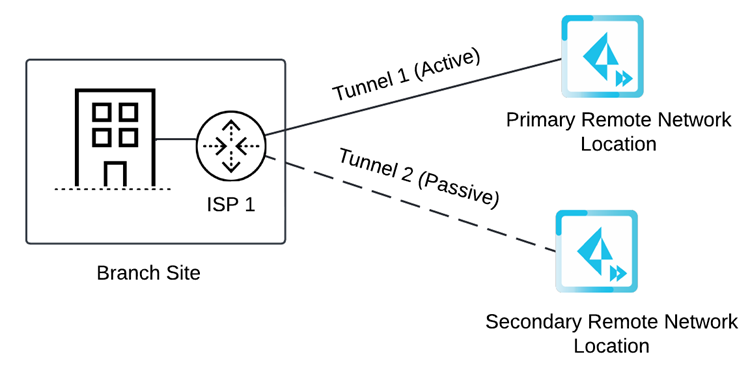

If you specify one circuit (ISP in the
diagram), configure two tunnels (one for the primary remote network
location and one for the secondary remote network location). Prisma Access uses this circuit for the tunnels for both the
primary and secondary locations. If the primary location is
unreachable (for example, if the tunnels experienced an ISP failure
or CPE failure, or if the tunnels couldn't be established for any
other reason), Prisma Access fails over from Tunnel 1 to Tunnel
2 and switches from the primary to the secondary remote network
location.

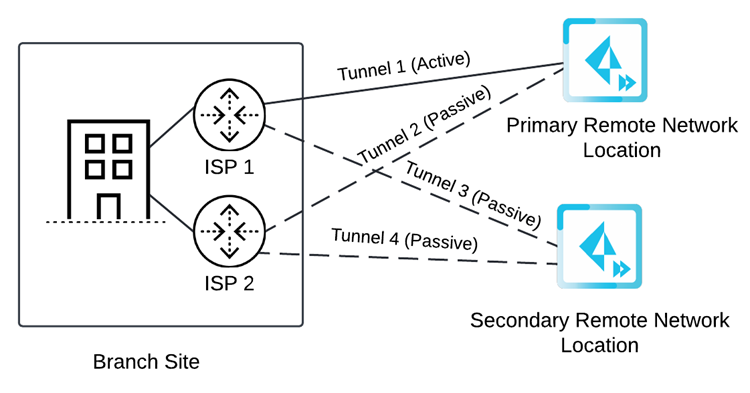

If you specify two circuits, configure four tunnels (two for
the primary remote network location and two for the secondary remote
network location).
If the primary location is unreachable by
Tunnel 1, then Tunnel 2 becomes active. If both Tunnel 1 and Tunnel
2 primary tunnels go down, Prisma Access switches from the
primary to the secondary location and Tunnel 3 becomes active. If
Tunnel 3 to the secondary location goes down, then Tunnel 4 becomes
active.
- Active/Active—Set up either two circuits (the
default), three circuits or four circuits.

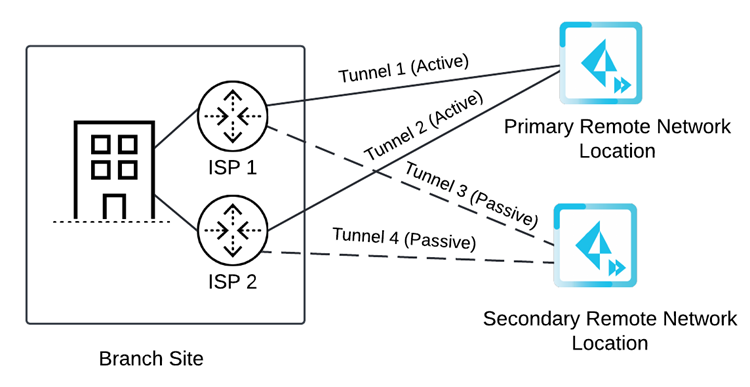

If you specify two
circuits, configure four tunnels. If Tunnel 1 and Tunnel 2 to the
primary remote network location go down, Tunnels 3 and 4 to the
secondary remote network location become active. All active tunnels
to the primary location must go down before Prisma Access fails
over to the secondary location.

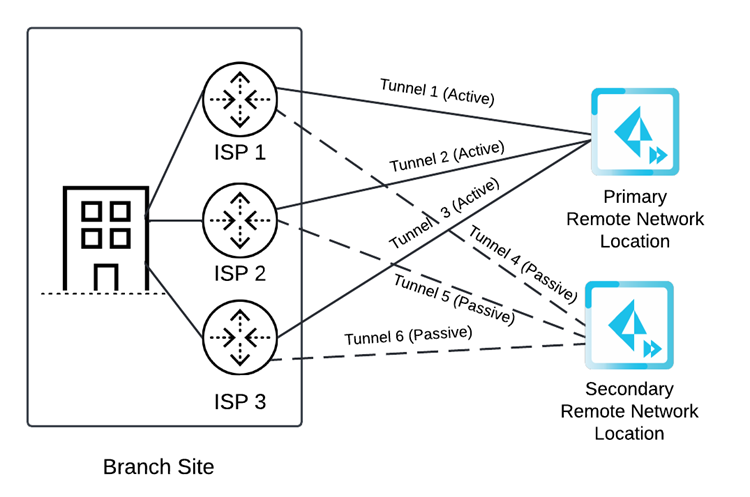

If you specify three circuits, configure six tunnels. Each ISP
has one active tunnel to the primary location and one passive tunnel
to the secondary location. If all active tunnels to the primary
location go down, the standby tunnels to the secondary location
become active.

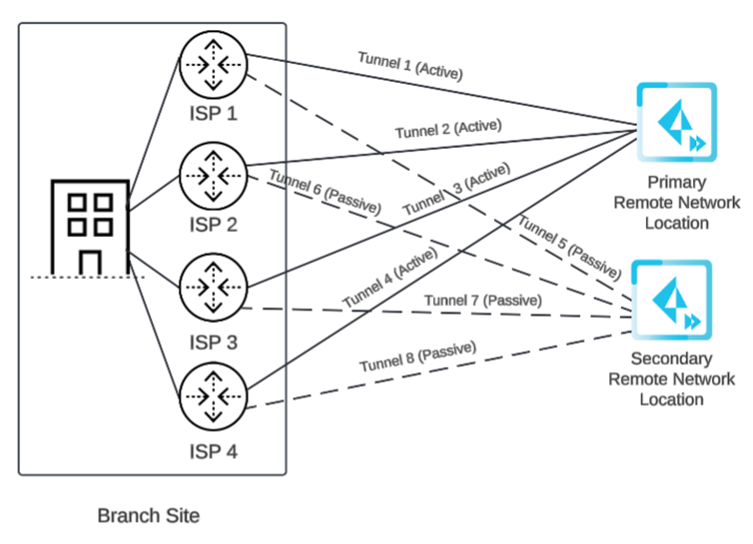

If you specify four circuits, configure eight tunnels. Each ISP
has one active tunnel to the primary location and one passive tunnel
to the secondary location. If all active tunnels to the primary
location go down, the standby tunnels to the secondary location
become active.
To configure site-based remote networks, complete one of the following tasks.
Strata Cloud Manager
Here’s how to add a site-based remote network using Strata Cloud Manager.
From
Strata Cloud Manager, go to .
In Branch Site Management,
Add a third-party branch
site.
Add Site and give the remote network a descriptive
Site name.
Select the
City and
Country of
the site.
For more precise searches, add an
address.
Click
Next.
Select a location and a site type.
Select a
Site Type.
The types are
based on bandwidth.
Some locations don't support X-Large sites; in this case, that
choice is grayed out.
Select a
Primary Prisma Access Location.
If multiple locations are
Recommended in the
list; select the location that works best for your deployment.
(
Optional) To create a secondary (backup) site, select
Allow connection to a secondary Prisma Access Location as backup
when necessary and then select a
Secondary Prisma
Access Location.
If you select this choice,
Prisma Access prepopulates the best secondary
location or locations that are in a different compute location than the primary
location. If multiple locations are
Recommended; select
the location that works best for your deployment.
You can toggle between
Map View and List View to
see the best location for your site.
Select a
QoS Profile to use for this site, or
Add a new one.
Prisma Access uses a single QoS Profile per site.
If you have not yet created a QoS Profile, Add a QoS
Profile, specifying the following values:
- Enter a unique QoS Profile Name.
- Select a Class Bandwidth Type of
Percentage. Prisma Access does not
support bandwidth types of Mbps in site-based QoS
profiles.
- (Optional) Enter an Egress Guaranteed
(Mbps) value that represents the guaranteed bandwidth
for this profile in Mbps.
- Enter a Class Bandwidth Type of either
Percentage or Mbps.
- In the Classes section, Add Class and specify how
to mark up to eight individual QoS classes.
- Save your changes, Save
your QoS profile, and go to the Next step.
Define
Tunnel & Circuit Settings.
Select a
Tunnel Mode: either
Active/Active or
Active/Passive.
The
tunnel mode specifies how many of
your ISP circuits you want to utilize for the remote network. Specify a
minimum of one circuit and a maximum of four circuits.
- If you select Active/Passive (the default
setting), Prisma Access utilizes either one or two ISP
circuits to create two active tunnels. If the active tunnel goes
down, the passive tunnel becomes active.
- If you select Active/Active, Prisma Access Prisma Access utilizes either two or four ISP
circuits to create either two or four active tunnels,
respectively.
Select the
Number of circuits to use.
Prisma Access assigns tunnels
based on the number of
circuits you specify here, and whether your deployment is
Active/Active or Active/Passive, as shown in the following table.
(
Optional)
Configure your IPSec tunnel
settings.
Prisma Access provides you with default IPSec tunnel settings.
These settings determine the IPSec and IKE crypto settings for the
remote network tunnel. If you want to change them, select the
Primary Tunnel and
Edit your settings.
If you specify a secondary location, Prisma Access autopopulates
the values from the primary tunnel to the secondary tunnel; to edit
the secondary tunnel, select that tunnel and
Edit the settings.
Make a note of these settings; you must match the settings on the
customer premises equipment (CPE) that terminates the IPSec tunnel
at your site.
- Give the Active tunnel a unique Tunnel
Name.
- Specify IPSec Settings.
- Specify an Authentication type
(either Pre-Shared Key or
Certificate).
If you
specify Pre-Shared Key, enter
and confirm the Pre-Shared
Key.
If you specify a
Certificate, enter the
Local Certificate to use.
This certificate must already exist in Strata Cloud Manager.
- (Required for Dynamic Branch IP Addresses Only)
Specify the IKE Local
Identification (either IP
Address, Distinguished Name
(Subject), User FQDN (email
address), or FQDN (hostname)
.
- (Required for Dynamic Branch IP Addresses Only)
Specify the IKE Peer
Identification (either IP
Address, Distinguished Name
(Subject), User FQDN (email
address), or FQDN (hostname).
If you specify a
Dynamic branch IP address,
specify either the IKE Local
Identification, IKE Peer
Identification, or both; at least one
of those IPSec settings are required.
- Specify the type of Peer ID Check:
- Exact—Ensures that the local
setting and peer IKE ID payload match exactly.
- Wildcard—Allows the peer
identification to match as long as every character
before the wildcard (*) matches. The characters after
the wildcard don't need to match.
- (Optional) Permit peer identification and
certificate payload identification mismatch to
allow a successful IKE security association (SA) even when the
peer identification does not match the peer identification in
the certificate.
- Choose a Certificate Profile. A
certificate profile contains information about how to
authenticate the peer gateway.
- (Optional) Enable strict validation of
peer’s extended key use to control strictly how
the key can be used.
- Choose the Branch Device IP Address
(Static or
Dynamic).
- If you select Static, enter the
Static IP Address to use for
the IPSec tunnel.
- If you specify Dynamic, which
obtains the IP address automatically, specify either the
IKE Local Identification,
IKE Peer Identification, or
both; at least one of those IPSec settings are required.
- (Optional, Recommended) Enable IKE Passive
Mode to have Prisma Access respond to IKE
connections but not initiate them.
While not required,
IKE Passive Mode is the
recommended setting.
- (Optional) Turn on Tunnel
Monitoring.
Enter a Tunnel Monitoring
Destination IP address on the
remote network for Prisma Access to determine whether
the tunnel is up and, if your branch IPSec device uses a
policy-based VPN, enter the associated Proxy
ID as the Monitored Proxy
ID.
-
- (Optional) If you need a proxy ID:
- Add Proxy ID and enter the
Proxy ID.
- Optionally, enter the Local Proxy
ID and Remote Proxy
ID.
- Enter the Protocol to use for the
proxy ID. Enter a Number,
TCP, or
UDP.
- Specify a Local Port and
Remote Port for TCP or
UDP.
- Save your changes.
- (Optional) Specify IKE Advanced
Options.
- Select an IKE Protocol
Version.
- Select an IKEv1 Crypto
Profile.
To add a crypto profile,
Add IKE. To manage an
existing IKE profile, Manage
IKE and select the profile to edit.
- Select an IKEv2 Crypto
Profile.
To add a crypto profile,
Add IKE. To manage an
existing IKE profile, Manage
IKE and select the profile to edit.
- (Optional) Specify IPSec Advanced
Options.
- Choose your routing settings.
Save your IPSec tunnel changes.
Save & Exit.
Push Configuration to save your configuration changes,
making sure to select
Remote Networks in the
Push Scope.
Find the
Service Endpoint address (the IP or FQDN
address you use on your CPE to terminate the IPSec tunnel).
As a best practice, specify the FQDN instead of the IP address.
Go to .
Find the
Service Endpoint address.
Panorama
Configure a Prisma Access remote network deployment that allocates bandwidth by
compute location.
Here’s how to add a site-based remote network in Prisma Access (Managed by Panorama).
Before you start, you can check that your license includes
site-based licensing by going to and view your Sites Capacity and check how many
sites you have remaining per site type. You can onboard any site types that are
remaining in your license.
Define tunnel settings and, optionally, QoS settings for your remote
network.
During setup, you select an IPSec tunnel and a QoS profile, so you need to
define those settings before you begin.
Define IPSec tunnel settings for your remote networks by
creating a new IPSec Tunnel
and configuring the
IKE Gateway,
IPSec Crypto Profile, and
Tunnel Monitoring settings.
Make a note of these settings; you must match the settings on the
customer premises equipment (CPE) that terminates the IPSec tunnel
at your site.
Be sure that you create the tunnel settings in the
Remote_Network_Template.
You can also use one of the
predefined IPSec templates
in the Remote_Network_Template; in this case, you don’t need to
define tunnel settings.
(
Optional) Decide whether you want to add QoS settings to your
remote network deployment; if you do;
create a QoS Profile for your
site-based remote network.
Be sure that you create the profile in the
Remote_Network_Template.
From the Panorama that manages
Prisma Access, go to and
Add a site.
Give the remote network a descriptive
Site Name.
Enter the site's
City and
Country.
For more precise searches, add an address.
Go to the
Next screen.
Select a site type, a primary location, and, optionally, a secondary
location.
Select a site type (
License Type).
The types are
based on bandwidth.
Some locations don't support X-Large sites; in this case, that
choice isn’t selectable.
Select a
Primary Prisma Access Location.
If multiple locations are Recommended in the
list; select the location that works best for your deployment.
(
Optional) To create a secondary (backup) site, select
Allow connection to a secondary Prisma Access Location as
backup when necessary and then select a
Secondary Prisma Access Location.
If you select this choice, Prisma Access prepopulates the best
secondary location or locations that are in a different compute location
than the primary location. If multiple locations are
Recommended; select the location that works
best for your deployment.
(
Optional) If you want to enable QoS for your site, select the
QoS Profile you created at the start of this
procedure and go to the
Next step.
Define
Tunnel & Circuit Settings.
Select a
Tunnel Mode: either
Active/Active or
Active/Passive.
The tunnel mode specifies how many of your ISP circuits you want to
utilize for the remote network. Specify a minimum of one circuit and a
maximum of four circuits.
- If you select Active/Passive (the default
setting), Prisma Access utilizes either one or two ISP
circuits to create two active tunnels. If the active tunnel goes
down, the passive tunnel becomes active.
- If you select Active/Active, Prisma Access Prisma Access utilizes either two or four ISP
circuits to create either two or four active tunnels,
respectively.
Select the
Number of circuits to use.
Prisma Access assigns tunnels
based on the number of
circuits you specify here, and whether your deployment is
Active/Active or Active/Passive, as shown in the following table.
Select the IPSec tunnels to use for your primary location and secondary
location by selecting either:
Go to the
Next step.
Choose your
Routing settings.
If you have a secondary tunnel, the BGP settings copy over; you can use the
copied-over settings for the secondary tunnel or modify those settings.
Click
OK to save your changes.
Go to and
Commit and Push your changes.
Find the
Service Endpoint address (the IP or FQDN
address you use on your CPE to terminate the IPSec tunnel).
As a best practice, specify the FQDN instead of the IP address.
Go to .
Find the
Service Endpoint address.
