    Upgrade the CN-Series Firewall—Rolling Update

    Table of Contents

    Upgrade the CN-Series Firewall—Rolling Update

    Deploy an additional CN-MGMT statefulset to complete a rolling update of the CN-NGFW pods.
    Where Can I Use This?What Do I Need?
    • CN-Series upgrade
    • CN-Series deployment
    • CN-Series 10.1.x or above Container Images
    • Panorama running PAN-OS 10.1.x or above version
    • Helm 3.6 or above version client
    Use one of the following options to perform a rolling update, upgrade or downgrade to a supported PAN-OS version.
    Before you begin, ensure the CN-Series YAML file version is compatible with the PAN-OS version.
    • PAN-OS 10.1.2 or later requires YAML 2.0.2
    • PAN-OS 10.1.0 and 10.1.1 require YAML 2.0.0 or 2.0.1

    Rolling Update

    This process enables you to first upgrade the CN-MGMT StatefulSet and then upgrade the CN-NGFW pods. The disruption to application traffic is minimal because the CN-NGFW pods are functioning during the CN-MGMT StatefulSet upgrade, and the rolling update for the CN-NGFW pods occurs one instance of the CN-NGFW pod at a time.
    If you have a large Kubernetes cluster with a significant number of CN-NGFW pods and want a faster upgrade, you can schedule a maintenance window to delete the CN-NGFW yaml and upgrade all CN-NGFW pods at once.
    During the CN-MGMT upgrade, logging is impacted. Additionally, both kubectl logs and System log messages are generated for temporary version mismatch and connection restarts between the CN-NGFW and the CN-MGMT pods.
    1. Upgrade the CN-MGMT StatefulSet.
      1. Use one of the following options.
        • Option 1— Update the image name in the pan-cn-mgmt.yaml and apply the changes.

containers:
	- name: pan-mgmt
	image:<your-private-registry-image-path-new-image>
          kubectl apply -f pan-cn-mgmt.yaml
        • Option 2—Use kubectl. When using kubectl, you are not updating the yaml files and therefore must keep track of the image used for the upgrade.
            kubectl -n kube-system set image sts/pan-mgmt-sts pan-mgmt=<your-private-registry-image-path-new-image>
      2. Verify that the CN-MGMT StatefulSet is deployed.
        1. Use kubectl -n kube-system get sts/pan-mgmt-sts -o wide
        2. Check the status of the upgrade.
          kubectl exec -it pan-mgmt-sts-0 -n kube-system -- su admin
          admin@pan-mgmt-sts-0> show jobs all
          admin@pan-mgmt-sts-0.Basc-cluster-180> show jobs all
Enqueued              Dequeued           ID  PositionInQ                              Type                         Status Result Completed
------------------------------------------------------------------------------------------------------------------------------------------
2020/08/25 14:11:11   14:11:11            2                                        AutoCom                            FIN     OK 14:11:44
    2. Upgrade the CN-NGFW pods.
      1. Use one of the following options.
        • Option1— Update the image name in the pan-cn-ngfw.yaml and apply the changes.

containers:
	- name: pan-ngfw-container
	image:<your-private-registry-image-path-new-image>
          kubectl apply -f pan-cn-ngfw.yaml
        • Option 2—Use kubectl. When using kubectl, you are not updating the yaml files and therefore must keep track of the image used for the upgrade.
          • In CN-Series as a DaemonSet deployment, use:
            kubectl -n kube-system set image ds/pan-ngfw-ds pan-ngfw-container=<your-private-registry-image-path-new-image>
          • In CN-Series as a Kubernetes Service deployment, use:
             kubectl -n kube-system set image deployment/pan-ngfw-dep pan-ngfw-container=<your-private-registry-image-path-new-image>
      2. Check the status of the upgrade.
        Use kubectl -n kube-system get ds/pan-ngfw-ds -o wide
        In a CN-Series as a Kubernetes Service deployment, use kubectl -n kube-system get deployment/pan-ngfw-dep -o wide
    3. Required only if the images are updated for the PAN-OS version Update the init container and pan-cni images.
      1. Modify the Init container image in the pan-cn-mgmt.yaml for the CN-MGMT firewall.

	initContainers:
	- name: pan-mgmt-init
	image:<your-private-registry-image-path>
      2. Edit the image path for the PAN-CNI container image in the pan-cni.yaml.

	containers:
	 name: install-pan-cni
	image:<your-private-registry-image-path>

    Rolling Update with Additional CN-MGMT StatefulSet

    1. Before you begin.
      1. Verify that the nodes in your cluster have the memory and CPU resources required for the additional CN-MGMT StatefulSet.
      2. (Required for statically provisioned PVs only) Verify that you have PVs available for the additional CN-MGMT StatefulSet.
        The pan-cn-pv-local.yaml creates the directories required to deploy the CN-MGMT.
    2. Set up the new pan-cn-mgmt-configmap.yaml.
      Edit the PAN_SERVICE_NAME: value to match what you added above in the new pan-cn-mgmt.yaml.
      apiVersion: v1
      kind: ConfigMap
      metadata:
      name: pan-ngfw-config
      namespace: kube-system
      data:
      PAN_SERVICE_NAME: pan-mgmt-svc2
      Retain the same values for the # Panorama settings and # Intended License Bundle type in the new file to reduce any updates on Panorama.
    3. Set up the new pan-cn-mgmt.yaml file.
      There are multiple places you need to replace the service names, apps, and labels. See Compare the Old and New PAN-CN-MGMT.yaml.
    4. Required only if the images are updated for the PAN-OS version Update the Init container and pan-cni images
      Image path for the Init container image in the pan-cn-mgmt.yaml for the CN-MGMT firewall
      initContainers: - name: pan-mgmt-init image: <your-private-registry-image-path>
      Image path for the PAN-CNI container image that has the CNI binaries and the CNI network config file on each node.
      containers: name: install-pan-cni image: <your-private-registry-image-path>
    5. Apply the new CN-MGMT yaml files.
      kubectl apply -f pan-cn-mgmt-configmap-new.yaml
      kubectl apply -f pan-cn-mgmt-new.yaml
    6. Verify that the new CN-MGMT StatefulSet is deployed.
      kubectl -n kube-system get sts -o wide
      NAME READY AGE CONTAINERS IMAGES
      pan-mgmt-sts 2/2 16h pan-mgmt 018147215560.dkr.ecr.ap-southeast-1.amazonaws.com/test/panos_ctnr/10.0.0/b/mp:63
      pan-mgmt-sts-new 2/2 50m pan-mgmt-new 018147215560.dkr.ecr.ap-southeast-1.amazonaws.com/test/panos_ctnr/10.0.1/b/mp:64
    7. Edit the CN-NGFW pod yaml files with the new service name.
      1. Update the pan-cn-ngfw-configmap.yaml.
        When you modify the PAN_SERVICE_NAME: value referenced in the pan-cn-ngfw-configmap.yaml to match the value you defined in the pan-cn-mgmt.yaml Service name, the pods that use the new image will connect to the new StatefulSet.
        apiVersion: v1
        kind: ConfigMap
        metadata:name: pan-ngfw-config
        namespace: kube-system
        data:
        PAN_SERVICE_NAME: pan-mgmt-svc2
      2. Deploy the pan-cn-ngfw-configmap.yaml
        kubectl apply -f pan-cn-ngfw-configmap.yaml
      3. Edit the image path referenced in the pan-cn-ngfw.yaml.
        For example, you can use kubectl set image ds/pan-cn-ngfw-ds -n kube-system pan-ngfw-container=018147215560.dkr.ecr.ap-southeast-1.amazonaws.com/test/panos_ctnr/10.0.2/b/dp:62
      4. Check the status of the rolling update.
        UP-TO-DATE column displays the number of replicas that have been updated successfully.
        kubectl get ds/pan-ngfw-ds -n kube-system -o wide
        NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE CONTAINERS IMAGES SELECTOR
        pan-ngfw 4 4 3 1 3 <none> 16h pan-ngfw-container 018147215560.dkr.ecr.ap-southeast-1.amazonaws.com/test/panos_ctnr/10.0.0/b/dp:22 app=pan-ngfw
    8. Verify that the CN-NGFW pods are deployed.
      kubectl -n kube-system get pods -l app=pan-ngfw
      NAME               READY STATUS RESTARTS AGE
      pan-ngfw-ds-8b5gp 1/1 Running 0       40m
      pan-ngfw-ds-h8xc6 1/1 Running 0        40m
      pan-ngfw-ds-sn62b 1/1 Running 0       40m
      pan-ngfw-ds-vxfqp 1/1 Running 0       40m
    9. Get the Serial Number for the CN-MGMT pods.
      kubectl exec -it pan-mgmt-sts-0 -n kube-system -- su admin
      Warning: Your device is still configured with the default admin account credentials. Please change your password prior to deployment.admin@pan-mgmt-sts-0>

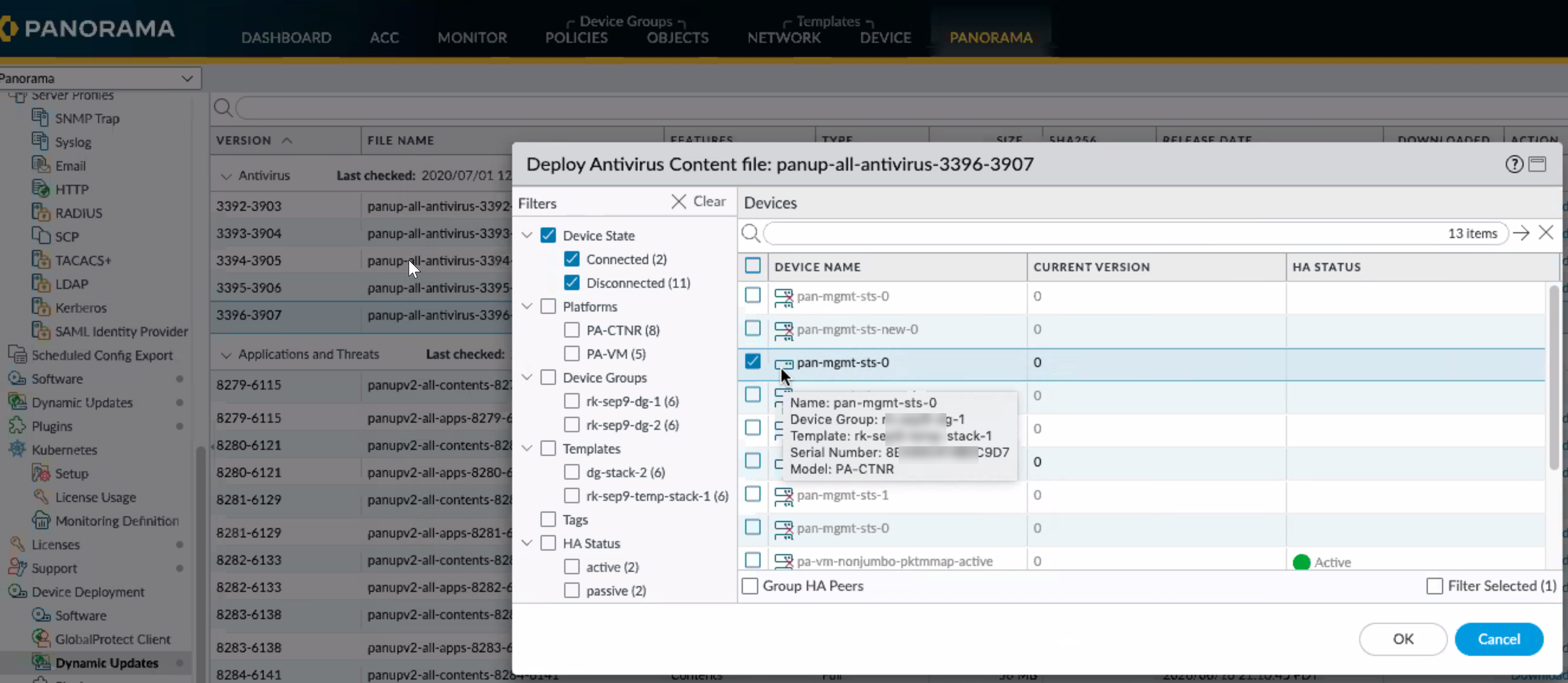

    10. Install the dynamic content updates for the subscriptions you have purchased.

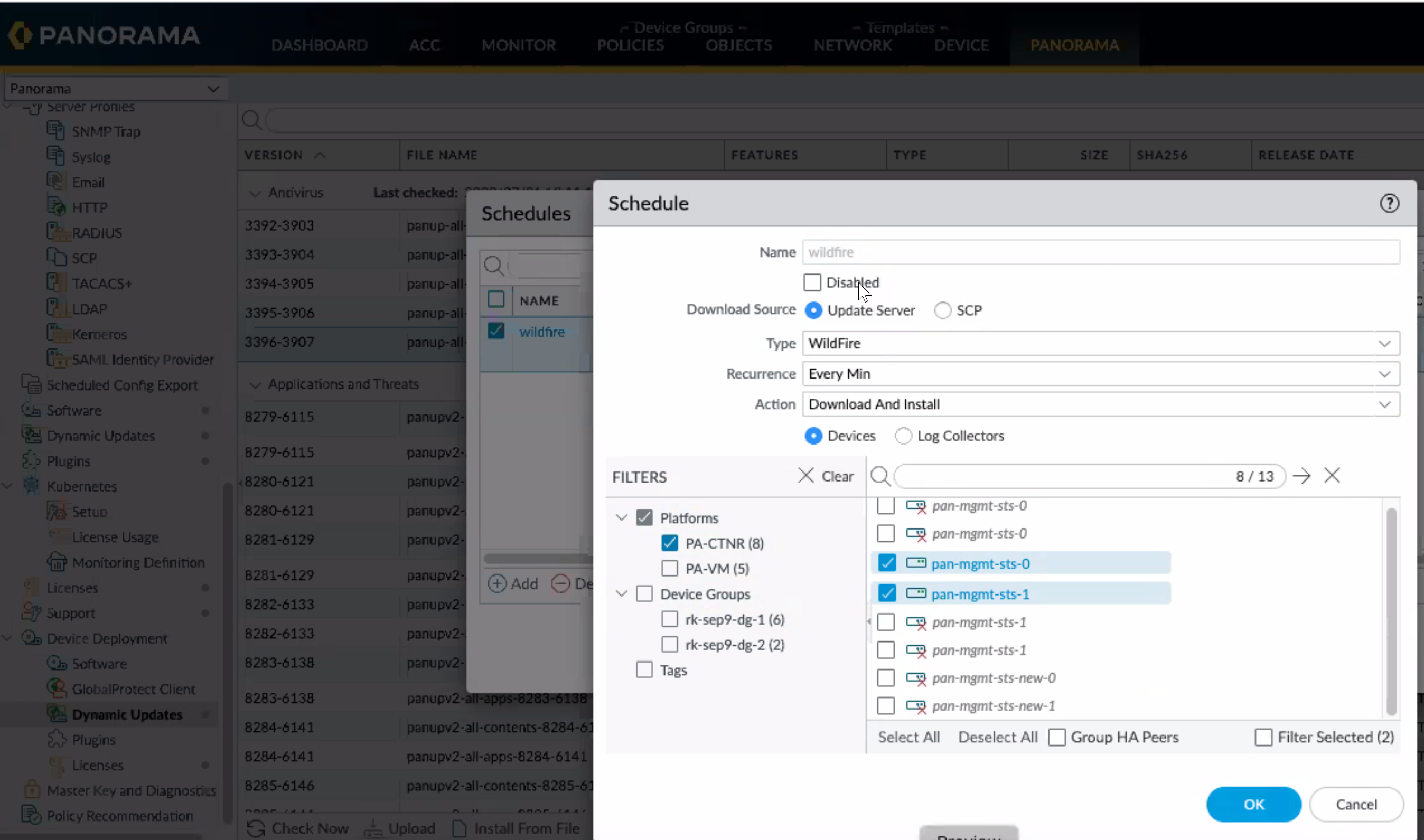

      You can either install it manually or set up a schedule. Verify the serial numbers of the CN-MGMT pods when selecting them for the dynamic updates.
      or on a recurring schedule.

    Compare the Old and New PAN-CN-MGMT.yaml

    Review the different places where you need to update the service names, apps, and labels within the yaml file when you deploy a new CN-MGMT StatefulSet.
    OldNew
    apiVersion: v1
    kind: Service
    metadata:
    name: pan-mgmt-svc
    apiVersion: v1
    kind: Service
    metadata:
    name: pan-mgmt-svc2
    namespace: kube-system
    labels:
    app: pan-mgmt-svc
    namespace: kube-system
    labels:
    app: pan-mgmt-svc2
    spec:
    ports:
    - protocol: UDP
    port: 4500
    name: ipsec
    selector:
    appname: pan-mgmt-sts
    spec:
    ports:
    - protocol: UDP
    port: 4500
    name: ipsec
    selector:
    appname: pan-mgmt-sts-new
    apiVersion: apps/v1
    kind: StatefulSet
    metadata:
    name: pan-mgmt-sts
    apiVersion: apps/v1
    kind: StatefulSet
    metadata:
    name: pan-mgmt-sts-new
    namespace: kube-system
    spec:
    selector:
    matchLabels:
    appname: pan-mgmt-sts
    serviceName: pan-mgmt-svc
    # Replicas are for fault-tolerance. Max 2 replicas supported.
    replicas: 2
    updateStrategy:
    type: RollingUpdate
    podManagementPolicy: Parallel
    template:
    metadata:
    labels:
    app: pan-mgmt
    appname: pan-mgmt-sts
    namespace: kube-system
    spec:
    selector:
    matchLabels:
    appname: pan-mgmt-sts-new
    serviceName: pan-mgmt-svc2
    # Replicas are for fault-tolerance. Max 2 replicas supported.
    replicas: 2
    updateStrategy:
    type: RollingUpdate
    podManagementPolicy: Parallel
    template:
    metadata:
    labels:
    app: pan-mgmt
    appname: pan-mgmt-sts-new
    labelSelector:
    matchExpressions:- key: "appname"
    operator: In
    values:
    pan-mgmt-sts
    labelSelector:
    matchExpressions:- key: "appname"
    operator: In
    values:
    pan-mgmt-sts-new
    topologyKey: "kubernetes.io/hostname"
    initContainers:
    - name: pan-mgmt-init
    mountPath: /var/log/pan/
    envFrom:
    configMapRef:
    name: pan-mgmt-config
    topologyKey: "kubernetes.io/hostname"
    initContainers:
    - name: pan-mgmt-init
    mountPath: /var/log/pan/
    envFrom:
    configMapRef:
    name: pan-mgmt-new-config
    # sw-secret in pan-cn-ngfw.yaml and hard-coded in ipsec.conf
    value: pan-fw
    containers:
    name: pan-mgmt
    image: 018147215560.dkr.ecr.ap-southeast-1.amazonaws.com/test/panos_ctnr/10.0.0/b/mp:63
    # sw-secret in pan-cn-ngfw.yaml and hard-coded in ipsec.conf
    value: pan-fw
    containers:
    name: pan-mgmt-new
    image: 018147215560.dkr.ecr.ap-southeast-1.amazonaws.com/test/panos_ctnr/10.0.1/b/mp:64
    volumes
    name: dshm
    envFrom:
    configMapRef:
    name: pan-mgmt-config
    volumes
    name: dshm
    envFrom:
    configMapRef:
    name: pan-mgmt-new-config
