Use the Exact Data Matching (EDM) CLI app in Interactive mode to create and upload an
EDM dataset in CSV or TSV format to Enterprise Data Loss Prevention (E-DLP).
On
May 7, 2025,
Palo Alto Networks is introducing new
Evidence Storage and
Syslog Forwarding service IP
addresses to improve performance and expand availability for these services
globally.
| Where Can I Use This? | What Do I Need? |
|---|
- NGFW (Managed by Panorama or Strata Cloud Manager)
- Prisma Access (Managed by Panorama or Strata Cloud Manager)
Prisma Browser
|
Or any of the following licenses that include the Enterprise DLP license
- Prisma Access CASB license
- Next-Generation
CASB for Prisma Access and NGFW (CASB-X) license
- Data Security license
|
Upload an encrypted hash Exact Data Matching (EDM) dataset to Enterprise DLP
using the EDM CLI app in Interactive mode to successfully create an EDM filtering
profile. In Interactive Mode, you must specify the EDM dataset path for upload and
configure the upload parameters directly through the EDM CLI app.
To ensure General Data Protection Regulation (GDPR) compliance, the EDM CLI app
hashes and encrypts EDM datasets before upload to the
Enterprise DLP
EDM dataset storage bucket. The EDM CLI
app first hashes the dataset using the SHA256 hash function when you initiate an EDM
dataset upload. The EDM CLI app then encrypts the EDM dataset using AES Symmetric
encryption before beginning the EDM dataset upload to the
Enterprise DLP EDM
dataset storage bucket. The raw data in your EDM datasets never leave your
organization's network, and
Enterprise DLP does not store or have access to the
raw EDM dataset data.
Enterprise DLP stores only hashed and encrypted EDM
dataset data in the EDM dataset storage bucket. Review the
Enterprise DLP
Privacy Datasheet for more information
about how
Enterprise DLP captures, processes, and stores personal
information.
Create and Upload an Encrypted EDM Data Set 3.5 and Earlier
Use the Exact Data Matching (EDM) CLI app version 3.5 and earlier in Interactive mode
to create and upload an EDM dataset in CSV or TSV format to Enterprise Data Loss Prevention (E-DLP).
Create a Service Account for EDM Dataset Uploads.
Set Up the EDM CLI App.
Create a Service Account for EDM Dataset Uploads.

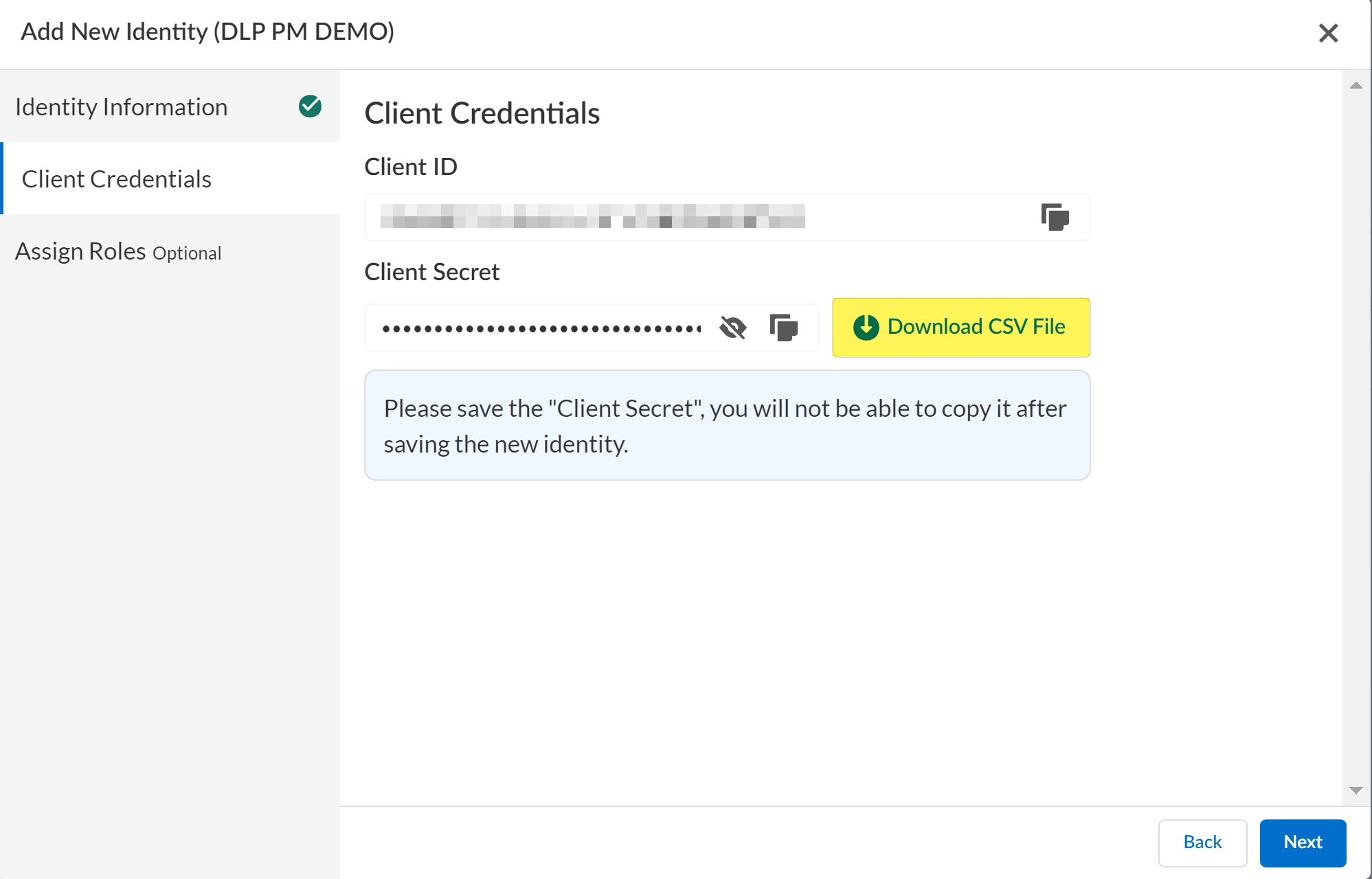

You must provide the service account Client ID
and Client Secret to successfully authenticate
the EDM CLI app and upload EDM datasets.
(EDM CLI app 6.0 and later) If you encrypted
your Client ID and Client
Secret, you must provide the 32-byte AES encryption key
for each to successfully authenticate the EDM CLI app and upload EDM
datasets.
Configure EDM CLI App Connectivity to Enterprise DLP.
This is required to successfully upload hashed and encrypted EDM
datasets.
Review the
Supported EDM Data Set Formats and prepare the EDM dataset for
upload to
Enterprise DLP.
Enter Interactive mode in the EDM CLI app to begin the EDM dataset
upload.
Open the terminal and navigate to the
package-edm-secure-cli-<version>-<platform>
directory where the EDM CLI app is located.
Enter Interactive mode in the EDM CLI app.
Windows
admin: edm-secure-cli.bat interactive
Linux
admin: ./edm-secure-cli.sh interactive
Entering this command begins the interactive upload process for EDM
datasets to Enterprise DLP.
Enter the path of the EDM dataset for upload.
Enter the delimiter used to specify boundaries between values in the EDM
dataset.
Enterprise DLP supports the “,” and “tab
(t) delimiters for CSV or TSV files. The EDM CLI
app uses the delimiter “,” by default. The EDM
dataset might only use one delimiter.
Enter the EDM dataset file encoding method.
Enter the error threshold percentage for the EDM dataset.
The EDM CLI app does not create an encrypted version of the EDM dataset if it
encounters errors exceeding the specified error threshold percentage.
Specify whether the EDM dataset has a header row.
Specify whether to allow uploads of EDM datasets that include empty or blank
cells.
Enter true to allow rows that include empty or blank
cells in an EDM dataset.
Enter false to reject rows that include empty or blank
cells in an EDM dataset.
Specify whether the EDM CLI app should abort the EDM dataset upload if the EDM
dataset includes more than the maximum number of cells supported.
Enter true to upload the maximum number of dataset
cells supported.
Enter false to abort EDM CLI app if the EDM dataset
has more than the maximum number of dataset cells supported.
Enter the number of columns in your EDM dataset.
Accurately map your CSV or TSV columns to the supported data types to allow
Enterprise DLP to accurately ingest your EDM dataset.

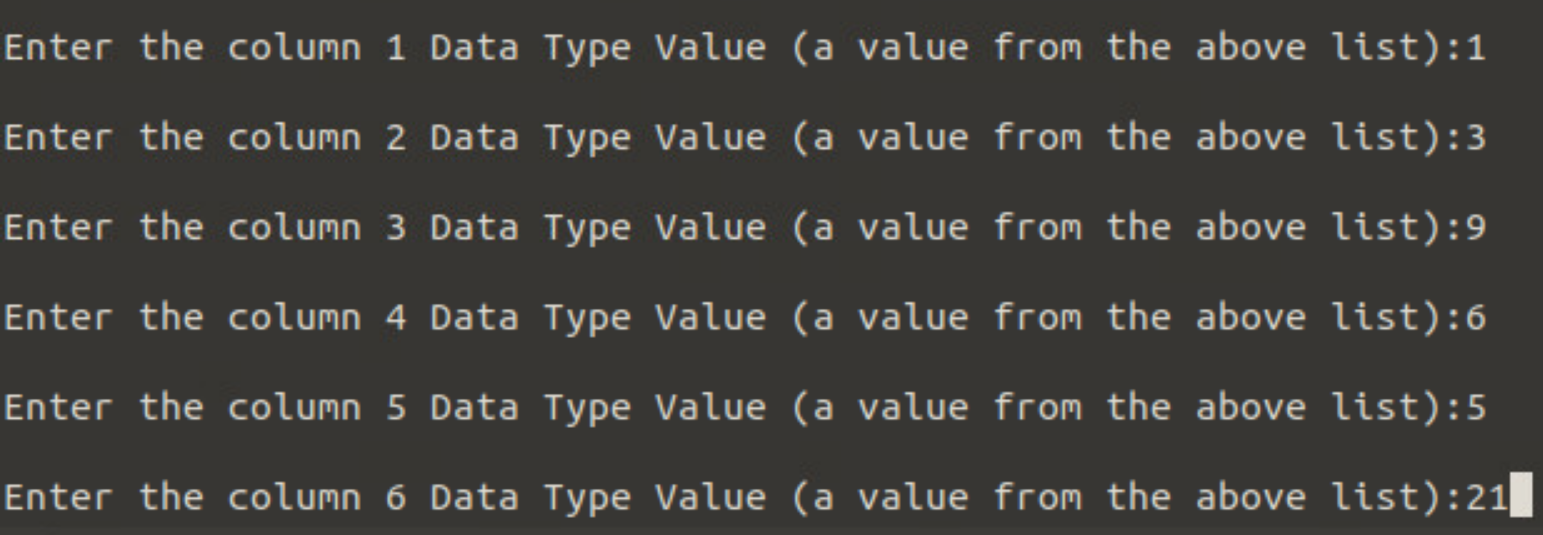

Map your columns using the supported Data Types Value to accurately map each
column in your EDM dataset to a specific Data Type.
The EDM CLI app presents a table with each Data Type Name and the
corresponding Data Type Value. You can also view this table in the
README.txt file packaged with the EDM CLI
app.
When you create a
data profile on
Strata Cloud Manager, you’re required to add at least one column
where the column values occurs up to 12 times in the selected EDM
dataset for the
Primary Field.
When mapping your columns to a specific Data Type, be sure to include at
least one column with up to 12 occurrences across the entire EDM
dataset. Otherwise, Enterprise DLP is unable to match traffic
against the EDM data profile you create using this EDM dataset.
Specify whether to upload the EDM dataset to
Enterprise DLP. Enter
y to continue uploading the EDM dataset or
n to upload the EDM dataset later.
Entering n creates a secured copy of the EDM
dataset in the
package-edm-secure-cli-<version>-<platform>
directory for you to review.

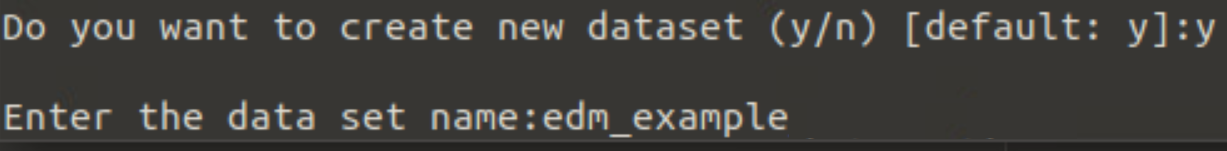

Enter
y to create a new EDM dataset and enter the
dataset name.
If you enter n and are uploading to Enterprise DLP, you’re still prompted to enter an EDM dataset name.
This updates the existing EDM dataset you previously uploaded to Enterprise DLP.
Specify the authentication mechanism used to upload the EDM dataset to
Enterprise DLP.

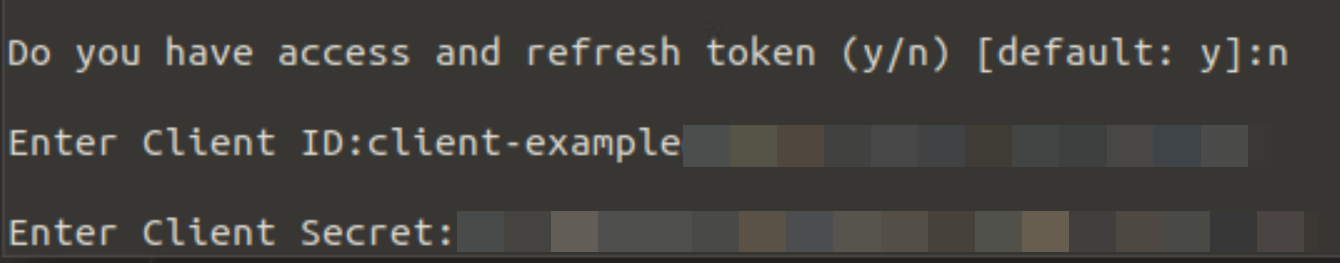

When prompted about whether
you have access and refresh
token, enter
n.
Enterprise DLP requires you end the Client
ID and Client Secret
to upload EDM datasets.
Enter the
Client ID and
Client Secret.
(
Proxy server only) When prompted, enter
y if
the local device from which you’re uploading requires a proxy server to connect
to the internet.
You’re required to provide the following information for your proxy
server.
Proxy hostname
Proxy port number
Proxy username
Proxy password
Enter
Y or
y to confirm the EDM
dataset upload configuration is correct and begin uploading to
Enterprise DLP.
The EDM CLI app creates a secured copy of the EDM dataset in the
package-edm-secure-cli-<version>-<platform>.
In the directory, the EDM CLI app creates a new folder with the name of the
EDM dataset you appended with the date and time the EDM CLI app created it.
This folder contains the encrypted output.zip
file of your EDM dataset that you uploaded to Enterprise DLP.

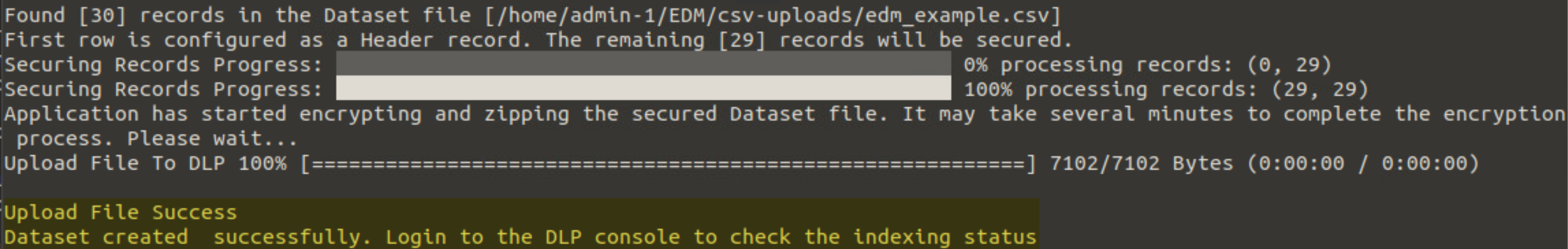

The EDM CLI app displays a progress bar and success message to notify you
whether the upload is successful.
During the upload process, the EDM CLI app connects to Enterprise DLP to verify that you created the
output.zipfile using a supported EDM
CLI app version. The upload to Enterprise DLP fails if you created
the output.zip file using an unsupported
EDM CLI app version.
Monitor the upload status of the EDM dataset.
The time it takes for an EDM dataset uploaded to DLP cloud service to be
available on
Strata Cloud Manager depends on the EDM dataset size and
internet connectivity speed. For example, a 4GB EDM dataset upload typically
takes about 30 minutes to display on
Strata Cloud Manager and be usable in
a
data profile.
Log in to
Strata Cloud Manager.
Select .

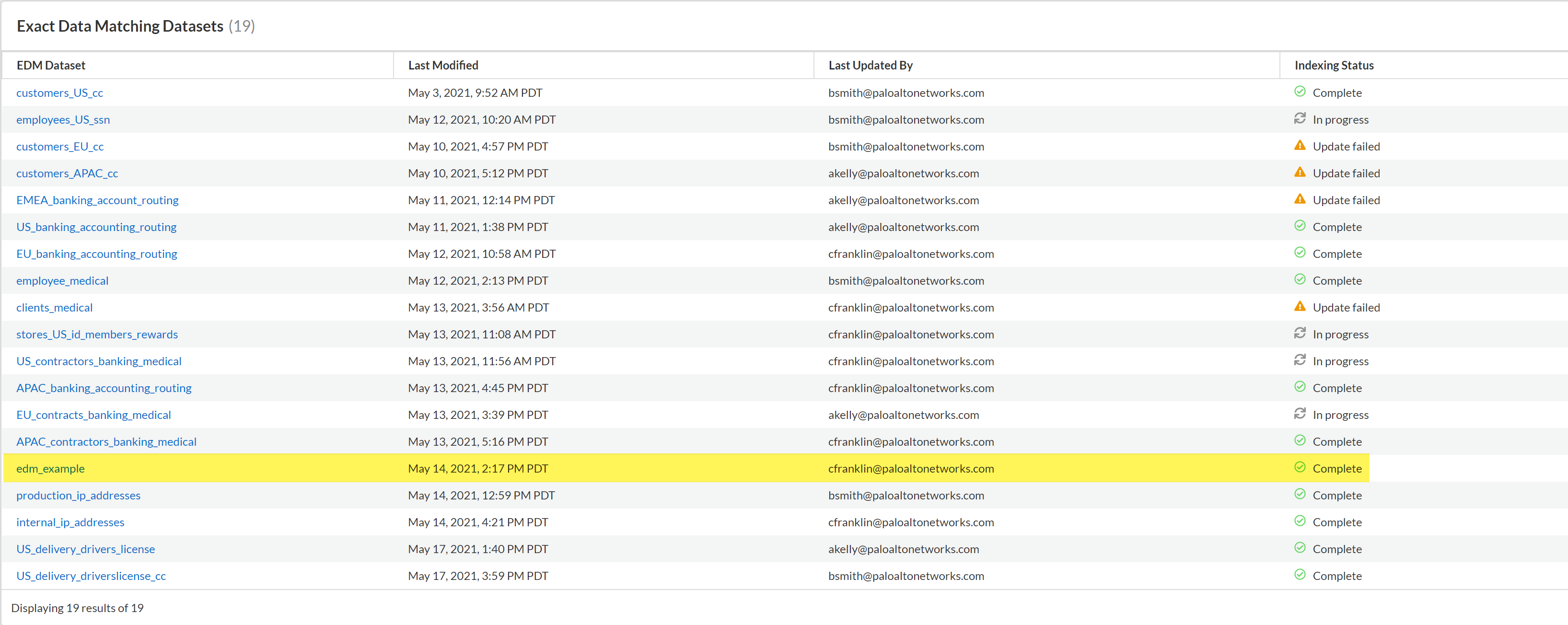

The EDM dataset upload is complete when the
Indexing
Status column displays
Complete.
Create and Upload an Encrypted EDM Data Set in Interactive Mode 4.0 and Later
Use the Exact Data Matching (EDM) CLI app version 4.0 and later in Interactive mode
to create and upload an EDM dataset in CSV or TSV format to Enterprise Data Loss Prevention (E-DLP).
Create a Service Account for EDM Dataset Uploads.
Set Up the EDM CLI App.
Create a Service Account for EDM Dataset Uploads.
You must provide the service account Client ID
and Client Secret to successfully authenticate
the EDM CLI app and upload EDM datasets.
(EDM CLI app 6.0 and later) If you encrypted
your Client ID and Client
Secret, you must provide the 32-byte AES encryption key
for each to successfully authenticate the EDM CLI app and upload EDM
datasets.
Configure EDM CLI App Connectivity to Enterprise DLP.
This is required to successfully upload hashed and encrypted EDM datasets and
to specify the region where you want your EDM datasets uploaded to if you
have data residency requirements your organization must adhere to.
Review the
Supported EDM Data Set Formats and prepare the EDM dataset for
upload to
Enterprise DLP.
Enter Interactive mode in the EDM CLI app to begin the EDM dataset
upload.
Open the terminal and navigate to the
package-edm-secure-cli-<version>-<platform>
directory where the EDM CLI app is located.
Enter Interactive mode in the EDM CLI app.
All Versions
Windows
admin: edm-secure-cli.bat interactive
Linux
admin: ./edm-secure-cli.sh interactive
Encrypted using EDM CLI App 6.0 or Later
Windows
admin: edm-secure-cli.bat interactive --key /path/to/folder/<key-name>.key
Linux
admin: ./edm-secure-cli.sh interactive --key /path/to/folder/<key-name>.key
Entering this command begins the interactive upload process for EDM
datasets to Enterprise DLP.
Enter the path of the EDM dataset for upload.
Enter the delimiter used to specify boundaries between values in the EDM
dataset.
Enterprise DLP supports the “,” and “tab
(t) delimiters for CSV or TSV files. The EDM CLI
app uses the delimiter “,” by default. The EDM
dataset might only use one delimiter.
Enter the EDM dataset file encoding method.
Enter the error threshold percentage for the EDM dataset.
The EDM CLI app does not create an encrypted version of the EDM dataset if it
encounters errors exceeding the specified error threshold percentage.
Specify whether the EDM dataset has a header row.
Specify whether to allow uploads of EDM datasets that include empty or blank
cells.
Enter true to allow rows that include empty or blank
cells in an EDM dataset.
Enter false to reject rows that include empty or blank
cells in an EDM dataset.
Specify whether the EDM CLI app should abort the EDM dataset upload if the EDM
dataset includes more than the maximum number of cells supported.
Enter true to upload the maximum number of dataset
cells supported.
Enter false to abort EDM CLI app if the EDM dataset
has more than the maximum number of dataset cells supported.
Enter the number of columns in your EDM dataset.
Accurately map your CSV or TSV columns to the supported data types to allow
Enterprise DLP to accurately ingest your EDM dataset.
Map your columns using the supported Data Types Value to accurately map each
column in your EDM dataset to a specific Data Type.
The EDM CLI app presents a table with each Data Type Name and the
corresponding Data Type Value. You can also view this table in the
README.txt file packaged with the EDM CLI
app.
When you create a
data profile on
Strata Cloud Manager, you’re required to add at least one column
where the column values occurs up to 12 times in the selected EDM
dataset for the
Primary Field.
When mapping your columns to a specific Data Type, be sure to include at
least one column with up to 12 occurrences across the entire EDM
dataset. Otherwise, Enterprise DLP is unable to match traffic
against the EDM data profile you create using this EDM dataset.
Enter
1
create and upload a new EDM dataset.
Entering 1 creates a secured copy of the EDM
dataset in the
package-edm-secure-cli-<version>-<platform>
directory for you to review.
Enter the EDM
data set name.
Enterprise DLP displays the EDM dataset name you enter here on Strata Cloud Manager.
Enter your
Client ID and
Client
Secret
for your service account.
EDM CLI App 5.0 and Earlier—Enter the Client
ID and Client Secret
exactly as provided by Strata Cloud Manager.
EDM CLI App 6.0 and Later—Enter the Client
ID and Client Secret
text you generated using the EDM CLI app.
(
Proxy server only) When prompted, enter
y if
the local device from which you’re uploading requires a proxy server to connect
to the internet.
You’re required to provide the following information for your proxy
server.
Proxy hostname
Proxy port number
Proxy username
Proxy password
Specify whether your
Enterprise DLP tenant is in a FedRAMP
environment.
Enter y if you're a FedRAMP user.
Otherwise, enter n.
(FedRAMP only) Enter your FedRAMP level
(high or
moderate). The default FedRAMP level
is moderate.
Enter
Y or
y to confirm the EDM
dataset upload configuration is correct and begin uploading to
Enterprise DLP.
The EDM CLI app creates a secured copy of the EDM dataset in the
package-edm-secure-cli-<version>-<platform>.
In the directory, the EDM CLI app creates a new folder with the name of the
EDM dataset you appended with the date and time the EDM CLI app created it.
This folder contains the encrypted output.zip
file of your EDM dataset that you uploaded to Enterprise DLP.
The EDM CLI app displays a progress bar and success message to notify you
whether the upload is successful.
During the upload process, the EDM CLI app connects to Enterprise DLP to verify that you created the
output.zipfile using a supported EDM
CLI app version. The upload to Enterprise DLP fails if you created
the output.zip file using an unsupported
EDM CLI app version.
Monitor the upload status of the EDM dataset.
The time it takes for an EDM dataset uploaded to
Enterprise DLP to be
available on
Strata Cloud Manager depends on the EDM dataset size and
internet connectivity speed. For example, a 4GB EDM dataset upload typically
takes about 30 minutes to display on
Strata Cloud Manager and be usable in
a
data profile.
Log in to
Strata Cloud Manager.
Select .
The EDM dataset upload is complete when the
Indexing
Status column displays
Complete.
