PA-5200 Back Panel

Learn about the PA-5200 firewall back-panel components.

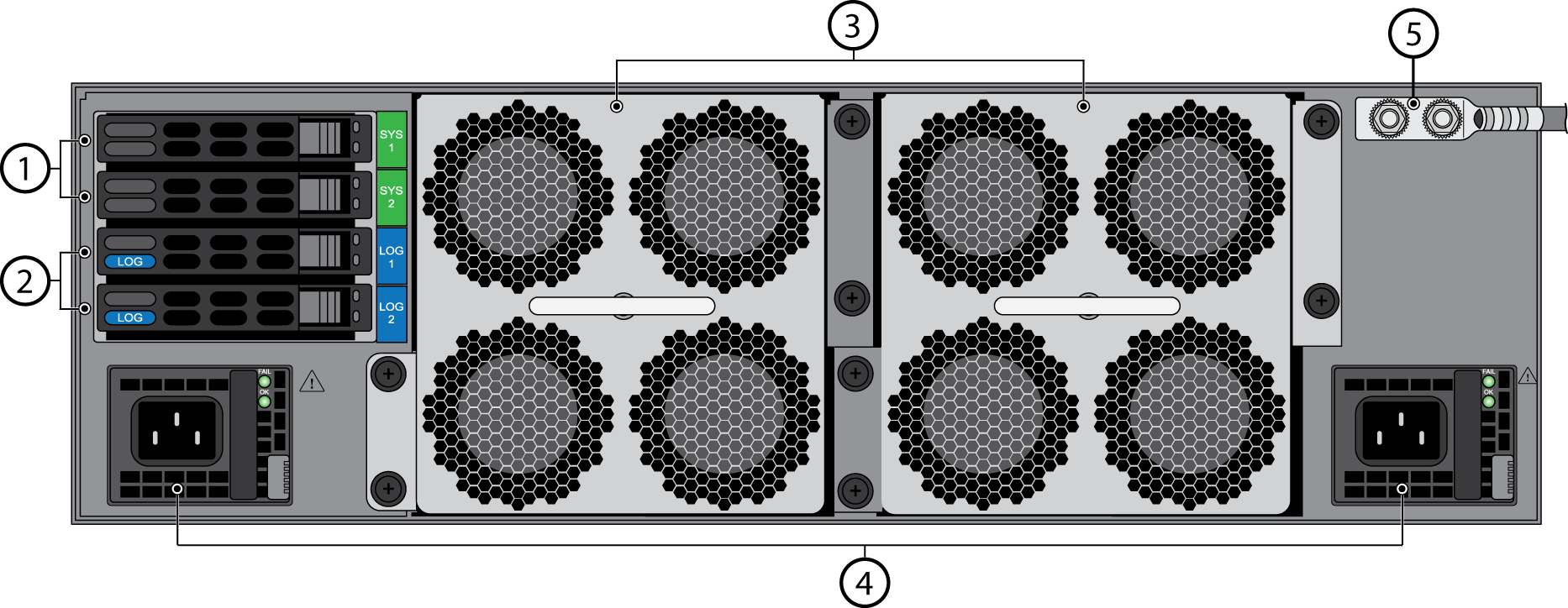

The following image shows the back panel of PA-5200 Series firewalls and the table describes each back-panel component. The only difference between PA-5200 Series firewall back panels is the power supply type installed—they each can have two AC or two DC power supplies. The image shows a PA-5220 firewall with AC power supplies. To view an image of the DC power supplies, see Connect DC Power to a PA-5200 Series Firewall.
Item
Component
Description
1
SYS 1 and SYS 2 drives
Two hot-swappable 240GB solid-state drives (SSDs) in a RAID-1 pair (240GBs total). The drives are used to store the PAN-OS system files and system logs.
2
LOG 1 and LOG 2 drives
Two hot-swappable 2TB hard disk drives (HDDs) in a RAID-1 pair (2TBs total). The drives are used to store network traffic logs.
3
Exhaust fans trays
Two fan trays that provide ventilation and cooling for the firewall. Each fan tray contains four fans and a status LED.
While facing the back of the firewall, fan tray 1 is on the left and fan tray 2 is on the right.
Do not use the fan tray handles to lift or move the firewall.
4
PWR 1 and PWR2
Use the power supply inputs (either AC or DC) to connect power to the firewall.
While facing the back of the firewall, PWR 1 is on the left and PWR 2 is on the right.
5
Ground stud
Use the two-post ground stud to connect the firewall to earth ground. The firewall ships with a 6AWG two-hole ground lug attached to the ground studs, but does not include a ground cable.
