Redistribute HIP Information with Prisma Access
Prisma Access
Configure
Prisma Access
to redistribute HIP reports within
your enterprise.Where Can I Use
This? | What Do I Need? |
---|---|
|
|
To ensure consistent Host Information Profile (HIP) policy enforcement and to simplify policy
management, you can redistribute HIP information received from
mobile users and users at remote networks that use the GlobalProtect app from Prisma
Access to other gateways, firewalls, and Panorama appliances in your enterprise,
including the Panorama that manages
Prisma Access
. The following section describes some common
Prisma Access
deployments where HIP
redistribution is useful for consistent policy enforcement and HIP report

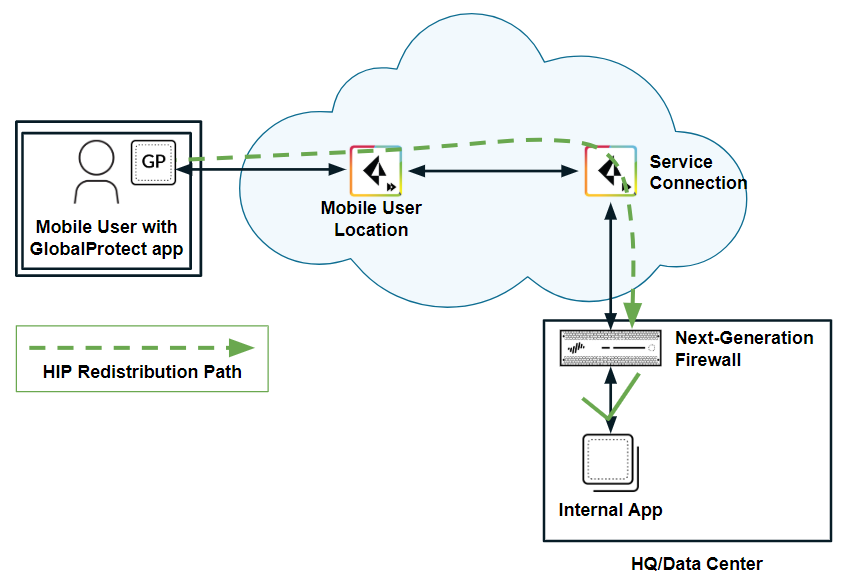

viewing:- HIP redistribution from—If you have a next-generation firewall in your organization’s data center or headquarters location, and have configured that firewall with HIP-based security policies, you cannot enforce those policies forPrisma Accessto a next-generation firewallPrisma Accessmobile users until you redistribute HIP redistribution fromPrisma Accessto the firewall.The following figure shows a mobile user whose endpoint is protected with the GlobalProtect app. The user attempts to access an internal app at an HQ/data center whose access is controlled by a next-generation firewall with HIP-based security policies. When the user logs in to the GlobalProtect app, the app collects HIP information and sends it toPrisma Access; however,Prisma Accessdoes not redistribute this information to the on-premises firewall. Since the firewall does not have the user’s HIP information, it blocks the user’s access to the app.HIP redistribution allows you to distribute the mobile users’ HIP information to the on-premises firewall. The firewall can then check the user’s HIP information against its configured security policies and grant the user access to the app.To redistribute HIP information fromPrisma Accessto the firewall, you allowPrisma Accessto redistribute HIP information, thenAddaUser-ID Agent(for 9.1.PanoramaUser IdentificationUser-ID AgentsxPanorama appliances orfor Panorama 10.PanoramaData Redistributionxappliances) on the firewall, and specify thePrisma AccessUser-ID Agent Address() as thePanoramaCloud ServicesStatusNetwork DetailsService ConnectionUser-ID Agent AddressHost(10.1.1.1 in the following example) and5007as thePort.

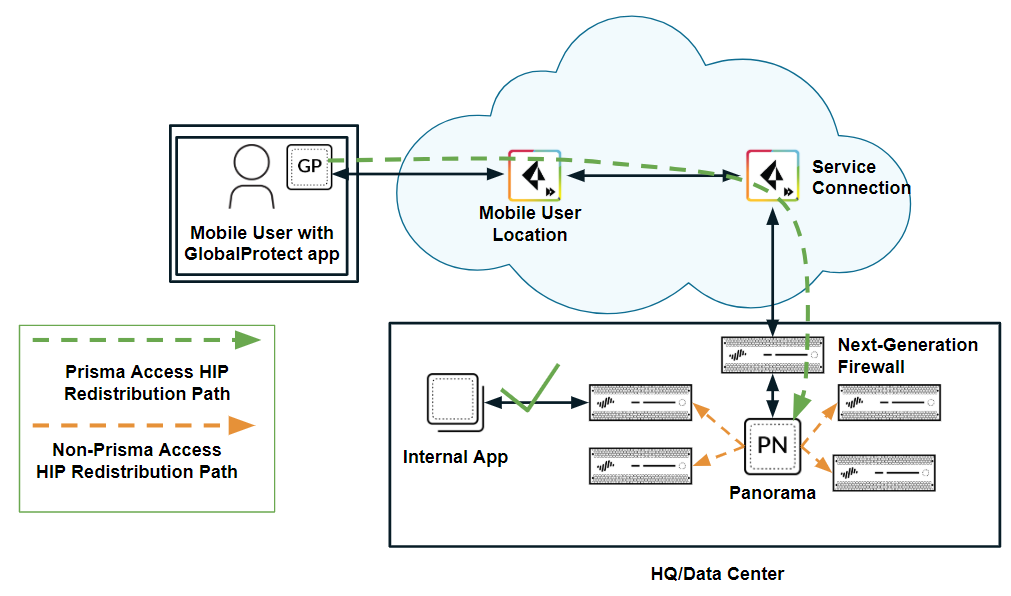

- HIP redistribution from—If you have multiple firewalls or gateways in your organization with HIP-based security policies, you can redistribute the HIP information fromPrisma Accessto PanoramaPrisma Accessto the Panorama that managesPrisma Accessby creating a User-ID agent in Panorama and specifying thePrisma AccessUser-ID Agent Addressas the User-IDHost. You can then redisribute HIP reports from that Panorama appliance to the other managed Panorama appliances, gateways, firewalls, and virtual systems in your enterprise, using the same workflow that you use to redistribute User-ID information to managed firewalls and enforce consistent policy for internal apps and resources, as shown in the following figure.Alternatively, you can configure each internal firewall or gateway in your enterprise to directly collect HIP information fromPrisma Access, without using Panorama as a central location, by creating a User-ID Agent in each device. Note, however, thatPrisma Accessuses service connections to send HIP information, and service connection bandwidth consumption might increase ifPrisma Accesssends a large number of HIP reports.

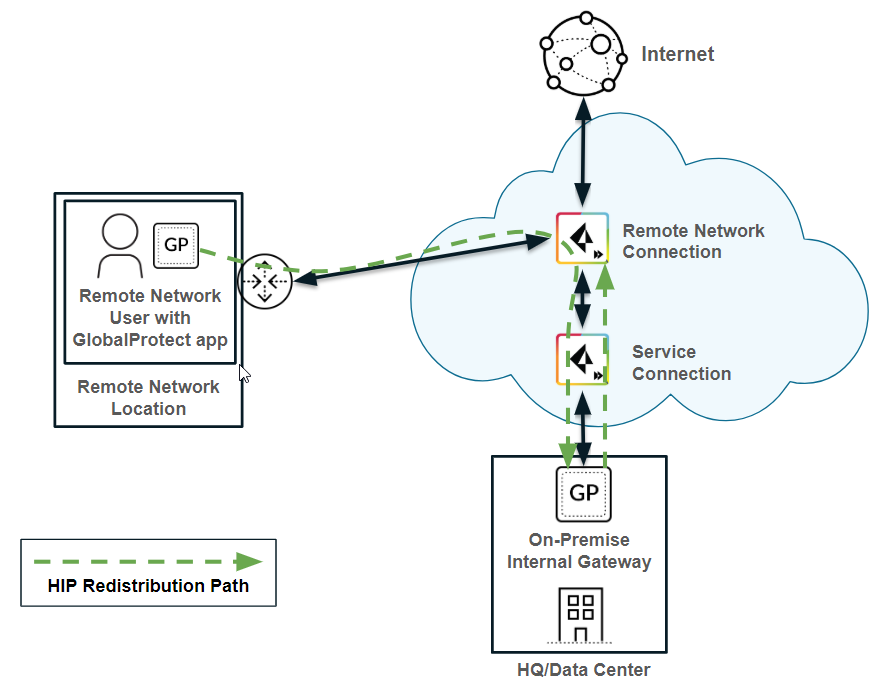

- HIP redistribution from a user at a remote network to Prisma Access—The previous use cases showedPrisma Accesscollecting HIP information from mobile users. If you want to apply HIP-based policies inPrisma Accessfor a user at a remote network location, you need a way to distribute the HIP information from the remote network user’s GlobalProtect app toPrisma Access.The following example shows a user at a remote network location whose internet access is located on the remote network connection. In Prisma Access, you control the user’s internet access at the remote network location with security policies created in theRemote_Network_Device_Groupor in a shared device group. To properly enforce the policies at the remote network location for the user, you need to configurePrisma Accessto retrieve the user’s HIP information from the internal gateway.In this example, the GlobalProtect gateway at the HQ/data center that is configured as an internal gateway using internal host detection checks the user’s HIP information from the user’s GlobalProtect app. The internal gateway detects that the user is inside the remote network location and collects both User-ID and HIP information from the user.To distribute this HIP information from the internal gateway to Prisma Access, create a User-ID agent in Panorama and specify the IP address of the internal gateway as the host.
- View detailed HIP logs from Panorama—When mobile users log in using the GlobalProtect app, the app sends the HIP information toPrisma Access. Panorama retrieves the log results fromStrata Logging Serviceto view the results of the HIP Match logs (); however, you cannot view detailed HIP reports until you configure Panorama to redistribute HIP report details fromMonitorLogsHIP MatchPrisma Accessto Panorama.To redistribute detailed HIP information from mobile users to Panorama, create a User-ID agent in Panorama and specify theUser-ID Agent Address() as the User-ID host.PanoramaCloud ServicesStatusNetwork DetailsService ConnectionUser-ID Agent AddressIf you have configured an on-premises gateway as an internal gateway at a remote user location, you can also send the HIP information for users at remote networks to Panorama by creating a User-ID agent in Panorama and specifying the remote networkEBGP Routeraddress () as the User-ID host.PanoramaCloud ServicesStatusNetwork DetailsRemote NetworksEBGP Router
Enable and configure HIP redistribution in
Prisma Access
:
