Configure 4G Equipment ID Security
Configure 4G equipment ID security.
Configure network security based on the equipment
identity of any device or equipment that is trying to access your
4G network.
Before you begin configuring
4G Equipment ID Security, gather
the IP addresses of the following devices in your topology so that
you can use them as source and destination addresses in Security
policy rules controlling traffic to and from these devices:
eNodeB
(eNB)
Mobility Management Entity (MME)
Serving Gateway (SGW)
Packet Gateway (PGW)
Enable GTP Security.
Select . Select
GTP
Security
.
Select and
Reboot
Device
.
Enable inspection of 4G GTPv2-C control packets and content
inspection of GTP-U packets; create a Mobile Network Protection
profile.
Add
a profile by
Name
,
for example, 4G Mobile security.

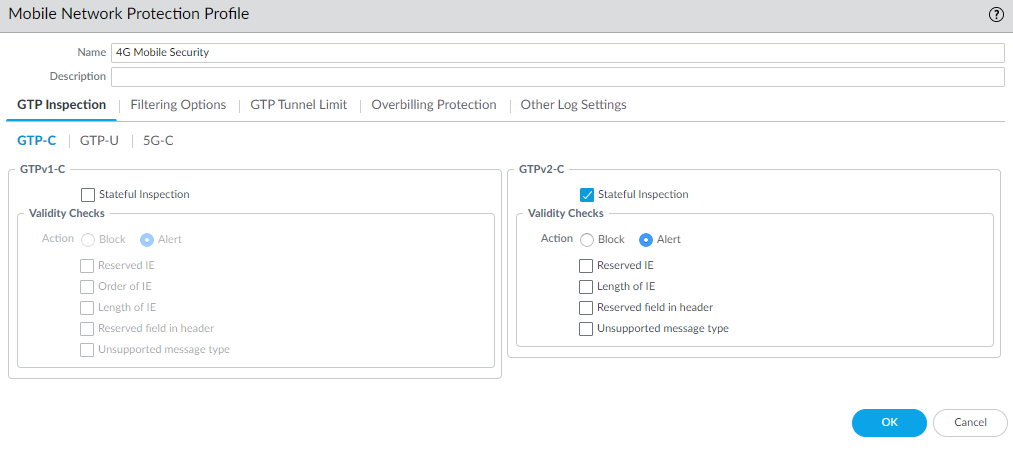

On the
GTP Inspection
tab,
select
GTP-C
.
Enable
GTPv2-C Stateful Inspection
to
enable inspection of GTPv2 control packets.

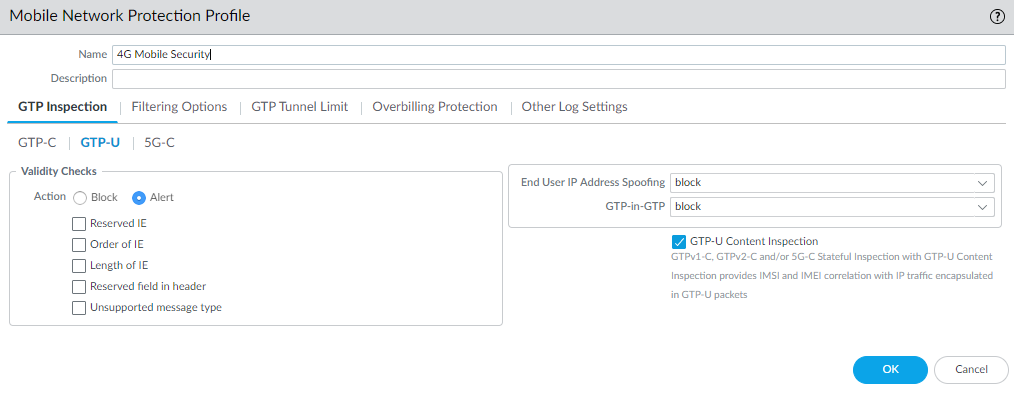

Select
GTP-U
and enable
GTP-U
Content Inspection
to correlate context from 4G GTPv2-C
control packets (Subscriber IDs and Equipment IDs) to IP user traffic
inside a GTP-U tunnel.
Select
Filtering Options
and
RAT
Filtering
; for example, you can allow
UTRAN
,
GERAN
,
HSPA
EVOLUTION
,
EUTRAN
,
EUTRAN-NB-IOT
,
and
LTE-M
and block other RATs.
(
Optional
) Select
Other Log Settings
and
Log
User Location
.
(
Optional
) To troubleshoot, select
Other
Log Settings
and select GTPv2-C Allowed Messages for
Tunnel
Management
,
Path Management
,
and
Others
. You can also enable GTP-U Allowed
Messages for
Tunnel Management
,
Path
Management
, and
G-PDU
.
Create address objects for the IP addresses assigned
to the network elements in your topology, such as in deployment
option 1: the MME on the S11 interface, the eNB on the S1-U interface, and
the SGW on the S1-U and S11 interface; or deployment option 2: the
SGW on the S5/S8 interface and PGW on the S5/S8 interface.
(
Optional
) Create an
External Dynamic List (EDL)
of Type
Equipment Identity List
; the
Source
of
the list provides access to a server that provides identifiers of
devices connected to the 4G network, for which you want to allow
traffic.
Create a Security policy rule that applies your Mobile
Network Protection profile to application traffic.
Select and
Add
a
Security policy rule by
Name
.

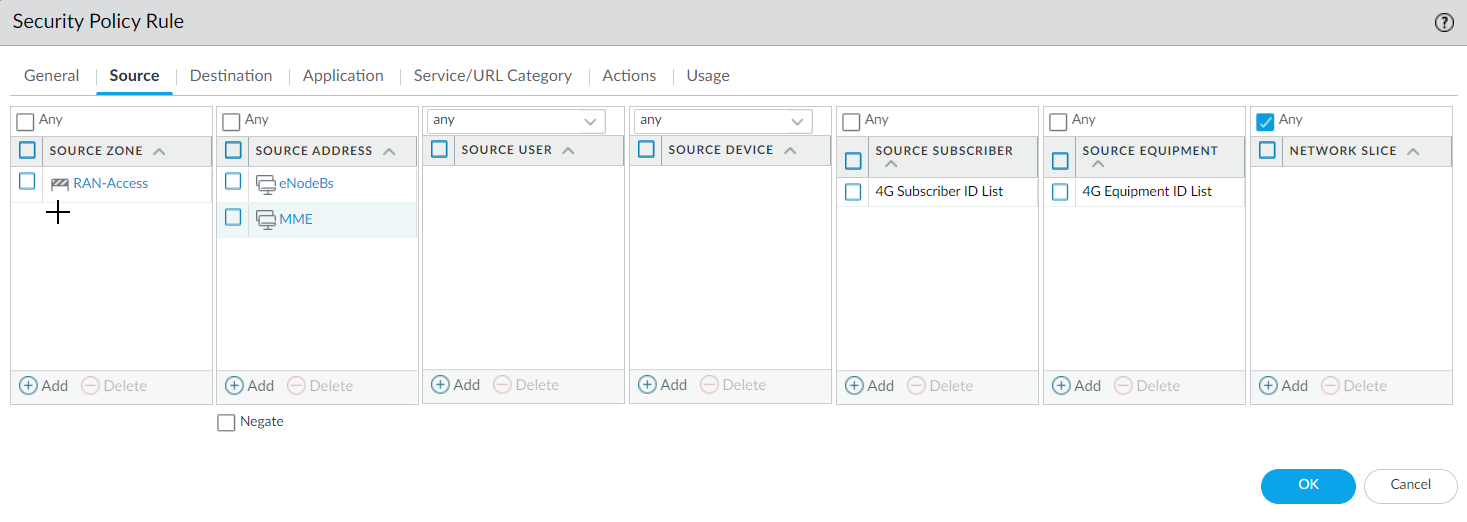

Select
Source
tab and
Add
a
Source
Zone
or select
Any
.
For
Source Address
,
Add
the
address objects for the 4G network elements that you want to allow.

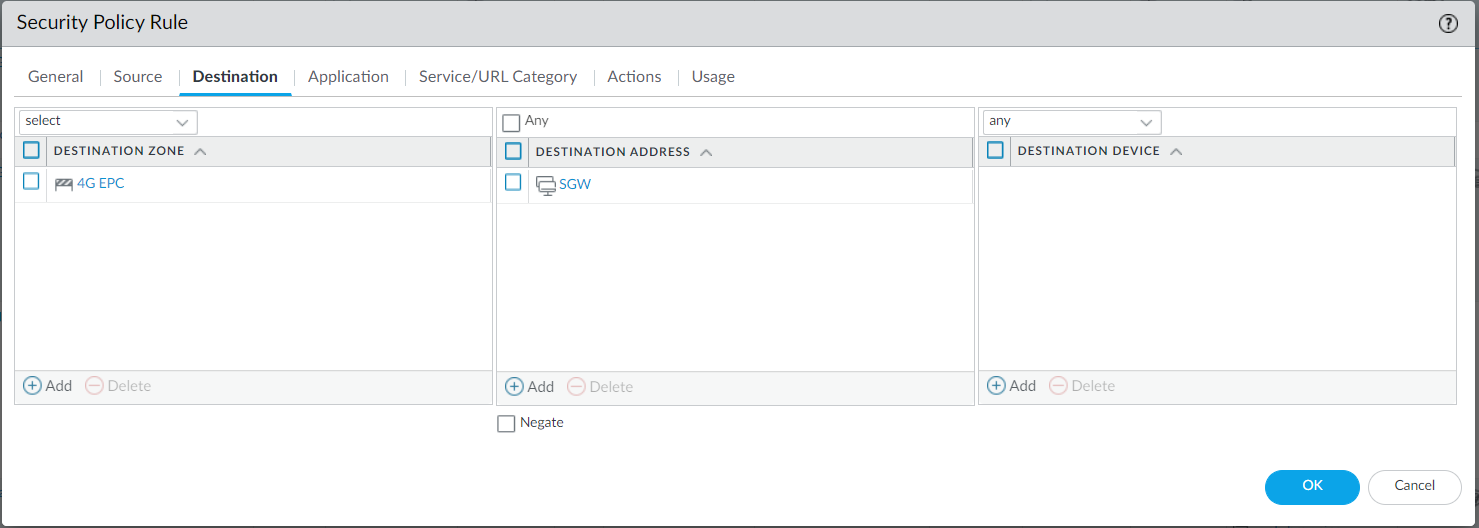

For
Destination
,
Add
the
Destination
Address
address objects for the 4G network elements
that you want to allow.
Add
the
Applications
to
allow, such
gtp-u
for user plane and
gtpv2-c
for
control plane traffic.

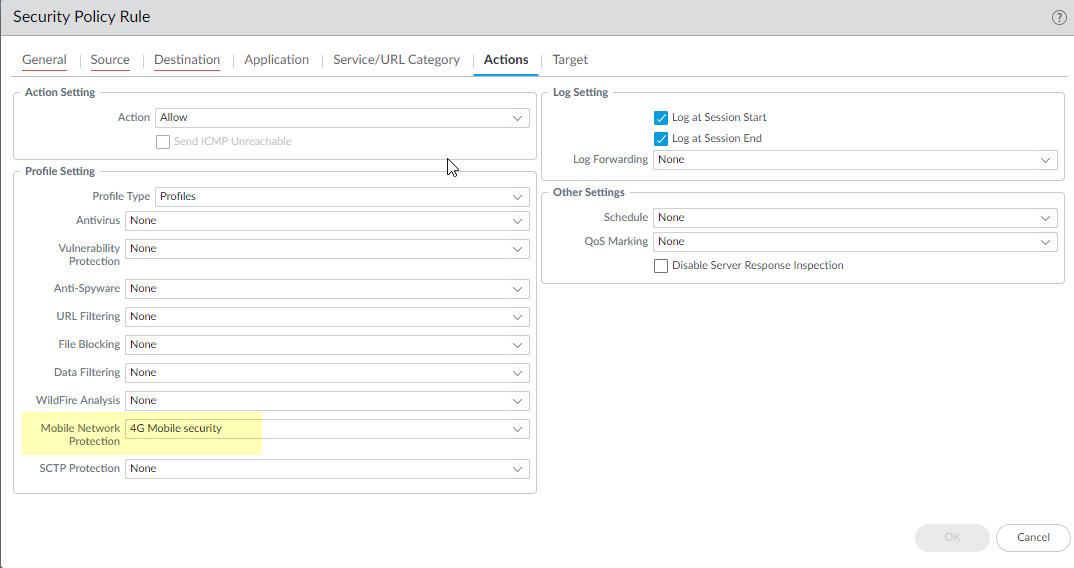

On the
Actions
tab, select
the
Action
, such as
Allow
.
Select the
Mobile Network Protection
profile
you created.
Select Log Settings, such as
Log at Session
Start
and
Log at Session End
.
Create another Security policy rule based on Equipment
ID.
Select and
Add
a
Security policy rule by
Name
, for example,
Equipment ID Security.
Select
Source
tab and
Add
a
Source
Zone
or select
Any
.
Add
one or more
Source
Equipment
IDs in any of the following formats (if you
configured an EDL, specify that EDL in this step):
IMEI (15 to 16 digits)
IMEI prefix of eight digits for Type Allocation Code (TAC)
(
Optional
) You can add
Source
Subscriber
identities to this Security policy rule to
make the rule more restrictive.
Specify
Destination Zone
,
Destination
Address
, and
Destination Device
as
Any
.
Add
the
Applications
to
allow, for example,
ssh
,
ssl
,
radmin
,
and
telnet
.
On the
Actions
tab, select
the
Action
, such as
Allow
.
Select profiles you want to apply, such as
Antivirus
,
Vulnerability
Protection
, and
Anti-Spyware
.
Select Log Settings, such as
Log at Session
Start
and
Log at Session End
.
