Create an AI Canvas

Learn how to create customizable AI Canvas dashboards in Strata Cloud Manager by building from scratch or generating from natural language queries to visualize your network data.

Where Can I Use This?	What Do I Need?
Strata Cloud Manager	Strata Cloud Manager Pro license Prisma Access license Acceptance of the Strata Copilot SEULA for the tenant

You can create an AI Canvas using one of two approaches:

Create from scratch—Start with a blank canvas and manually add individual widgets from the Widget Library.
Generate from a query—Use Strata Copilot to automatically build a canvas by describing what you want to see in natural language.

Both methods allow you to customize your canvas after creation by adding, removing, or rearranging widgets.

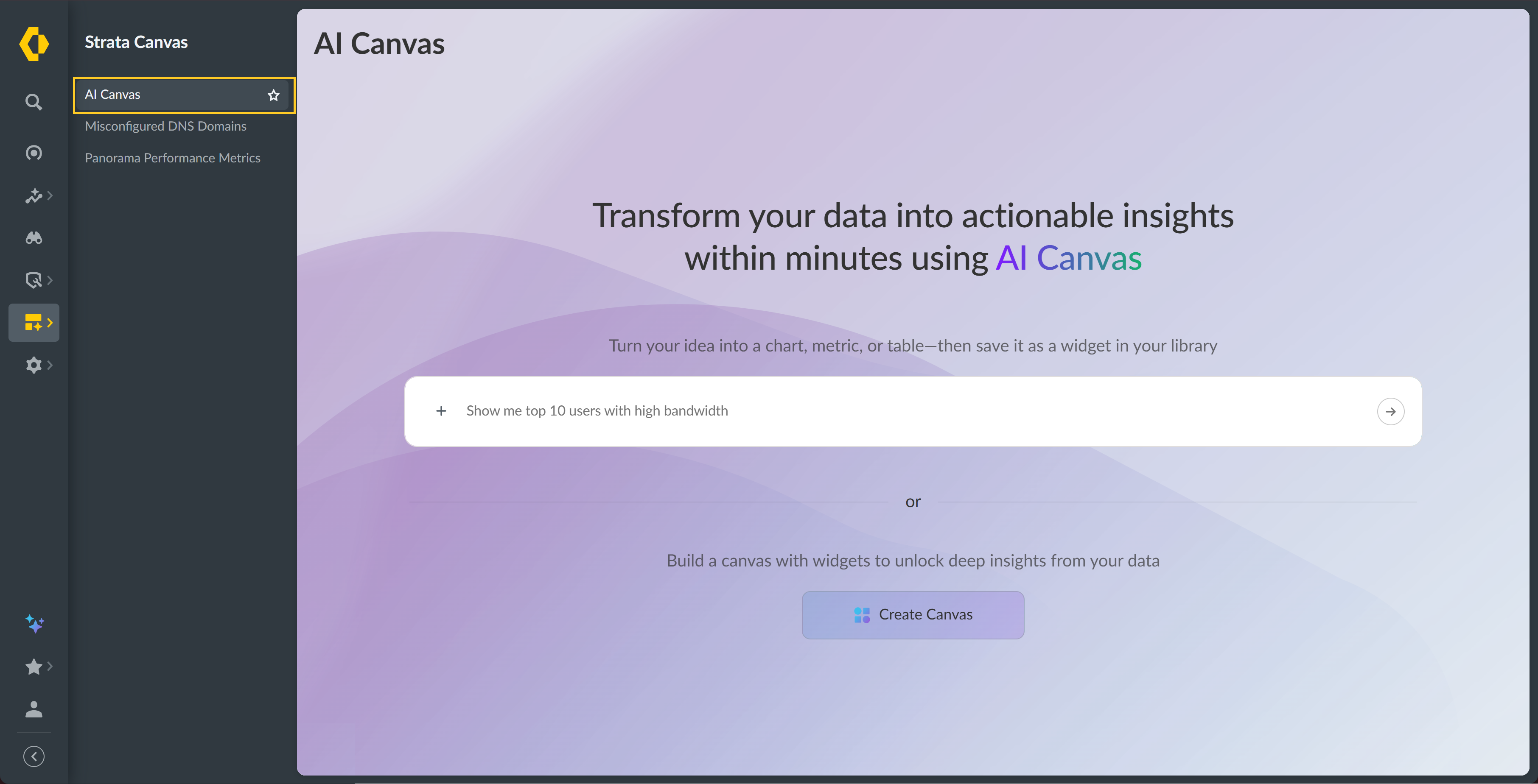

Select Strata CanvasAI Canvas from Strata Cloud Manager menu.
Choose how you want to create your canvas:
- Generate a canvas from a query: Enter a descriptive query in the text field and click the arrow or press Enter key.
  Example queries:
  - Show me threats in my network that have occurred in the last 6 hours.
  - Show me user activity in my network.
- Create from scratch: Select Create Canvas.
Enter a descriptive name for your canvas.

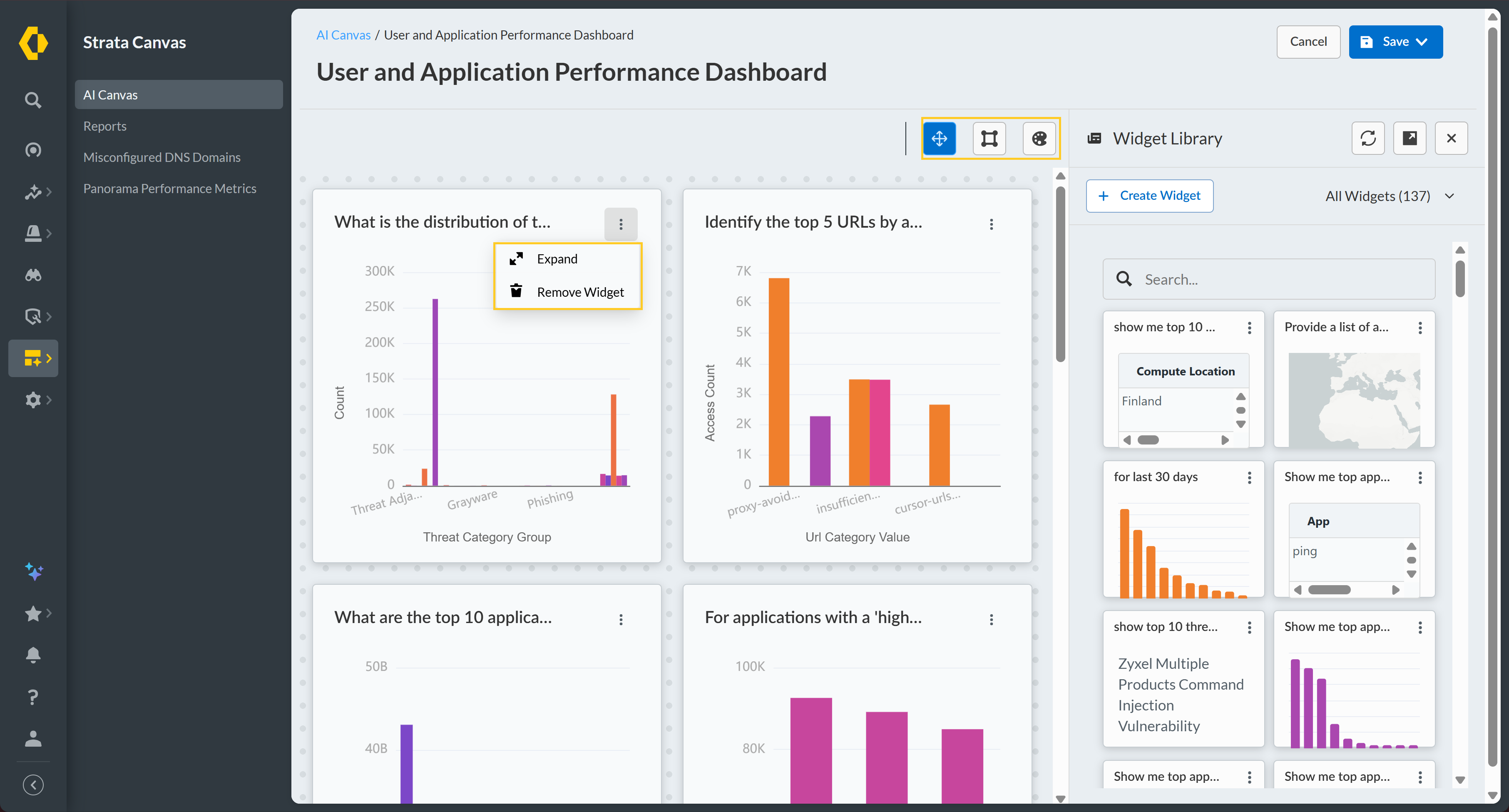

Customize your canvas by adding or modifying widgets:
- If you created from scratch: Find widgets in the Widget Library and drag and drop them onto your canvas.
- If you generated from a query: Review the automatically generated widgets and make changes as needed.
For all canvases, you can:
- Rearrange widgets
- Resize widgets
- Expand widgets to view the chart in more detail
- Remove widgets from the canvas
For more information, see Manage Widgets.
Click the palette icon

at the top right to adjust the color story for your AI Canvas.
Four seasonal color palettes are available.
Save your canvas when finished.
