Strata Cloud Manager
Use Summarizer to Analyze Your Canvas Data
Table of Contents
Use Summarizer to Analyze Your Canvas Data
Use Summarizer to get instant AI-generated narratives, highlighted insights, and
data-point drill-downs across your AI Canvas visualizations without writing any
queries.
| Where Can I Use This? | What Do I Need? |
|---|---|
|
Reading through multiple widgets and connecting patterns across them takes time and
expertise. Summarizer eliminates that effort by generating instant natural language
narratives at every level of your canvas—a canvas-wide overview that describes all
widgets at once, a widget-level breakdown for a specific visualization, and a
data-point drill-down that produces a forensic summary for a single value in a
chart. Each summary surfaces highlighted insights based on recent data changes and
suggests follow-up prompts to continue your investigation. When you drill into a
data point, Summarizer also exposes the underlying query code and a direct link to
open the matching logs in Log Viewer, so you can pivot from high-level patterns to
raw log evidence in one step.

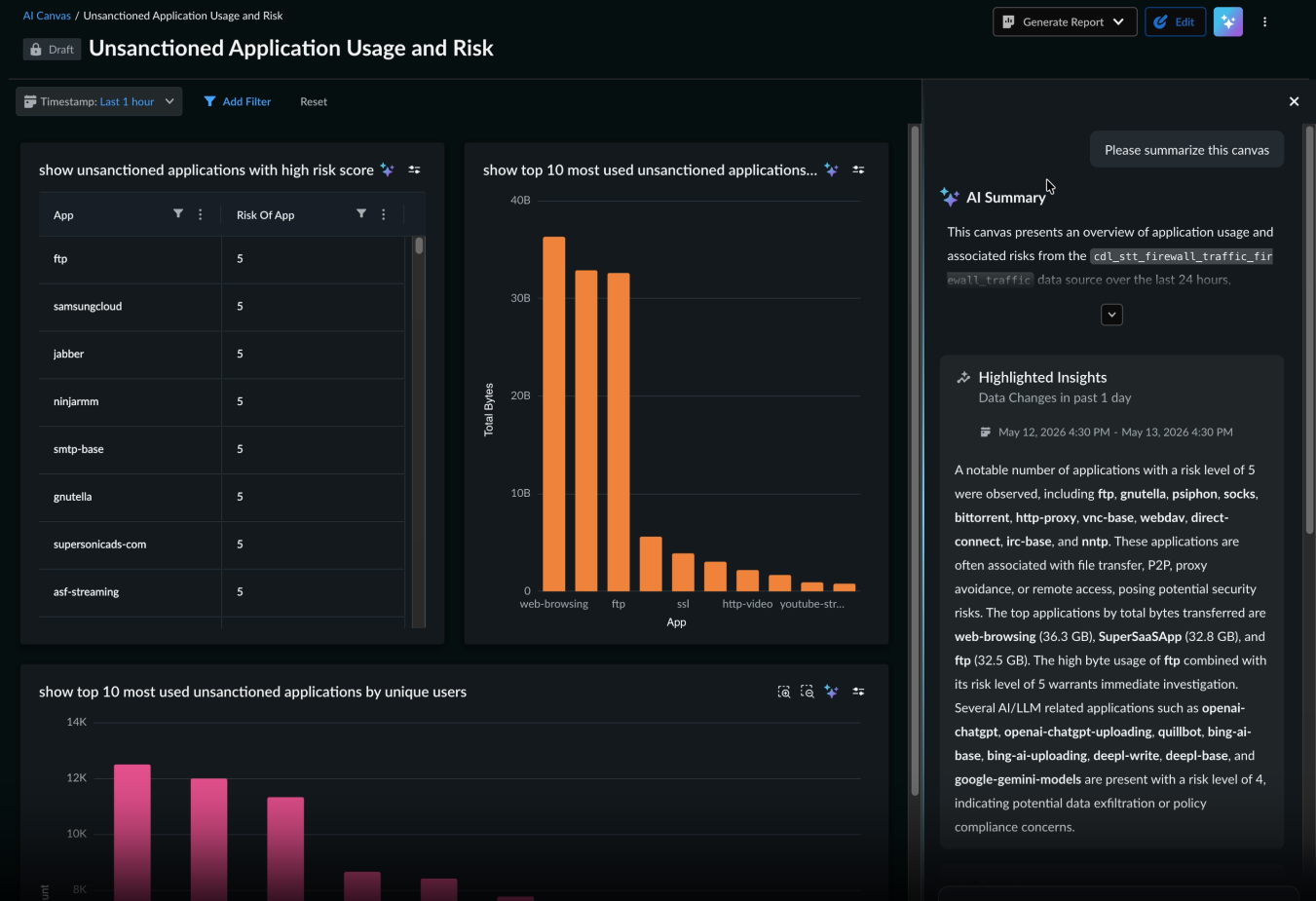

- Select from the Strata Cloud Manager menu, then open a canvas.Click the Summarize canvas icon in the canvas toolbar.The Summarizer panel opens on the right side of the canvas. Strata™ Copilot automatically begins generating a canvas-wide summary.
![]()
Review the AI Summary and Highlighted Insights sections.- AI Summary—A narrative overview describing the data displayed across all widgets on the canvas, including the data sources queried.
- Highlighted Insights—A detailed analysis of notable trends and changes in your data over the selected time range.
![]()

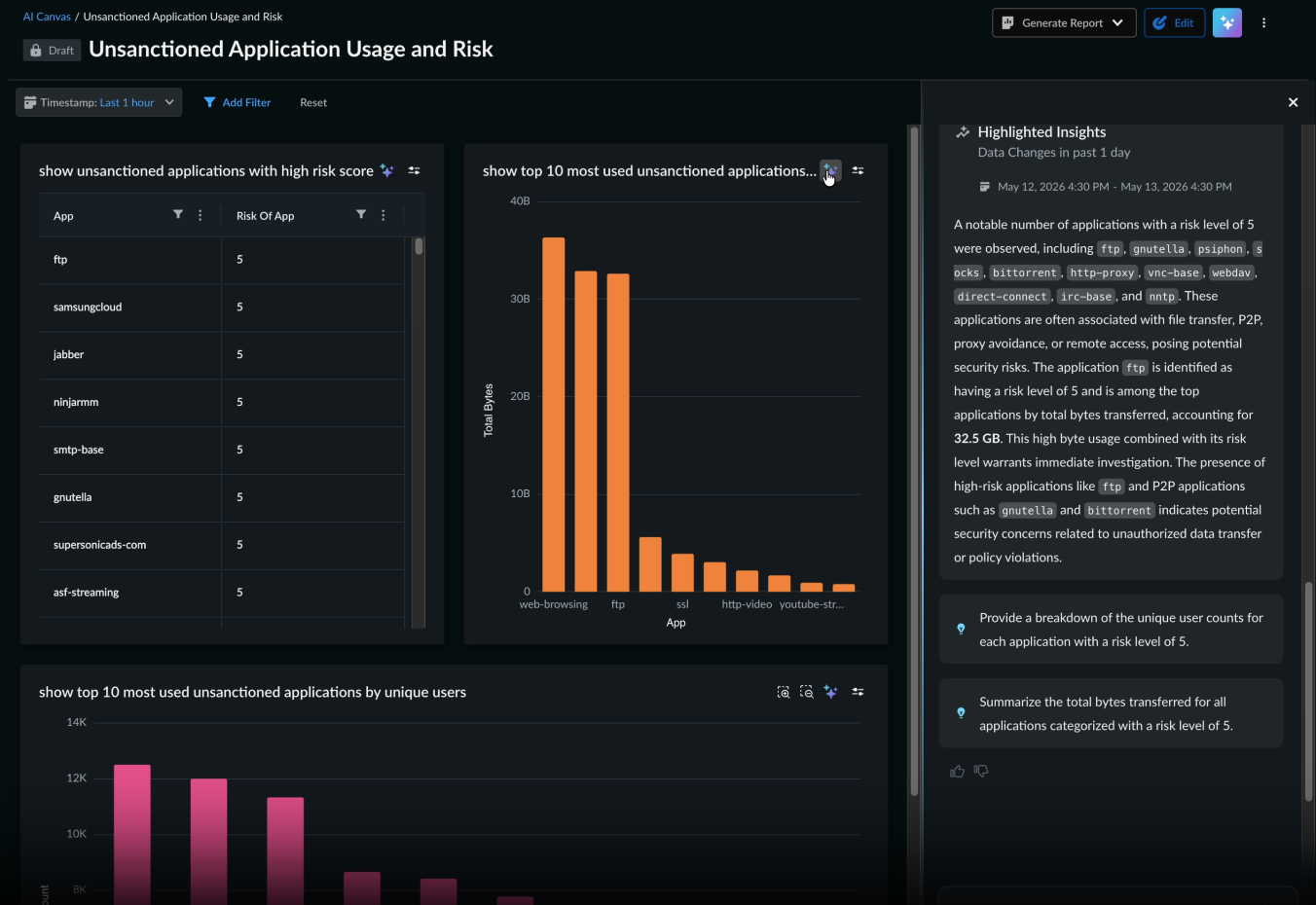

(Optional) Type a follow-up prompt in the Summarizer panel or click one of the suggested prompts to dig deeper into a specific finding.Suggested prompts appear at the bottom of each summary. You can select one with a click or enter your own question in the prompt bar. To get a summary focused on a specific widget, enter the widget title in the prompt bar.![]()

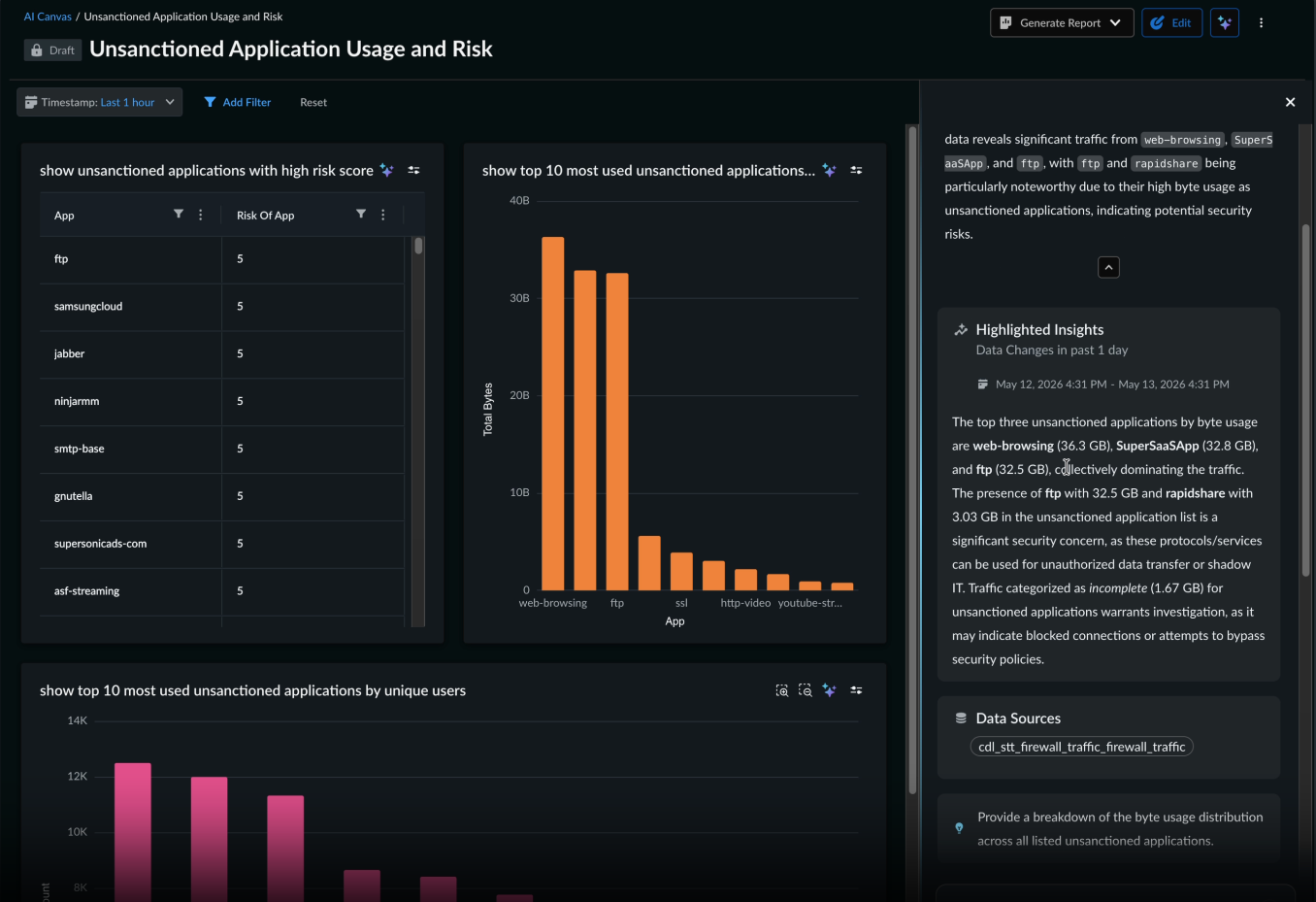

Click any bar, row, or value in a chart to drill into a targeted summary for that data point.Strata Copilot automatically generates a forensic summary for the selected value. The panel displays:- Highlighted Insights—Trends and patterns specific to the selected data point
- Data Sources—The log tables queried for the summary
- Query Code—The underlying query used to retrieve the data
- Other Relevant Views—Related canvases that may provide additional context
![]()

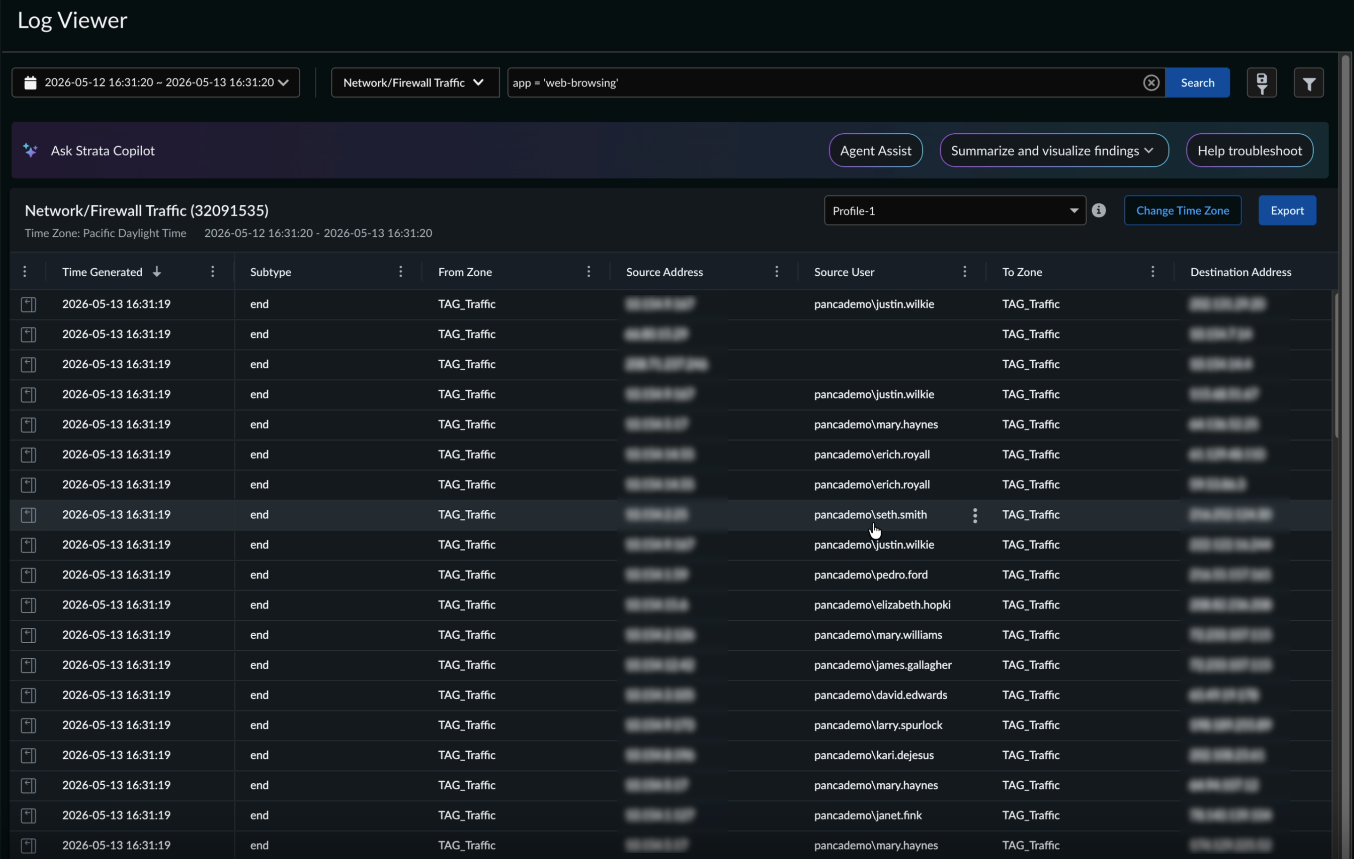

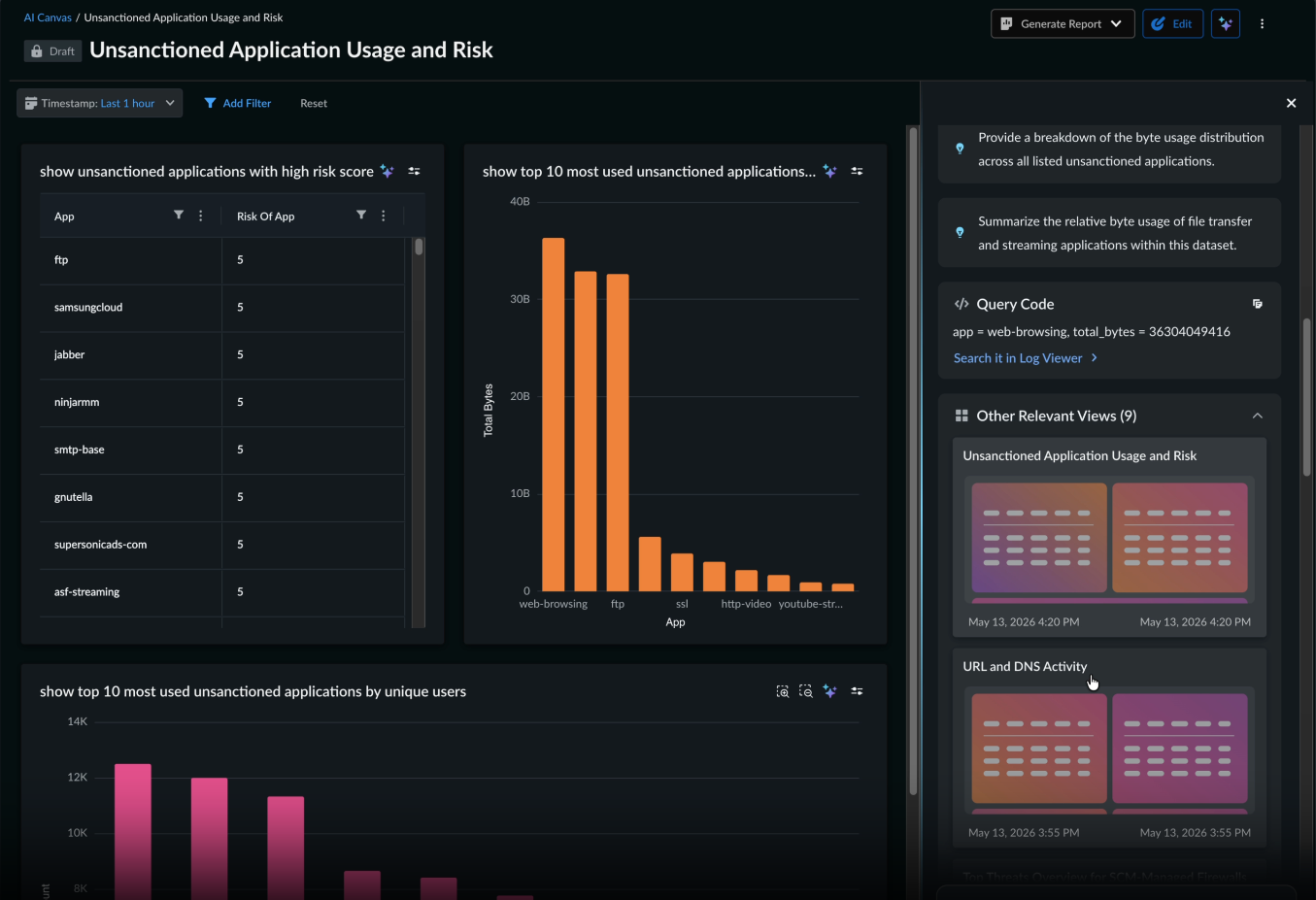

(Optional) Review the Query Code and click Search it in Log Viewer to open Log Viewer pre-filtered with the data-point query.Log Viewer opens with the query already applied, showing the raw log records that back the summary. You can further refine the query, export results, or pivot to a deeper investigation from there.![]()
![]()
(Optional) Expand Other Relevant Views to see related canvases.Strata Copilot surfaces canvases from your library that contain similar data or context, allowing you to navigate directly to them for a broader view.
