Insights: NetSec Health
The NetSec Health Dashboard provides a comprehensive view of your organization's
network security health across all user devices, branch sites and ADEM monitored
applications.
| Where Can I Use This? | What Do I Need? |
|---|---|
|
→ The features and capabilities available to you in Strata Cloud Manager depend on which license(s) you are
using.
|
TheNetSec Health Dashboard provides a
comprehensive view of your organization's network security health across all user
devices, branch sites and [ai-adem] monitored applications. This dashboard integrates
the health and experience scores from both your Next-Generation Firewall (NGFW)
deployments and your Prisma Access (PA) environment into a single pane of glass.
What does this dashboard show you?

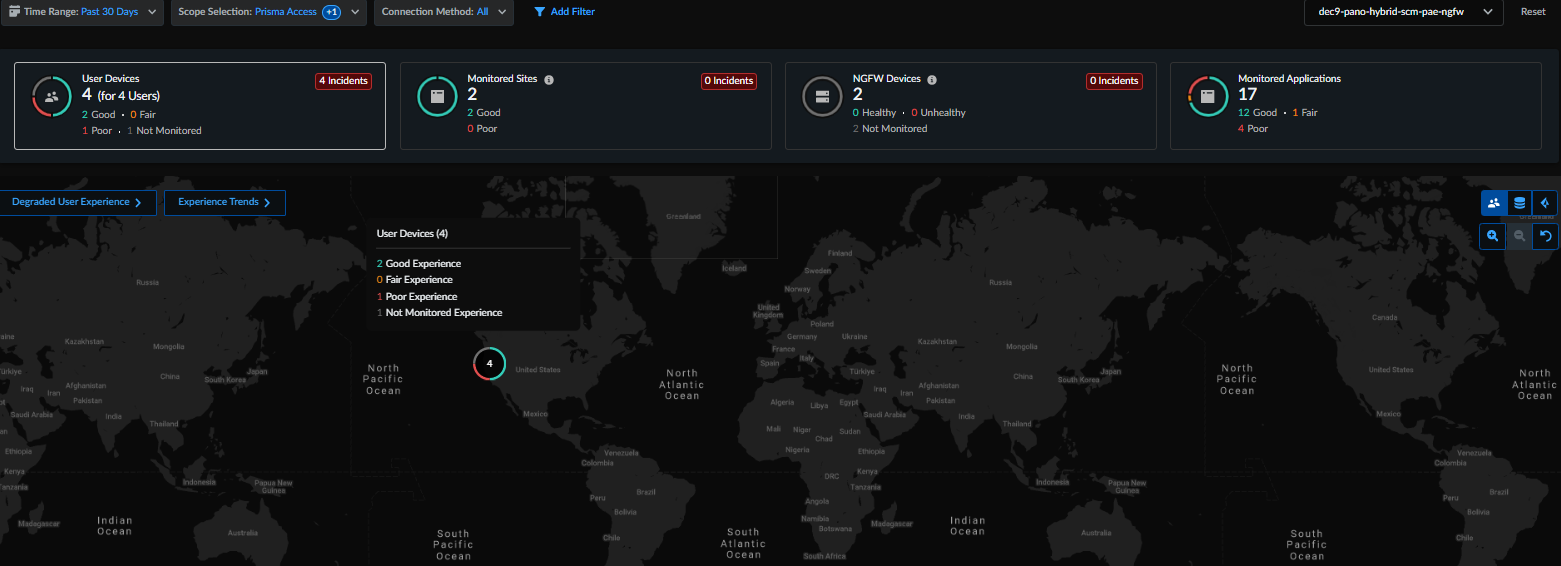

The dashboard has three sections: User Devices, Sites, and Monitored Apps. The
interactive view in the dashboard shows the experience scores to highlight the
status of user devices, sites, and applications in your organization as Good, Fair,
and Poor. You can further drill down to analyze user-specific details, users’
browsing experience, network segments causing degradation, and open incidents. For
sites, you can review Prisma SD-WAN and third-party connectivity data and any
related open incidents. It also displays flight paths on the map that shows the
connections from that site to other locations like a PA gateway or another data
center. For monitored applications, the dashboard shows application availability and
critical end-to-end performance metrics. The Map view in monitored apps shows all
Prisma Access locations, color-coded by their experience with that app. Click the
Prisma Access location to view the flight path from the Prisma Access location to
the application servers.
The dashboard shows data based on the following filters:
- Time range- view data for a selected time range.
- Scope Selection- provides visibility into data from Prisma Access and NGFW deployments. The data for devices that are connected directly to applications through the internet are automatically included in every deployment scope.
- Connection Method- supports data for users connected using Prisma Access Agent, GlobalProtect, Prisma Access Browser, and Explicit Proxy gateway.
- Prisma Access Location- filter data for a configured Prisma Access location.
- Source Location- view data that originated from a specific location.
- User Name- view user specific data for associated devices and applications.
How can you use the data from dashboard?
You can use this dashboard to:
- Monitor user device experiences across the organization such as status of the user devices, determine the devices that are not monitored by ADEM.
- Get visibility into the network path and identify impacted areas to troubleshoot performance issues of the impacted user devices.
- View and manage incidents that are relevant to each network segment.
- Monitor Prisma SD-WAN, third-party sites, and health of branch sites.
- Monitor availability and performance of all applications monitored by ADEM in every Prisma Access location.
- View detailed connectivity from users to PA locations and PA locations to data centers and app servers
