Customize the Dashboard

Manage the dashboard view.

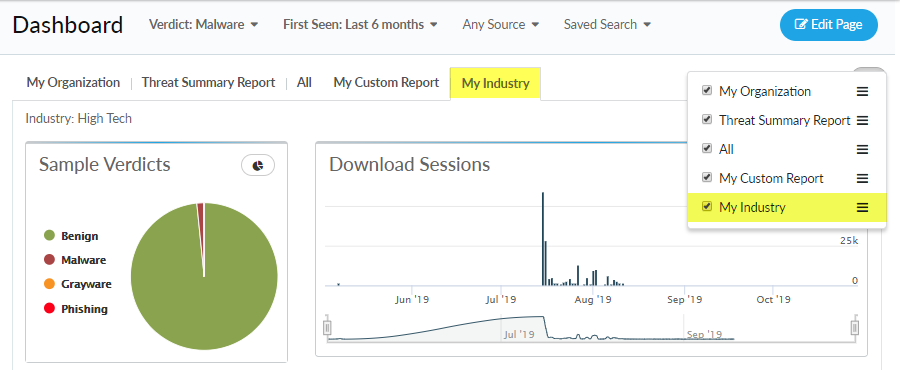

Click on the configure button to add an existing report to your dashboard view. Selecting a report adds a new tab with the report name to the dashboard.

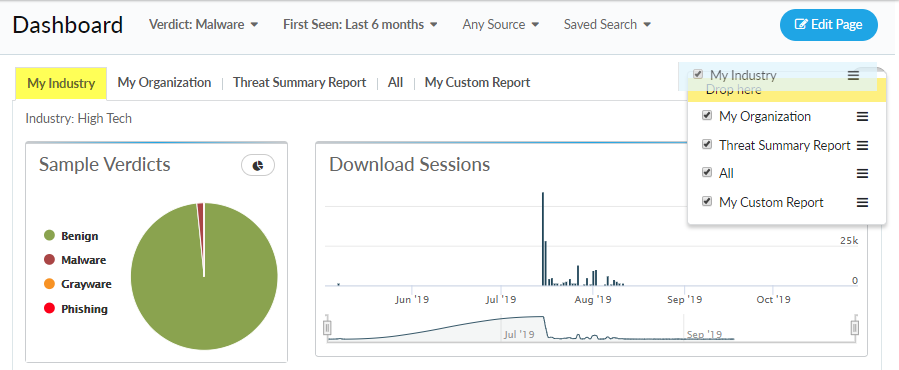

You can reorder the report tab list by dragging and dropping the report into a new order. The report at the top of the list corresponds to the leftmost report in the tab.

(Optional) For default reports, you can
Upgrade Page
to sync with the latest version of the report from Palo Alto Networks. From here, you can also
Edit Page
to modify the widgets used in the selected report. If you have made changes to a default report, you can
Reset
them to return the report to the default configuration (this option only appears when the report has been modified).

Edit the contents of a dashboard report.

Open the dashboard settings.
Click the Page Editor (1).
Edit the widgets and widget placement on the dashboard.
Edit the name of a widget (2)
Remove a widget.
Click X to remove a widget (3).
Removing a widget frees up a slot on the dashboard where you can Add a widget.
Add a new row of widgets.
Choose an area on the dashboard where you would like to insert a new row of widgets, and click
Add Row
(4). The newly added row includes two blank slots for widgets by default.
Add a widget.
Find a blank widget slot, and click
Add Widget
(5). Then select a widget type.
Remove a row of widgets.
On the right side of the row you want to remove, click
Remove Row
(6).
Change the number of widgets in a row.
Change Columns
(7) in the row to show up to 4 widgets.
Depending on the widget configuration and visualization options used, you might not be able to view the entire data set presented within a widget. Adjust the widget size by changing the number of columns per row and configuration options to best suit your report presentation requirements.
Save your changes to the dashboard.
When you are finished making your changes, click the Page Editor.
(
Optional
) Restore the default dashboard settings.
Click
Reset
to return the dashboard to default settings.
The Reset Page to Default option appears only after a report has been upgraded to the latest version and subsequently edited by a user.
