Drill Down on Dashboard Widgets
Use the dashboard widgets to add artifacts
of interest to a search. Artifacts added to the search editor from
the dashboard are added as conditions to the existing search—they
do not replace existing search conditions (although you can continue
to modify the search from the search editor).
For
an overview of each of the dashboard widget, take a First
Look at the AutoFocus Portal.

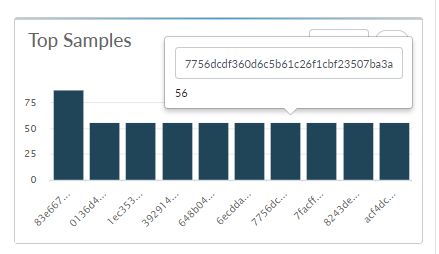

- View artifact details.Hover over the Top Applications, Top Malware, Top Firewalls, and Target Industries widgets to reveal statistics. For example, hover over a single bar on the Top Samples widget (where the bar represents a sample) to view a close-up of the sample hash and the number of times the sample was detected during the selected date range.
![]()

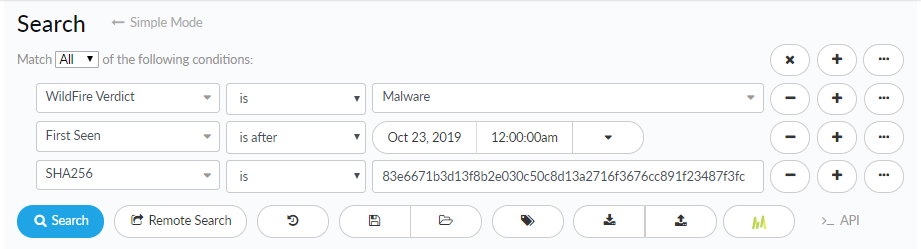

- Add an artifact to the search editor.Click on a single bar in the Top Applications, Top Samples, Top Firewalls, and Target Industries widgets to jump to the search editor and perform a search using the data. For example, click on a single bar on the Top Samples widget to search on the specified file hash.
![]()
- For details on interacting with the Top Tags widget, Vote for, Comment on, and Report Tags.
- For details on interacting with the Alerts Log widget, View Alerts in AutoFocus.
