11.1

Log in to the Panorama Web Interface.
Add a ZTP firewall to Panorama.
You must connect the ZTP firewall to the internet using the Eth1/1 interface to successfully register the ZTP firewall with the CSP and push the policy and network configurations.

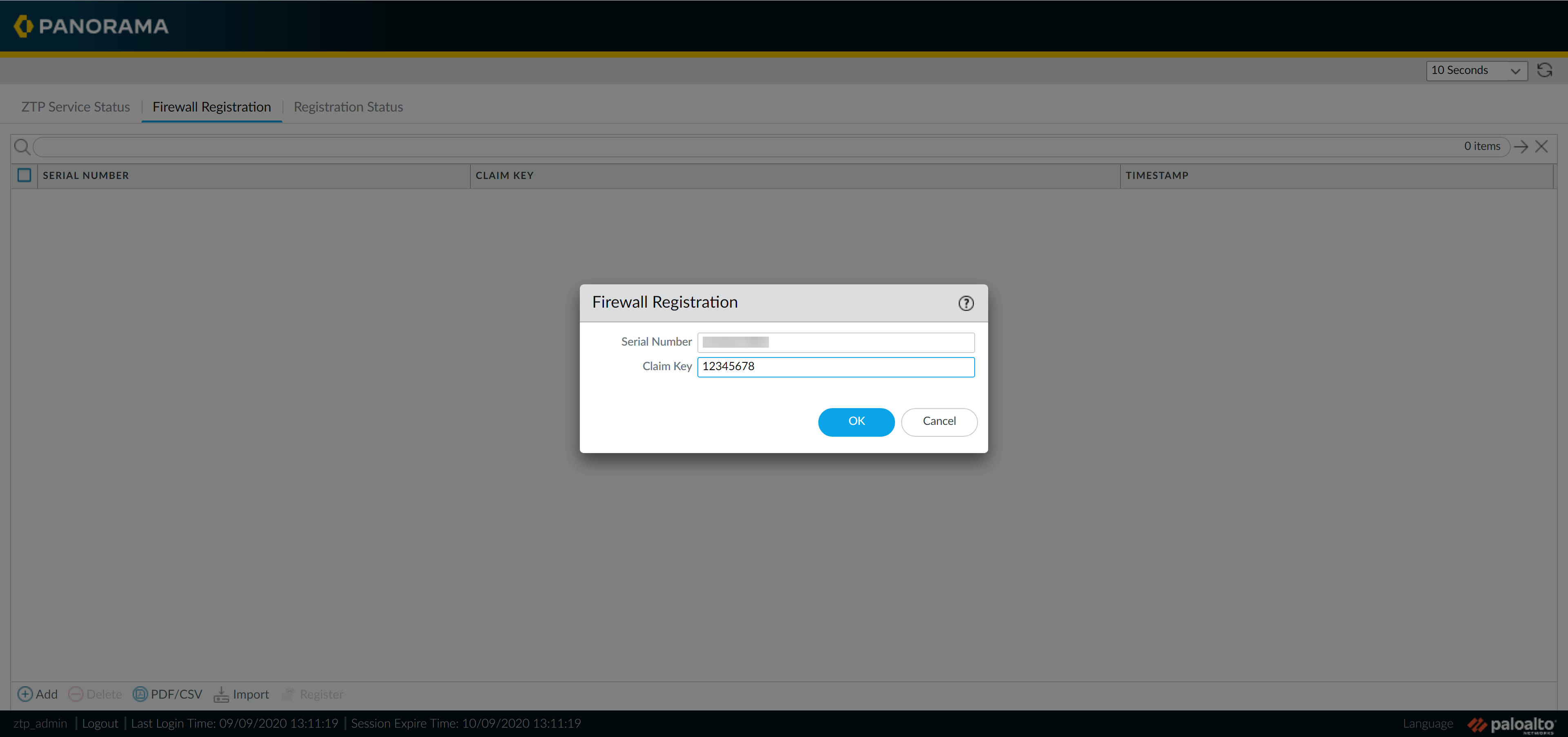

Select
Firewall Registration
and
Add
a new ZTP firewall.
Enter the
Serial Number
of the ZTP firewall.
Enter the
Claim Key
for the ZTP firewall provided by Palo Alto Networks.
The eight digit numeric claim key is printed on a physical label attached to the back of the ZTP firewall you received from Palo Alto Networks.

Click
OK
to save your configuration changes.

Select the newly added ZTP firewall and
Register
the firewall.
When prompted, click
Yes
to confirm registering the ZTP firewall.
Verify the firewall successfully registered with the CSP.
The firewall must successfully register with the CSP to successfully obtain device certificate.
Select
Registration Status
and verify that the ZTP firewall successfully registered with the CSP.

Log in to the Panorama Web Interface using admin credentials.
Select
Panorama
Managed Devices
Summary
and verify that the ZTP firewall is successfully added as a managed firewall.
The ZTP firewall is listed but has a
Disconnected
Device State
.
Ensure that the
To SW Version
column is configured to the correct PAN-OS version so that the firewall does not upgrade or downgrade unintentionally. ZTP functionality is supported only for PAN-OS 10.0.1 and later releases. Additionally, the PAN-OS version must be the same or an earlier version of the PAN-OS version running on Panorama.
For more information, see Upgrade a ZTP Firewall.
Add the ZTP firewall to the device group and template stack that contain the required ZTP configuration.
You must add the ZTP firewall to a device group and template stack for your firewalls to display as
Connected
to push policy and network configurations.
You must keep the ZTP firewall in the ZTP device group and template stack that the ZTP template is associated with. This is required for the firewall to maintain connectivity with Panorama and prevent any unintended configuration reverts on the firewall.
Log in to the Panorama Web Interface using admin credentials.
Select
Panorama
Managed Devices
Summary
.
Select the ZTP firewalls you added and registered in the previous step and
Reassociate
.
Select the ZTP
Device Group
and
Template Stack
.
Check (enable)
Auto Push on 1st Connect
to automatically push the device group and template stack configurations when the ZTP firewall successfully connects to Panorama for the first time.
(
Optional
) Specify the
To SW Version
to automatically upgrade your firewalls to a more recent PAN-OS version.
Ensure that the
To SW Version
column is configured to the correct PAN-OS version so that the firewall does not upgrade or downgrade unintentionally. ZTP functionality is supported only for PAN-OS 10.0.1 and later releases. Additionally, the PAN-OS version must be the same or an earlier version of the PAN-OS version running on Panorama.
For more information, see Upgrade a ZTP Firewall.
Commit
and
Commit to Panorama
Power on the ZTP firewall.
Wait for the ZTP firewall to finish powering on. On Panorama, select
Panorama
Managed Devices
Summary
and verify that the ZTP firewall is now
Connected
.
Complete setting up the newly onboarded firewall.
Log in to the firewall web interface and activate the Support license.
Log in to the Panorama web interface and activate any additional licenses on your managed firewall.
Install the latest dynamic content updates on the managed firewall.
Select
Panorama
Device Deployment
Dynamic Updates
and
Check Now
for the latest updates
Download
the latest dynamic content release version.
Install
and select the newly added firewalls.
Click
OK
when prompted.
(
Optional
) Upgrade the managed firewall as needed.
