Enable Multiple Virtual Systems Support on VM-Series in Panorama Console
PAN-OS 11.1.3 and later releases
After you enable the multiple virtual
systems support on the VM-Series firewall, perform the following steps to configure
multiple virtual systems using the Panorama console.- Log in to Panorama.

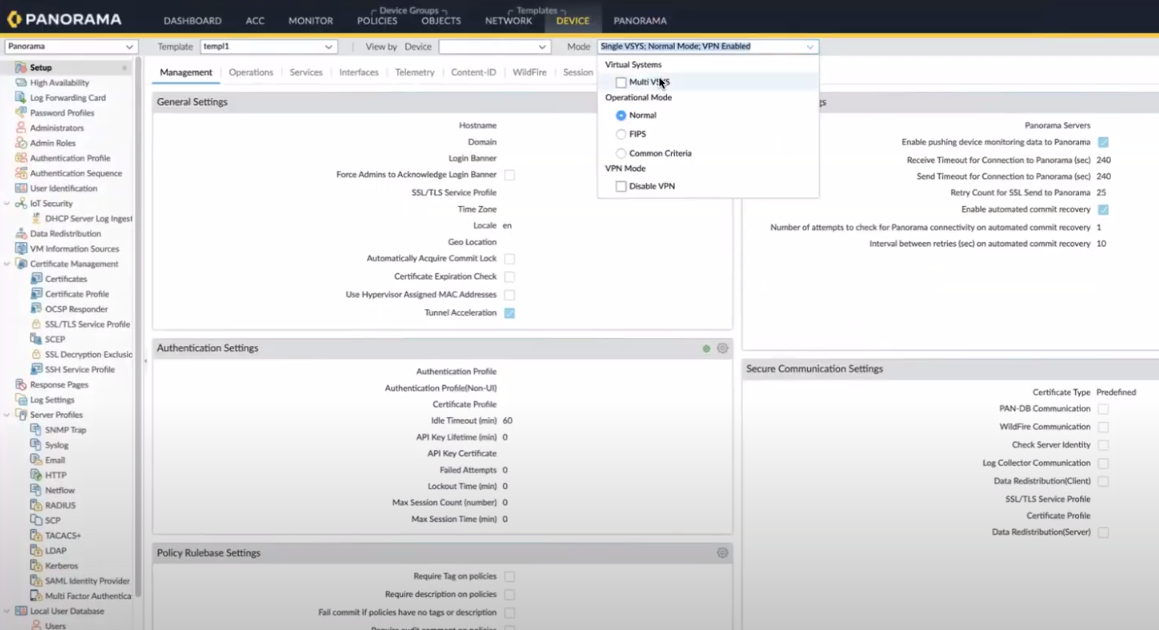

- Go toDeviceand select theMulti Vsyscheck-box.
![]()

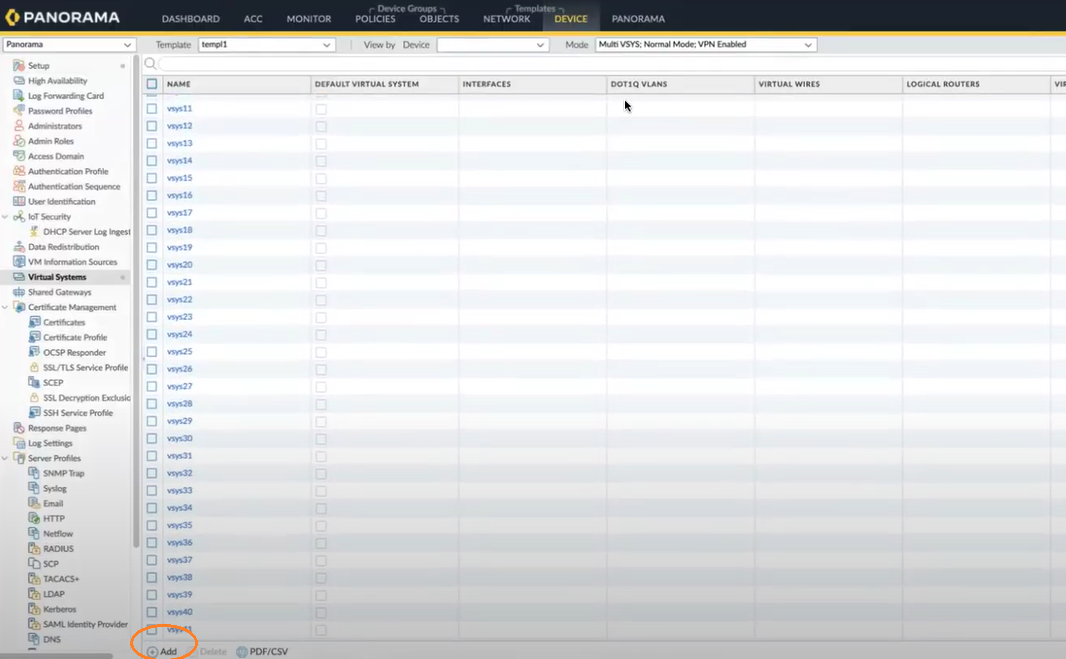

- Navigate toVirtual Systemsand then clickAddto configure virtual systems on your firewall.
![]()
- Configure Virtual Systems on your VM-Series firewall.
- SelectCommit > Push to Devicesand push the entire Panorama managed configuration to each vsys of the multi-vsys firewall.
