Install the Enterprise DLP Plugin

1. Activate the Enterprise DLP License.

   You must activate the Enterprise DLP license and associate it with your Panorama and NGFW before you install the Enterprise DLP plugin. This ensures the plugin correctly maps to your TSG and prevents synchronization issues.
2. Review the Compatibility Matrix to verify the Enterprise DLP plugin version is supported on the PAN-OS version running on Panorama.
3. Verify that Panorama and your managed devices belong to the same tenant service group (TSG) using Device Associations in Strata Cloud Manager.

   Panorama and any managed devices on which you want to use Enterprise DLP must belong to the same TSG. This enables Panorama to synchronize Enterprise DLP data profiles with Strata Cloud Manager and maintain consistent Security policy rule enforcement across your managed firewalls.

   If Panorama isn't already associated with the TSG, use Device Associations to add it before you install the plugin.
4. Add your NGFW or Prisma Access tenants to a device group and template stack.

   Device groups and template stacks are required to manage your managed device configurations and are required to push Enterprise DLP configuration changes.

   Skip this step if you already added your NGFW or Prisma Access tenants to a device group and template stack.
5. Install device certificates on Panorama and your managed firewalls.

   1. Install the Panorama Device Certificate.

      (High Availability) If Panorama is in an active/passive high availability (HA) configuration, install the Panorama device certificate on both HA peers.
   2. Install the Device Certificate for Managed Firewalls.

      The device certificate is required for all managed firewalls using Enterprise DLP.
6. Install the plugin on Panorama.

   1. Log in to the Panorama web interface.
   2. Select PanoramaPlugins and search for the latest version of the Enterprise DLP plugin.
   3. Download the Enterprise DLP plugin
   4. (HA only) Check (enable) Sync to HA peer to install the Enterprise DLP on the Panorama peer.

      You must install the Enterprise DLP plugin on both HA peers to successfully use Enterprise DLP. Installing the Enterprise DLP plugin on only one of the HA peers might result in configuration push errors and cause the active HA peer to become suspended.
   5. and Install the Enterprise DLP plugin on Panorama.

      Repeat this step on both Panorama HA peers.
7. Commit and push the new configuration to your managed firewalls to complete the Enterprise DLP plugin installation.

   This step is required for Enterprise DLP data filtering profile names to appear in Data Filtering logs.

   The Commit and Push command isn’t recommended for Enterprise DLP configuration changes. Using the Commit and Push command requires the additional and unnecessary overhead of manually selecting the impacted templates and managed firewalls in the Push Scope Selection.

   • Full configuration push from Panorama
     1. Select CommitCommit to Panorama and Commit.
     2. Select CommitPush to Devices and Edit Selections.
     3. Select Device Groups and Include Device and Network Templates.
     4. Click OK.
     5. Push your configuration changes to your managed firewalls that are using Enterprise DLP.
   • Partial configuration push from Panorama
     You must always include the temporary __dlp administrator when performing a partial configuration push. This is required to keep Panorama and Enterprise DLP in sync.

     For example, you have an admin Panorama admin user who is allowed to commit and push configuration changes. The admin user made changes to the Enterprise DLP configuration and only wants to commit and push these changes to managed firewalls. In this case, the admin user is required to also select the __dlp user in the partial commit and push operations.
     1. Select CommitCommit to Panorama.
     2. Select Commit Changes Made By and then click the current CASB-X admin user to select additional admins to include in the partial commit.
        In this example, the admin user is currently logged in and performing the commit operation. The admin user must click admin and then select the __dlp user. If there are additional configuration changes made by other CASB-X admins they can be selected here as well.
        Click OK to continue.

     3. Commit.
     4. Select CommitPush to Devices.
     5. Select Push Changes Made By and then click the current Panorama admin user to select additional admins to include in the partial push.
        In this example, the admin user is currently logged in and performing the push operation. The admin user must click admin and then select the __dlp user. If there are additional configuration changes made by other Panorama admins they can be selected here as well.
        Click OK to continue.

     6. Select Device Groups and Include Device and Network Templates.
     7. Click OK.
     8. Push your configuration changes to your managed firewalls that are using Enterprise DLP.
8. Activate your Enterprise DLP license for your managed firewalls.

   Repeat this step for all managed firewalls using Enterprise DLP.

   1. Log in to the Palo Alto Networks Customer Support Portal.

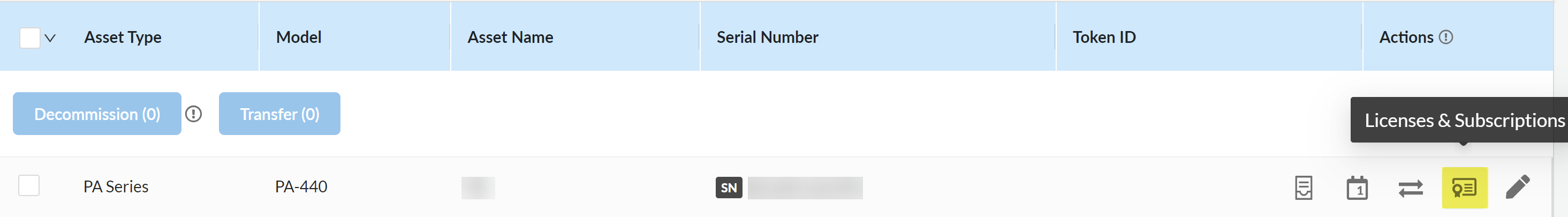

   2. Select AssetsLicenses & Subscriptions and locate the managed firewall for which you want to activate Enterprise DLP
   3. In the Actions column, click Licenses & Subscriptions.

   4. Click Activate License at the bottom of the page.

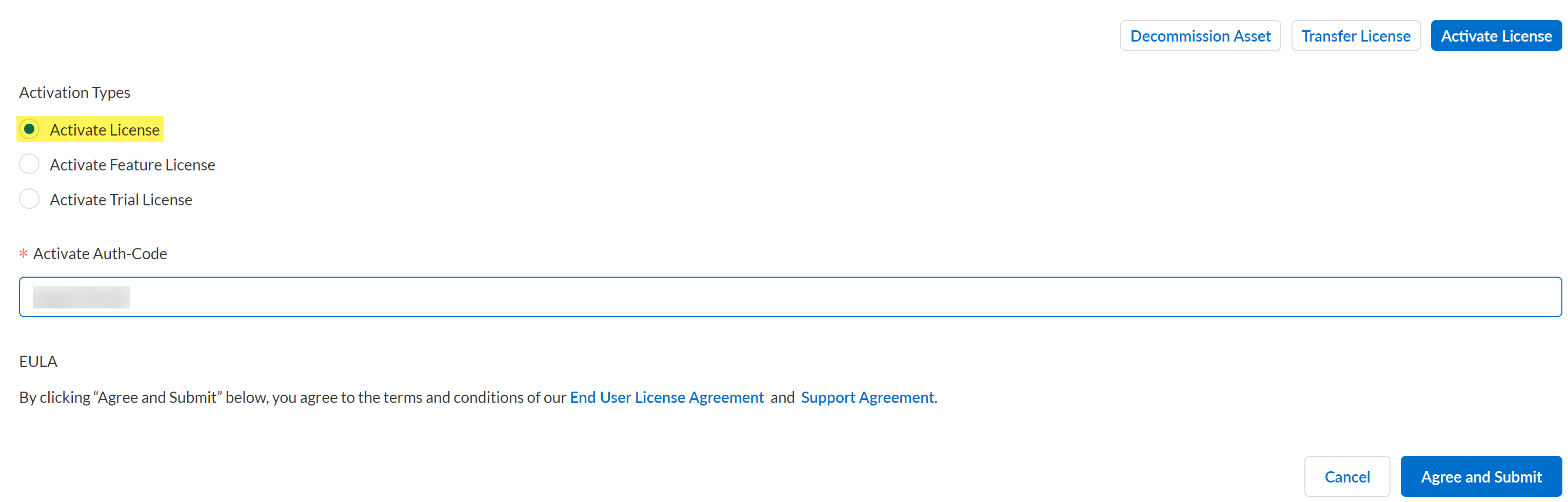

   5. Select Activate License from the list of Activation Types.
   6. In the Activate Auth-Code field, enter the auth code provided by Palo Alto Networks.
   7. Agree and Submit.

9. (Optional) Create a Palo Alto Networks Support ticket to enable your Enterprise DLP license to transfer between firewalls.

   Requesting that the Enterprise DLP license is transferable enables you to transfer your DLP license to other managed firewalls.

   In the support ticket, include the following information:

   • The request for a firewall transfer for the Enterprise DLP license.
   • Your CSP account ID and the email associated with your CSP account.
   • The managed firewall serial number. If you activated the Enterprise DLP license on multiple managed firewalls, include the serial numbers for all the managed firewalls in a single support ticket.
   • The auth codes used to activate the Enterprise DLP license on your managed firewalls.
   • Also provide the CSP account ID with which additional managed firewalls are associated if you have managed firewalls that belong to a different CSP account.
10. Verify that you successfully activated Enterprise DLP.

    1. On Panorama, select ObjectsDLP to confirm that the Data Filtering Patterns and Data Filtering Profiles automatically populate with the predefined data patterns and profiles.

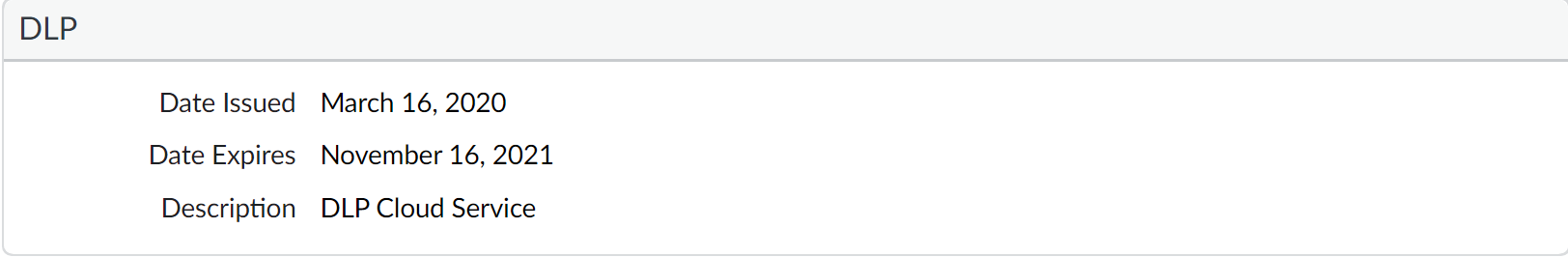

    2. On the firewall web interface, select DeviceLicenses and verify that the Enterprise DLP successfully activated.

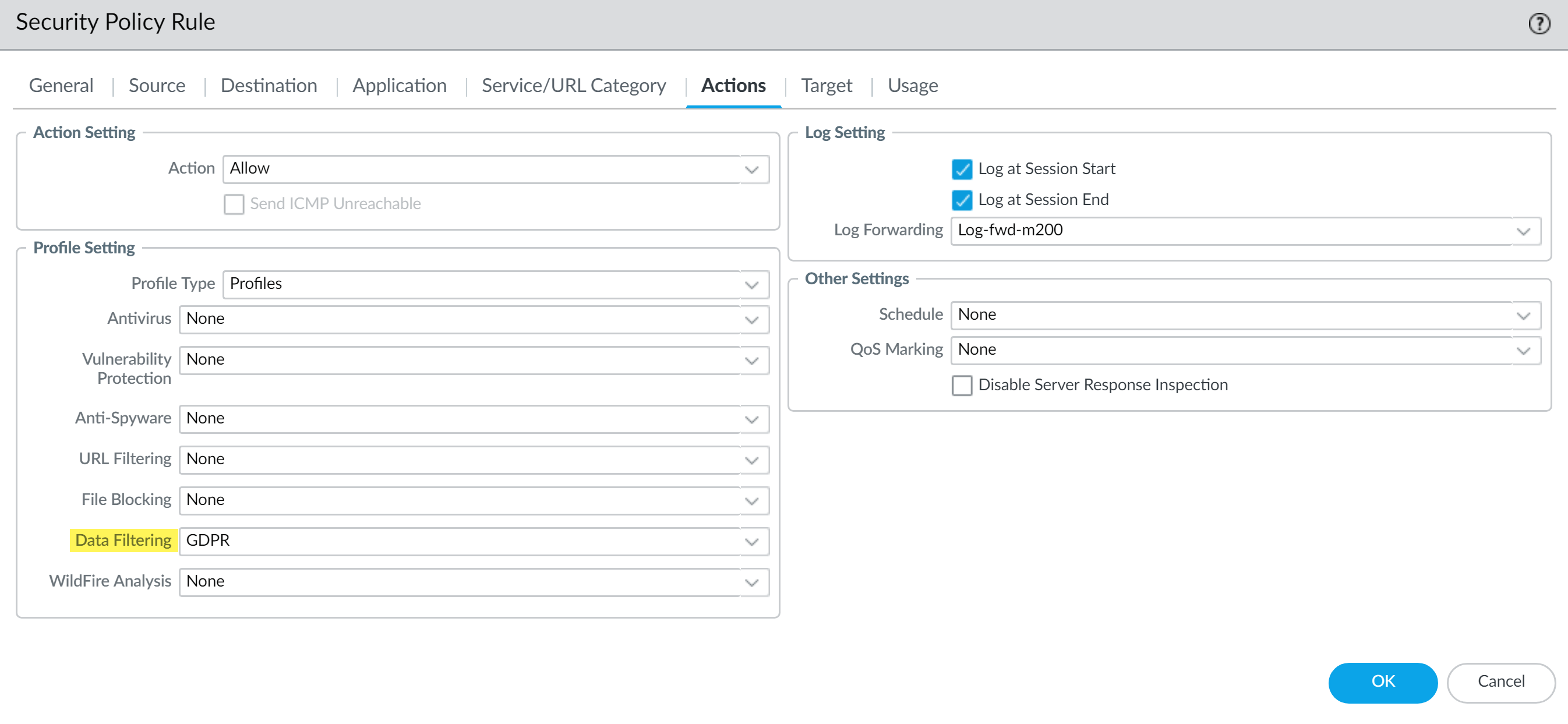

11. After you successfully install the Enterprise DLP plugin on Panorama, you must create Security policy rules to enable your managed firewalls to leverage Enterprise DLP.

Uninstall the Enterprise DLP Plugin

1. Log in to the Panorama web interface.
2. Select PoliciesSecurity and remove all Enterprise DLP data filtering profiles from your Security policy rules.

   This step is required to successfully uninstall the Enterprise DLP plugin.

3. Commit and push your configuration changes to your managed firewalls using Enterprise DLP.

   The Commit and Push command isn’t recommended for Enterprise DLP configuration changes. Using the Commit and Push command requires the additional and unnecessary overheard of manually selecting the impacted templates and managed firewalls in the Push Scope Selection.

   1. Select CommitCommit to Panorama and Commit.
   2. Select CommitPush to Devices and Edit Selections.
   3. Select Device Groups and Include Device and Network Templates.
   4. Click OK.
   5. Push your configuration changes to your managed firewalls that are using Enterprise DLP.
4. In the Panorama web interface, select PanoramaPlugins and Uninstall the Enterprise DLP plugin.

   (HA) Repeat this step on both Panorama HA peers if Panorama is an HA configuration.
5. Commit and push the new configuration to your managed firewalls to uninstall the Enterprise DLP plugin.

   The Commit and Push command isn’t recommended for Enterprise DLP configuration changes. Using the Commit and Push command requires the additional and unnecessary overheard of manually selecting the impacted templates and managed firewalls in the Push Scope Selection.

   • Full configuration push from Panorama
     1. Select CommitCommit to Panorama and Commit.
     2. Select CommitPush to Devices and Edit Selections.
     3. Select Device Groups and Include Device and Network Templates.
     4. Click OK.
     5. Push your configuration changes to your managed firewalls that are using Enterprise DLP.
   • Partial configuration push from Panorama
     You must always include the temporary __dlp administrator when performing a partial configuration push. This is required to keep Panorama and the DLP cloud service in sync.

     For example, you have an admin Panorama admin user who is allowed to commit and push configuration changes. The admin user made changes to the Enterprise DLP configuration and only wants to commit and push these changes to managed firewalls. In this case, the admin user is required to also select the __dlp user in the partial commit and push operations.
     1. Select CommitCommit to Panorama.
     2. Select Commit Changes Made By and then click the current Panorama admin user to select additional admins to include in the partial commit.
        In this example, the admin user is currently logged in and performing the commit operation. The admin user must click admin and then select the __dlp user. If there are additional configuration changes made by other Panorama admins they can be selected here as well.
        Click OK to continue.

     3. Commit.
     4. Select CommitPush to Devices.
     5. Select Push Changes Made By and then click the current Panorama admin user to select additional admins to include in the partial push.
        In this example, the admin user is currently logged in and performing the push operation. The admin user must click admin and then select the __dlp user. If there are additional configuration changes made by other Panorama admins they can be selected here as well.
        Click OK to continue.

     6. Select Device Groups and Include Device and Network Templates.
     7. Click OK.
     8. Push your configuration changes to your managed firewalls that are using Enterprise DLP.

Troubleshoot the Enterprise DLP Plugin

Validation Error:
deviceconfig -> plugins -> dlp -> internal -> dlp-data-profiles -> <Profile Name> -> file-type-array -> any 'any' is not a valid reference
deviceconfig -> plugins -> dlp -> internal -> dlp-data-profiles -> Bulk CCN -> file-type-array is invalid
