Install Antennas on ION 3200H-C5G-WW
Learn how to install antennas on ION 3200H-C5G-WW (supports multi-band antennas)
device of Prisma SD-WAN.
The ION 3200H-C5G-WW supports multi-band antennas which can be easily secured to the
device.
The ION 3200H-C5G-WW has four antenna SMA (F) connectors.
The antennas must be connected before the
device is installed in an equipment rack.
Before installing the device, it is recommended that you conduct a cellular
location assessment of the installation site to receive the best signal strength
before installing the device.
If installing the device on a wall or on a flat surface, it is recommended that
you orient the antennas upright and slanted slightly outwards, not exceeding 45
degrees, to improve the signal quality.
| Feature | Description |
|---|---|
| Antennas | Multi–Band 4G / 5G Antenna 4G - 3x SMA Antenna
connectors 5G - 4x SMA Antenna connectors |
| Frequency Range | 615-960MHz / 1500-1600MHz / 1710-2690MHz / 3300-3700MHz |
| Peak Gain | 2.3dBi in 800MHz band, 4.4dBi in 1575MHz band, 2.6dBi in 2170MHz band, 1.7dBi in 3300MHz band, 3.8dBi in 4400MHz band |
| Max Antenna VSWR (voltage standing wave ratio) | <3:1 |
| Interface | SMA (F) Connectors |
| Antenna Dimensions | 197 mm x 58 mm x 8 mm (L x W x T) |

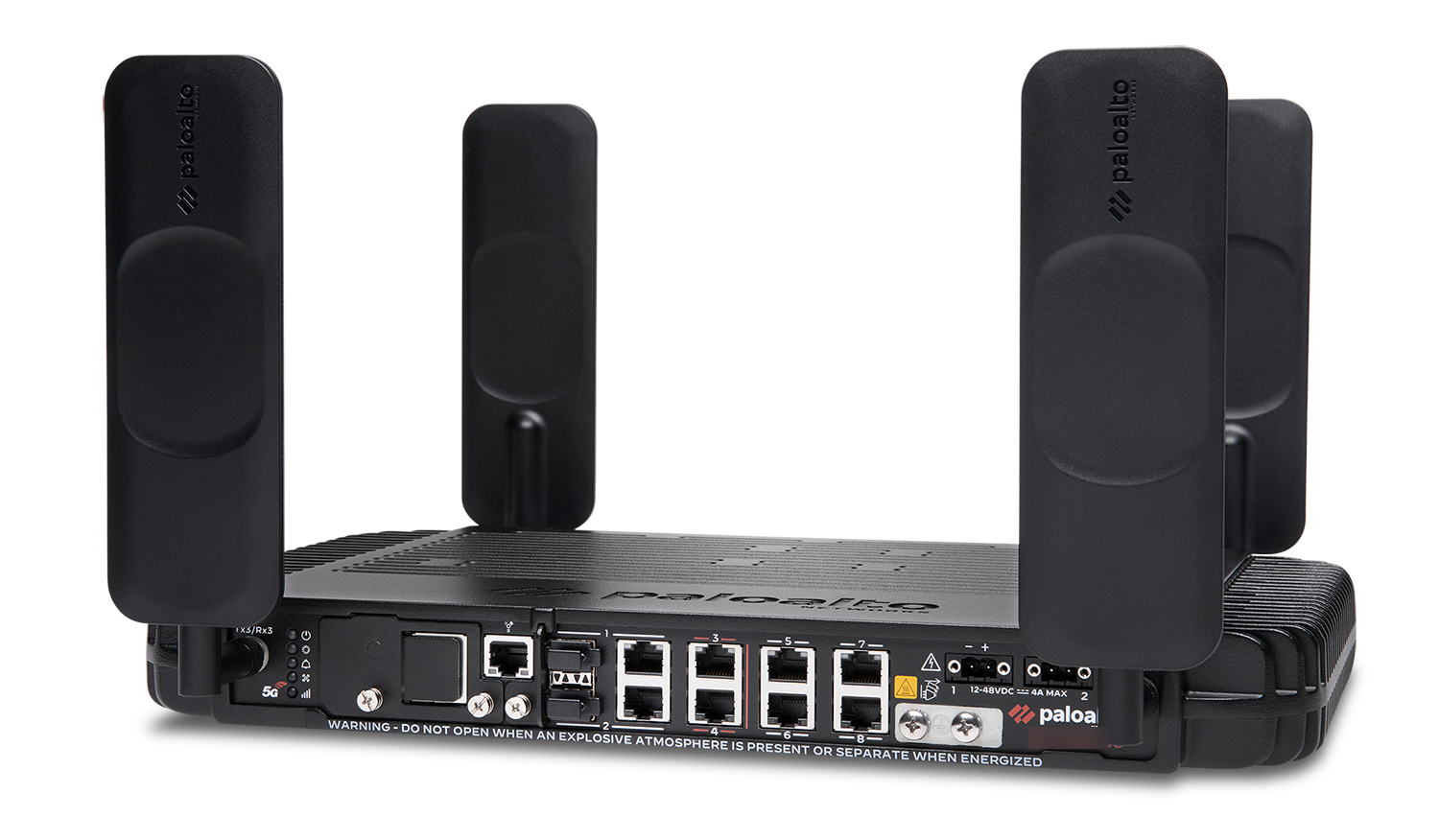

- Secure the antennas to the SMA connectors located at the corners of the device. Make sure to tighten each antenna by hand. The antennas are fixed at a 90 degree orientation but can be repositioned after installation.
![]()
Adjust the antenna orientation to receive the optimal signal strength in your environment.Check the signal strength of the firewall by viewing the Cellular LED (see ION Device 3200H LEDs).Do not point the antennas toward one another or place them close together. Hold the antenna in a fixed position while tightening the splined nut on it.Ensure that power cables do not cross over the antennas as this can cause signal quality distortion and antenna performance degradation.
