ION 3200 Front Panel
Check out the ION 3200 device front panel parts.

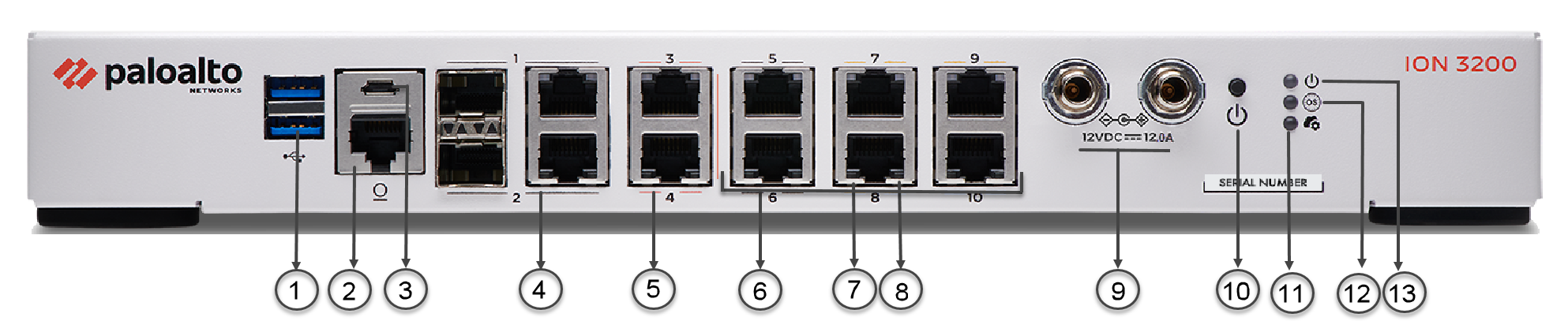

The following image shows the front panel
of the ION 3200 and the table describes the front panel components.
| Item | Component | Description |
|---|---|---|
| 1 | USB Port | USB 3.0 (reserved for future use). |
| 2 | Console Port | RJ-45 Serial console port. |
| 3 | Micro USB | Micro USB Type B Console connector. |
| 4 | SFP/RJ-45 Combo Ports | Ports 1 and 2 are SFP/RJ-45 ports. |
| 5 | Bypass Pair | Ports 3 and 4 are RJ-45 ports with Bypass. Bypass is indicated with orange bars on the right side of the ports. |
| 6 | Ethernet Ports | Ports 5, 6, 7, 8, 9, 10 are RJ-45 ports. Ports 7-10 are PoE ports indicated with yellow bars above and below the ports. |
| 7 | Link Speed LED | On ethernet ports 1-10, the left LED indicates the link speed. |
| 8 | Activity LED | On ethernet ports 1-10, the right LED indicates the activity on the port. |
| 9 | Power | Power Input. |
| 10 | Restart button | Restart button. |
| 11 | Controller LED | Controller LED; the LED turns green on successful connection with the Prisma SD-WAN controller. |
| 12 | OS LED | Operating System status LED. |
| 13 | Power LED | Power LED; the LED turns green when powered on. |
