    Replace a Power Adapter on a PA-400 Series Firewall

    Table of Contents

    Replace a Power Adapter on a PA-400 Series Firewall

    Remove a failed power adapter from a PA-400 Series firewall and replace it with a new power adapter.
    The PA-415, PA-415-5G, PA-440, PA-445, PA-450, PA-455, PA-455-5G, and PA-460 firewalls can operate on one power adapter or you can install a second power adapter for power redundancy. If two power adapters are installed and one fails, you can replace the failed power adapter without interruption. The PA-410 can only operate on one power adapter.
    The CLI cannot be used to determine the status of the PA-400 Series firewalls power adapter. To manually interpret the status of the power adapter, verify that your power cable connections are secure and that the LED on the power adapter is on. If the LED is not illuminated even though the power cable connections are secure, your power adapter has failed.
    To avoid injury to yourself or damage to your Palo Alto Networks® hardware or the data that resides on the hardware, read the Product Safety Warnings.
    1. Disconnect the failed power adapter.
      (PA-415, PA-415-5G, PA-440, PA-445, PA-450, PA-455, PA-455-5G, and PA-460) Unplug the failed power adapter from the AC power source and then turn the power cable connector nut counterclockwise to release the cable. Pull the cable away from the firewall to remove it.
      The power adapter inputs for the PA-440, PA-450, and PA-460 are on the back panel of the device. The power adapter inputs for the rest of the PA-400 Series firewalls are on the front panel of the device.

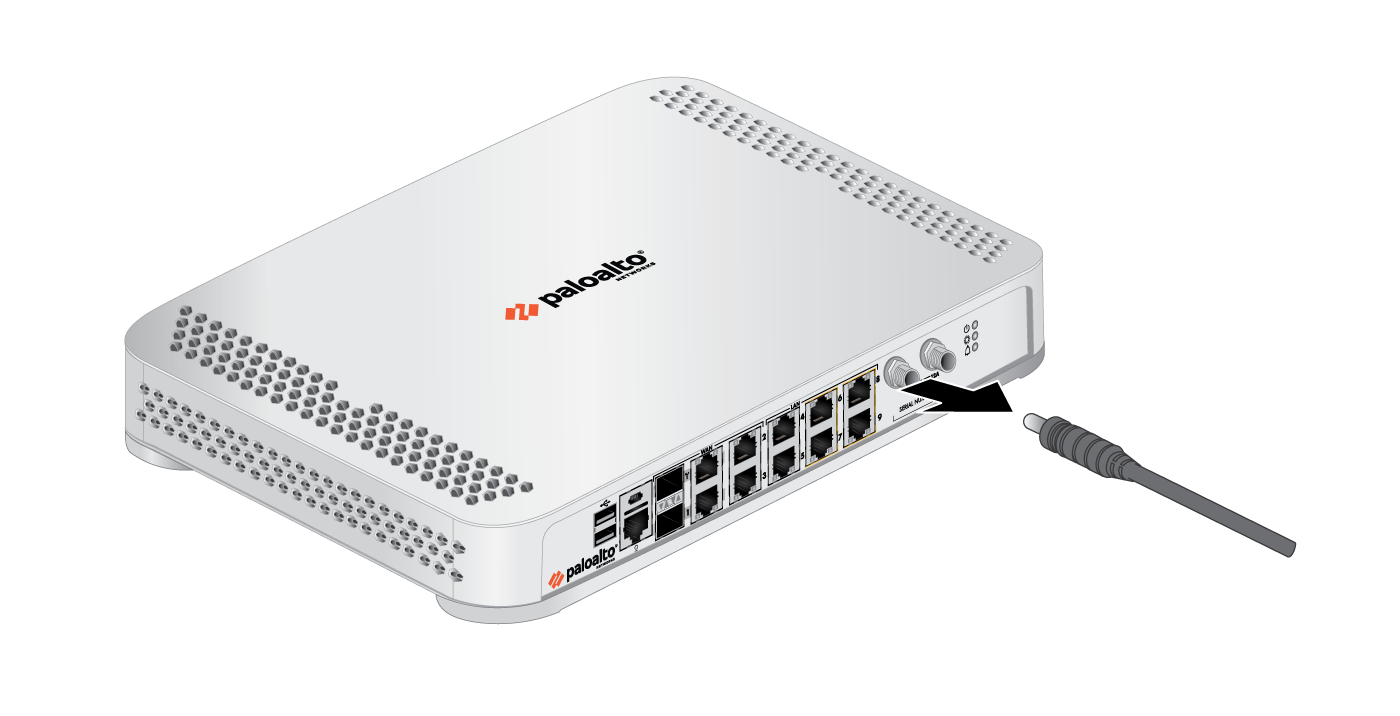

      (PA-415, PA-415-5G, PA-455, PA-455-5G, and PA-445 (PA-415 pictured))
      (PA-440, PA-450, and PA-460)
      (PA-410) Unplug the failed power adapter from the AC power source and pull the power cable out of the firewall to remove it.
    2. Connect a new power adapter.
      (PA-415, PA-415-5G, PA-440, PA-445, PA-450, PA-455, PA-455-5G, and PA-460) Connect the DC connector from the new power adapter to the power input (PWR 1 or PWR 2) port on the firewall and, if applicable, tighten the connector nut to secure the cable to the firewall.
      (PA-410) Connect the DC connector from the new power adapter to the power input port on the firewall.
    3. Plug the AC connector from the power adapter into an AC power source.
